NEW QUESTION 1

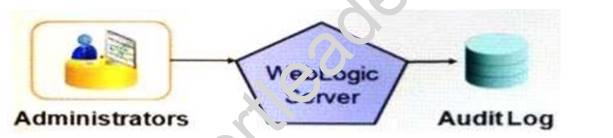

The image below depicts a high-level diagram of configuration auditing within WebLogic Server. When Administrators make configuration changes to the WebLogic Server domain, those changes are sent to the audit provider for logging.

What task must be performed in order to make configuration audit messages in the log meaningful to an observer?

• A. Define unique users for all administrators.
• B. Configure a persistent store for log messages.
• C. Configure the CONFIG severity level.
• D. Define the audit message listener for audit messages.

Answer: D

Explanation:
You can configure the Administration Server to emit a log message when a user changes the configuration or invokes management operations on any resource within a domain. For example, if a user disables SSL on a Managed Server in a domain, the Administration Server emits a log message. These messages provide an audit trail of changes within a domain's configuration. You can then create and use a JMX listener and filter that respond to configuration auditing messages.

NEW QUESTION 2
Your development team is considering several different types of new applications. You have been asked to advise them concerning which types can be deployed in WebLogic Server leveraging the Production Redeployment feature.
Which application deployment type is NOT supported for Production Redeployment? (Choose the best answer.)

• A. enterprise applications (EAR) that contain a Coherence Grid Archive (GAR) module
• B. web service applications that are conversational or that use reliable messaging
• C. standalone Enterprise Java Bean (EJB) applications
• D. enterprise applications (EAR) that are accessed by inbound JMS messages

Answer: A

NEW QUESTION 3
You have a versioned application deployed in your production environment. You have been asked to troubleshoot why
the most recent production redeployment appeared to allow the older version to retire too quickly.
In this case, the application had active RMI clients, but their subsequent calls were directed to the newer version immediately rather than waiting for the expected five minutes defined by the retirement timeout argument. The script command was:
java weblogic.Deployer –adminurl http://localhost:7001 –user weblogic
-password Welcome1 –redeploy –name myDeployment
-source /myDeployments/myApplication/appX
-retiretimeout 300
You expected the older version to remain active (when there are active RMI clients) for five minutes after executing the production redeployment.
Which modification should have been made to this command to ensure the older version remains active? (Choose the best answer.)

• A. java weblogic.Deployer –adminurl http://localhost:7001 –user weblogic-password Welcome1 –redeploy –name myDeployment-source /myDeployments/myApplication/appX-retiretimeout 300 –rmigraceperiod 300
• B. java weblogic.Deployer –adminurl http://localhost:7001 –user weblogic-password Welcome1 –redeploy –name myDeployment-source /myDeployments/myApplication/appX-retiretimeout 300 -keepsessions
• C. java weblogic.Deployer –adminurl http://localhost:7001 –user weblogic-password Welcome1 –redeploy –name myDeployment-source /myDeployments/myApplication/appX-retiretimeout 300 –timeout 300
• D. java weblogic.Deployer –adminurl http://localhost:7001 –user weblogic-password Welcome1 –redeploy –name myDeployment-source /myDeployments/myApplication/appX-retiretimeout 300 –remote

Answer: D

Explanation:
The –remote argument indicates that weblogic.Deployer is not running on the same machine as the Administration Server, and that source paths specified in the command are valid for the Administration Server machine itself. If you do not use the -remote option, weblogic.Deployer assumes that all source paths are valid paths on the local machine.

NEW QUESTION 4
Examine the domain diagram:

You are asked to write a WLST scrip that will print the current available heap size for server04. Assuming:
Which two code options will accomplish this task? (Choose two.)

• A. connect(‘weblogic’,‘Welcome1’,‘host00.acme.com:7001’)domainRuntime()x = getMBean(‘/ServerRuntimes/server04/JVMRuntime/server04’)print x.getHeapFreeCurrent()
• B. connect(‘weblogic’,‘Welcome1’,‘host02.acme.com:7201’)serverRuntime()x = getMBean(‘/JVMRuntime/server04’)print x.getHeapFreeCurrent()
• C. connect(‘weblogic’,‘Welcome1’,‘host00.acme.com:7001’)serverRuntime()x = getMBean(‘/JVMRuntime/server04’)print x.getHeapFreeCurrent()
• D. nmConnect(‘weblogic’,‘Welcome1’,‘host02.acme.com:5556’)serverRuntimes()x=getMBean( ‘/server04/JVMRuntime/server04’)print x.getHeapFreeCurrent() E.nmConnect(‘weblogic’,‘Welcome1’,‘host00.acme.com:5556’)domainRuntime()x=getMBean( ‘/ServerRuntimes/server0 4/JVMRuntime/server04’)print x.getHeapFreeCurrent()

Answer: AE

Explanation:
A: We can connect to AdminServer through host00.acme.com:7001 with the connect command.
The domainRuntime()command navigates to the last MBean to which you navigated in the domain Runtime hierarchy or to the root of the hierarchy, DomainRuntimeMBean. This read-only hierarchy stores the runtime MBeans that represent your current domain.
E: The nmConnect connects WLST to Node Manager to establish a session. After connecting to Node Manager, you can invoke any Node Manager commands via WLST. We should use DomainRuntime() not serverRuntime() as the node manager is domain-scoped.
References:

NEW QUESTION 5
Examine the domain diagram:

Assume all servers are running and you have an online WLST session connected to the administration server.
Select two code options that would set the variable x as a reference to the machine02 configuration MBean. (Choose two.)

• A. cd(‘/Machines/machine02’)x = cmo
• B. x = getMBean(“/Machines/machine02”)
• C. x = cmo.getRef(‘/Machines/machine02’)
• D. getRef(“/Machines/machine02”)x = cmo.currentObj()
• E. cmo.getMBean(‘/Machines/machine02’)x = cmo.currObj()
• F. cd(‘/Machines/machine02’)x = getRef(cmo)
• G. x = getConfiguration(‘/Machines/machine02’)

Answer: AB

Explanation:
A: WLST online provides a variable, cmo, that represents the current management object. Example: wls:/mydomain/serverConfig/Servers/myserver/Log/myserver> cmo[MBeanServerInvocationHandler]mydomain:Name=myserver,Server=myserver,Type=
Log
B: wls:/mydomain/edit !> bean=getMBean('Servers/myserver/WebServer/myserver') wls:/mydomain/edit !> print bean [MBeanServerInvocationHandler]mydomain:Name=myserver,Type=WebServer,Server=my server

NEW QUESTION 6
Which two automatic migration scenarios require node manager for all migratable services? (Choose two.)

• A. Consensus leasing
• B. Database leasing with no pre and post migration scripts
• C. Database leasing with pre and post migration scripts
• D. Synchronous leasing

Answer: AC

Explanation:
When using automatic service migration, the Node Manager is required to get health monitoring information about the member servers involved, as follows:
* Consensus leasing – Node Manager must be running on every machine hosting managed servers within the cluster.
* Database leasing – Node Manager must be running on every machine hosting managed servers within the cluster only if pre/post-migration scripts are defined. If pre/post-migrations are not defined, then Node manager is not required. References:

NEW QUESTION 7
You want to use the WebLogic Diagnostic Framework (WLDF) to monitor some historic MBean attribute values in your WebLogic domain.

Which WLDF component do you use to accomplish this? (Choose the best answer.)

• A. the Harvester with a metric collection definition
• B. a Watch on a metric collection definition
• C. the MBean Collector with a metric collection definition
• D. the Archiver with a metric collection definition

Answer: D

Explanation:
The Archive component of the WebLogic Diagnostics Framework (WLDF) captures and persists all data events, log records, and metrics collected by WLDF from server instances and applications running on them.
The Archive provides access interfaces so that the Accessor may expose any of the persisted historical data including logged event data and persisted metrics.

NEW QUESTION 8

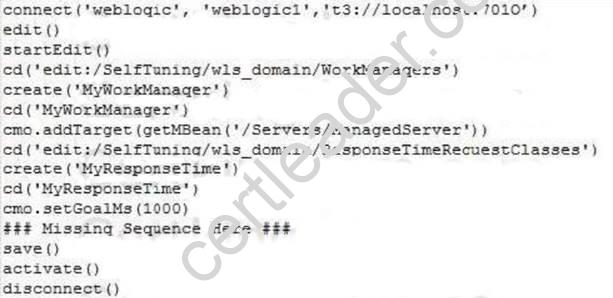

You want to create a WebLogic Server (WLS) Work Manager with a Response Time Request Class of one second. You start to create the following WLST script:

Which two can replace the missing sequence to finish this script? (Choose two.)

• A. cmo.addTarget(getMBean('/Servers/ManagedServer'))cd('edit:/SelfTuning/wls_domain/Wor kManagers/MyWorkManager')cmo.setResponseTimeRequestClass(getMBean('/SelfTuning/wls_domain/ResponseTimeRequestClasses/MyResponseTime')) B.managedServer=getMBean('/Servers/ManagedServer')cmo.addTarget(managedServer)cm o.setWorkManaqer(getMBean('/SelfTuning/wls_domain/WorManagers/MyWorkManager'))
• B. cd('edit:/Servers/ManagedServer')cmo.addTarget(getMBean('/SelfTuning/wls_domain/Res ponseTimeRequestClasses/MyResponseTime'))cmo.addTarget (getMBean('/SelfTuning/wls_domain/WorkManagers/MyWorkManager'))
• C. managedServer=getMBean('/Servers/ManagedServer')cmo.addTarget(managedServer)cd( 'edit:/SelfTuning/wls_domain/ WorkManagers/MyWorkManager')cmo.setResponseTimeReq uestClass(getMBean('/SelfTuning/wls_domain/ResponseTimeRequestClasses/MyRespons eTime'))
• D. cmo.addTarqet('/Servers/ManagedServer')cd('/SelfTuning/wls_domain/WorkManagers/My WorkManager')cmo.setResponseTimeRequestClass('/SelfTuning/wls_domain/ResponseTimeRequestClasses/MyResponseTime')

Answer: AD

NEW QUESTION 9
Which three statements are correct regarding the WLST create command? (Choose three.)

• A. When the create command is used with WLST online, the connection must be to the administration server.
• B. The type of MBean being created must be a child type of the current management object.
• C. The correct order of the mandatory parameters for the create statement is name followed by childMBeanType.
• D. The create command is used to create any configuration or runtime management bean.
• E. The create command returns a WLSTProgress objec

Answer: ABC

Explanation:
A: When using the create command with WLST online you must be connected to an Administration Server. B: Child types must be created under an instance of their parent type.
C: Syntax: create(name, childMBeanType, [baseProviderType])
The Create command creates a configuration bean of the specified type for the current bean.

NEW QUESTION 10
Which two objects can be considered potential clients of a Node Manager? (Choose two.)

• A. an administration server
• B. a WLST session
• C. an HTTP server
• D. any other Node Manager
• E. a remote JMS client
• F. the weblogic.Deployer utility

Answer: AB

Explanation:
A Node Manager client can be local or remote to the Node Managers with which it
communicates. You access either version of Node Manager—the Java version or the script-based (SSH) version—from the following clients:
A: an administration server
B: WLST commands and scripts—WLST offline serves as a Node Manager command-line interface that can run in the absence of a running Administration Server.

NEW QUESTION 11
You are creating a Domain Template to simplify the process of deploying a domain across multiple hosts. Which five types of information can be included in a Domain Template? (Choose five.)

• A. domain configuration, those included in the config.xml file
• B. Java Enterprise Edition (Java EE) applications and shared libraries
• C. Windows and UNIX server start scripts
• D. Windows Start menu entries
• E. custom folders and files
• F. LDAP data
• G. JTA log
• H. e-mail notification settings

Answer: ABCDE

Explanation:
A: config.xml and any JDBC and JMS resources defined in config.xml are not displayed in the Current Template View pane by default because the Domain Template Builder automatically includes them in the template when creating the template.
B: The Add or Omit Applications screen is displayed only if applications are included in the template or domain that you selected.
C: When you are creating a template, you want the scripts and files that you are packaging with your template to be free of local domain environment settings and ready for use by the Configuration Wizard. The Domain Template Builder automatically updates any standard scripts included in a template (such as start scripts) by replacing hard-coded values for various domain environment settings with replacement variables.
D: The Specify Start Menu Entries screen prompts you to create items to be added to the Windows Start menu.
E: By default, the Domain Template Builder includes files from the WebLogic domain or template you specified as the source for the new template. If you selected a domain as the source for your new template, some files and directories are included automatically.

NEW QUESTION 12
Examine the domain diagram:

What is the correct path within the configuration hierarchy to the MBean that contains the log rotation parameters for server04? (Choose the best answer.)

• A. /Servers/server04/Log/server04
• B. /server04/log/rotation
• C. /Cluster01/server04/log
• D. /Machine02/server04/log
• E. /Logs/server04
• F. /TestDomain/server04/log
• G. /server04/log

Answer: D

Explanation:
By default, the rotated files are stored in the same directory where the log file is stored.
The server log file is located on the computer that hosts the server instance. By default, the server log file is located below the server instance's root directory: root-directoryserver-nameserver-name.log. https://docs.oracle.com/cd/E28280_01/web.1111/e13739/config_logs.htm#WLLOG139

NEW QUESTION 13
Your WebLogic Server (WLS) environment consists of multiple domains. Which is a true statement about WLS domains? (Choose the best answer.)

• A. Multiple domains can use the same or separate WLS installation while running on the same machine.
• B. Domains require a minimum of one managed server.
• C. Multiple domains require separate WLS installations while running on the same machine.
• D. Multiple domains require individual Node Managers while running on the same machine.
• E. Multiple domains can share the same administration server.

Answer: A

Explanation:
You can use a single Oracle WebLogic Server installation to create and run multiple domains, or you can use multiple installations to run a single domain.

NEW QUESTION 14
You are monitoring a WebLogic JDBC data source and have decided to drop some connections because an earlier peak usage condition has now ended. In addition, this data source has not been enabled for automatic shrinking.
What will occur once you execute the shrink() method on that JDBCDataSourceRuntimeMBean?

• A. The number of connections in the pool will be reduced to the greater of either the current number of connections in use or to the minCapacity property setting.
• B. The number of connections in the pool will be reduced to the current number of connections in use regardless of the minCapacity property setting.
• C. The number of connections in the pool will be reduced to the minCapacity property setting regardless of the current number of connections in use.
• D. The number of unused connections in the pool will be reduced by hal

Answer: A

Explanation:
When you shrink a data source, WebLogic Server reduces the number of connections in the pool to the greater of either the initial capacity or the number of connections currently in use.

NEW QUESTION 15
You intend to introduce ordering in message processing for your JMS destination by creating a destination key.
Which statement is true about the JMS Destination Key configuration? (Choose the best answer.)

• A. A JMS Destination Key cannot be specified using WLST.
• B. A JMS Destination Key cannot be used to sort messages in a Last In First Out order.
• C. A JMS Destination Key allows a user-defined sort key.
• D. A Destination Key can be applied to the message bod

Answer: A

Explanation:
The WebLogic Server Administration Console enables you to configure, modify, target, and delete destination key resources in a system module.

NEW QUESTION 16

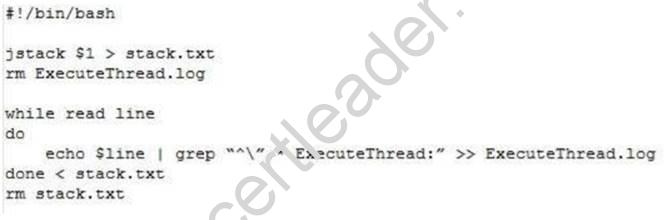

You created a script to monitor your WebLogic Server WLS Execute Thread:

Here is a message in your ExecuteThread.log file:

What is the value of xxxx if the thread has been running a request for twenty minutes, assuming a default configuration?

• A. SRANDBY
• B. ACTIVE
• C. STUCK
• D. RUNNING
• E. WAITING
• F. ADMIN
• G. FAILED

Answer: C

Explanation:
This thread is considered Stuck by WebLogic because it's been running for over the time defined in MaxStuckThreadTime (600 seconds by default). Weblogic Server waits for this time to be reached before marking a thread as stuck if the thread is still working after this time.
Example: [STUCK] ExecuteThread: '2' for queue: 'weblogic.kernel.Default (self-tuning)' id=73 idx=0x128 nid=13410 prio=1 alive, in native, daemon

NEW QUESTION 17
You have an application already deployed in a production environment that needs a modification to one of its tuning parameters. Currently, that tuning parameter has a default value since there was neither a deployment descriptor used nor a deployment plan included with the application deployment. You now attempt to use the Administration Console web application to make a dynamic modification to that parameter.
Which statement is true? (Choose the best answer.)

• A. A new deployment plan will be generated and saved at the indicated location.
• B. The modification attempt will fail because there is no deployment descriptor included within the application.
• C. The modification attempt will fail because there is no existing deployment plan associated with the application.
• D. A new skeleton plan.xml will be generated if a plan folder is detected with the deployed applicatio

Answer: D

Explanation:
Defining tuning parameters is not required in order to successfully deploy an application. If an application’s deployment descriptors and deployment plan do not define tuning parameters, WebLogic Server uses default values. The Administration Console automatically uses a deployment plan named plan.xml in the plan subdirectory of an application root directory if one is available.

NEW QUESTION 18
You are using the Domain Template Builder to create a new template using an existing domain as the source. Which two directories are included by default? (Choose two.)

• A. bin directory
• B. lib directory
• C. servers directory
• D. common directory
• E. logs directory
• F. replication directory

Answer: AB

Explanation:
If you selected a domain as the source for your new template, then the bin and lib directories are included by default:

NEW QUESTION 19
<ORACLE_HOME> is the Oracle home directory that you specified when installing WebLogic Server.
What is the file system location and command for starting the Domain Template Builder? (Choose the best answer.)

• A. <ORACLE_HOME>oracle_commoncommonbin and config_builder.sh
• B. <ORACLE_HOME>oracle_commoncommonbin and temp_builder.sh
• C. <ORACLE_HOME>oracle_commonbin and config_builder.sh
• D. <ORACLE_HOME>oracle_commonbin and temp_builder.sh

Answer: A

Explanation:
Starting the Domain Template Builder on UNIX Platforms References:

NEW QUESTION 20

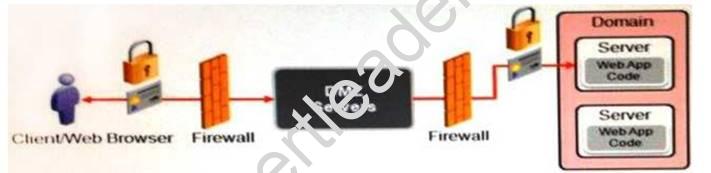

A hardware load-balancer (HWLB) is positioned as the primary entry point into your WebLogic Server domain. Aspects of your application use SSL to protect data on the network from your clients to your domain.

• A. Configure the HWLB to use an SSL hardware accelerator and terminate SSL.
• B. Configure the HWLB to use pass-through SSL, configure an SSL hardware accelerator on WebLogic, and terminate SSL.
• C. Configure the HWLB to delegate SSL handling to the WebLogic Proxy Plug-in and terminate SSL.
• D. Configure the HWLB to use pass through SSL to the WebLogic Server that it connects to, and terminate SS

Answer: A

Explanation:
In most of the architectures, the SSL is terminated at the hardware load balancer for performance reasons and allows the internal traffic to use HTTP for communication.

NEW QUESTION 21
......
