NEW QUESTION 1
When enabling interdomain multicast routing, which two statements are correct? (Choose two.)

• A. Multiprotocol BGP is used instead of PIM SM to build the intradomain and interdomain multicast distribution trees
• B. Use MSDP to enable the RPs from different domains to exchange information about active multicast sources
• C. MSDP SA packets are sent between the multiprotocol BGP peers
• D. Noncongruent unicast and multicast topologies can be supported using multiprotocol BGP

Answer: BD

Explanation:
http://prakashkalsaria.wordpress.com/2010/08/11/mbgp-msdp/
MSDP In the PIM-SM model, multicast sources and receivers must register with their local RP. Actually, the router closest to the sources or receivers registers with the RP, but the key point to note is that the RP knows about all the sources and receivers for any particular
group. RPs in other domains have no way of knowing about sources located in other domains. MSDP is an elegant way to solve this problem.
MSDP is a mechanism that allows RPs to share information about active sources. RPs know about the receivers in their local domain. When RPs in remote domains hear about the active sources, they can pass on that information to their local receivers and multicast data can then be forwarded between the domains. A useful feature of MSDP is that it allows each domain to maintain an independent RP that does not rely on other domains, but it does enable RPs to forward traffic between domains. PIM-SM is used to forward the traffic between the multicast domains.
The RP in each domain establishes an MSDP peering session using a TCP connection with the RPs in other domains or with border routers leading to the other domains. When the RP learns about a new multicast source within its own domain (through the normal PIM register mechanism), the RP encapsulates the first data packet in a Source-Active (SA) message and sends the SA to all MSDP peers. The SA is forwarded by each receiving peer using a modified RPF check, until the SA reaches every MSDP router in the interconnected networks—theoretically the entire multicast internet. If the receiving MSDP peer is an RP, and the RP has a (*, G) entry for the group in the SA (there is an interested receiver), the RP creates (S, G) state for the source and joins to the shortest path tree for the source. The encapsulated data is decapsulated and forwarded down the shared tree of that RP. When the packet is received by the last hop router of the receiver, the last hop router also may join the shortest path tree to the source. The MSDP speaker periodically sends SAs that include all sources within the own domain of the RP
http://www.cisco.com/en/US/docs/ios_xr_sw/iosxr_r3.2/routing/configuration/guide/rc32bgp.html

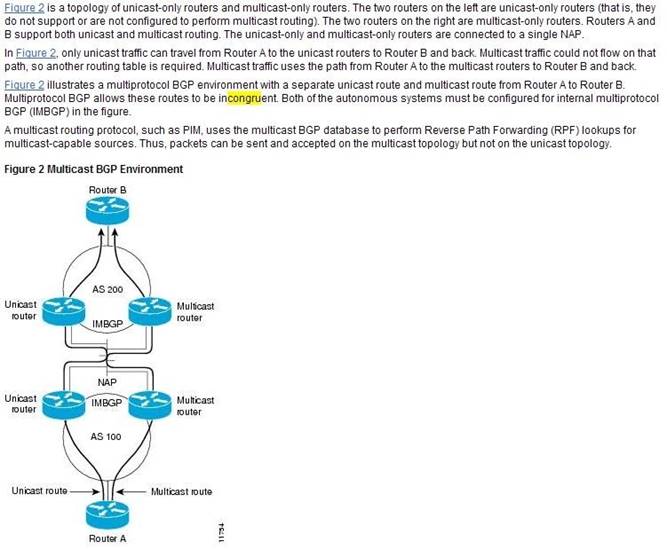

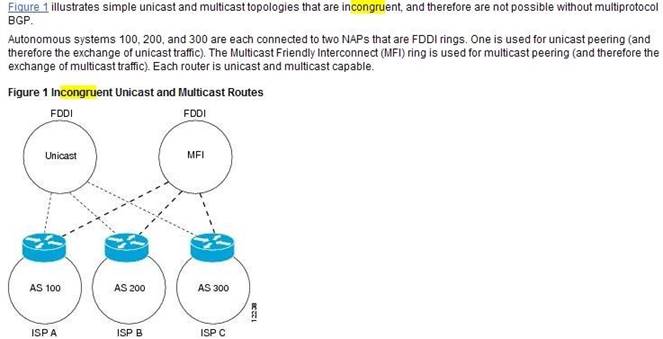

Multiprotocol BGP
Multiprotocol BGP is an enhanced BGP that carries routing information for multiple network layer protocols and IP multicast routes. BGP carries two sets of routes, one set for unicast routing and one set for multicast routing.
The routes associated with multicast routing are used by the Protocol Independent Multicast (PIM) feature to build data distribution trees.
Multiprotocol BGP is useful when you want a link dedicated to multicast traffic, perhaps to limit which resources are used for which traffic. Multiprotocol BGP allows you to have a unicast routing topology different from a multicast routing topology providing more control over your network and resources.
In BGP, the only way to perform interdomain multicast routing was to use the BGP infrastructure that was in place for unicast routing. Perhaps you want all multicast traffic exchanged at one network access point (NAP).
If those routers were not multicast capable, or there were differing policies for which you wanted multicast traffic to flow, multicast routing could not be supported without multiprotocol BGP.
Note It is possible to configure BGP peers that exchange both unicast and multicast network layer reachability information (NLRI), but you cannot connect multiprotocol BGP clouds with a BGP cloud. That is, you cannot redistribute multiprotocol BGP routes into BGP.

NEW QUESTION 2

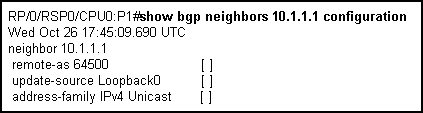

Refer to the Cisco IOS-XR show output exhibit.

Which statement is correct?

• A. The [ ] indicates the configuration has a problem
• B. The [ ] indicates the 10.1.1.1 neighbor peering session has not been established
• C. The [ ] indicates the configuration was not inherited from a group
• D. The [ ] indicates the configuration has not been committed
• E. The [ ] indicates the corresponding BGP peer configuration has a mismatch configuration

Answer: C

Explanation:
show bgp neighbors
Use the show bgp neighbors command to display information about the BGP configuration for neighbors.
•Use the configuration option to display the effective configuration for the neighbor, including any settings that have been inherited from session groups, neighbor groups, or af-groups used by this neighbor.
•Use the inheritance option to display the session groups, neighbor groups, and af-groups from which this neighbor inherits configuration settings.

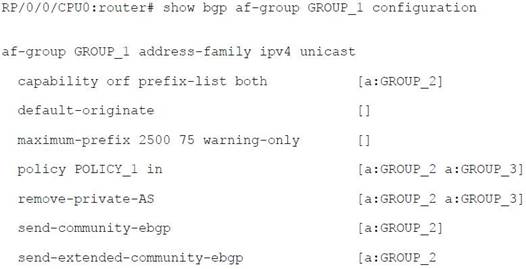

The following example displays sample output from the show bgp af-group command using the configuration keyword. This example shows where each configuration item was
inherited from. The default-originate command was configured directly on this address family group (indicated by [ ]). The remove-private-as command was inherited from address family group GROUP_2, which in turn inherited from address family group GROUP_3:

NEW QUESTION 3
Which multicast implementation is preferred for traffic that is required by a small number of receivers across a large distributed network?

• A. DVMRP
• B. PIM-DM
• C. PIM-SM
• D. IGMP

Answer: C

NEW QUESTION 4
Which two actions result when a network administrator attempts to ping an IPv6 host on the LAN? (Choose two.)

• A. ARP is used to determine the MAC address of the destination host.
• B. Neighbor Discovery is used to determine the MAC address of the destination host.
• C. Neighbor Solicitation messages are sent out by the source host to determine the data link-layer address of the destination host.
• D. Neighbor Advertisement messages are sent by the source host to announce its presence on the local link.
• E. Router Solicitation messages are sent out on a specific multicast address to request the data link-layer address of the target device.
• F. Router Solicitation messages are sent to the local router on the network segment to request data link-layer information about the destination host.

Answer: BC

NEW QUESTION 5
Which type of BGP session behaves like an EBGP session during session establishment but behaves like an IBGP session when propagating routing updates where the local preference, multi-exit discriminator, and next-hop attributes are not changed?

• A. BGP sessions between a route reflector and its clients
• B. BGP sessions between a route reflector and its non-client IBGP peers
• C. BGP sessions between a route reflector and another route reflector
• D. Intra-confederation IBGP sessions
• E. Intra-confederation EBGP sessions

Answer: E

Explanation:
http://www.cisco.com/en/US/docs/ios_xr_sw/iosxr_r3.7/routing/configuration/guide/rc37bgp.html#wp1191371
BGP Routing Domain Confederation
One way to reduce the iBGP mesh is to divide an autonomous system into multiple subautonomous systems and group them into a single confederation. To the outside world, the confederation looks like a single autonomous system. Each autonomous system is fully meshed within itself and has a few connections to other autonomous systems in the same confederation. Although the peers in different autonomous systems have eBGP sessions, they exchange routing information as if they were iBGP peers. Specifically, the next hop, MED, and local preference information is preserved. This feature allows you to retain a single IGP for all of the autonomous systems.

NEW QUESTION 6
Which command set should be used for a 6to4 tunnel in a Cisco IOS XE router, considering the border interface with IPv4 address of 209.165.201.2?

• A. interface Tunnel2002 ipv6 enableipv6 address 2002:D1A5:C902::1/128 tunnel source Ethernet0/0tunnel mode ipv6ip 6to4
• B. interface Tunnel2002 ipv6 enableipv6 address 2002:D1A5:D902::1/128 tunnel source Ethernet0/0tunnel mode ipv6ip 6to4
• C. interface Tunnel2002 ipv6 enableipv6 address 2002:D1A5:D902::1/128 tunnel source Ethernet0/0tunnel mode ipv6ip
• D. interface Tunnel2002 ipv6 enableipv6 address 2002:D1A5:C902::1/128 tunnel source Ethernet0/0tunnel mode ipv6ip auto-tunnel
• E. interface Tunnel2002ipv6 enableipv6 address 2002:D1A5:D902::1/128 tunnel source Ethernet0/0tunnel mode ipv6ip auto-tunnel

Answer: B

NEW QUESTION 7

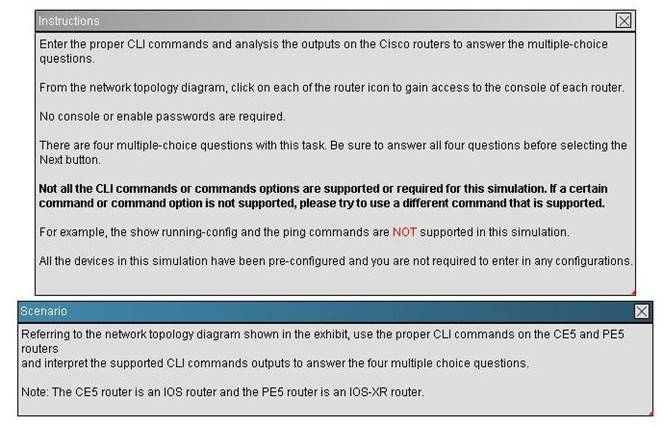

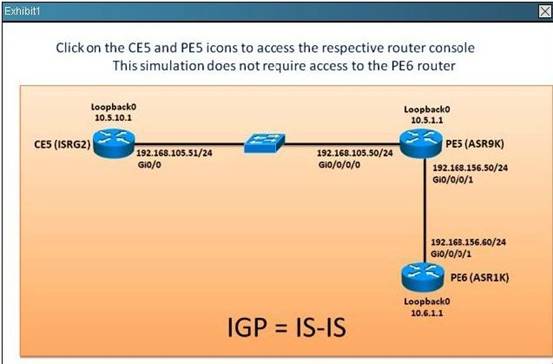

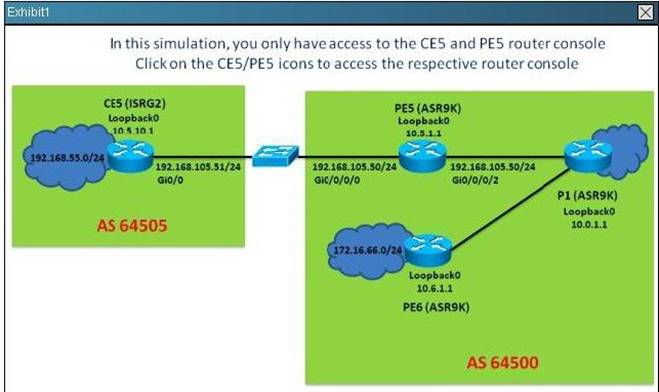

Refer to the exhibit.




Which two statements regarding the BGP peerlngs are correct? (Choose two)

• A. On PE5,the incoming prefixes received from the 192.168.105.51 EBGP peer is limited to a maximum of 10 prefixes
• B. On PE5, the "rplin" inbound route policy is applied to the 192.168.105.51 EBGP peer
• C. On PE5, the "pass" outbound route policy is applied to the 192.168.105.51 EBGP peer
• D. PE5 has one EBGP peer (CE5) and two IBGP peers (P1 and PE6)
• E. PE5 has received a total of 60 prefixes from its neighbors

Answer: AE

Explanation:

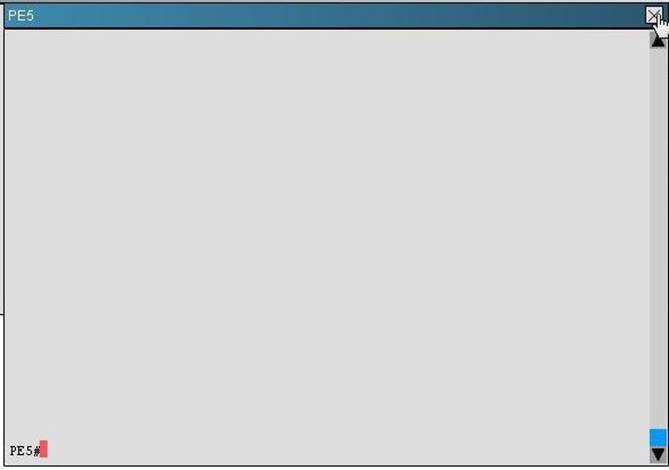

#show ip bgp

NEW QUESTION 8
Which two statements regarding Auto RP operations and implementations are correct? (Choose two.)

• A. Candidate RPs send RP announcements to the 224.0.1.39 multicast group, and the mapping agents send RP discovery messages to the 224.0.1.40 multicast group
• B. Every PIM-SM router must be configured with the RP mapping agent IP address
• C. Candidate RPs learn the IP address of the mapping agents via periodic RP discovery messages
• D. Administrative scoping can be configured to limit the scope of the RP announcements
• E. A Reverse Path Forwarding check is done on the RP discovery messages
• F. RP discovery messages are flooded hop by hop throughout the network as multicast to the all PIM routers multicast group with a TTL of 1

Answer: AD

Explanation:
Auto-RP
Automatic route processing (Auto-RP) is a feature that automates the distribution of group- to-RP mappings in a PIM network. This feature has these benefits:
It is easy to use multiple RPs within a network to serve different group ranges. It allows load splitting among different RPs.
It facilitates the arrangement of RPs according to the location of group participants.
It avoids inconsistent, manual RP configurations that might cause connectivity problems. Multiple RPs can be used to serve different group ranges or to serve as hot backups for each other. To ensure that Auto-RP functions, configure routers as candidate RPs so that they can announce their interest in operating as an RP for certain group ranges. Additionally, a router must be designated as an RP-mapping agent that receives the RP- announcement messages from the candidate RPs, and arbitrates conflicts. The RPmapping agent sends the consistent group-to-RP mappings to all remaining routers. Thus, all routers automatically determine which RP to use for the groups they support auto- rp candidate-rp
To configure a router as a Protocol Independent Multicast (PIM) rendezvous point (RP) candidate that sends messages to the well-known CISCO-RP-ANNOUNCE multicast group
(224.0.1.39), use the auto-rp candidaterp command in PIM configuration mode. To return to the default behavior, use the no form of this command. auto-rp candidate-rp type interface-path-id scope ttl-value [ group-list access-listname ] [ interval seconds ] [bidir] no auto-rp candidate-rp type interface-path-id scope ttl-value [ group-list access-listname] [ interval seconds ] [bidir]

NEW QUESTION 9
Which two specific characteristics categorize traceroute in an IPv6 routing environment? (Choose two.)

• A. Traceroute can show the path to reach any destination IPv6 address.
• B. Traceroute returns an error for a link-local IPv6 address.
• C. Traceroute is based on ICMPv6 Type 1 (Destination Unreachable) reply packets to determine the network path.
• D. Traceroute is based on ICMPv6 Type 3 (Time Exceeded) reply packets to determine the network path.
• E. Traceroute is based on ICMPv6 Type 2 (Packet Too Big) reply packets to determine the network path.
• F. Traceroute for IPv6 implements a backwards compatibility option to provide a detailed report in environments running dual-stack.

Answer: AD

NEW QUESTION 10
Which optionshowsthe equivalent multicast MAC address mapping of multicast address 239.210.101.190?

• A. 01:00:5e:52:65:be
• B. 01:00:5d:52:65:be
• C. 01:00:5f:52:65:be
• D. 01:00:5c:52:65:be

Answer: A

NEW QUESTION 11
Which two options areadvantages of an IPv6 dual-stack implementation in an enterprise environment? (Choose two.)

• A. simplifies the route redistribution policies complexity
• B. requires IPv6-to-IPv4 translation on the uplinks to the service providers
• C. provides built-in support for Kerberos authentication
• D. does not have to worry about NAT traversal
• E. supports multicast properly

Answer: DE

NEW QUESTION 12

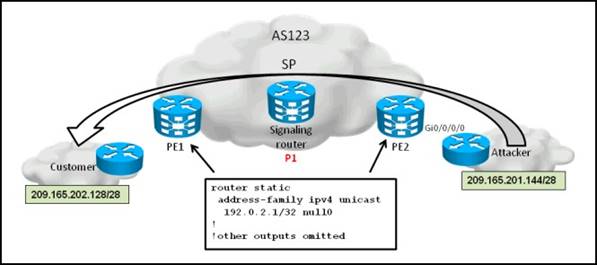

Refer to the topology diagram shown in the exhibit and the partial configurations shown below.

Once the attack from 209.165.201.144/28 to 209.165.202.128/28 has been detected, which additional configurations are required on the P1 IOS-XR router to implement source-based remote-triggered black hole filtering?
!
router bgp 123
address-family ipv4 unicast redistribute static route-policy test
!

• A. router staticaddress-family ipv4 unicast 209.165.202.128/28 null0 tag 666192.0.2.1/32 null0 tag 667!route-policy test if tag is 666 thenset next-hop 192.0.2.1 endifif tag is 667 thenset community (no-export) endifend-policy!
• B. router staticaddress-family ipv4 unicast 209.165.201.144/28 null0 tag 666192.0.2.1/32 null0 tag 667!route-policy test if tag is 666 thenset next-hop 192.0.2.1 endifif tag is 667 thenset community (no-export) endifend-policy!
• C. router staticaddress-family ipv4 unicast 209.165.201.144/28 null0 tag 666192.0.2.1/32 null0!route-policy test if tag is 666 thenset next-hop 192.0.2.1set community (no-export) endifend-policy
• D. router staticaddress-family ipv4 unicast 209.165.202.128/28 null0 tag 666192.0.2.1/32 null0!route-policy test if tag is 666 thenset next-hop 192.0.2.1set community (no-export) endifend-policy!

Answer: C

Explanation:

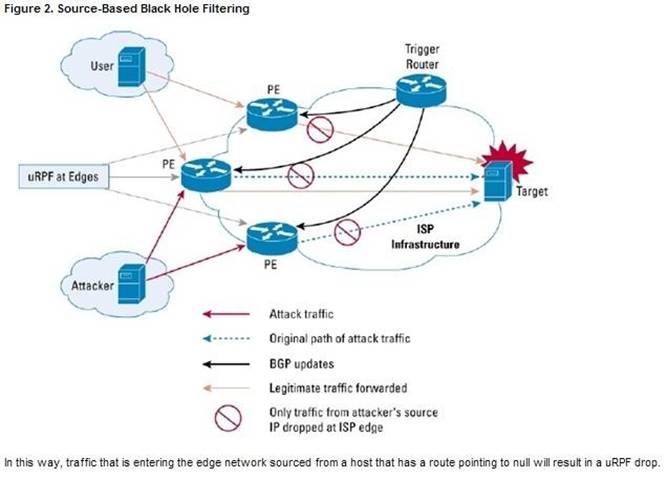

Source-Based RTBH Filtering
With destination-based black holing, all traffic to a specific destination is dropped after the black hole has been activated, regardless of where it is coming from. Obviously, this could include legitimate traffic destined for the target. Source-based black holes provide the ability to drop traffic at the network edge based on a specific source address or range of source addresses.
If the source address (or range of addresses) of the attack can be identified (spoofed or not), it would be better to drop all traffic at the edge based on the source address, regardless of the destination address. This would permit legitimate traffic from other sources to reach the target. Implementation of source-based black hole filtering depends on Unicast Reverse Path Forwarding (uRPF), most often loose mode uRPF. Loose mode uRPF checks the packet and forwards it if there is a route entry for the source IP of the incoming packet in the router forwarding information base (FIB). If the router does not have an FIB entry for the source IP address, or if the entry points to a null interface, the Reverse Path Forwarding (RPF) check fails and the packet is dropped, as shown in Figure 2. Because uRPF validates a source IP address against its FIB entry, dropping traffic from specific source addresses is accomplished by configuring loose mode uRPF on the external interface and ensuring the RPF check fails by inserting a route to the source with a next hop of Null0. This can be done by using a trigger device to send IBGP updates. These updates set the next hop for the source IP to an unused IP address that has a static entry at the edge, setting it to null as shown in Figure 2.

NEW QUESTION 13

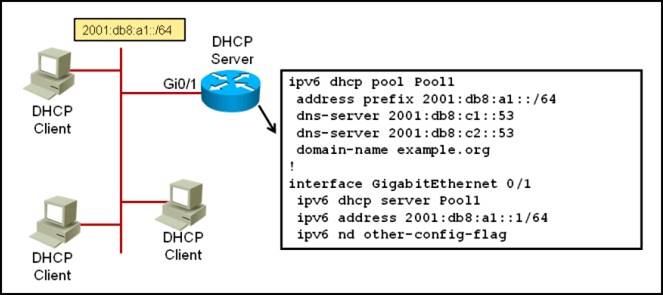

Refer to the Cisco IOS DHCPv6 configuration shown in the exhibit.

Which statement is correct?

• A. The configuration is missing a command under interface Gi0/1 to indicate to the attached hosts to use stateful DHCPv6 to obtain their IPv6 addresses
• B. The IPv6 router advertisements indicate to the attached hosts on the Gi0/1 interface to get other information besides their IPv6 address via stateless auto configuration
• C. The IPv6 DHCPv6 server pool configuration is misconfigured
• D. The DNS server address can also be imported from another upstream DHCPv6 server

Answer: A

Explanation:
Server Configuration
In Global Configuration Mode ipv6 unciast-routing
ipv6 dhcp pool <pool name>
address prefix <specify address prefix> lifetime <infinite> <infinite> dns-server <specify the dns server address>
domain-name <specify the domain name> exit
In Interface Configuration Mode
ipv6 address <specify IPv6 Address>
ipv6 dhcp server <server name>rapid-commit Client Configuration
In Global Configuration Mode enable
configure terminal ipv6 unicast-routing
In Interface Configuration Mode ipv6 address dhcp rapid commit ipv6 enable
exit

NEW QUESTION 14
A service providerrequests more details about the recent Inter-AS MPLS VPN Option B configuration that was recently deployed. Consider this configuration:
router bgp 3717
address-family vpnv4 unicast retain route-target all
commit
!
Which option describes why this particular command is needed?

• A. The ASBRcan have many working customer VRFs, so this configuration ensures the coexistence of all the route-target extended communities that belong to the all ASBR- terminated customer VRFs.
• B. When implementing the Inter-AS Option B MPLS VPN solution, all the route targets that are transmitted over the Inter-AS links need an ASBR local database to forward thecustomer traffic correctly.
• C. The Inter-AS Option B design implements VPNv4 communication over the Inter-AS link, hence the requirement for a route-target association for each customer VPN connected across two or more ASs.
• D. In the Inter-AS Option B design, no local VRF is maintained on the ASBR routers,so the default behavior of the operating system is to deny any route-target extended community that is encoded in the incoming iBGP update
• E. This configuration permits VPNv4 communication by accepting the iBGP updates even if no route targets are configured locally.

Answer: D

NEW QUESTION 15
Which two methods represent IPv6 tunneling implementations? (Choose two.)

• A. IPv6 over GRE tunneling
• B. manually configured tunnels
• C. automatic tunnels
• D. 6to4 tunneling
• E. IPv6 over an IPv4 tunnel over MPLS

Answer: BC

NEW QUESTION 16

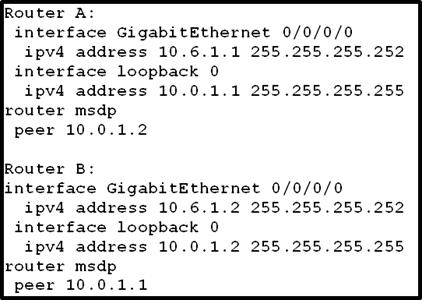

Refer to the exhibit.

Router A and Router B are connected via GigabitEthernet interfaces, but they are unable to form an MSDP neighborship. Which two components must be addressed when fixing the MSDP peering issue? (Choose two.)

• A. An msdp default peer is configured on both routers.
• B. A BGP process on each router is present so that MSDP can peer and carry updates.
• C. The router interfaces are PIM-enabled to transport MSDP updates.
• D. The connect-source attribute is configured with a host route under the MSDP process.
• E. The MSDP peering on both routers specifies an origin ID so that it can peer.
• F. The router A loopback interface configures the correct subnet mask.

Answer: DF

NEW QUESTION 17
Which statement is correct regarding using the TTL threshold to define the delivery boundaries of multicast traffic?

• A. If a packet TTL is less than the specified TTL threshold, the packet is forwarded out of the interface
• B. If a packet TTL is greater or equal to the specified TTL threshold, the packet is forwarded out of the interface
• C. If a packet TTL is equal to the specified TTL threshold, the packet is dropped
• D. When a multicast packet arrives, the TTL threshold value is decremented by 1. If the resulting TTL threshold value is greater than or equal to 0, the packet is dropped

Answer: B

NEW QUESTION 18
Refer to the Cisco IOS configuration exhibit.

Which statement is correct?

• A. This configuration is typically configured on the boundary routers within a PIM SM domain to filter out malicious candidate-RP-announce and candidate-RP-discovery packets
• B. This configuration is typically configured on the RPs within a PIM-SM domain to restrict the candidate-RP-announce packets
• C. This configuration is typically configured on the mapping agents within a PIM-SM domain to restrict the candidate-RP-discovery packets
• D. This configuration is typically configured on the MSDP peering routers within a PIM-SM domain to filter out malicious MSDP SA packets

Answer: A

NEW QUESTION 19
Refer to the exhibit.




Which three statements regarding the BGP operations are correct? (Choose three)

• A. PE5 will set the local preferences 200 on all the prefixes sent to CE5
• B. PE5 will set the local preference to 200 on all the prefixes learned from CE5
• C. CE5 has received 5 prefixes from the PE5 EBGP peer
• D. CE5 has the BGP scan interval set to 30 seconds
• E. CE5 is announcing the 192.168.55.0/24 prefix via EBGP to the PE5 EBGP peer
• F. The AS-Path to reach the 209.165.202.128/27 prefix from CE5 is: 64500 64497 64498

Answer: CEF

Explanation:
#sh ip bgp | be Network
#sh ip bgp
#show ip bgp neighbors

NEW QUESTION 20
When implementing high-availability stateful switchover BGP routing, in which situation would Cisco NSR be required?

• A. On the PE routers connecting to the CE routers which are not NSF aware or are not NSF capable
• B. On the PE routers connecting to the CE routers which support graceful restart
• C. On the PE routers connecting to the CE routers which are incapable of performing stateful switchover operations because the CE routers are only NSF aware but not NSF capable
• D. On the PE routers connecting to the CE routers which are incapable of performingstateful switchover operations because the CE routers are only NSF capable but not NSF aware
• E. On the service provider core P routers which are also NSF aware
• F. On the service provider core P routers which are also NSF capable

Answer: A

NEW QUESTION 21
Which keyword is used in the syntax to refer to Cisco IOS XR address-family groups, session groups, or neighbor groups?

• A. inherit
• B. apply
• C. use
• D. commit

Answer: C

NEW QUESTION 22
Refer to the exhibit.



Which three statements are correct regarding the various multicast groups? (Choose three.)

• A. Currently there is no source sending traffic to the 224.1.1.1 multicast group
• B. PE5 has a Null OILforthe (*,224.0.1.40) entry
• C. PE5 has a Null OILforthe (*,224.1.1.1) entry
• D. CE5 has joined the 224.0.1.40 multicast group
• E. CE5 has a Null OILforthe (*,224.1.1.1) entry

Answer: CDE

Explanation:
#show ip mroute

NEW QUESTION 23
Which two features are used to provide high availability multicast? (Choose two.)

• A. BFD
• B. NSF/SSO
• C. PIM NSR
• D. PIM triggered join
• E. IGMP triggered report
• F. MSDP

Answer: BD

Explanation:
Triggered joins are sent when the primary or the secondary RPF information changes. No RPF change prunes are sent for MoFRR streams.
mofrr
To perform a fast convergence (multicast-only fast reroute, or MoFRR) of specified routes/flows when a failure is detected on one of multiple equal-cost paths between the router and the source, use the mofrr command under PIM configuration mode.
mofrr rib acl_name no rib acl_name

NEW QUESTION 24
A network engineer must deploy an iBGP-based cloud region configuration by means of templates to reduce the overall BGP CLI required. Which three commands represent a basic configuration for a BGP peer session template on a regular Cisco IOS instance? (Choose three.)

• A. template peer-session session-template-name
• B. remote-as as-number
• C. neighbor-family config template
• D. peer-family config template
• E. as-override
• F. timers keepalive-interval hold-time

Answer: ABF

NEW QUESTION 25
Which Cisco IOS XR command setssuccessfully configure a value of 20 for the advertisement-interval?

• A. RP/0/RSP0/CPU0:routerconfig)# router bgp 65512 RP/0/RSP0/CPU0:router(config-bgp)# session-group test RP/0/RSP0/CPU0:router(config-bgp-sngrp)# advertisement-interval 20 RP/0/RSP0/CPU0:router(config-bgp-sngrp)# exit RP/0/RSP0/CPU0:router(config-bgp)# neighbor-group test RP/0/RSP0/CPU0:router(config-bgp-nbrgrp)# advertisement-interval 25 RP/0/RSP0/CPU0:router(config-bgp-nbrgrp)# exit RP/0/RSP0/CPU0:router(config-bgp)# exit RP/0/RSP0/CPU0:router(config-bgp)# neighbor 192.168.1.1RP/0/RSP0/CPU0:router(config-bgp-nbr)# remote-as 65513 RP/0/RSP0/CPU0:router(config-bgp-nbr)# use session-group test RP/0/RSP0/CPU0:router(config-bgp-nbr)# use neighbor-group test
• B. RP/0/RSP0/CPU0:routerconfig)# router bgp 65512 RP/0/RSP0/CPU0:router(config-bgp)# session-group test RP/0/RSP0/CPU0:router(config-bgp-sngrp)# ebgp-multihop 2 RP/0/RSP0/CPU0:router(config-bgp-sngrp)# exit RP/0/RSP0/CPU0:router(config-bgp)# neighbor-group test RP/0/RSP0/CPU0:router(config-bgp-nbrgrp)# advertisement-interval 20 RP/0/RSP0/CPU0:router(config-bgp-nbrgrp)# exit RP/0/RSP0/CPU0:router(config-bgp)# exit RP/0/RSP0/CPU0:router(config-bgp)# neighbor 192.168.1.1RP/0/RSP0/CPU0:router(config-bgp-nbr)# remote-as 65513 RP/0/RSP0/CPU0:router(config-bgp-nbr)# use session-group test RP/0/RSP0/CPU0:router(config-bgp-nbr)# use neighbor-group test
• C. RP/0/RSP0/CPU0:routerconfig)# router bgp 65512 RP/0/RSP0/CPU0:router(config-bgp)# session-group test RP/0/RSP0/CPU0:router(config-bgp-sngrp)# exit RP/0/RSP0/CPU0:router(config-bgp)# neighbor-group test RP/0/RSP0/CPU0:router(config-bgp-nbrgrp)# exit RP/0/RSP0/CPU0:router(config-bgp)# exit RP/0/RSP0/CPU0:router(config-bgp)# neighbor 192.168.1.1RP/0/RSP0/CPU0:router(config-bgp-nbr)# remote-as 65513 RP/0/RSP0/CPU0:router(config-bgp-nbr)# use session-group test RP/0/RSP0/CPU0:router(config-bgp-nbr)# use neighbor-group test
• D. RP/0/RSP0/CPU0:routerconfig)# router bgp 65512 RP/0/RSP0/CPU0:router(config-bgp)# session-group test RP/0/RSP0/CPU0:router(config-bgp-sngrp)# advertisement-interval 25 RP/0/RSP0/CPU0:router(config-bgp-sngrp)# exit RP/0/RSP0/CPU0:router(config-bgp)# neighbor-group test RP/0/RSP0/CPU0:router(config-bgp-nbrgrp)# advertisement-interval 20 RP/0/RSP0/CPU0:router(config-bgp-nbrgrp)# exit RP/0/RSP0/CPU0:router(config-bgp)# exit RP/0/RSP0/CPU0:router(config-bgp)# neighbor 192.168.1.1RP/0/RSP0/CPU0:router(config-bgp-nbr)# remote-as 65513 RP/0/RSP0/CPU0:router(config-bgp-nbr)# use session-group test RP/0/RSP0/CPU0:router(config-bgp-nbr)# use neighbor-group test

Answer: A

NEW QUESTION 26
......
