NEW QUESTION 1

You have an Azure IoT hub.
You need to recommend a solution to scale the IoT hub automatically. What should you include in the recommendation?

• A. Create an SMS alert in IoT Hub for the Total number of messages used metric.
• B. Create an Azure function that retrieves the quota metrics of the IoT hub.
• C. Configure autoscaling in Azure Monitor.
• D. Emit custom metrics from the IoT device code and create an Azure Automation runbook alert.

Answer: B

Explanation:
Note: IoT Hub is scaled and priced based on an allowed number of messages per day across all devices connected to that IoT Hub. If you exceed the allowed message threshold for your chosen tier and number of units, IoT Hub will begin rejecting new messages. To date, there is no built-in mechanism for automatically scaling an IoT Hub to the next level of capacity if you approach or exceed that threshold.
Reference:
https://docs.microsoft.com/en-us/samples/azure-samples/iot-hub-dotnet-autoscale/iot-hub-dotnet-autoscale/

NEW QUESTION 2

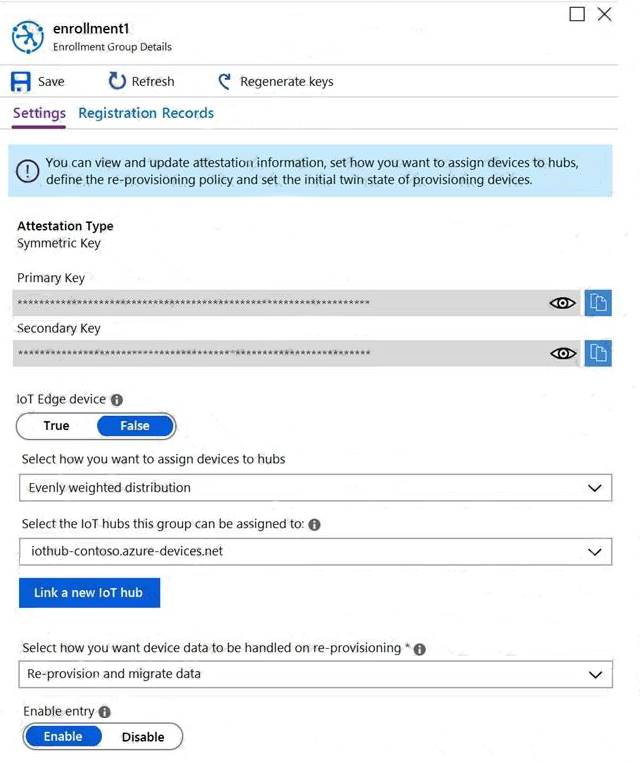

From the Device Provisioning Service, you create an enrollment as shown in the exhibit. (Click the Exhibit tab.)

You need to deploy a new IoT device.
What should you use as the device identity during attestation?

• A. a self-signed X.509 certificate
• B. the random string of alphanumeric characters
• C. the HMACSHA256 hash of the device's registration ID
• D. the endorsement key of the device's Trusted Platform Module (TPM)

Answer: C

Explanation:
Each device uses its derived device key with your unique registration ID to perform symmetric key attestation with the enrollment during provisioning. To generate the device key, use the key you copied from your DPS
enrollment to compute an HMAC-SHA256 of the unique registration ID for the device and convert the result into Base64 format.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/how-to-auto-provision-symmetric-keys

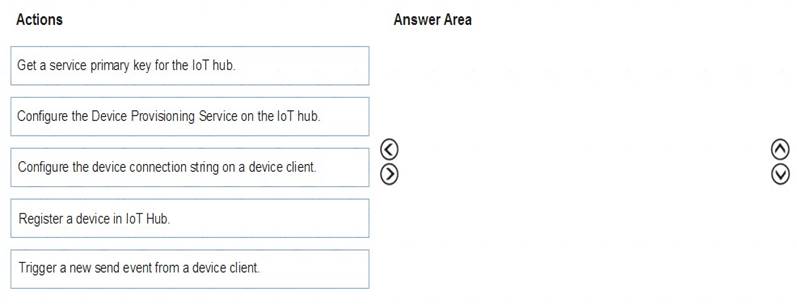

NEW QUESTION 3

You deploy an Azure IoT hub.
You need to demonstrate that the IoT hub can receive messages from a device.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Register a device in IoT Hub
Before you can use your IoT devices with Azure IoT Edge, you must register them with your IoT hub. Once a device is registered, you can retrieve a connection string to set up your device for IoT Edge workloads.
Step 2: Configure the device connection string on a device client.
When you're ready to set up your device, you need the connection string that links your physical device with its identity in the IoT hub.
Step 3: Trigger a new send event from a device client. Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/how-to-register-device

NEW QUESTION 4

You have an Azure IoT Edge device.
You need to modify the credentials used to access the container registry. What should you modify?

• A. the @edgeHub module twin
• B. the IoT Edge module
• C. the $edgeAgent module twin
• D. the Azure IoT Hub device twin

Answer: C

Explanation:
The module twin for the IoT Edge agent is called $edgeAgent and coordinates the communications between the IoT Edge agent running on a device and IoT Hub. The desired properties are set when applying a deployment manifest on a specific device as part of a single-device or at-scale deployment.
These properties include: runtime.settings.registryCredentials.{registryId}.username runtime.settings.registryCredentials.registryId}.password
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/module-edgeagent-edgehub

NEW QUESTION 5

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this question, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure IoT solution that includes an Azure IoT hub, a Device Provisioning Service instance, and 1,000 connected IoT devices.
All the IoT devices are provisioned automatically by using one enrollment group. You need to temporarily disable the IoT devices from the connecting to the IoT hub. Solution: You delete the enrollment group from the Device Provisioning Service. Does the solution meet the goal?

• A. Yes
• B. No

Answer: B

Explanation:
Instead, from the Device Provisioning Service, you disable the enrollment group, and you disable device entries in the identity registry of the IoT hub to which the IoT devices are provisioned.
Reference:
https://docs.microsoft.com/bs-latn-ba/azure/iot-dps/how-to-unprovision-devices

NEW QUESTION 6

You plan to deploy an Azure IoT hub. The IoT hub must support the following:
Three Azure IoT Edge devices 2,500 IoT devices
Each IoT device will spend a 6 KB message every five seconds.
You need to size the IoT hub to support the devices. The solution must minimize costs. What should you choose?

• A. one unit of the S1 tier
• B. one unit of the B2 tier
• C. one unit of the B1 tier
• D. one unit of the S3 tier

Answer: D

Explanation:
\ 2500* 6 KB * 12 = 180,000 KB/minute = 180 MB/Minute.
B3, S3 can handle up to 814 MB/minute per unit. Incorrect Answers:
A, C: B1, S1 can only handle up to 1111 KB/minute per unit B: B2, S2 can only handle up to 16 MB/minute per unit.
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-scaling

NEW QUESTION 7

You have an Azure IoT hub.
You plan to deploy 1,000 IoT devices by using automatic device management. The device twin is shown below.
You need to configure automatic device management for the deployment.

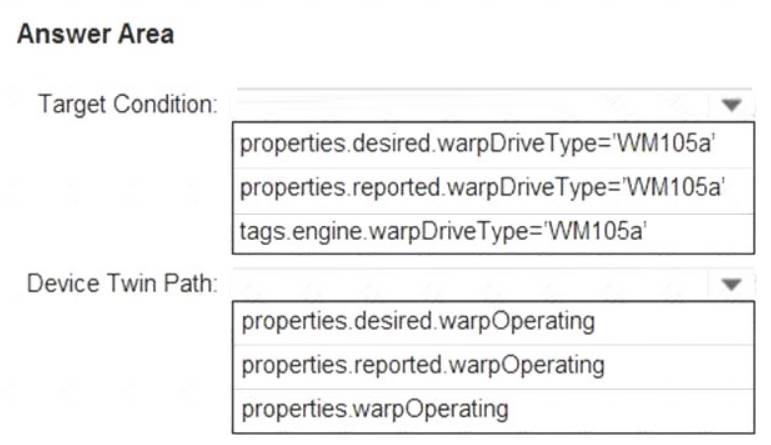

Which target Condition and Device Twin Path should you use? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: tags.engine.warpDriveType='VM105a'
Use tags to target twins. Before you create a configuration, you must specify which devices or modules you want to affect. Azure IoT Hub identifies devices and using tags in the device twin, and identifies modules using tags in the module twin.
Box 2: properties.desired.warpOperating
The twin path, which is the path to the JSON section within the twin desired properties that will be set. For example, you could set the twin path to properties.desired.chiller-water and then provide the following
JSON content:
{
"temperature": 66,
"pressure": 28
}
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-automatic-device-management

NEW QUESTION 8

How should you complete the GROUP BY clause to meet the Streaming Analytics requirements?

• A. GROUP BY HoppingWindow(Second, 60, 30)
• B. GROUP BY TumblingWindow(Second, 30)
• C. GROUP BY SlidingWindow(Second, 30)
• D. GROUP BY SessionWindow(Second, 30, 60)

Answer: B

Explanation:
Scenario: You plan to use a 30-second period to calculate the average temperature reading of the sensors. Tumbling window functions are used to segment a data stream into distinct time segments and perform a
function against them, such as the example below. The key differentiators of a Tumbling window are that they repeat, do not overlap, and an event cannot belong to more than one tumbling window.
InAnswers:
A: Hopping window functions hop forward in time by a fixed period. It may be easy to think of them as Tumbling windows that can overlap, so events can belong to more than one Hopping window result set.
Reference:
https://docs.microsoft.com/en-us/azure/stream-analytics/stream-analytics-window-functions

NEW QUESTION 9

You have 10,000 IoT devices that connect to an Azure IoT hub. The devices do not support over-the-air (OTA) updates.
You need to decommission 1,000 devices. The solution must prevent connections and autoenrollment for the decommissioned devices.
Which two actions should you perform? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

• A. Update the connectionState device twin property on all the devices.
• B. Blacklist the X.509 root certification authority (CA) certificate for the enrollment group.
• C. Delete the enrollment entry for the devices.
• D. Remove the identity certificate from the hardware security module (HSM) of the devices.
• E. Delete the device identity from the device registry of the IoT hub.

Answer: BC

Explanation:
B: X.509 certificates are typically arranged in a certificate chain of trust. If a certificate at any stage in a chain becomes compromised, trust is broken. The certificate must be blacklisted to prevent Device Provisioning Service from provisioning devices downstream in any chain that contains that certificate.
C: Individual enrollments apply to a single device and can use either X.509 certificates or SAS tokens (in a real or virtual TPM) as the attestation mechanism. (Devices that use SAS tokens as their attestation mechanism can be provisioned only through an individual enrollment.) To blacklist a device that has an individual enrollment, you can either disable or delete its enrollment entry.
To blacklist a device that has an individual enrollment, you can either disable or delete its enrollment entry. Reference:
https://docs.microsoft.com/en-us/azure/iot-dps/how-to-revoke-device-access-portal

NEW QUESTION 10

You have an Azure IoT solution that includes an Azure IoT Hub named Hub1 and an Azure IoT Edge device named Edge1. Edge1 connects to Hub1.
You need to deploy a temperature module to Edge1. What should you do?

• A. From the Azure portal, navigate to Hub1 and select IoT Edg
• B. Select Edge1, and then select Manage Child Device
• C. From a Bash prompt, run the following command:az iot edge set-modules -device-id Edge1 -hub-name Hub1 -content C:deploymentMan1.json
• D. Create an IoT Edge deployment manifest that specifies the temperature module and the route to$upstrea
• E. From a Bush prompt, run the following command: az iot hub monitor-events-device-id Edge1 -hub-name Hub1
• F. From the Azure portal, navigate to Hub1 and select IoT Edg
• G. Select Edge1, select Device Twin, and then set the deployment manifest as a desired propert
• H. From a Bash prompt, run the following commandaz iot hub monitor-events-device-id Edge1 -hub-name Hub1
• I. Create an IoT Edge deployment manifest that specifies the temperature module and the route to$upstrea
• J. From a Bush prompt, run the following command:az iot edge set-modules -device-id Edge1 -hub-name Hub1 -content C:deploymentMan1.json

Answer: D

Explanation:
You deploy modules to your device by applying the deployment manifest that you configured with the module information.
Change directories into the folder where your deployment manifest is saved. If you used one of the VS Code IoT Edge templates, use the deployment.json file in the config folder of your solution directory and not the deployment.template.json file.
Use the following command to apply the configuration to an IoT Edge device:
az iot edge set-modules --device-id [device id] --hub-name [hub name] --content [file path] Reference: https://docs.microsoft.com/en-us/azure/iot-edge/how-to-deploy-modules-cli

NEW QUESTION 11

You are troubleshooting an Azure IoT hub.
You discover that some telemetry messages are dropped before they reach downstream processing. You suspect that IoT Hub throttling is the root cause.
Which log in the Diagnostics settings of the IoT hub should you use to capture the throttling error events?

• A. Routes
• B. DeviceTelemetry
• C. Connections
• D. C2DCommands

Answer: B

Explanation:
The device telemetry category tracks errors that occur at the IoT hub and are related to the telemetry pipeline. This category includes errors that occur when sending telemetry events (such as throttling) and receiving telemetry events (such as unauthorized reader). This category cannot catch errors caused by code running on the device itself.
Note: The metric d2c.telemetry.ingress.sendThrottle is the number of throttling errors due to device throughput throttles.
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-monitor-resource-health

NEW QUESTION 12

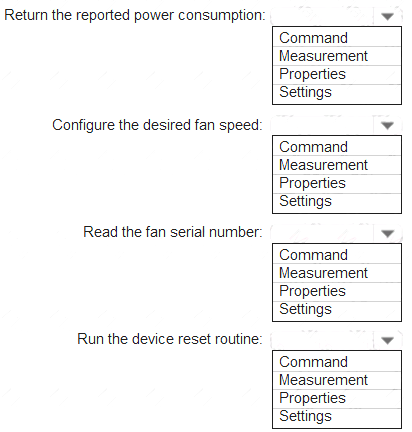

You have an Azure IoT Central application that has a custom device template. You need to configure the device template to support the following activities:
Return the reported power consumption.
Configure the desired fan speed.
Run the device reset routine.
Read the fan serial number.
Which option should you use for each activity? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: Measurement
Telemetry/measurement is a stream of values sent from the device, typically from a sensor. For example, a sensor might report the ambient temperature.
Box 2: Property
The template can provide a writeable fan speed property
Properties represent point-in-time values. For example, a device can use a property to report the target temperature it's trying to reach. You can set writeable properties from IoT Central.
Box 3: Settings
Box 4: Command
You can call device commands from IoT Central. Commands optionally pass parameters to the device and receive a response from the device. For example, you can call a command to reboot a device in 10 seconds.
Reference:
https://docs.microsoft.com/en-us/azure/iot-central/core/howto-set-up-template

NEW QUESTION 13

You have 1,000 devices that connect to a standard tier Azure IoT hub.
All the devices are commissioned and send telemetry events to the built-in IoT Hub endpoint. You configure message enrichment on the events endpoint and set the enrichment value to $twin.tags.ipV4.
When you inspect messages on the events endpoint, you discover that all the messages are stamped with a string of "$twin.tags.ipV4".
What are two possible causes of the issue? Each Answer presents a complete solution. NOTE: Each correct selection is worth one point.

• A. The ipV4 tag is a restricted twin property that is unavailable for message enrichment.
• B. A standard tier IoT hub does not support device twin properties in message enrichments.
• C. The device sending the message has no device twin.
• D. Message enrichment cannot be added to messages going to a built-in endpoint.
• E. The device twin path used for the value of the enrichment does not exist.
• F. The device twin property value used for message enrichment is set to "$twin.tags.ipV4".

Answer: CE

Explanation:
In some cases, if you are applying an enrichment with a value set to a tag or property in the device twin, the value will be stamped as a string value. For example, if an enrichment value is set to $twin.tags.field, the messages will be stamped with the string "$twin.tags.field" rather than the value of that field from the twin.
This happens in the following cases:
(C) Your IoT Hub is in the standard tier, but the device sending the message has no device twin.
(E) Your IoT Hub is in the standard tier, but the device twin path used for the value of the enrichment does not exist. For example, if the enrichment value is set to $twin.tags.location, and the device twin does not have a location property under tags, the message is stamped with the string "$twin.tags.location".
Your IoT Hub is in the basic tier. Basic tier IoT hubs do not support device twins. Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-message-enrichments-overview

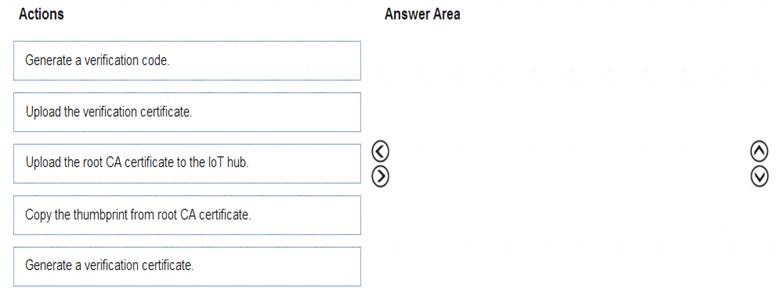

NEW QUESTION 14

You have an Azure IoT solution that includes an Azure IoT hub.
You receive a root certification authority (CA) certificate from the security department at your company. You need to configure the IoT hub to use the root CA certificate.
Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Reference:
https://docs.microsoft.com/bs-latn-ba/azure/iot-hub/iot-hub-security-x509-get-started

NEW QUESTION 15

You need to enable telemetry message tracing through the entire IoT solution. What should you do?

• A. Monitor device lifecycle events.
• B. Upload IoT device logs by using the File upload feature.
• C. Enable the DeviceTelemetry diagnostic log and stream the log data to an Azure event hub.
• D. Implement distributed tracing.

Answer: D

Explanation:
IoT Hub is one of the first Azure services to support distributed tracing. As more Azure services support distributed tracing, you'll be able trace IoT messages throughout the Azure services involved in your solution.
Note:
Enabling distributed tracing for IoT Hub gives you the ability to:
Precisely monitor the flow of each message through IoT Hub using trace context. This trace context includes correlation IDs that allow you to correlate events from one component with events from another component. It can be applied for a subset or all IoT device messages using device twin.
Automatically log the trace context to Azure Monitor diagnostic logs.
Measure and understand message flow and latency from devices to IoT Hub and routing endpoints. Start considering how you want to implement distributed tracing for the non-Azure services in your IoT solution.
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-distributed-tracing
