NEW QUESTION 1
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The design will require three different StoreFront stores and three corresponding Citrix Workspace app for Web sites.
Each different store and Citrix Workspace app for Web site will serve different business units. Each of these will also require its own branding and SSL certificate. The solution should remain supported by Citrix.
The architect has already installed StoreFront on a server.
How can the architect achieve the desired design while keeping cost and maintenance requirements to a minimum?

• A. Create two extra Internet Information Services (IIS) sites, bind the certificates in IIS Manager, copy the StoreFront configurations to the two new IIS sites, and use a text editor to configure all three StoreFront stores.
• B. Deploy two extra virtual servers, bind the certificates in Internet Information Services (IIS) Manager, and install StoreFront on each new virtual server.
• C. Create two extra Internet Information Services (IIS) sites, bind the certificates in IIS Manager, use PowerShell to deploy additional stores to the two new IIS sites, and use a text editor to configure all three StoreFront stores.
• D. Create two extra Internet Information Services (IIS) sites, bind the certificates in IIS Manager, copy the StoreFront configuration to the two new IIS sites, and use the StoreFront console to configure all three StoreFront stores.

Answer: B

NEW QUESTION 2
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment.

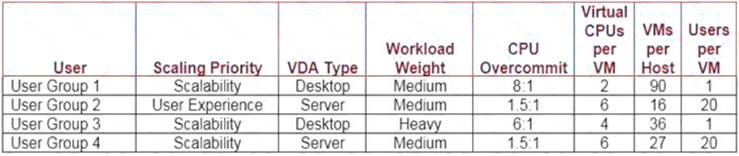

The table in the exhibit lists details about the requirements of the current user groups and their Virtual Delivery Agent (VDA) machine workloads.
Click the Exhibit button to view the table.

The architect should scale the hardware used to host the virtual machines (VMs) for User Group 1 to cores. (Choose the correct option to complete the sentence.)

• A. 32
• B. 24
• C. 96
• D. 64
• E. 16

Answer: B

NEW QUESTION 3
Scenario: The IT team of a company needs to mitigate the Hardware Layer to Microsoft Azure. The Virtual Delivery Agent (VDA) machines are manually provisioned within Microsoft Azure. The IT team asks a Citrix Architect for a solution for high availability of existing VDA machines in a single Azure data center. The objective is to be proactive about any hardware failure at Microsoft Azure, so that all virtual machines (VMs) will NOT be affected.
What should the architect recommend the IT team create in Microsoft Azure?

• A. Resource group
• B. Availability sets with fault domain
• C. Availability sets with update domain
• D. Availability zones

Answer: D

NEW QUESTION 4
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment.

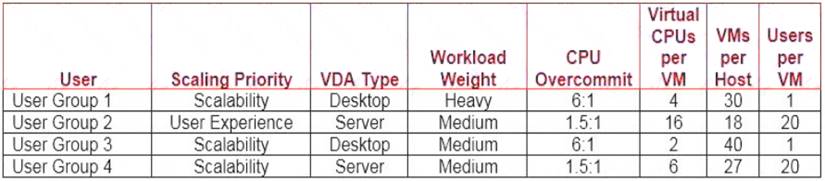

The table in the exhibit lists details about the requirements of the current user groups and their Virtual Delivery Agent (VDA) machine workloads.
Click the Exhibit button to view the table.

At a minimum, the architect should scale the hardware used to host the virtual machine (VMs) for User Group 1 to GB of RAM. (Choose the correct option to complete the sentence.)

• A. 256
• B. 512
• C. 64
• D. 128
• E. 384

Answer: A

NEW QUESTION 5
Scenario: A Citrix Architect is creating a conceptual architecture for a Citrix Virtual Apps and Desktops environment. Based on some initial the company's business goals and objectives, the architect has collected the information shown in the exhibit.
Click the Exhibit button to view the information.

Which delivery model should the architect recommend?

• A. Single-Site in Citrix Cloud, public cloud, and on-premises resource locations
• B. Multi-Site, multi-zone, and multiple on-premises data centers
• C. Multi-Site in Citrix Cloud, and multiple public cloud resource locations
• D. Single-Site, single-zone, and single on-premises data center

Answer: A

NEW QUESTION 6
Scenario: A Citrix Architect is implementing a new Citrix Virtual Apps and Desktops environment. The customer has 3 requirements:
All users must be able to aggregate resources from all Sites.
Both Sites should be treated as 1 equivalent farm set.
User connections should be directed to the New York Site with failover to San Francisco. Click the Exhibit button to view the StoreFront configurations.

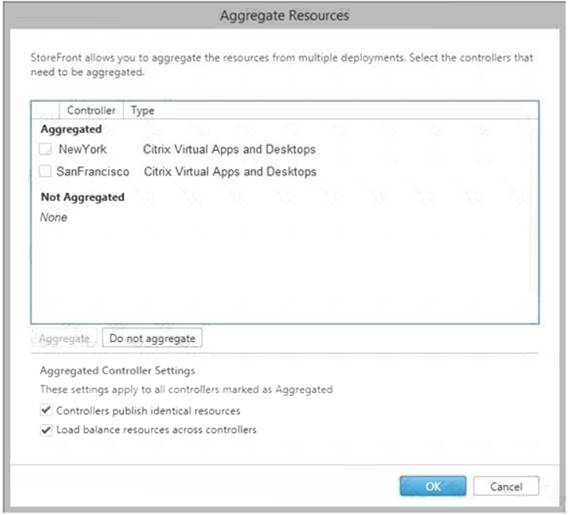

Exhibit 1.

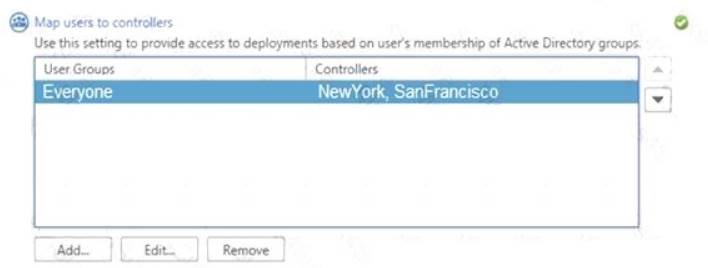

Exhibit 2.

Based on the configurations, requirement 1 is , requirement 2 is , and requirement 3 is . (Choose the correct option to complete the sentence.)
Based on the configurations, requirement 1 is, requirement 2 is, and requirement 3 is. (Choose the correct option to complete the sentence.)

• A. met; met; NOT met
• B. met; NOT met; NOT met
• C. NOT met; met; met
• D. met; met; met
• E. NOT met; met; NOT met
• F. met; NOT met; met
• G. NOT met; NOT met; NOT met

Answer: F

NEW QUESTION 7
Scenario: A Citrix Architect has developed the hardware requirements for a small production Citrix Virtual Apps and Desktops environment as follows:
Access to the environment hosted in a single data center
Ability to perform maintenance on the environment without requiring an outage
Keep management efforts to a minimum
Which hardware requirement does the architect need to include for Citrix Hypervisor hosts to meet the customer's needs?

• A. N+1 Citrix Hypervisor hosts in a single cluster/pool
• B. Separate Citrix Hypervisor cluster/pool in an alternate data center
• C. Multiple individual Citrix Hypervisor hosts in the same data center
• D. Separate Citrix Hypervisor clusters/pools in the same data center

Answer: A

Explanation:
https://docs.citrix.com/en-us/citrix-hypervisor/hosts-pools/clustered-pools.html#manage-your-clustered-pool

NEW QUESTION 8
Scenario: An automobile manufacturer in Germany has deployed a Citrix Virtual Apps and Desktops solution for its employees using Citrix Cloud and uses a resource location in Germany. Recently, they acquired an automobile manufacturer in Japan. Since then, users from Japan have reported issues regarding slowness and degraded performance of the application hosted in the German resource location.
How can a Citrix Architect improve the performance of the application for users in Japan?

• A. Implement Optimal Gateway Routing within the existing resource location.
• B. Create a new Site for Japan within Germany's resource location
• C. Provision new resources in Japan's resource location
• D. Implement Global Server Load Balancing (GSLB)

Answer: C

Explanation:
https://docs.citrix.com/en-us/citrix-cloud/citrix-cloud-resource-locations/resource-locations.html#example-of-a-r

NEW QUESTION 9
Scenario: A Citrix Architect is designing a new infrastructure that will use Citrix Virtual Apps and Desktops to deploy applications in New York, Chicago and Seattle data centers. All 3 data centers will be active simultaneously.
Which feature should the architect recommend to connect the remote users to the closest or best-performing
data center?

• A. Global Server Load Balancing
• B. StoreFront Resource Aggregation
• C. Zone Preference and Failover
• D. Optimal Gateway Routing

Answer: A

NEW QUESTION 10
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment for a company with 2 branch offices connected over a WAN link. Each location will maintain its own Citrix Site and be configured for disaster recovery (DR) to allow users to failover if 1 Site has an outage. Management wants to implement a strong profile solution to manage user profiles. Each user maintains a profile that consists of user documents, application settings, and other personalization settings that must be available to them at all times.
Which step should the architect perform to ensure that profile requirements are met?

• A. Implement Citrix Profile Management for all users with Windows Folder Redirection configured, and Microsoft Distributed File System Replication (DFSR) active-active profile replication configured over the WAN connection.
• B. Implement Citrix Profile Management for all users with Microsoft Distributed File System Replication (DFSR) active-passive profile replication configured over the WAN connection.
• C. Implement Ciitrix Profile Management for all users with Microsoft Distnbuted File System Replication (DFSR) active-active profile replication configured over the WAN connection.
• D. Implement Citrix Profile Management for all users with Active write back enabled and Microsoft Distributed File System Replication (DFSR) active-active profile replication configured over the WAN connection.

Answer: B

Explanation:
https://docs.citrix.com/en-us/profile-management/current-release/plan/high-availability-disaster-recovery-scenar

NEW QUESTION 11
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment for a company that maintains branch offices in New York, Chicago, and Miami. Management has described the following requirements for the environment:
The Citrix Virtual Apps and Desktops Site must be located in the company headquarters in Miami.
All users will only need to access their default local print queue from within their HDX sessions.
Printing performance and bandwidth usage must be optimized where possible.
The environment must be highly available.
The auto-created client printer models must function with no additional configuration needed.

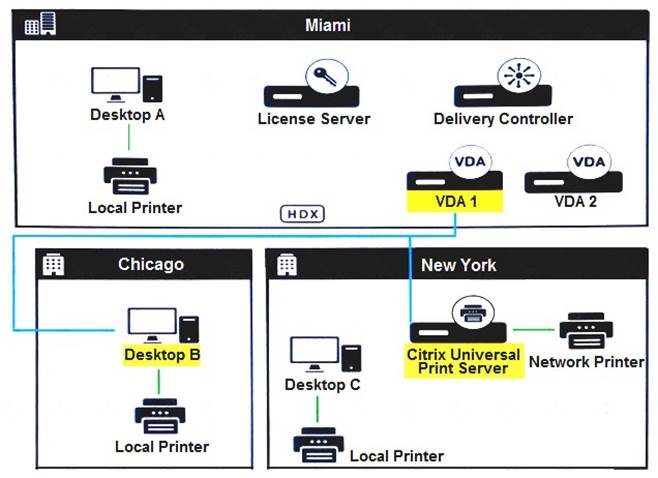

Click the Exhibit button to review the printing requirements.

What does the architect need to do to meet the printing requirements for the users in Chicago?

• A. Enable the Auto-create client printers policy with ‘Auto-create all client printers’ setting enabled.Enable the Universal print driver usage policy to ‘Use universal printing only’. Apply the policy to all user
• B. Then, install and configure the Citrix Universal Print Server components and configure the Universal Print Server policy to ‘Enabled with no fallback to Windows native remote printing’. Last, create a session printer policy, add the network printers that will use the Universal Print Server, and apply the policy to the users in Chicago.
• C. Enable the Auto-create client printers policy with ‘Auto-create all client printers’ setting enabled.Enable the Universal print driver usage policy to ‘Use universal printing only’. Apply the policy to Chicago user
• D. Then, install and configure the Citrix Universal Print Server components and configurethe Universal Print Server policy to ‘Enabled with fallback to Windows native remote printing’. Last, create a session printer policy, add the network printers that will use the Universal Print Server, and apply the policy to all users.
• E. Enable the Auto-create client printers policy with ‘Auto-create all client’s default printer only’ setting enable
• F. Enable the Universal print driver usage policy to ‘Use universal printing only if requested driver is unavailable’. Apply the policy to all user
• G. Then, install and configure the Citrix Universal Print Server components and configure the Universal Print Server policy to ‘Enabled with fallback to Windows native remote printing’. Last, create a session printer policy, add the network printers that will use the Universal Print Server, and apply the policy to all users.
• H. Enable the Auto-create client printers policy with ‘Auto-create all client’s default printer only’ setting enable
• I. Enable the Universal print driver usage policy to ‘Use universal printing only’. Apply the policy to all user
• J. Then, install and configure the Citrix Universal Print Server components and configure the Universal Print Server policy to ‘Enabled with fallback to Windows native remote printing’. Last, create a session printer policy, add the network printers that will use the Universal Print Server, and apply the policy to the users in Chicago.

Answer: D

NEW QUESTION 12
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The architect has identified the Resource Layer requirements shown in the exhibit.

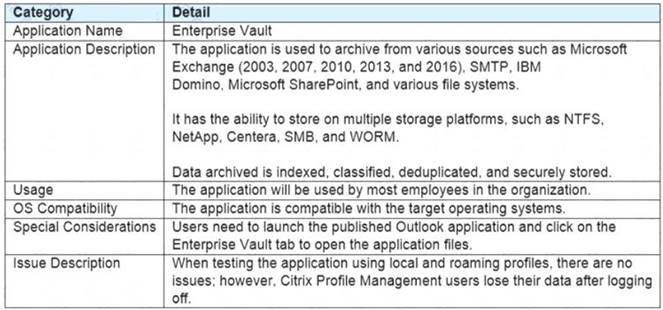

Click the Exhibit button to view the requirements.

Which Citrix Profile Management configuration could help the architect address the issue referenced in the exhibit?

• A. Enable Cross-platform
• B. Add the application folder to the Inclusion policy
• C. Add the application folder to the Exclusion policy
• D. Enable Active write back

Answer: D

NEW QUESTION 13
Scenario: A Citrix Architect needs to implement Citrix Virtual Apps and Desktops. Based on the assessment and early stages of the design, the requirements in the exhibit have been identified.

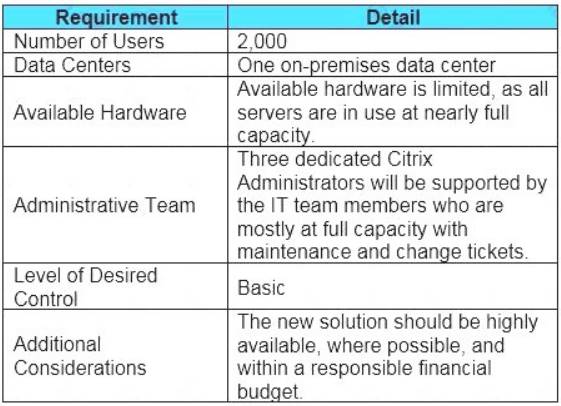

Click the Exhibit button to view the requirements.

Which tier of storage should the architect consider implementing, based on the requirement?

• A. DAS
• B. Local
• C. NAS
• D. SAN

Answer: D

NEW QUESTION 14
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The Site will contain two Delivery Controllers. All machines are running on a single hypervisor platform. As part of the deployment, management has advised they want a database high-availability (HA) solution to protect the environment against the loss of a physical server.
Additional considerations for the SQL HA:
Downtime for Citrix administrative functions should be minimized.
Additional hardware or resources should be minimized.
Limited knowledge available to configure and maintain SQL infrastructure.
Which HA configuration should the architect use for this deployment?

• A. Local Host Cache
• B. VM-Level HA
• C. SQL Always On
• D. SQL Mirroring
• E. SQL Clustering

Answer: A

NEW QUESTION 15
Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The architect has identified the requirements, based on the assessment and early stages of the design.

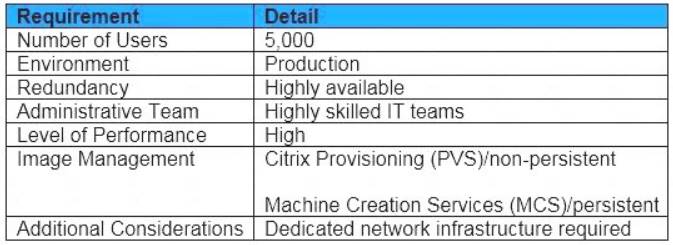

Click the Exhibit button to view the requirements.

Additionally, the IT team identified 2 provisioning strategy requirements:
Should be compatible with planned design decisions
Should minimize required time to perform image and application updates
Which provisioning method should the architect use for the environment, based on the design decisions and requirements shown in the exhibit?

• A. Machine Creation Services (MCS) with App Layering
• B. Manual Provisioning with App Layering
• C. Manual Provisioning
• D. Citrix Provisioning with App Layering
• E. Citrix Provisioning
• F. Machine Creation Services (MCS)

Answer: A

Explanation:
MCS combined with AppLayering provides the highest level of automation and least amount of administrative effort.

NEW QUESTION 16
Scenario: A Citrix Architect is designing a Citrix Virtual Apps and Desktops environment. The company has a small IT team with limited experience deploying and maintaining this type of environment.
To perform adequately, the line of business application used by the company must be hosted <10ms RTT from a backend database located within a customer-managed data center.
Which Citrix Virtual Apps and Desktops environment best meets the needs of this organization?

• A. Citrix Virtual Apps and Desktops and Microsoft Azure workload
• B. Citrix Virtual Apps and Desktops Service and on-premises workload
• C. Citrix Virtual Apps and Desktops Service and Microsoft Azure workload
• D. Citrix Virtual Apps and Desktops and on-premises workload

Answer: C
