NEW QUESTION 1

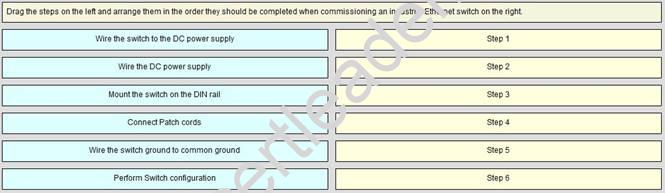

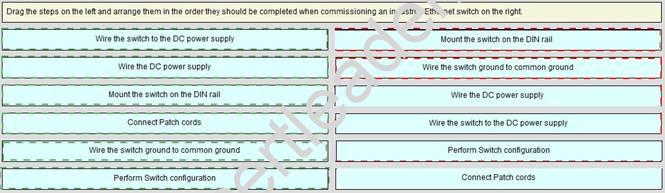

DRAG DROP

Answer:

Explanation:

NEW QUESTION 2

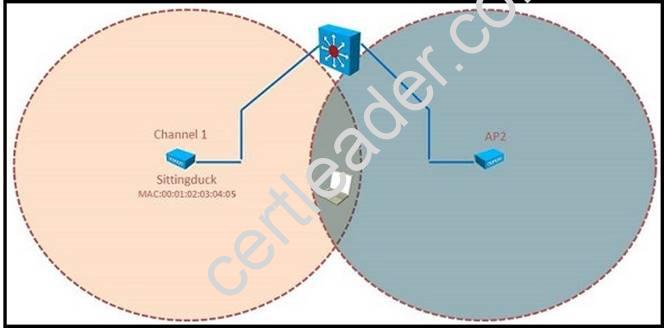

Refer to the exhibit.

Which values are correct for AP 2 to allow for efficient roaming?

• A. Channel 6, SSID Sittingduck, BSSID 00:0a:0b:0c:0d:0e
• B. Channel 1, SSID Sittingduck, BSSID 00:01:02:03:04:05
• C. Channel 1, SSID Sittingduck, BSSID 00:0a:0b:0c:0d:0e
• D. Channel 6, SSID Sittingduck, BSSID 00:01:02:03:04:05

Answer: A

NEW QUESTION 3

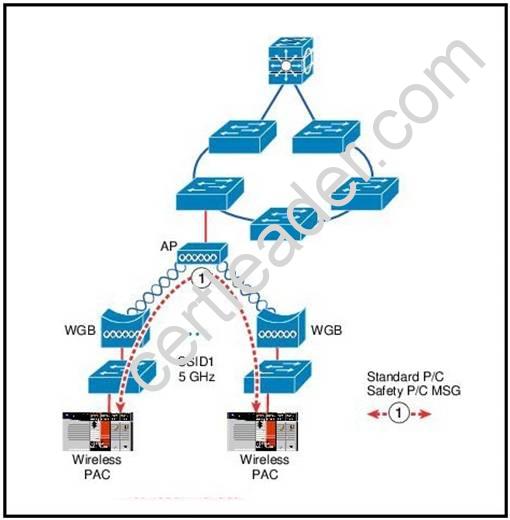

Refer to the exhibit.

What issue does this topology present for the represented traffic flow?

• A. Standard Produce/Consume traffic is not suitable for an 802.11 wireless environment.
• B. Only one of the Work Group Bridges can transmit at a time, because 802.11 is half duplex.
• C. The Converged Plant-wide Ethernet best practices for 802.11 wireless don't allow for PAC to PAC traffic.
• D. I/O control traffic should utilize the 2.4 GHz band based on best practices.

Answer: B

NEW QUESTION 4
You are called at home at 3am by an unskilled machine operator with a suspected network related problem; the controller LEDs are all normal but the output module's communications LED is not on. The operator has verfied the cable is functional and
correctly connected from the communication module to the switch. What is the next check that you ask the unskilled machine operator to make?

• A. Log onto the switch using the console port and check that IGMP snooping is enabled
• B. Open wireshark and check whether the controller is issuing a forward open instruction to the device
• C. Open the diagnostic faceplate on the HMI for the control panel switch and check that the relevant ports are enabled and not in alarm
• D. Open Studio 5000 and check the module status tab for the affected output module

Answer: C

NEW QUESTION 5

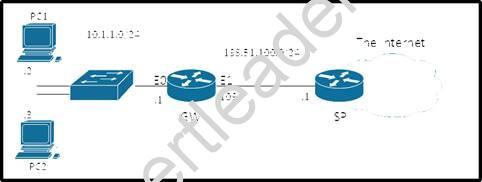

Refer to the exhibit.

NAT has been configured on the router 'GW' and the IP addresses of router 'GW' have been configured properly. Users of PC1 and PC2 are able to ping the IP address 198.51.100.1 but are unable to reach any other IP addresses on the Internet. The ISP confirmed that their configuration is correct. Which option would likely correct the problem?

• A. ip access-list extended ACL_OUTBOUND permit ip 10.1.1.0 0.0.0.255 anyinterface Ethernet1ip access-group ACL_OUTBOUND out
• B. interface Ethernet1 ip nat outside
• C. interface Ethernet0 ip nat inside
• D. ip route 0.0.0.0 0.0.0.0 198.51.100.1

Answer: D

NEW QUESTION 6
EtherNet/IP is an Ethernet implementation of which protocol?

• A. CIP
• B. Industrial Protocol
• C. DeviceNet
• D. ControlNet

Answer: A

NEW QUESTION 7

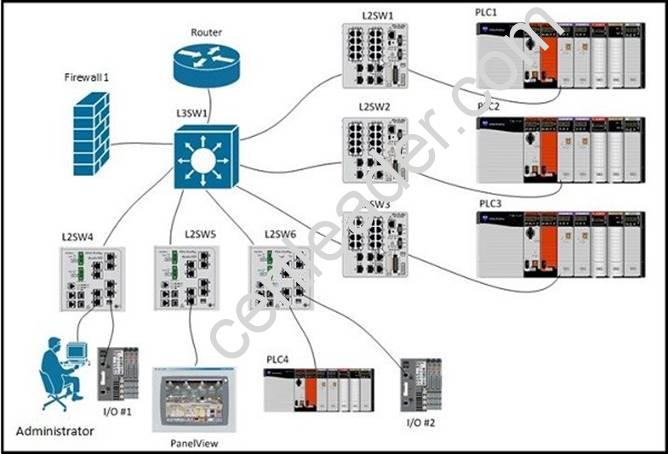

Refer to the exhibit.

All of the vlans listed in the routing table below are trunked using 802.1q and are active on all switches. PLC1, PLC2, and PLC3 each has IP address 192.168.0.1/24 and are connected to ports configured for vlan 50. L2SW1, L2SW2, and L2SW3 are not using vlan trunking for vlan 50.
L3SW1 has following routing table:
10.0.0.0/8 is variably subnetted, 12 subnets, 2 masks C 10.3.138.0/23 is directly connected, Vlan307
C 10.3.136.0/23 is directly connected, Vlan306 C 10.15.153.0/24 is directly connected, Vlan398 C 10.3.142.0/23 is directly connected, Vlan309 C 10.3.140.0/23 is directly connected, Vlan308 C 10.3.186.0/23 is directly connected, Vlan293 C 10.15.154.0/24 is directly connected, Vlan399 C 10.3.184.0/23 is directly connected, Vlan292 C 10.3.190.0/23 is directly connected, Vlan295 C 10.3.188.0/23 is directly connected, Vlan294
C 10.3.182.0/23 is directly connected, Vlan291 C 10.3.180.0/23 is directly connected, Vlan290
PLC1, PLC2, and PLC3 cannot be reconfigured. What can be done to be able to simultaneously communicate with PLC1, PLC2, and PLC3?

• A. Enable NAT on L3SW1
• B. Enable NAT on L2SW1 – L2SW3
• C. Enable NAT on L2SW4
• D. Add vlan 50 to L2SW4 and assign the administrator's an IP address on 192.168.0.0/24 network

Answer: B

NEW QUESTION 8
A ProfiNET management system operator is unable to add a ProfiNET Conformance Class B device to a SIMATIC management station. The device is connected to interface FastEthernet1/3. Based on the provided CLI output, which statement is correct?
switch#show profinet lldp Fa1/1 port-003-00000 On Fa1/2 port-004-00000 On Fa1/3 port-005-00000 Off Fa1/4 port-006-00000 Off Fa1/5 port-007-00000 On Fa1/6 port-008-00000 Off Fa1/7 port-009-00000 On Fa1/8 port-010-00000 Off

• A. LLDP has been disabled on this switch
• B. The connected device is not sending LLDP packets with ProfiNET extensions
• C. The port label needs to be changed on interface FastEthernet 1/3 to "port-003-00000"
• D. ProfiNET is disabled on this switch

Answer: B

NEW QUESTION 9

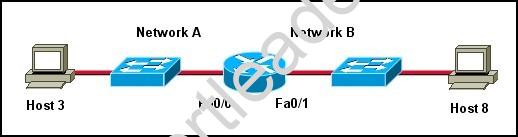

Exhibit:

Refer to the exhibit. Host 3 on Network A is sending data to Host 8 on Network B. Which address is the default gateway of Host 3?

• A. the address of the switch interface that is connected to router interface Fa0/0
• B. the address of the switch interface that is connected to router interface Fa0/1
• C. the address of the host that is connected to Network A
• D. the address of the host that is connected to Network B
• E. the address of the router interface Fa0/0
• F. the address of the router interface Fa0/1

Answer: E

NEW QUESTION 10
Your controller has a high performance EtherNet/IP interface with port speed of >30,000 packets per second and 80% spare capacity. A new PowerFlex 753 drive will be added to the system with an RPI of 2ms and has been connected to a switch; you have been asked to set up the switch port. You open the EDS file and see that the drive will support 16 CIP connections and has transmit and receive capacity of 1,000 control packets per second.
What do you set as the storm control pps threshold limit for the port?

• A. 16
• B. 1,000
• C. 2,500
• D. 25,000

Answer: C

NEW QUESTION 11

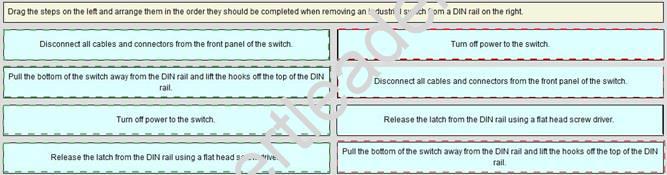

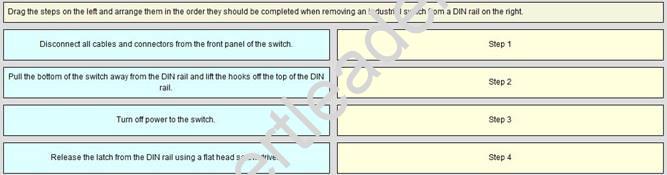

DRAG DROP

Answer:

Explanation:

NEW QUESTION 12

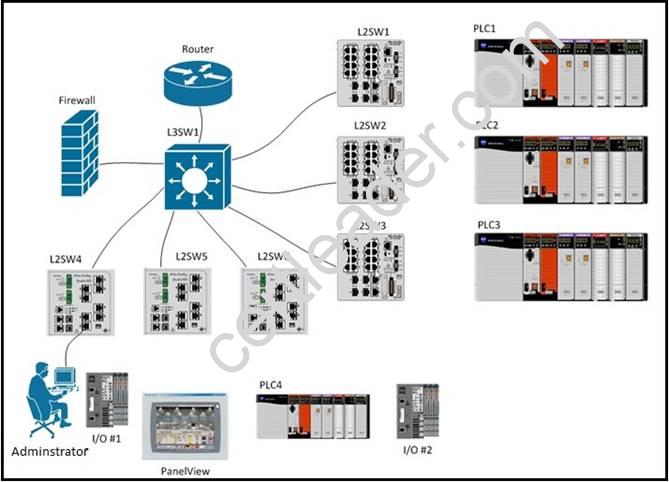

Refer to exhibit. The administrator has configured the following device IP settings, but did not keep track of which ports the devices were connected to. The administrator is able to ping each device but needs to update the network documentation to include the switch and interface where each device is connected. The administrator does not want to walk to each device and switch to track down the information.

Which steps below would you execute in sequence to document the switch and interface where each device is connected?
1. View the ARP table on L3SW1
2. View the ARP table on the administrator's station
3. View the ARP table on L2SW4
4. PING all the devices
5. View the MAC address table on all switches
6. View the MAC address table on the administrator's station

• A. 2,4,5
• B. 2,5,4
• C. 4,3,6
• D. 4,1,5

Answer: D

NEW QUESTION 13
Which scenario represents the correct configuration to support the SSIDs of this autonomous access point?

• A. [MISSING]
• B. [MISSING]
• C. [MISSING]
• D. [MISSING]

Answer: D

NEW QUESTION 14
Which option allows an EtherNet/IP I/O device to be safely installed where it is subject to water immersion?

• A. The device is rated IP20 and the power wiring is installed securely to the terminal block.
• B. The device is rated IP67 and a power cordset is used.
• C. The device is rated IP67 and immersed to 10 m.
• D. The device is rated IP20 and immersed to 10 m.

Answer: B

NEW QUESTION 15
Which prompt is used to configure parameters for the Ethernet ports of an industrial switch?

• A. Switch(config-if)#
• B. Switch(config-if-ind)#
• C. Switch(config-line)#
• D. Switch(config-ind)#
• E. Switch(config-vlan)#

Answer: A

NEW QUESTION 16
Which in-depth approach is used when deploying defense in an industrial zone?

• A. Use PLCs and control systems from multiple vendors in such a way that the process will become resilient for failures of one vendor.
• B. Deploy two factor authentications for all operators which need to login remote while working from home.
• C. Collect log files at a central location for easy back-up and encryption to provide privacy.
• D. Create multiple zones in the industrial zone and protect / inspect traffic between the zones with firewalls and intrusion monitors.

Answer: D
