NEW QUESTION 1

Open the windows by clicking on the minimized title at the bottom of the viewing area. Windows can be minimized by clicking on the [-], repositioned by dragging the title bar, and resized by using the handle at the lower right corner to customize the viewing area.
If you are required to access the devices to complete this scenario, the mouse cursor will use a hand symbol when moved over device icons. Click the icon to open a device terminal to interact with the hardware.
Open the Questions window and begin with clicking a question number. When you have completed answering all questions, click Done to continue.
Scenario
Use your UCS knowledge on Fabric Interconnect Failover to answer the questions associated with the UCS cluster.

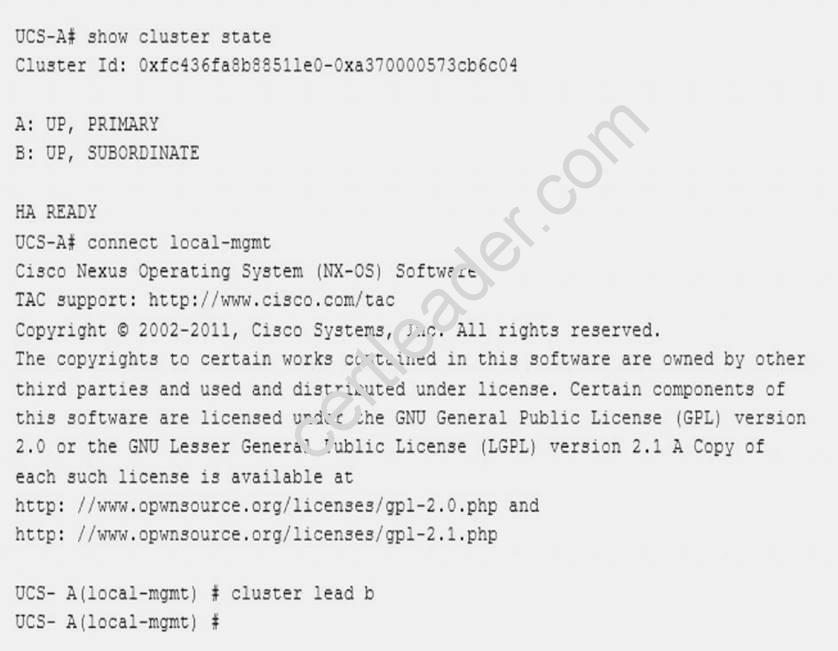

Exhibit.

The connect local-mgmt command is required

• A. To allow the fabric interconnect to use the force command to be subordinate.
• B. To allow local management of the cluster to be configured.
• C. To configure HA on all fabric interconnect.
• D. To enable the fabric interconnect for a different HA state.

Answer: B

NEW QUESTION 2

After an admin configures a service profile template and associates it to the blade, the admin notices that changes to the template are not automatically pushed to profiles that are inheriting that template. The service profile template and vNIC templates are set to "initial".
Which two actions resolve this issue? (Choose two.)

• A. Delete the vNIC template and re-create it as an uploading template.
• B. Delete the type of the vNIC template from “initial” to “updating”
• C. Delete the service profile template and re-create it as an updating template
• D. Delete and recreate all templates
• E. Change the type f the service profile template from “initial” to “updating”

Answer: AC

NEW QUESTION 3

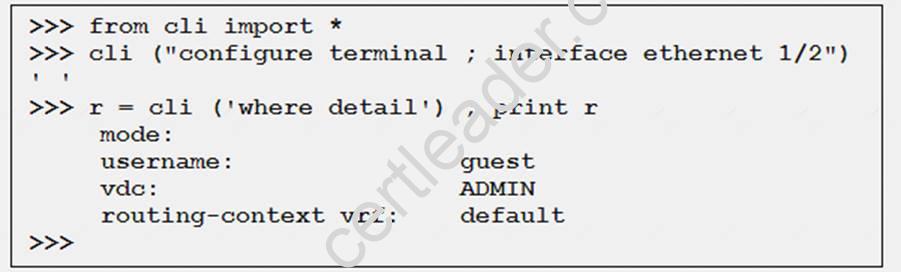

Refer to the exhibit

which script ing tool do you use to create the script?

• A. Python-API
• B. Bach
• C. NX-API
• D. Broadcom shell

Answer: A

NEW QUESTION 4

From the Cisco UCS Manager GUI, which two configurations can be performed for Cisco UCS C-Series Rack-Mount Servers from the rack server discovery policy? (Choose two.)

• A. Whether the server is discovered immediately or after the acknowledgement of the administrator
• B. Defines the scrub policy to be used upon discovery
• C. Defines the management IP address to be associated to the server upon discovery
• D. Reverts a -Series server from Cisco UCS domain mode to standalone mode
• E. Defines the Cisco Host Upgrade Utility ISO file for the rack servers connected to the fabric interconnects

Answer: AB

Explanation:
Reference:
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/20/b_UCSM_GUI_Configura

NEW QUESTION 5

Which option describes the Network Security feature of Cisco intergrated Management Controller?

• A. User-configured ACLs that deny devices access to the Cisco IMC.
• B. 802.1x support which permits the Cisco IMC access to the port security network.
• C. A feature that locks users out of the Cisco IMC after a specified number of unsuccessful log in attempts.
• D. A list that specifies the devices allowed to access the Cisco IMC.

Answer: C

NEW QUESTION 6

You must implement a Dynamic FCoE topology that uses ECMP. Which ancillary technology do you use?

• A. OTV
• B. VXLAN
• C. FabricPath
• D. EIGRP

Answer: C

NEW QUESTION 7

While configuring communication between vCenter and Cisco UCS, which two items are contained in the extension file? (Choose two.)

• A. extension key
• B. plug-in version information
• C. SSL private certificate
• D. Cisco UCS Manager SSL public certificate
• E. SSH public key
• F. Cisco UCS Manager admin credentials
• G. IP address of the hosts utilizing VM link
• H. vCenter SSL public certificate

Answer: AD

NEW QUESTION 8

Which actions must be taken in order to connect a NetAppFCoE storage system to a Cisco UCS system?

• A. Ensure that the Fibre Channel switching mode is set to Switching, and use the Fibre Channel ports on the Fabric Interconnects.
• B. Ensure that the Fibre Channel switching mode is set to Switching, and reconfigure the port to aFCoE Storage port.
• C. Ensure that the Fibre Channel switching mode is set to End-Host, and use the Ethernet ports on the Fabric Interconnects.
• D. Ensure that the Fibre Channel switching mode is set to Switching, and use the Ethernet ports on the Fabric Interconnects.

Answer: A

Explanation:
References:
http://www.renar.net/?p=148&lang=en https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/release/notes/UCS_28313.html

NEW QUESTION 9

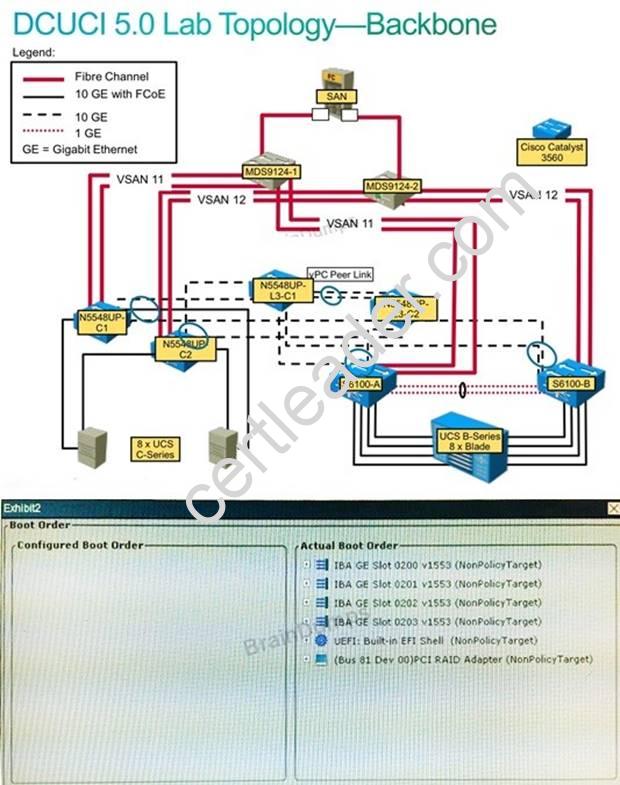

Scenario
In this scenario, you will refer to screenshots about Cisco UCS B-Series servers and UCS Manager. Instructions
To access the multiple-choice questions, click on the numbered boxes on the left of the top panel. There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.

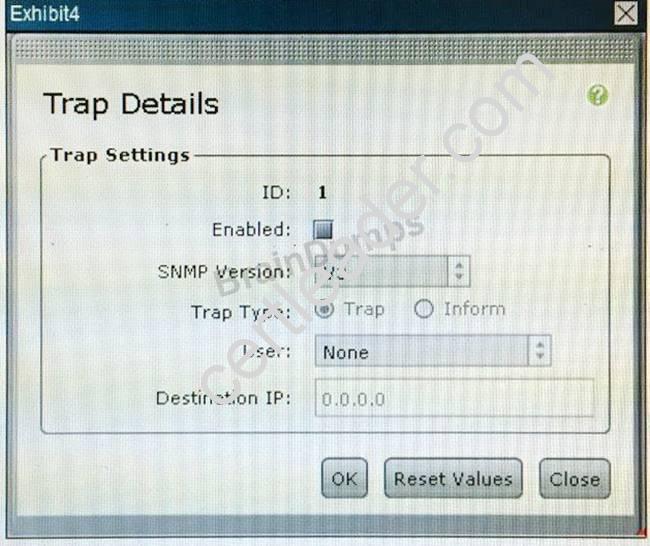

Refer to the screenshot in Exhibit 4. Once you enable an SNMP Trap destination, which SNMP Version is required to configure the Inform Trap Type?

• A. 1
• B. 2
• C. 2c
• D. 3

Answer: D

Explanation:
Reference:
http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/5_x/nxos/system_management/configuration/guid

NEW QUESTION 10

When using VM-FEX, the new VMs are not connected, but existing VMs are unaffected. Which option describes the most likely cause?

• A. Binding is set to ephemeral on the DVS, but it must be set to static.
• B. Dynamic NICs have been exhausted.
• C. Hostd on the host has stopped responding to Cisco UCS Manager.
• D. The adapter has failed.

Answer: B

NEW QUESTION 11

Which two prerequisites are required to configure a SAN boot from the iSCSI storage of a Cisco UCS system? (Choose two.)

• A. There must be FCIP connectivity between the Cisco UCS domain and the boot target storage.
• B. There must be IP connectivity between the Cisco UCS domain and the boot target storage.
• C. The operating system to boot must be iBFT-capable.
• D. There must be a group of IP addresses that is associated with the WWN pool.
• E. The operating system to boot must be an iSCSI initiator and must he target-capable.

Answer: BC

Explanation:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configu

NEW QUESTION 12

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Unknown

NEW QUESTION 13

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 14

You are connecting a Fibre Channel storage array to Cisco UCS What is a prerequisite to configuring Fibre Channel traffic ?

• A. The VSAN requires a dedicated FCoE VLAN
• B. The VSAN ID must match the FCoE VLAN ID
• C. The VSAN ID must differ from the VLAN ID
• D. The VLANs and the FCoE VLANs can have the same ID

Answer: A

NEW QUESTION 15

Which option does UEFI secure boot provide?

• A. checksum verification of the OS
• B. certificate verification of the EFI shell
• C. checksum verification of the EFI shell
• D. certificate verification of the OS

Answer: D

NEW QUESTION 16

Which of the following is true concerning Fibre Channel communications on a Cisco Unified Computing System?

• A. Each VSAN requires a dedicated VLAN to carry FCoE traffic.
• B. FCoE VLANs are created like Ethernet VLANs on Cisco Unified Computing System Manager.
• C. FCoE VLANs may overlap with Ethernet VLANs.
• D. Cisco Unified Computing System Manager supports a maximum of 128 active VSANs.

Answer: A

NEW QUESTION 17

Which statement about an iSCSIvNIC when it is created with an overlay NIC is true?

• A. It can have any VLAN allowed on it.
• B. It can be assigned a unique MAC address.
• C. It can have a unique pin group assigned to it.
• D. It can have only the overlays native VLAN associated to it.

Answer: D

NEW QUESTION 18

Which three items must be configured in the Port Profile Client in Cisco Unified Computing System Manager? (Choose three.)

• A. port profile
• B. DVS
• C. data center
• D. folder
• E. VMware vCenter IP address
• F. VM port group

Answer: BCD

NEW QUESTION 19

Which ports can access the Cisco IMC if you select Shared LOM NIC mode in the Cisco IMC Configuration Utility for a Cisco UCS C-Series server?

• A. The ports on an installed Cisco network adapter card
• B. The two 1-Gb Ethernet ports
• C. The two 10/100 management ports
• D. The two 10/100 management ports, but each port has a default setting

Answer: B

NEW QUESTION 20

Where do you configure the VLAN when provisioning new VLANs in VM-FEX?

• A. vCenter on the port group
• B. Cisco UCS Manager on the port profile
• C. Cisco UCS Manager on the service profile
• D. vCenter on the host

Answer: B

NEW QUESTION 21

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 22

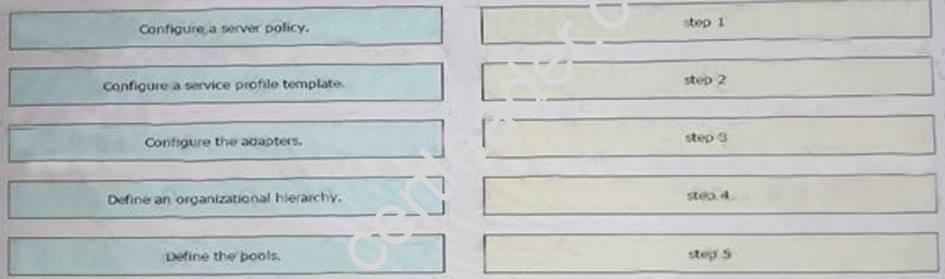

You must define a workload using Cisco UCS Manager. Drag and drop the workload definition tasks from the left into the correct order on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Define organizational hierarchy Define Pools
Configure Adapters
Configure Service Profile Templates Configure Server Policies

NEW QUESTION 23

How many links are there between a second-generation IOM (Cisco UCS 2204 or 2208) and a third-generation half-width blade (Cisco UCS B200 M3 or B22 M3) in a Cisco UCS system?

• A. 1
• B. 2
• C. 4
• D. 8

Answer: C

NEW QUESTION 24

You configure FCoE in a Cisco UCS system at a customer site. The configuration seems correct, but the customer complains that the system fails to perform as expected. FCoE VLAN discovery, FCF discovery and FLOGI processes work properly. The issue appears to be with the Fibre Channel commands and responses.
What is a possible cause of the issue?

• A. The storage device is experiencing configuration or compatibility issues when the FIP process completes successfully.
• B. The routed Layer 3 network between the FCoE SAN and the storage device is experiencing issues when the FIP process fails to complete successfully.
• C. The FCoE configuration is experiencing errors because of issues with the Fibre Channel commends.
• D. The switched Layer 2 network between the FCoE SAN and the storage device is experiencing issues when the FIP process fails to complete successfully.

Answer: B

Explanation:
Make sure that your native vlan is carried across all the trunk ports.
Reference:
https://supportforums.cisco.com/t5/storage-networking/fip-and-native-vlan/td-p/2451783

NEW QUESTION 25

You have a Cisco UCS system. You need to create VSAN 100 on 2 Cisco Nexus Series switch and to enable switch port fc1/10 as a member for the VLAN.
Which command set should you use?

• A. SITE-A-MDS-Fabric-A# vsan databaseSITE-A-MDS-Fabric-A (vsan-db)# vsan 100 interface fc1/10 SITE-A-MDS-Fabric-A (vsan-db)# vsan database commit SITE-A-MDS- Fabric-A (vsan-db)# exit
• B. SITE-A-MDS-Fabric-A# configure terminal SITE-A-MDS-Fabric-A (config)# vsan databaseSITE-A-MDS-Fabric-A (config-vsan-db)# vsan 100 interface fc1/10 SITE-A-MDS- Fabric-A (config-vsan-db)# exit
• C. SITE-A-MDS-Fabric-A# configure terminal SITE-A-MDS-Fabric-A (config)# vsan databaseSITE-A-MDS-Fabric-A (config-vsan-db)# vsan 100 interface fc1/10 SITE-A-MDS- Fabric-A (config-vsan-db)# vsan database commit
• D. SITE-A-MDS-Fabric-A# configure terminal SITE-A-MDS-Fabric-A (config)# vsan databaseSITE-A-MDS-Fabric-A(config-vsan-db)# vsan 100 interface fc1/10 SITE-A-MDS- Fabric-A (config-vsan-db)# vsan database commit SITE-A-MDS-Fabric-A (config-vsan-db)# exit

Answer: B

Explanation:
Reference:
https://www.cisco.com/en/US/docs/storage/san_switches/mds9000/sw/san-os/quick/guide/qcg_vin.html

NEW QUESTION 26

How does a dynamic vNIC get allocated?

• A. Dynamic vNICs are assigned to VMs in VMware vCenter.
• B. Dynamic vNICs can only be bound to the service profile through an updating template.
• C. Dynamic vNICs are bound directly to a service profile.
• D. Dynamic vNICs are assigned by binding a port profile to the service profile.

Answer: C

NEW QUESTION 27

You need to install a Windows Server operating system that has MPIO enabled, to optimize connectivity with storage arrays.
What is a valid prerequisite to perform this task?

• A. iSCSImultipathing must be enabled on all of the vNICs and the physical adapters in the iSCSI initiator IP pools.
• B. iSCSImultipathing must be disabled during the installation and re-enabled after MPIO is enabled on the host.
• C. If there are multiple paths that are configured to the boot LUN, all of these paths must be enabled when the LUN is installed.
• D. If there are multiple paths that are configured to the boot LUN, only one path must be enabled when the LUN is installed.

Answer: D

Explanation:
If there are multiple paths configured to the boot LUN, only one path should be enabled when the LUN is installed
Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-2/b_UCSM_GUI_Configu

NEW QUESTION 28

Which BIOS setting is required for a VMware ESXi 5.0 host to support Cisco VM-FEX universal pasthrough mode?

• A. VT for Directed IO
• B. ACPI 10 Support
• C. VEMDPA Agent
• D. Execute Disabled Bit
• E. Processor C State

Answer: A

NEW QUESTION 29

ACisco UCS administrator configuring QoS, Which two options are valid QoS system classes in a Cisco UCS blade system? (Choose two )

• A. drop eligible
• B. transactaional data
• C. best effort
• D. scavenger
• E. Fibre Channel

Answer: CE

NEW QUESTION 30

Which addressing does Cisco UCS Manager use when communicating with Cisco UCS Central?

• A. IP addresses of the UCS Fabric Interconnects
• B. UCS CIMC
• C. VMware ESXi server
• D. IP address of the UCS KVM

Answer: A

NEW QUESTION 31
......
