NEW QUESTION 1

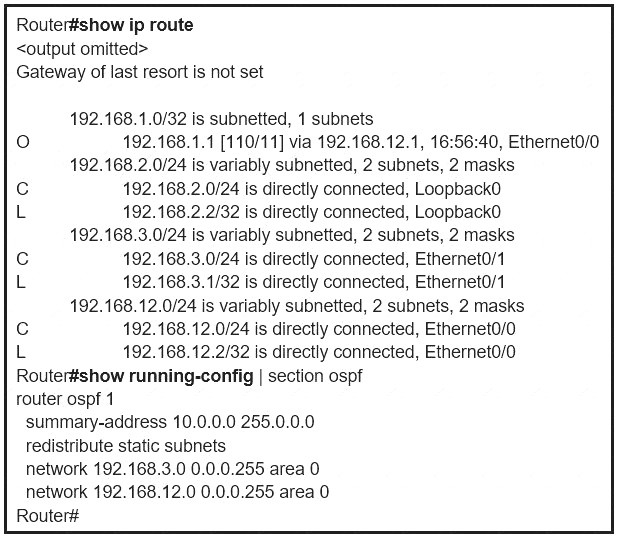

Refer to the exhibit.

An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the summary route does not show up in the routing table. Why is the summary route missing?

• A. The summary-address command is used only for summarizing prefixes between areas.
• B. The summary route is visible only in the OSPF database, not in the routing table.
• C. There is no route for a subnet inside 10.0.0.0/8, so the summary route is not generated.
• D. The summary route is not visible on this router, but it is visible on other OSPF routers in the same area.

Answer: A

NEW QUESTION 2
Refer to the exhibit.

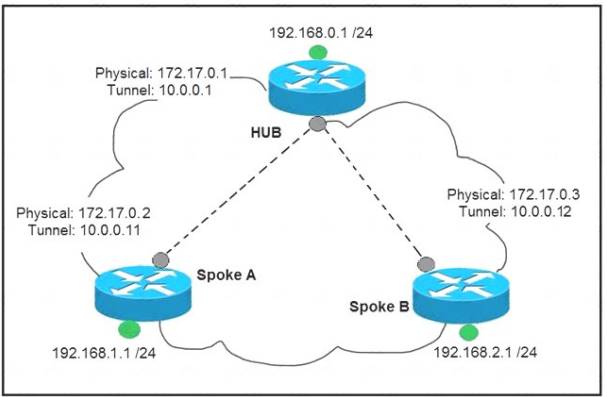

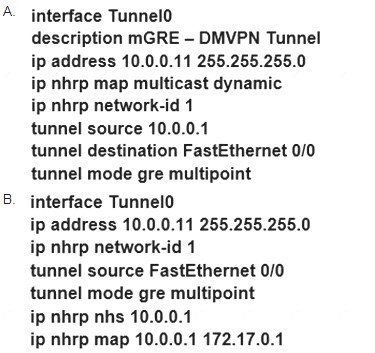

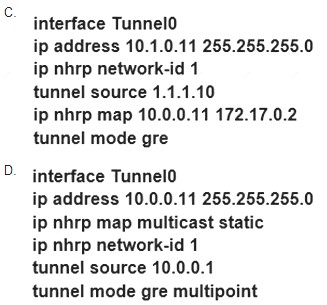

Which interface configuration must be configured on the spoke A router to enable a dynamic DMVPN tunnel with the spoke B router?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: A

NEW QUESTION 3

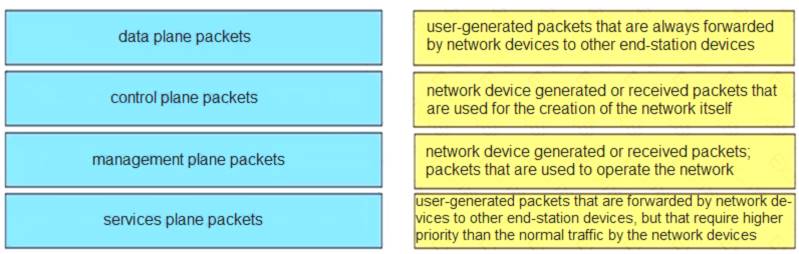

Drag and drop the packet types from the left onto the correct descriptions on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 4

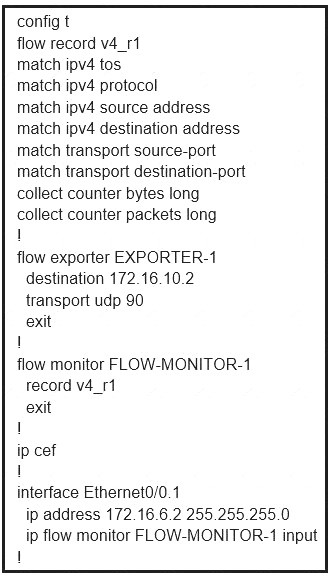

Refer to the exhibit.

Why is the remote NetFlow server failing to receive the NetFlow data?

• A. The flow exporter is configured but is not used.
• B. The flow monitor is applied in the wrong direction.
• C. The flow monitor is applied to the wrong interface.
• D. The destination of the flow exporter is not reachable.

Answer: D

NEW QUESTION 5
Refer to the exhibit.

An IP SLA was configured on router R1 that allows the default route to be modified in the event that Fa0/0 loses reachability with the router R3 Fa0/0 interface. The route has changed to flow through
router R2. Which debug command is used to troubleshoot this issue?

• A. debug ip flow
• B. debug ip sla error
• C. debug ip routing
• D. debug ip packet

Answer: C

NEW QUESTION 6

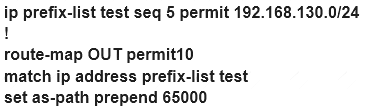

R2 has a locally originated prefix 192.168.130.0/24 and has these configurations:

What is the result when the route-map OUT command is applied toward an eBGP neighbor R1 (1.1.1.1) by using the neighbor 1.1.1.1 route-map OUT out command?

• A. R1 sees 192.168.130.0/24 as two AS hops away instead of one AS hop away.
• B. R1 does not accept any routes other than 192.168.130.0/24
• C. R1 does not forward traffic that is destined for 192.168.30.0/24
• D. Network 192.168.130.0/24 is not allowed in the R1 table

Answer: A

NEW QUESTION 7
Which method changes the forwarding decision that a router makes without first changing the routing table or influencing the IP data plane?

• A. nonbroadcast multiaccess
• B. packet switching
• C. policy-based routing
• D. forwarding information base

Answer: C

NEW QUESTION 8

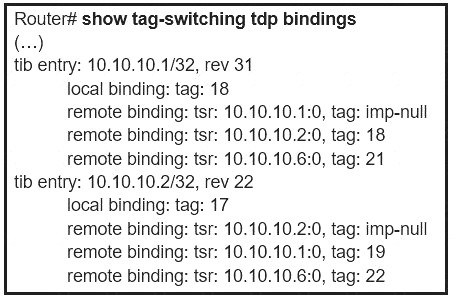

Refer to the exhibit.

What does the imp-null tag represent in the MPLS VPN cloud?

• A. Pop the label
• B. Impose the label
• C. Include the EXP bit
• D. Exclude the EXP bit

Answer: C

NEW QUESTION 9

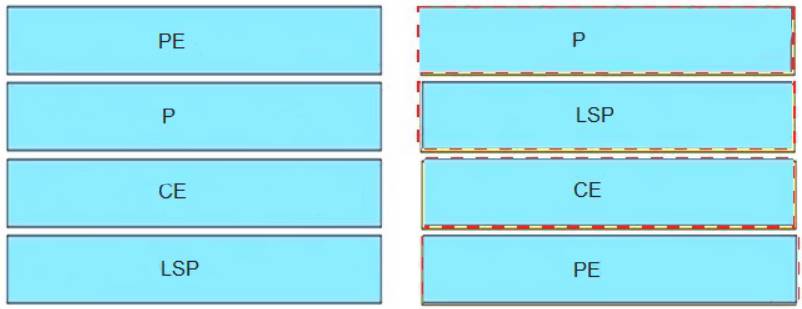

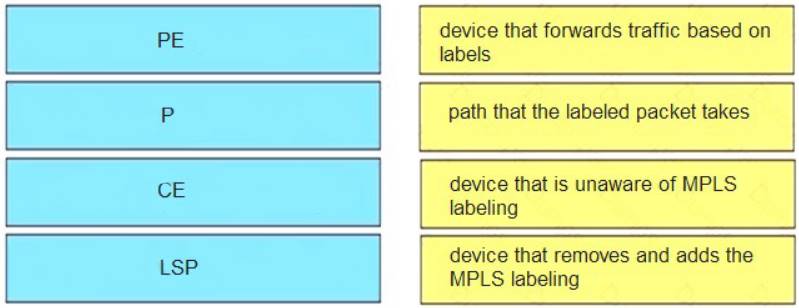

Drag and drop the MPLS terms from the left onto the correct definitions on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 10

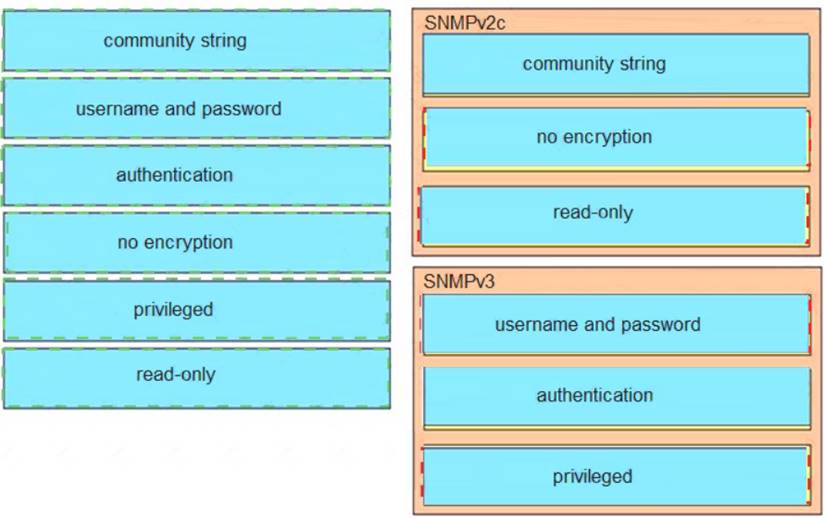

Drag and drop the SNMP attributes in Cisco IOS devices from the left onto the correct SNMPv2c or SNMPV3 categories on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 11

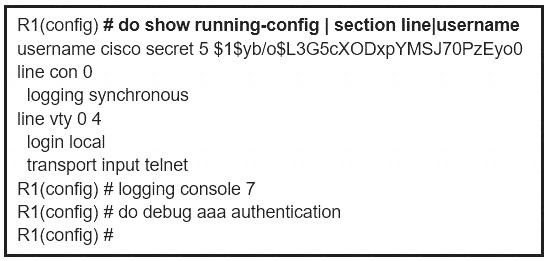

Refer to the exhibit.

An administrator that is connected to the console does not see debug messages when
remote users log in. Which action ensures that debug messages are displayed for remote logins?

• A. Enter the transport input ssh configuration command.
• B. Enter the terminal monitor exec command.
• C. Enter the logging console debugging configuration command.
• D. Enter the aaa new-model configuration command.

Answer: B

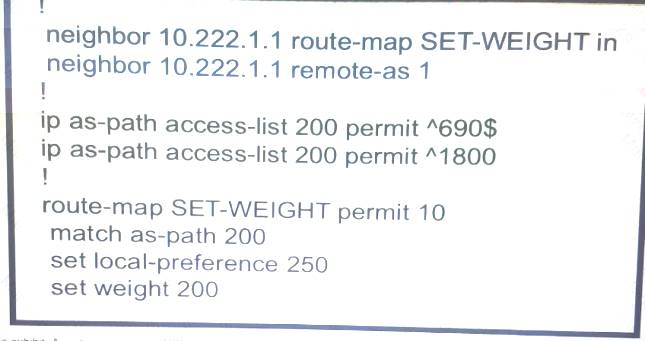

NEW QUESTION 12
Refer to the exhibit.

A router receiving BGP routing updates from multiple neighbors for routers in AS 690. What is the reason that the router still sends traffic that is destined to AS 690 to a neighbor other than 10.222.1.1?

• A. The local preference value in another neighbor statement is higher than 250.
• B. The local preference value should be set to the same value as the weight in the route map.
• C. The route map is applied in the wrong direction.
• D. The weight value in another statement is higher than 200.

Answer: D

NEW QUESTION 13

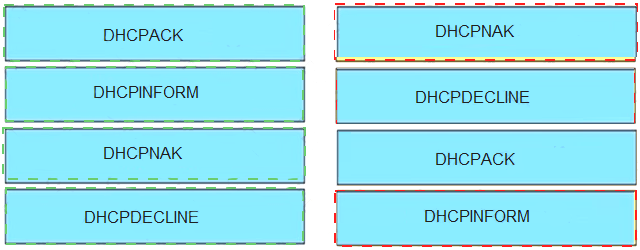

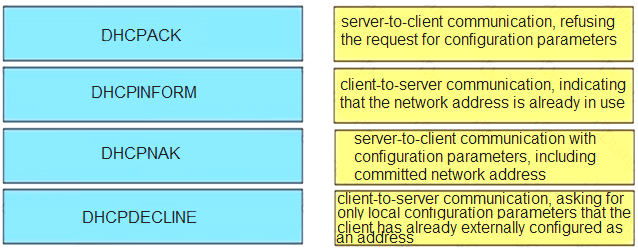

Drag and drop the DHCP messages from the left onto the correct uses on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 14
Refer to the exhibit.

ISP 1 and ISP 2 directly connect to the Internet. A customer is tracking both ISP links to
achieve redundancy and cannot see the Cisco IOS IP SLA tracking output on the router console. Which command is missing from the IP SLA configuration?

• A. Start-time 00:00
• B. Start-time 0
• C. Start-time immediately
• D. Start-time now

Answer: D

NEW QUESTION 15
An engineer configured the wrong default gateway for the Cisco DNA Center enterprise interface during the install. Which command must the engineer run to correct the configuration?

• A. sudo maglev-config update
• B. sudo maglev install config update
• C. sudo maglev reinstall
• D. sudo update config install

Answer: A

NEW QUESTION 16
A network engineer is investigating a flapping (up/down) interface issue on a core switch that is synchronized to an NTP server. Log output currently does not show the time of the flap. Which command allows the logging on the switch to show the time of the flap according to the clock on the device?

• A. service timestamps log uptime
• B. clock summer-time mst recurring 2 Sunday mar 2:00 1 Sunday nov 2:00
• C. service timestamps log datetime localtime show-timezone
• D. clock calendar-valid

Answer: A

NEW QUESTION 17
Which configuration adds an IPv4 interface to an OSPFv3 process in OSPFv3 address family configuration?

• A. router ospfv3 1address-family ipv4
• B. Router(config-router)#ospfv3 1 ipv4 area 0
• C. Router(config-if)#ospfv3 1 ipv4 area 0
• D. router ospfv3 1address-family ipv4 unicast

Answer: B

NEW QUESTION 18
Which statement about route distinguishers in an MPLS network is true?

• A. Route distinguishers allow multiple instances of a routing table to coexist within the edge router.
• B. Route distinguishers are used for label bindings.
• C. Route distinguishers make a unique VPNv4 address across the MPLS network.
• D. Route distinguishers define which prefixes are imported and exported on the edge router.

Answer: C

NEW QUESTION 19

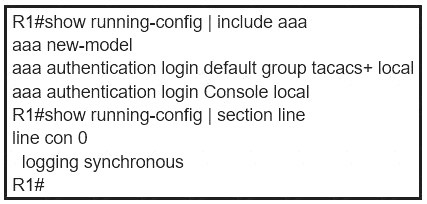

Refer to the exhibit.

An engineer is trying to configure local authentication on the console line, but the device is trying to authenticate using TACACS+. Which action produces the desired configuration?

• A. Add the aaa authentication login default none command to the global configuration.
• B. Replace the capital “C” with a lowercase “c” in the aaa authentication login Console local command.
• C. Add the aaa authentication login default group tacacs+ local-case command to the global configuration.
• D. Add the login authentication Console command to the line configuration

Answer: D

NEW QUESTION 20
Which command displays the IP routing table information that is associated with VRF-Lite?

• A. show ip vrf
• B. show ip route vrf
• C. show run vrf
• D. show ip protocols vrf

Answer: B

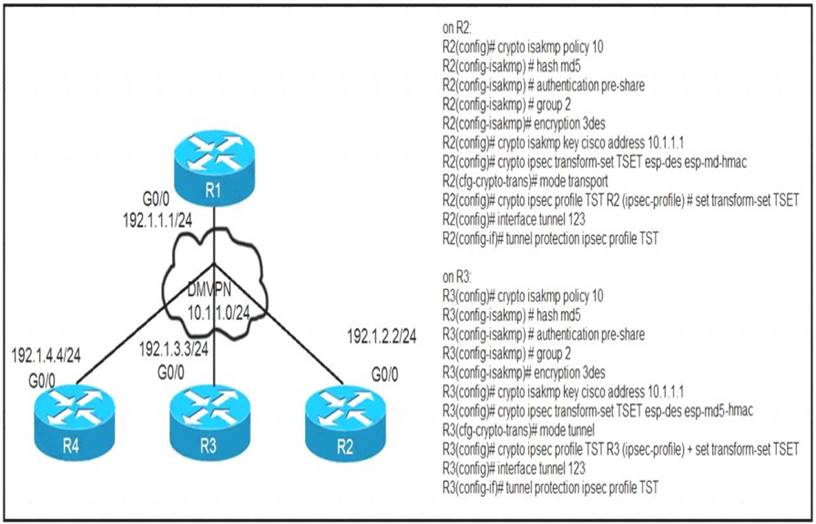

NEW QUESTION 21
Refer to the exhibit.

After applying IPsec, the engineer observed that the DMVPN tunnel went down, and both
spoke-to-spoke and hub were not establishing. Which two actions resolve the issue? (Choose two.)

• A. Change the mode from mode tunnel to mode transport on R3.
• B. Remove the crypto isakmp key cisco address 10.1.1.1 on R2 and R3.
• C. Configure the crypto isakmp key cisco address 192.1.1.1 on R2 and R3.
• D. Configure the crypto isakmp key cisco address 0.0.0.0 on R2 and R3.
• E. Change the mode from mode transport to mode tunnel on R2.

Answer: AD

NEW QUESTION 22

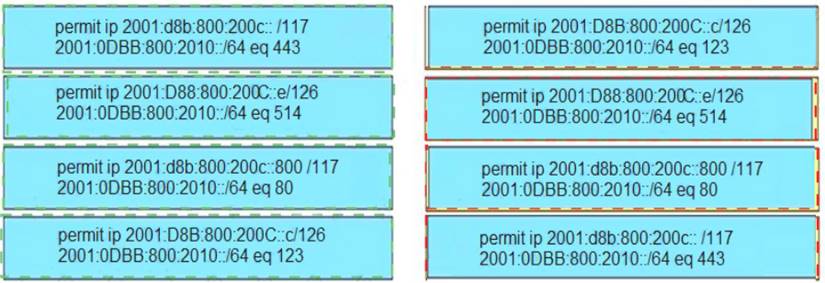

Drag and drop the addresses from the left onto the correct IPv6 filter purposes on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

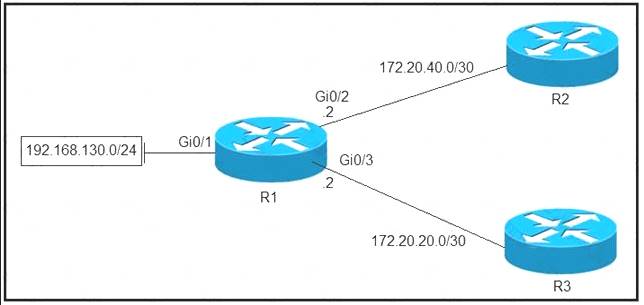

NEW QUESTION 23

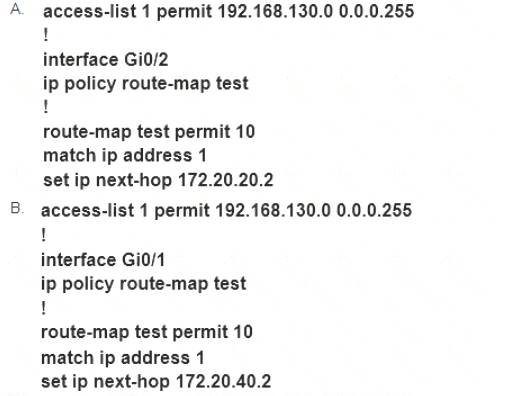

Refer to the exhibit.

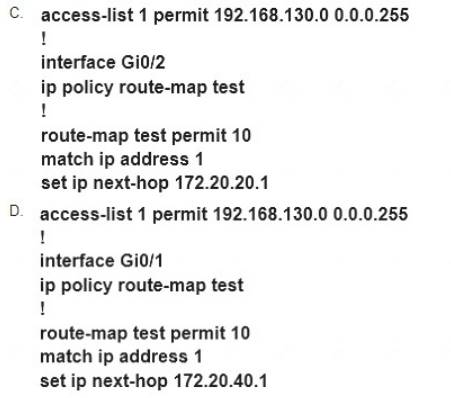

Which configuration configures a policy on R1 to forward any traffic that is sourced from the 192.168.130.0/24 network to R2?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: D

NEW QUESTION 24
Which protocol is used to determine the NBMA address on the other end of a tunnel when mGRE is used?

• A. NHRP
• B. IPsec
• C. MP-BGP
• D. OSPF

Answer: D

NEW QUESTION 25
......
