NEW QUESTION 1
Which QoS feature responds to network congestion by dropping lower priority packets?

• A. CBWFQ
• B. tail drop
• C. WRED
• D. strict priority

Answer: C

NEW QUESTION 2
An engineer must propose a QoS architecture model that allows an application to inform the network of its traffic profile and to request a particular type of service to support its bandwidth and delay requirements. The application requires consistent and dedicated bandwidth end to end. Which QoS architecture model meets these requirements?

• A. DiffServ
• B. LLQ
• C. WRED
• D. IntServ

Answer: D

NEW QUESTION 3
How do endpoints inside an SD-Access network reach resources outside the fabric?

• A. a VRF fusion router is used to map resources in one VN to another VN
• B. Fabric borders use VRFs to map VNs to VRFs
• C. SD-Access transit links are used to transport encapsulated traffic from one fabric to another
• D. A fabric edge is used to de-encapsulate VXLAN traffic to normal IP traffic then transported over the outside network

Answer: D

NEW QUESTION 4

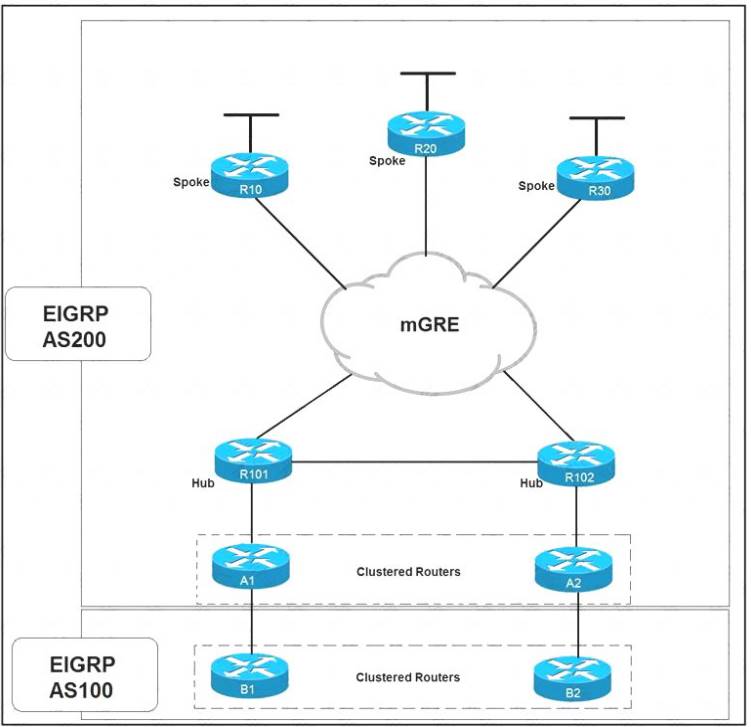

Refer to the exhibit.

Which solution decreases the EIGRP convergence time?

• A. Enable subsecond timers
• B. Increase the hold time value
• C. Increase the dead timer value
• D. Enable stub routing on the spokes

Answer: D

NEW QUESTION 5
What is one function of the vSmart controller in an SD-WAN deployment?

• A. orchestrates vEdge and cEdge connectivity
• B. responsible for the centralized control plane of the SD-WAN network
• C. provides centralized network management and a GUI to monitor and operate the SD-WAN overlay
• D. provides a data-plane at branch offices to pass traffic through the SD-WAN network

Answer: B

NEW QUESTION 6
What is an advantage of designing an out-of-band network management solution?

• A. In the event of a production network outage, network devices can still be managed.
• B. There is no separation between the production network and the management network.
• C. In the event of a production network outage, it can be used as a backup network path.
• D. It is less expensive than an in-band management solution

Answer: A

NEW QUESTION 7
When a first hop redundancy solution is designed, which protocol ensures that load balancing occurs over multiple routers using a single virtual IP address and multiple virtual MAC addresses?

• A. GLBP
• B. IRDP
• C. VRRP
• D. HSRP

Answer: A

NEW QUESTION 8
In an SD-WAN architecture, which methods are used to bootstrap a vEdge router?

• A. DHCP options or manual configuration
• B. vManage or DNS records
• C. ZTP or manual configuration
• D. DNS records or DHCP options

Answer: C

NEW QUESTION 9
Which OSPF area blocks LSA Type 3, 4 and 5, but allows a default summary route?

• A. normal
• B. stub
• C. NSSA
• D. totally stubby

Answer: D

NEW QUESTION 10
Which two statements describe source trees in a multicast environment? (Choose two.)

• A. Source trees guarantee the minimum amount of network latency for forwarding multicast traffic
• B. Source trees create an optimal path between the source and the receivers
• C. Source trees use a single common root placed at some chosen point in the network
• D. Source trees can introduce latency in packet delivery
• E. Source trees can create suboptimal paths between the source and the receivers

Answer: AB

NEW QUESTION 11
An infrastructure team is concerned about the shared memory utilization of a device, and for this reason, they need to monitor the device state. Which solution limits impact on the device and provides the required data?

• A. IPFIX
• B. static telemetry
• C. on-change subscription
• D. periodic subscription

Answer: A

NEW QUESTION 12
Which design consideration must be made when dual vEdge routers are deployed at a branch site?

• A. Use BGP AS-path prepending to influence egress traffic and use MED to influence ingress traffic from the branch.
• B. HSRP priorities must match the OMP routing policy to prefer one vEdge over the other.
• C. Traffic must be symmetrical as it egresses the vEdges and returns from remote sites for DPI to function properly.
• D. Configure BFD between vEdge routers to detect sub-second link failures.

Answer: A

NEW QUESTION 13

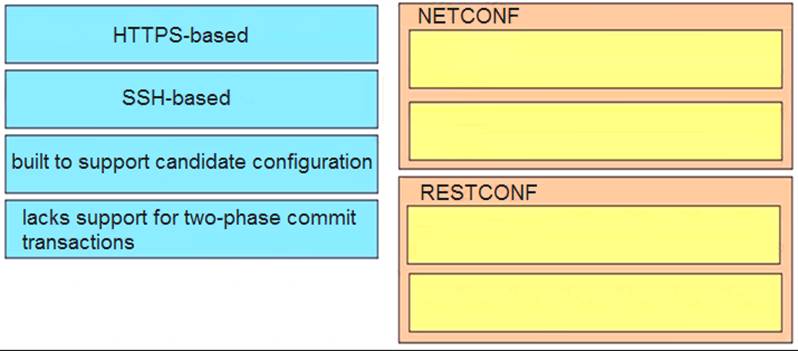

Drag and drop the properties from the left onto the protocols they describe on the right.

• A. Mastered
• B. Not Mastered

Answer: A

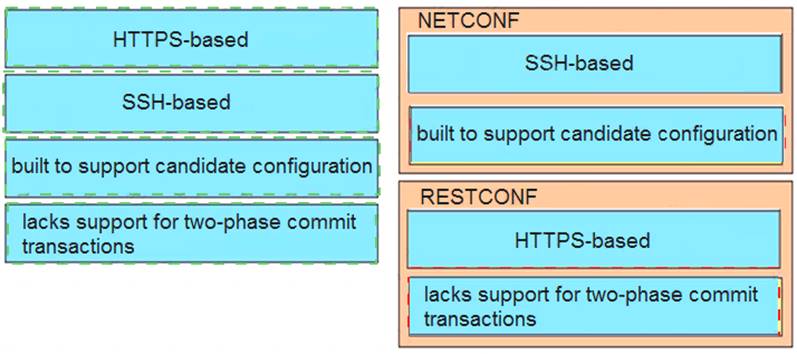

Explanation:

NEW QUESTION 14
An engineer is working with NETCONF and Cisco NX-OS based devices. The engineer needs a YANG model that supports a specific feature relevant only to Cisco NX-OS. Which model must the engineer choose?

• A. Native
• B. IEEE
• C. OpenConfig
• D. IETF

Answer: D

NEW QUESTION 15
Which NETCONF operation creates filtering that is specific to the session notifications?

• A. <create-subscription>
• B. <commit>
• C. <notification>
• D. <logging>

Answer: A

NEW QUESTION 16
Which routes does the overlay management protocol advertise in an SD-WAN overlay?

• A. underlay, MPLS, and overlay
• B. primary, backup, and load-balanced
• C. prefix, TLOC, and service
• D. Internet, MPLS, and backup

Answer: C

NEW QUESTION 17
Which two best practices must be followed when designing an out-of-band management network? (Choose two.)

• A. Enforce access control
• B. Facilitate network integration
• C. Back up data using the management network
• D. Ensure that the management network is a backup to the data network
• E. Ensure network isolation

Answer: AE

NEW QUESTION 18

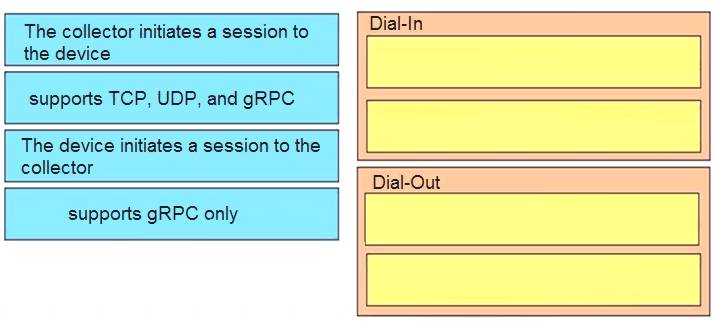

Drag and drop the characteristics from the left onto the correct telemetry mode on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
In a dial-in mode, the destination initiates a session to the router and subscribes to data to be streamed. Dialin mode is supported over gRPC in only 64-bit platforms
In a dial-out mode, the router initiates a session to the destinations based on the subscription. All 64-bit IOS XR platforms (except for NCS 6000 series routers) support gRPC and TCP protocols. All 32-bit IOS XR platforms support only TCP.

NEW QUESTION 19
When designing interdomain multicast, which two protocols are deployed to achieve communication between multicast sources and receivers? (Choose two.)

• A. IGMPv2
• B. BIDIR-PIM
• C. MP-BGP
• D. MSDP
• E. MLD

Answer: CD

NEW QUESTION 20
What is a benefit of using VRRPv3 as compared to VRRPv2?

• A. VRRPv3 supports IPv4 and IPv6
• B. VRRPv3 supports authentication
• C. VRRPv3 supports preemption
• D. VRRPv3 supports stateful switchover

Answer: A

NEW QUESTION 21
......
