NEW QUESTION 1
Where is Cisco Hyperlocation enabled on a Cisco Catalyst 9800 Series Wireless Controller web interface?

• A. Policy Profile
• B. AP Join Profile
• C. Flex Profile
• D. RF Profile

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/9800/config-guide/b_wl_16_10_cg/cisco-hyperlocation.html

NEW QUESTION 2
The IT manager is asking the wireless team to get a report for all guest user associations during the past two weeks. In which two formats can Cisco Prime save this report? (Choose two.)

• A. CSV
• B. PDF
• C. XLS
• D. DOC
• E. plain text

Answer: AB

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/net_mgmt/prime/infrastructure/3-2/user/guide/bk_CiscoPrimeInfrastructure_3_2_0_UserGuide/bk_CiscoPrimeInfrastructure_3_2_0_UserGuide_chapter_01010.html

NEW QUESTION 3
An engineer completed the basic installation for two Cisco CMX servers and is in the process of configuring high availability, but it fails. Which two statements about the root of the issue are true? (Choose two.)

• A. The Cisco CMX instances are installed in the same subnet.
• B. The types of the primary and secondary Cisco CMX installations differ.
• C. The delay between the primary and secondary instance is 200 ms.
• D. The sizes of the primary and secondary Cisco CMX installations differ.
• E. Both Cisco CMX installations are virtual.

Answer: BD

NEW QUESTION 4
Which two statements about the requirements for a Cisco Hyperlocation deployment are true? (Choose two.)

• A. After enabling Cisco Hyperlocation on Cisco CMX, the APs and the wireless LAN controller must be restarted.
• B. NTP can be configured, but that is not recommended.
• C. The Cisco Hyperlocation feature must be enabled on the wireless LAN controller and Cisco CMX.
• D. The Cisco Hyperlocation feature must be enabled only on the wireless LAN controller.
• E. If the Cisco CMX server is a VM, a high-end VM is needed for Cisco Hyperlocation deployments.

Answer: AC

NEW QUESTION 5
Which AP model of the Cisco Aironet Active Sensor is used with Cisco DNA Center?

• A. 1800s
• B. 3600e
• C. 3800s
• D. 4800i

Answer: A

NEW QUESTION 6
An engineer configured a Cisco AireOS controller with two TACACS+ servers. The engineer notices that when the primary TACACS+ server fails, the WLC starts using the secondary server as expected, but the WLC does not use the primary server again until the secondary server fails or the controller is rebooted. Which cause of this issue is true?

• A. Fallback is enabled
• B. Fallback is disabled
• C. DNS query is disabled
• D. DNS query is enabled

Answer: B

NEW QUESTION 7

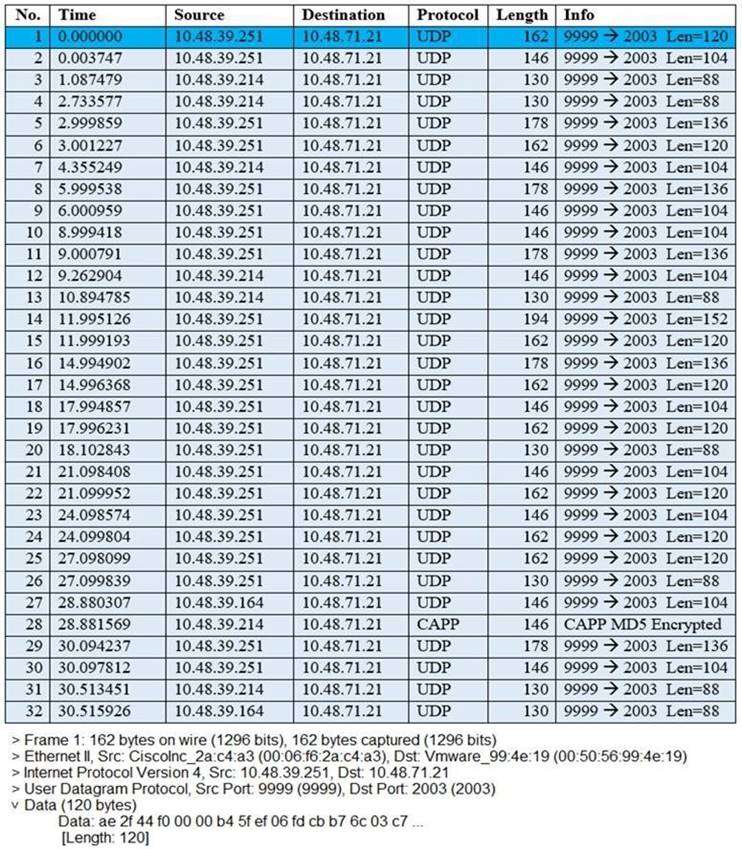

Refer to the exhibit.

The image shows a packet capture that was taken at the CLI of the Cisco CMX server. It shows UDP traffic from the WLC coming into the server. What does the capture prove?

• A. The Cisco CMX server receives NetFlow data from the WLC.
• B. The Cisco CMX server receives NMSP traffic from the WLC.
• C. The Cisco CMX server receives SNMP traffic from the WLC.
• D. The Cisco CMX server receives Angle-of-Arrival data from the WLC.

Answer: D

NEW QUESTION 8
Which two protocols are used to communicate between the Cisco MSE and the Cisco Prime Infrastructure network management software? (Choose two.)

• A. HTTPS
• B. Telnet
• C. SOAP
• D. SSH
• E. NMSP

Answer: AE

NEW QUESTION 9
Refer to the exhibit. A network administrator deploys the DHCP profiler service in two ISE servers: 10.3.10.101 and 10.3.10.102. All BYOD devices connecting to WLAN on VLAN63 have been incorrectly profiled and are assigned as unknown profiled endpoints. Which action efficiently rectifies the issue according to Cisco recommendations?

• A. Nothing needed to be added on the Cisco WLC or VLAN interfac
• B. The ISE configuration must be fixed.
• C. Disable DHCP proxy on the Cisco WLC.
• D. Disable DHCP proxy on the Cisco WLC and run the ip helper-address command under the VLAN interface to point to DHCP and the two ISE servers.
• E. Keep DHCP proxy enabled on the Cisco WLC and define helper-address under the VLAN interface to point to the two ISE servers.

Answer: C

NEW QUESTION 10
A new MSE with wIPS service has been installed and no alarm information appears to be reaching the MSE from controllers. Which protocol must be allowed to reach the MSE from the controllers?

• A. SOAP/XML
• B. NMSP
• C. CAPWAP
• D. SNMP

Answer: A

NEW QUESTION 11

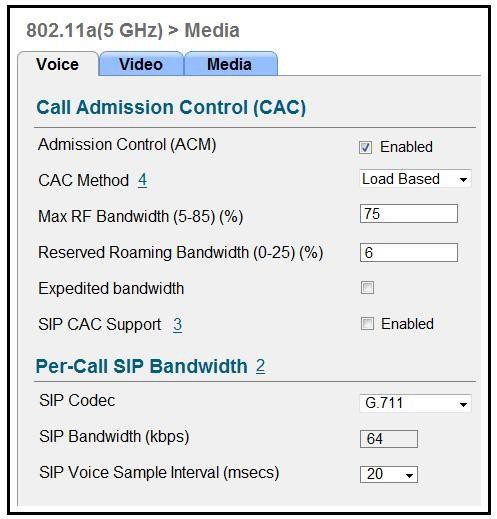

Refer to the exhibit.

Which two items must be supported on the VoWLAN phones to take full advantage of this WLAN configuration? (Choose two.)

• A. TSPEC
• B. SIFS
• C. 802.11e
• D. WMM
• E. APSD

Answer: CD

NEW QUESTION 12
Which devices can be tracked with the Cisco Context Aware Services?

• A. wired and wireless devices
• B. wireless devices
• C. wired devices
• D. Cisco certified wireless devices

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/wireless/context-aware-software/110836-cas-faq.html

NEW QUESTION 13
What is an important consideration when implementing a dual SSID design for BYOD?

• A. After using the provisioning SSID, an ACL that used to make the client switch SSIDs forces the user to associate and traverse the network by MAC filtering.
• B. If multiple WLCs are used, the WLAN IDs must be exact for the clients to be provisioned and traverse the network correctly.
• C. SSIDs for this setup must be configured with NAC State-RADIUS NAC for the clients to authenticate with Cisco ISE, or with NAC State-ISE NAC for Cisco ISE to associate the client.
• D. One SSID is for provisioning and the other SSID is for gaining access to the networ
• E. The use of an ACL should not be enforced to make the client connect to the REAL SSID after provisioning.

Answer: D

NEW QUESTION 14
Which component must be integrated with Cisco DNA Center to display the location of a client that is experiencing connectivity issues?

• A. Cisco Hyperlocation Module
• B. Wireless Intrusion Prevention System
• C. Cisco Connected Mobile Experiences
• D. Cisco Mobility Services Engine

Answer: A

NEW QUESTION 15
An engineer is performing a Cisco Hyperlocation accuracy test and executes the cmxloc start command on Cisco CMX. Which two parameters are relevant? (Choose two.)

• A. X, Y real location
• B. client description
• C. AP name
• D. client MAC address
• E. WLC IP address

Answer: AD

NEW QUESTION 16
For security purposes, an engineer enables CPU ACL and chooses an ACL on the Security > Access Control Lists > CPU Access Control Lists menu. Which kind of traffic does this change apply to, as soon as the change is made?

• A. wireless traffic only
• B. wired traffic only
• C. VPN traffic
• D. wireless and wired traffic

Answer: A

NEW QUESTION 17
Where is a Cisco OEAP enabled on a Cisco Catalyst 9800 Series Wireless Controller?

• A. RF Profile
• B. Flex Profile
• C. Policy Profile
• D. AP Join ProfileCorrect

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/9800/config-guide/b_wl_16_10_cg/flexconnect.html

NEW QUESTION 18

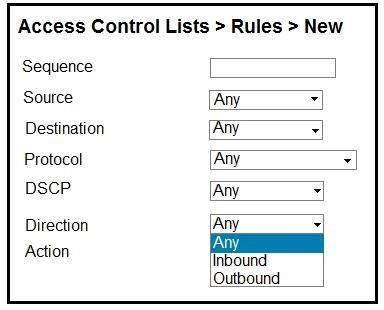

Refer to the exhibit. An engineer is creating an ACL to restrict some traffic to the WLC CPU. Which selection must be made from the direction drop-down list?

• A. It must be Inbound because traffic goes to the WLC.
• B. Packet direction has no significance; it is always Any.
• C. It must be Outbound because it is traffic that is generated from the WLC.
• D. To have the complete list of options, the CPU ACL must be created only by the CLI.

Answer: A

NEW QUESTION 19
A corporation has recently implemented a BYOD policy at their HQ. Which two risks should the security director be concerned about? (Choose two.)

• A. network analyzers
• B. malware
• C. lost and stolen devices
• D. keyloggers
• E. unauthorized users

Answer: BC

NEW QUESTION 20
What is the maximum time range that can be viewed on the Cisco DNA Center issues and alarms page?

• A. 3 hours
• B. 24 hours
• C. 3 days
• D. 7 days

Answer: B

NEW QUESTION 21
Branch wireless users report that they can no longer access services from head office but can access services locally at the site. New wireless users can associate to the wireless while the WAN is down. Which three elements (Cisco FlexConnect state, operation mode, and authentication method) are seen in this scenario? (Choose three.)

• A. authentication-local/switch-local
• B. WPA2 personal
• C. authentication-central/switch-central
• D. lightweight mode
• E. standalone mode
• F. WEB authentication

Answer: ABE

NEW QUESTION 22
When using a Cisco Catalyst 9800 Series Wireless Controller, which statement about AutoQoS is true?

• A. It has a set of predefined profiles that you cannot modify further
• B. It matches traffic and assigns each matched packet to QoS groups
• C. It automates deployment of wired QoS and makes wireless QoS implementation easier
• D. It allows the output policy map to put specific QoS queues into specific subgroups

Answer: B

NEW QUESTION 23
An engineer is configuring multicast for wireless for an all-company video meeting on a network using EIGRP and BGP within a single domain from a single source. Which type of multicast routing should be implemented?

• A. Protocol Independent Multicast Dense Mode
• B. Source Specific Multicast
• C. Multicast Source Discovery Protocol
• D. Protocol Independent Multicast Sparse Mode

Answer: D
