NEW QUESTION 1
What are two characteristics of VRF-Lite on the Cisco NX-OS platform? (Choose two.)

• A. Layer 3 interfaces can belong to multiple VRFs.
• B. VRF-Lite interfaces can be Layer 2.
• C. Overlapping IP addresses are permitted on different VRFs.
• D. Interfaces that belong to VRFs can be physical or logical.
• E. VRF-Lite interfaces support MPLS.

Answer: CD

NEW QUESTION 2
When planning to deploy a load-balancing service as a managed node, which ACI configuration must be included?

• A. BGP ECMP
• B. Layer 4 to Layer 7 device package
• C. inline load-balancing device
• D. ITD

Answer: B

NEW QUESTION 3
Which two configurations allow for routing traffic between two VDCs? (Choose two.)

• A. Connect the VDCs to an external Layer 3 device.
• B. Cross-connect the ports between the VDCs.
• C. Create VRF-aware software infrastructure interfaces.
• D. Create a policy map in the default VDC that routes traffic between the VDCs.
• E. Create interfaces in the VDC that can be accessed by another VDC.

Answer: AD

NEW QUESTION 4
What is an advantage of Cisco HyperFlex Edge as compared to Cisco HyperFlex Standard Clusters?

• A. Cisco Intersight automatically creates an invisible cloud witness.
• B. Cisco UCS 5108 Blade Server chassis provides SEEPROM connectivity to solve split-brain scenarios.
• C. Cisco UCS Manager provides service profile portability across nodes.
• D. Cisco HyperFlex Edge provides native container support through the KVM hypervisor.

Answer: A

NEW QUESTION 5
An engineer is designing a data center that uses FCIP. How is QoS configured in this environment?

• A. A separate DSCP value and CoPP must be configured for all FCIP traffic and another for all of the FCIP in the data connection.
• B. A separate DSCP value must be configured for all FCIP VSAN traffic.
• C. A separate DSCP value and priority queuing must be configured for all FCIP traffic.
• D. Two separate DSCP values must be configured, one of all of the FCIP frames in the control TCP connection and another for all of the FCIP frames in the data connection.

Answer: D

NEW QUESTION 6

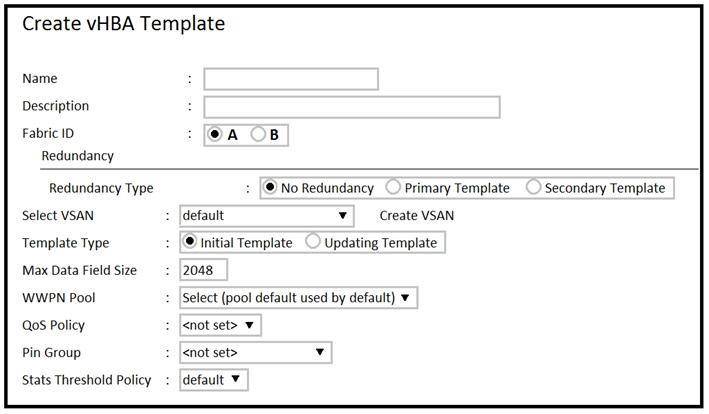

Refer to the exhibit.

Which template is used when a vHBA template pair is created for a specific server that inherits its attributes from an existing template?

• A. Secondary
• B. Initial
• C. Updating
• D. Primary

Answer: B

NEW QUESTION 7
An engineer is designing a Multichassis EtherChannel topology in which two switches must appear as a single device to a third downstream switch? Which two technologies meet this requirement? (Choose two.)

• A. HSRP
• B. VSS
• C. vPC
• D. 802.1q
• E. FEX

Answer: BC

NEW QUESTION 8
Which two configurations are available by using a service profile template in Cisco UCS Manager? (Choose two.)

• A. number of vHBAs
• B. ARP entries
• C. UUID assignment
• D. VXLAN membership
• E. target server

Answer: AC

NEW QUESTION 9
Which orchestration tool should be used for the management and analytics of servers across multiple sites?

• A. Cisco Intersight
• B. Cisco Nexus Fabric Manager
• C. Cisco UCS Manager
• D. Cisco Data Center Network Manager

Answer: A

NEW QUESTION 10
Which approach splits a pair of clustered fabric interconnects into two standalone devices?

• A. Run the disable fips-mode command on each fabric interconnect.
• B. Run the connect local-management command on each fabric interconnect.
• C. Erase the configuration of both fabric interconnects.
• D. Unplug the Layer 1 and Layer 2 interfaces between the devices.

Answer: D

NEW QUESTION 11
Which type fields can an engineer use to identify an iSCSI participant? (Choose two.)

• A. type
• B. preshared key
• C. port number
• D. identifying tag
• E. hostname

Answer: CE

NEW QUESTION 12
Which feature provides a sandbox to convert NX-OS CLI commands to REST-based scripts on Cisco Nexus 7700 Series Switches?

• A. NX-API
• B. Postman
• C. Bash shell
• D. Guest shell

Answer: A

NEW QUESTION 13
The management of the Cisco Nexus switches is provided over an isolated put-of-band network. The VDC feature is configured on the Cisco Nexus core switches. How is out-of-band management access provided for each VDC?

• A. All the VDC have the same out-of-band IP address.
• B. Each VDC has a dedicated out-of-band Ethernet management port.
• C. Each VDC has a unique out-of-band IP address from the same IP subnet.
• D. Each VDC has a unique out-of-band IP address from different IP subnets among VDCs.

Answer: C

NEW QUESTION 14
What is a design consideration when implementing FSPF?

• A. Routes are based on the domain ID.
• B. Routes are based on the distance vector protocol.
• C. FSPF runs only on F Ports.
• D. FSPF runs on a per-chassis basis.

Answer: A

NEW QUESTION 15
Which orchestration tool provides a graphical interface to manage LAN and SAN fabrics?

• A. Cisco Virtual Topology System
• B. Cisco Data Center Network Manager
• C. Cisco Nexus Fabric Manager
• D. Cisco CloudCenter

Answer: B

NEW QUESTION 16
What can be implemented on Cisco Nexus 5600 Series Switches for link redundancy within a Fibre Channel fabric?

• A. vPC+
• B. E-Trunk
• C. SAN port channel
• D. LACP port channel

Answer: D

NEW QUESTION 17

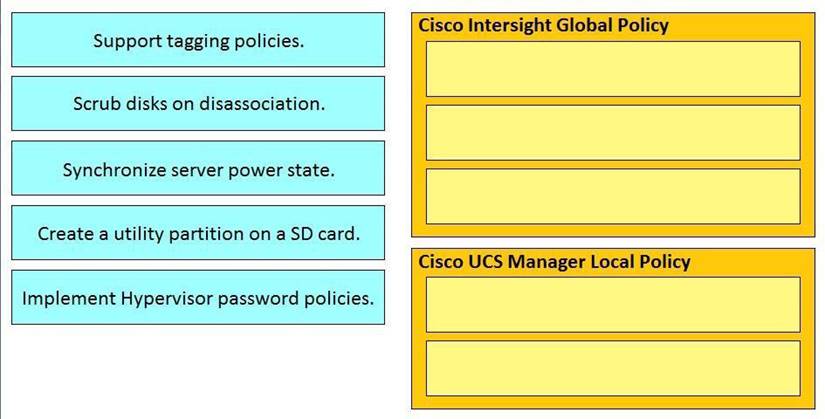

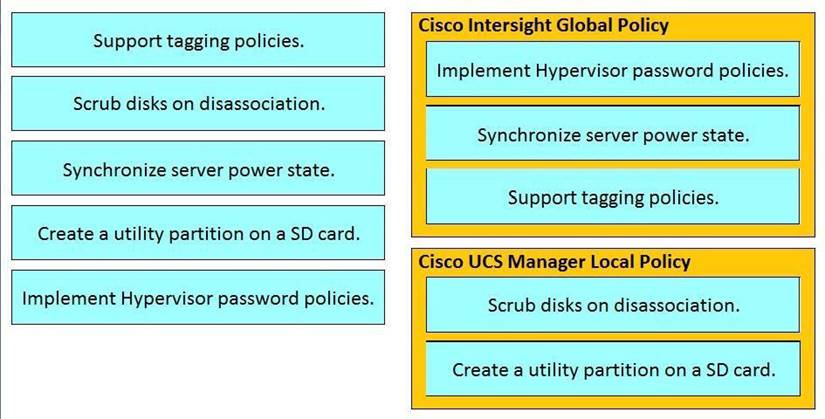

Drag the requirements from the left onto the correct policy types on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 18
Which multicast rendezvous point redundancy mode is valid for Bidirectional PIM?

• A. Embedded RP
• B. Phantom RP
• C. MSDP
• D. PIM anycast RP

Answer: D

NEW QUESTION 19
What are two reasons to select OTV as the DCI solution to connect multisite topologies? (Choose two.)

• A. It propagates hosts reachability without support of traffic flooding.
• B. Layer 3 failures do not propagate beyond the OTV edge device.
• C. It extends the spanning tree between data centers.
• D. It is an open standard.
• E. It constrains HSRP hello messages to each data center.

Answer: BC

NEW QUESTION 20

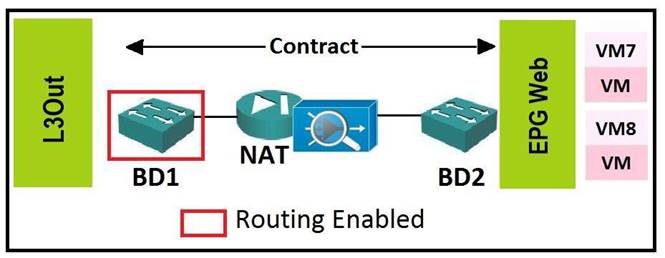

Refer to the exhibit.

What must be the default gateway of the servers in EPG Web?

• A. subnet address of BD1
• B. subnet address of L3Out
• C. subnet address of BD2
• D. NAT appliance

Answer: D

NEW QUESTION 21
......
