NEW QUESTION 1

Refer to the exhibit. A web browser displays a “not secure” warning message when accessing the web interface of Cisco UCS Manager. Which action resolves the issue?

• A. Load third-party certificate to UCS Manager.
• B. Use the correct TCP port for HTTPS.
• C. Use a supported web browser.
• D. Use a supported version of UCS Manager.

Answer: A

NEW QUESTION 2
An upgrade of protected RPMs from the Bash shell did not take effect. Which action is required for the changes to take effect?

• A. Restart the Bash shell.
• B. Reload the switch.
• C. Upgrade the RPMs from the Guest shell.
• D. Disable and reenable the Bash feature.

Answer: D

NEW QUESTION 3
A customer configures HSRP between two data centers that are interconnected with OTV. The configuration succeeds, but traffic between two ESXi virtual hosts on the same site is routed suboptimally through the OTV overlay. Which two actions optimize the traffic? (Choose two.)

• A. Disable first-hop redundancy.
• B. Filter HSRP traffic by using a Layer 3 VACL on the OTV edge devices.
• C. Filter HSRP by using a Layer 2 MAC-list on the ESXi vSwitch.
• D. Filter HSRP traffic by using a Layer 3 VACL on the ESXi vSwitch.
• E. Filter HSRP by using a Layer 2 MAC-list on the OTV edge devices.

Answer: AB

NEW QUESTION 4
A user reports that they cannot reach from a UCS server to an FC Storage array. Which command is used to test communication between an FCF and a target?

• A. fcroute
• B. traceroute
• C. fcping
• D. ping

Answer: C

NEW QUESTION 5
A request to activate the port security database is rejected. Which action do you perform to investigate the cause of the issue?

• A. Enable the auto-learning feature.
• B. Use the force option to identify rejected devices.
• C. Find conflicting entries between the active and configuration databases.
• D. Verify that devices are fully attached to the active database.

Answer: B

NEW QUESTION 6
DRAG DROP
An engineer is troubleshooting issues in Cisco UCS Director. Drag and drop the possible causes from the left onto the correct issues on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 7
Refer to the exhibit. Sw1 and Sw2 are two Cisco Nexus 9000 Series Switches that run Cisco NX-OS. They are VTEPs in the same vPC domain. Which statement describes what happens in this scenario?

• A. Sw1 drops all traffic because there is no (S, G) OIF list to encapsulate VXLAN multicast packets and send them out to the underlay network through the uplink interfaces.
• B. Sw1 performs the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs.
• C. Sw1 and switch 2 perform the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs, depending on the hashing.
• D. Sw2 did not send an IP PIM register to the rendezvous point for the multicast group of the VXLAN VNI.

Answer: B

NEW QUESTION 8

Refer to the exhibit. The EEM script overrides all events in the system policy. What should be added to the script to resolve the issue?

• A. event statement
• B. environment variable
• C. event-default action statement
• D. configure terminal action

Answer: A

NEW QUESTION 9
A network administrator attempts to install an application in the Cisco NX-OS Guest shell and receives an error that there is not enough space on the disk. Which command must the administrator run to increase the disk space available in the Guest shell?

• A. guestshell growdisk rootfs [size-in-MB]
• B. guestshell pvextend rootfs [size-in-MB]
• C. guestshell resize rootfs [size-in-MB]
• D. guestshell resize2fs rootfs [size-in-MB]

Answer: C

NEW QUESTION 10

Refer to the exhibit. An engineer is investigating a role mapping issue on a switch. The users report that they cannot view the IP addresses under the tenant “corp”. Which action resolves the issue?

• A. Add the users to the RADIUS server.
• B. Update the UNIX ID.
• C. Configure the correct secret password between the APIC and the RADIUS server.
• D. Add the updated avpair to include/corp/admin/

Answer: C

NEW QUESTION 11
Cisco Unified Computing System Manager raises a critical error message that indicates that the system has overlapping Ethernet and FCoE VLANs. All of the Ethernet traffic on the overlapping VLANs drops. Which action resolves the issue?

• A. Modify the VLAN assignment to vNICs.
• B. Change the PIN groups on the vHBAs.
• C. Modify the FCoE VLAN.
• D. Set the FCoE VLAN as the native VLAN on server uplinks.

Answer: A

NEW QUESTION 12
Refer to the exhibit. A new Cisco Nexus 5548 Switch connects to a network. SAN switching is configured on the switch. The switch fc2/10 NP uplink is shown in the exhibit. Which action ensures that fc2/10 is in an up state?

• A. Replace the SFP port module in fc2/10.
• B. Configure the admin port type E on the upstream switch that connects the port.
• C. Enable NPIV on the upstream switch that connects the port.
• D. Configure the BB_credit buffers on the upstream switch that connects the port.

Answer: C

NEW QUESTION 13
A mission-critical server is connected to site A. Connectivity to this server is lost from site B because the MAC route is missing in the OTV VDC of the Nexus 7000 in site B due to MAC aging. Which action allows the flooding of the unknown unicast MAC on the Nexus 7000 in the OTV VDC?

• A. Use route-map to advertise this MAC statically and redistribute with ISIS.
• B. Unknown unicast flooding is not allowed.
• C. Use the otv flood mac <> command to selectively flood traffic for a given MAC.
• D. Use the otv isis bfd <> command to configure BFD protocol.

Answer: B

NEW QUESTION 14

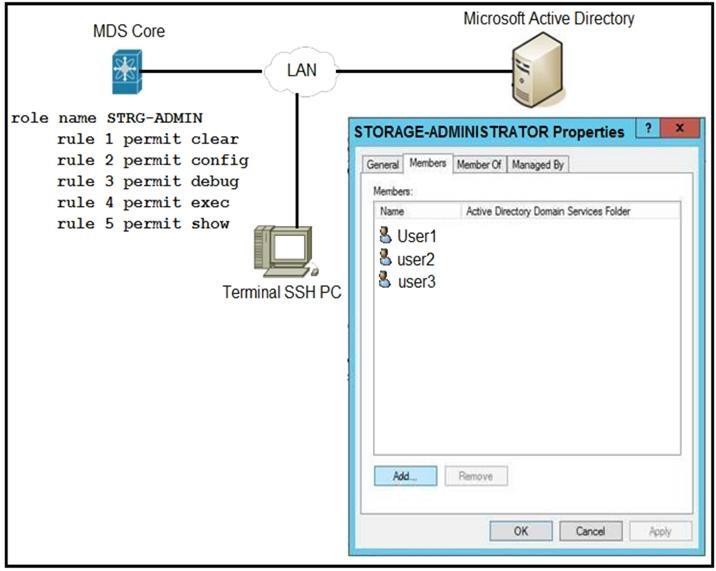

Refer to the exhibit. An engineer is troubleshooting why user1, user2, and user3 from group STORAGE-ADMINISTRATOR in Microsoft Active Directory cannot log in to the Cisco MDS SSH CLI. Which action resolves the issue?

• A. Configure the role name to match the group name on Microsoft Active Directory.
• B. Include specific users into MDS role configuration.
• C. Configure SSH logins on Cisco MDS switch.
• D. Integrate Cisco MDS with Microsoft Active Directory.

Answer: A

NEW QUESTION 15

Refer to the exhibit. An OSPF adjacency between Router-A and Router-B cannot reach the FULL state. Which action resolves the issue?

• A. Adjust the MTU on Router-A to 1600.
• B. Disable the check of the MTU value.
• C. Set the OSPF media type to point-to-point.
• D. Adjust the MTU on Router-B to 1604.

Answer: B

NEW QUESTION 16
Your client reports that many flaps and server cluster disconnects occur in their data center. While troubleshooting the issue, you discover a network attack hitting their Cisco Nexus 7000 Series Switches and determine that the source IP addresses are spoofed. Which first-line security solution resolves this issue?

• A. Dynamic ARP Inspection
• B. Unicast RPF
• C. IP Source Guard
• D. Storm Control

Answer: A

NEW QUESTION 17
DRAG DROP

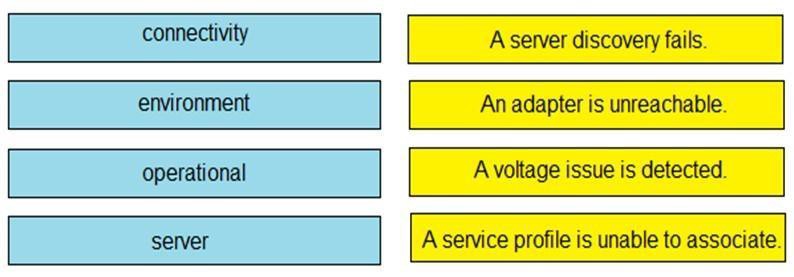

Drag and drop the Cisco UCS SNMP fault types from the left onto the correct issues on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 18
The Cisco Nexus switch is connected to a peer switch that is not running Cisco NX-OS. The switches are connected using port channel and are experiencing packet loss. Which action should be performed on the Cisco Nexus switch ports to resolve this issue?

• A. Turn on lacp suspend-individual.
• B. Turn on lacp graceful-convergence.
• C. Turn off lacp graceful-convergence.
• D. Turn off lacp suspend-individual.

Answer: C

NEW QUESTION 19

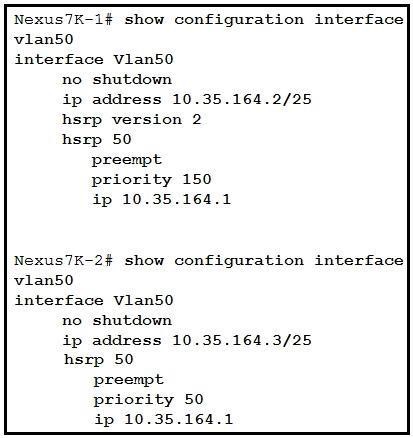

Refer to the exhibit. HSRP adjacency fails to form between Nexus7K-1 and Nexus7K-2. Which action should be taken to solve the problem?

• A. Configure preempt on one of the switches in the HSRP group.
• B. Configure the same HSRP priority between the two switches.
• C. Configure the correct subnet mask on Nexus7K-1.
• D. Configure HSRP version 2 on Nexus7K-2.

Answer: D

NEW QUESTION 20

Refer to the exhibit. The EEM script fails to send an SNMP trap when a user attempts to enter configuration mode. Which configuration is missing from the script?

• A. event statement
• B. event-default action statement
• C. policy-default action statement
• D. IP address of the SNMP server

Answer: D

NEW QUESTION 21
An engineer is troubleshooting a fabric discovery failure. Which two requirements must an engineer verify about switch connectivity to solve the problem? (Choose two.)

• A. A Cisco APIC must be attached to a spine node only.
• B. A Cisco APIC must be attached to leaf nodes.
• C. Spine nodes must connect to other spine nodes.
• D. A Cisco APIC must be dual-attached to two separate spine nodes.
• E. Leaf nodes must connect to spine nodes only.

Answer: BE

NEW QUESTION 22
Refer to the exhibit. The HSRP configuration in the exhibit fails to function. Which action resolves this issue?

• A. Enable IP redirects.
• B. Set the MTU to 1500 bytes.
• C. Configure HSRP version 2.
• D. Configure the same HSRP group on both devices.

Answer: A

NEW QUESTION 23
Refer to the exhibit. After a failover occurs, which two actions must be performed on Switch-B to manually preempt the operational primary role back to Switch-A? (Choose two.) A. Configure the local vPC role priority to have a lower value than Switch-A.

• A. Configure the local vPC role priority to have a higher value than Switch-A.
• B. Disable and then re-enable the vPC peer-keepalive link.
• C. Configure the local vPC role priority to have the same value as Switch-A.
• D. Disable and then re-enable the vPC peer link.

Answer: BE

NEW QUESTION 24

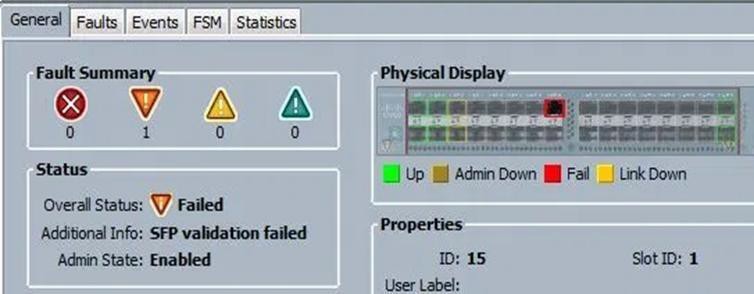

Refer to the exhibit. When an engineer inserts 8-Gb FC SFP port 15 on a Cisco UCS Fabric Interconnect, the port fails. What is a possible cause of the issue?

• A. Port 15 is configured as an Ethernet port.
• B. Port 15 is configured for 4-Gb FC.
• C. Port 15 is missing a license.
• D. The polarity of the fiber cable is reversed.

Answer: B
