NEW QUESTION 1
A storage network engineer is implementing disk-array data replication between two SAN environments in two different data centers not connected via Fibre Channel. Which SAN switch feature must be implemented?

• A. FCIP
• B. zoning merge over LAN
• C. VSAN scoping
• D. IVR

Answer: A

NEW QUESTION 2
A network engineer must run a core Cisco Nexus 9500 Series Switch as a POAP server for all top-of-rack Cisco Nexus switches. Which two network functions must run to provide the POAP service? (Choose two.)

• A. DNS
• B. PXE
• C. BOOTP
• D. TFTP
• E. DHCP

Answer: DE

NEW QUESTION 3
A storage administrator is enabling DH-CHAP for the first time on a Fibre Channel fabric. Which condition must the administrator consider while configuring this feature?

• A. NTP must be configured on all devices or the configuration fails.
• B. The MD5 hash must be used if TACACS+ or RADIUS authentication for FCSP is enabled.
• C. All switches on the fabric must be configured for the same password.
• D. Enabling DH-CHAP protocol feature is unsupported on FCIP interfaces.

Answer: B

NEW QUESTION 4
After a subordinate switch requests a domain ID form a principal switch, the requested domain ID becomes the runtime domain ID, and all interfaces on the affected VSAN are isolated. What is a solution to the issue?

• A. Add the received ID to the allowed list.
• B. Configure a static domain on the subordinate switch and reboot the switch.
• C. Enable the FICON feature on the affected VSAN.
• D. Configure IVR NAT on the affected VSAN.

Answer: A

NEW QUESTION 5
What does an unlicensed DCNM SAN fail to display?

• A. Fibre Channel, FCoE, and iSCSI topologies
• B. events and fault management
• C. historical performance monitoring
• D. real-time performance monitoring

Answer: C

NEW QUESTION 6
A storage administrator wants to enable NPV in a Fibre Channel edge switch. Which configuration is supported in this mode?

• A. Cisco Fabric Services distribution over Fibre Channel
• B. E Port connectivity to the core switch
• C. local switching of east-west traffic
• D. Dynamic Port VSAN Membership

Answer: A

NEW QUESTION 7
Which port mode is used on an NPV device to connect to an NPIV core switch?

• A. E
• B. F
• C. N
• D. NP

Answer: D

NEW QUESTION 8

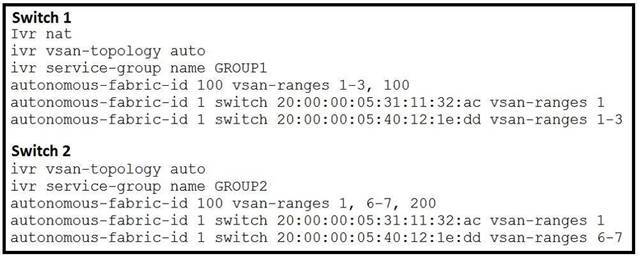

Refer to the exhibit.

What is the result of merging the fabric?

• A. The merged fabric IVR VSAN topology is set to activate.
• B. The merged fabric has NAT enabled.
• C. The merge is invalid.
• D. The merged fabric contains only service group Group1.

Answer: D

NEW QUESTION 9
DRAG DROP
Drag and drop the items from the left onto the correct descriptions on the right. Not all items are used.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 10

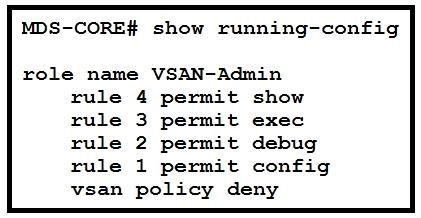

Refer to the exhibit.

A network engineer created a new user that uses the VSAN-Admin role on a Cisco MDS switch so a new colleague can manage the VSANs configured on the switch. Which action is required for the configuration to give permission to the new colleague?

• A. permit vsan 1-1000 must be configured as rule 5.
• B. permit vsan 1-1000 must be configured as rule 1.
• C. permit vsan 1-1000 must be configured under the VSAN policy deny.
• D. permit vsan 1-1000 must be configured under the VSAN policy allow.

Answer: C

NEW QUESTION 11
DRAG DROP
Drag and drop the FLOGI parameters from the left onto the descriptions from which they were-derived on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 12
Refer to the exhibit.

What is the result of the configuration?

• A. No-drop CoS values are advertised by the DCBX.
• B. LFC is prioritized over PFC on Ethernet 1/10.
• C. PFC operates on Ethernet 1/10 regardless of the capability of the peer.
• D. PFC fails to operate properly unless LFC is disabled on Ethernet 1/10.

Answer: A

NEW QUESTION 13
Which command identifies the application and the user that have a Cisco Fabric Services session open?

• A. show cfs application
• B. show zoneset active
• C. show cfs lock
• D. show device-alias database

Answer: A

NEW QUESTION 14
Which two components are required for successful MDS USB POAP (Choose two.)

• A. NTFS formatted USB drive
• B. USB drive in port 1
• C. script named poap_script pl
• D. ENTERPRISE_PKG license
• E. system and kickstart images

Answer: CE

NEW QUESTION 15
Which condition requires using a device alias rather than a Fibre Channel alias?

• A. The zone database must be distributed over the fabric.
• B. The same alias must be used in zoning as well as DPVM.
• C. All aliases being used are being configured in the same VSAN.
• D. Aliases must be saved within a central database on the fabric.

Answer: A

NEW QUESTION 16
A Cisco MDS Series Switch with the POAP feature boots and does not find the startup configuration. Which location is checked first when the switch enters POAP mode?

• A. USB device that contains the software image files and the switch configuration file
• B. DHCP server to bootstrap the interface IP address, gateway, DNS server, and TFTP IP addresses
• C. TFTP server where the necessary configuration files are downloaded
• D. HTTP server where the URL is used to download the software image

Answer: A

NEW QUESTION 17
Which result occurs if a device alias is renamed and then the original device alias name is used in an add command in the same session?

• A. Both commands execute successfully.
• B. The device alias is renamed and the add command is moved to the rejected list.
• C. Both commands are moved to the rejected list.
• D. The rename command is moved to the rejected list and the add command executes successfully.

Answer: A

NEW QUESTION 18
Which configuration is needed to enable manual ESP mode for Fibre Channel TrustSec on Cisco MDS switches?

• A. MDS(config)# interface fc 1/1MDS(config-if)# fcsp esp manual
• B. MDS(config)# fcsp esp manual
• C. MDS(config)# interface fc 1/1 MDS(config-if)# fcsp mode gcm MDS(config-if-fcsp)# fcsp esp manual
• D. MDS(config)# interface fc 1/1 MDS(config-if)# fcsp esp manual MDS(config-if-fcsp)# mode gcm

Answer: A

NEW QUESTION 19
DRAG DROP
Drag and drop the DCNM configuration tasks from the left onto the correct tools on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 20
A storage network engineer must configure a 48-port Cisco MDS switch to reject any login requests to VSAN 10 from unauthorized Fibre Channel devices and switches. All the devices that were already logged in to the switch from this VSAN must be allowed without any manual configuration. Which configuration must be applied?

• A. switch(config)# feature port-security switch(config)# port- security activate vsan 10
• B. switch(config)# feature port- security switch(config)# port-security activate vsan 10 no auto- learn
• C. switch(config)# feature port-security switch(config)# port-security database vsan 10 switch(config-port-security)# any-wwn interface fc1/1 – fc1/48
• D. switch(config)# port-security activate vsan 10

Answer: D

NEW QUESTION 21
Which Cisco NX-OS command displays the VSAN that is associated with each FCID?

• A. show fcdomain
• B. show fc2 plogi
• C. show vsan database
• D. show flogi database

Answer: A

NEW QUESTION 22
The principal switch on a Fibre Channel network fails to assign requested domain to a subordinate switch. What are two reasons? (Choose two.)

• A. Cisco Fabric Services distribution is not enabled on the switch.
• B. The fabric is locked.
• C. The requested domain is outside the allowed list.
• D. The persistent FC ID feature is not enabled.
• E. An existing switch already has the requested domain assigned.

Answer: CE

NEW QUESTION 23

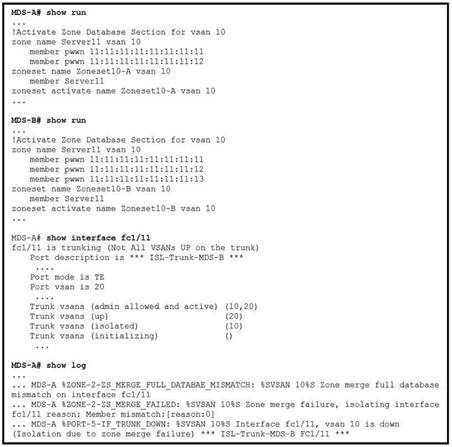

Refer to the exhibit.

A storage network engineer gets remote access to two Cisco MDS 9000 Series Switches with an ISL trunk and receives several log messages. Which set of actions resolve the problem while least affecting service?

• A. 1. Add :11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A.2. shut/no shut interface fc1/11 on MDS-A.
• B. 1. Deactivate zone set Zoneset10-A on MDS-A.2. shut/no shut interface fc1/11 on MDS-A.
• C. 1. Add :11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A.2. Remove VSAN 10 from the allowed VSAN range of interface fc1/11 on MDS-A and add it back in the range.
• D. 1. Explicitly import zone set Zoneset10-A on MDS-B using the zoneset import interface import fc1/11 vsan 10 command.2. Activate the zone set Zoneset10-A.

Answer: A

NEW QUESTION 24

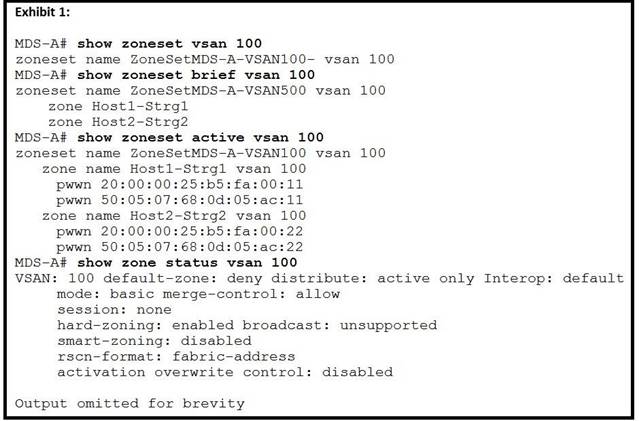

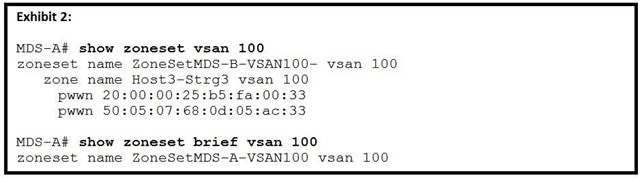

Refer to the exhibits.


A storage network engineer activates a zoneset on MDS-A and verifies the successful activation (Exhibit 1). The engineer is then notified that there is a SAN outage (Exhibit 2) What is the cause of the outage?

• A. Another network engineer activated zoneset ZoneSetMDS-B-VSAN100 on MDS-A.
• B. Another network engineer issued the zone mode enhanced vsan 100 command on another switch in the fabric.
• C. Another network engineer activated the zoneset ZoneSetMDS-B-VSAN100 command on another switch in the fabric.
• D. Another network engineer issued the zone default-zone permit vsan 100 command on another switch in the fabric.

Answer: D

NEW QUESTION 25

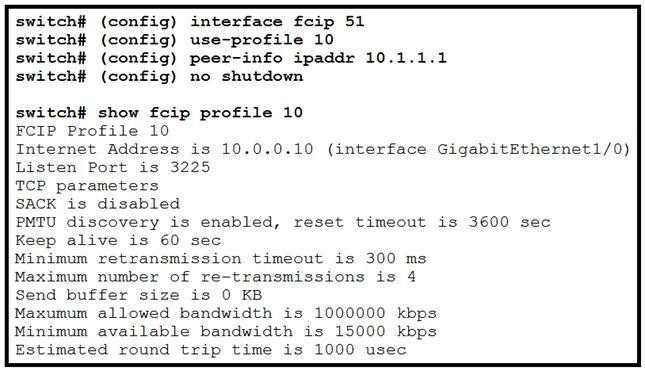

Refer to the exhibit.

Which configuration change improves the ability of the link to recover from frame loss?

• A. Increase the reset timeout.
• B. Enable selective acknowledgment.
• C. Increase the send buffer size to 15000 KB.
• D. Disable PMTU discovery.

Answer: B

NEW QUESTION 26
......
