NEW QUESTION 1
Which two protocols does the Cisco IM Presence service use to federate with external domains? (Choose two.)

• A. XMPP
• B. SNMP
• C. SIP
• D. SCCP
• E. SMPP

Answer: AC

Explanation:
Reference: https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/cucm/im_presence/interdomain_federation/11_5_1/cup0_b_interdomain-federation-guide-imp-115.pdf

NEW QUESTION 2
Which SAML component specifies the mapping of SAML assertion protocol message exchanges with standard messaging formats or communication protocols such as SOAP exchanges?

• A. SAML binding
• B. SAML assertion
• C. SAML profiles
• D. SAML protocol

Answer: A

Explanation:
Reference: https://en.wikipedia.org/wiki/Security_Assertion_Markup_Language

NEW QUESTION 3
Which statement about SIP federation between Cisco Unified Communications IM and Presence and Microsoft Skype for Business is true?

• A. Add the federated user as a contact in Jabber to view its presence status.
• B. The role of SIP Proxy service is to process the XMPP packet in from Jabber and convert it to SIP.
• C. TLS is optional.
• D. Use of directory URI as an IM addressing scheme is not supported.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/interdomain_federation/12_5_1/cup0_b_interdomain-federation-1251/cup0_b_interdomain-federation-1251_chapter_01000.html

NEW QUESTION 4

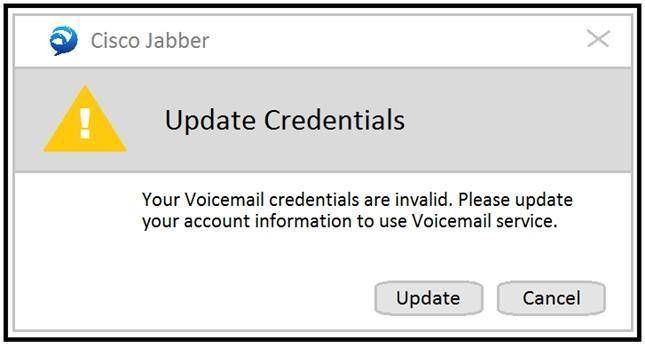

Refer to the exhibit.

Which action allows a remote Cisco Jabber user utilizing Mobile and Remote Access to automatically log in to a Cisco Unity Connection voicemail box via OAuth?

• A. Add CUCM under System Settings > Authz Servers in Cisco Expressway-E.
• B. Add CUCM under System Settings > Authz Servers in Cisco Expressway-C.
• C. Add CUCM under System Settings > Authz Servers in Cisco Unity.
• D. Add CUCM under System Settings > Authz Servers in Cisco Unity Connection.

Answer: D

Explanation:
Reference: https://community.cisco.com/t5/unified-communications/jabber-mra-unity-voice-mail-integration-issue/td-p/3195653

NEW QUESTION 5
Fraudulent calls are being made from Cisco Unity Connection. Which action prevents the calls from reaching the PSTN using SCCP integration?

• A. Change the configuration of the routing rule.
• B. Change the CSS of the voicemail port.
• C. Change the Rerouting CSS on the trunk to Cisco Unity Connection.
• D. Remove values from restriction table.

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unity-connection/119337-technote-cuc-00.html

NEW QUESTION 6
Which service must be activated on Cisco Unity Connection to utilize LDAP synchronization?

• A. Cisco Tomcat
• B. Cisco Sync Agent
• C. Cisco DirSync
• D. Cisco RIS Data Collector

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/administration/guide/10xcucsagx/10xcucsag120.html

NEW QUESTION 7
Which CLI command is used to collect traces from the Cisco Presence engine for seven days?

• A. file build log cisco_presence_engine 7
• B. file build log cisco_presence 168
• C. file build log presence_engine 7
• D. file build log presence_engine 168

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/configAdminGuide/12_0_1/cup0_b_config-admin-guide-imp-1201/cup0_b_config-admin-guide-imp-1201_chapter_010101.html

NEW QUESTION 8
Which two Cisco Unity Connection logs are used to troubleshoot issues with Message Waiting Indicators? (Choose two.)

• A. Connection IMAP Server
• B. Connection Mailbox Sync
• C. Connection Notifier
• D. Connection Message Transfer Agent
• E. Connection Conversation Manager

Answer: DE

NEW QUESTION 9
Which DNS record is used for on-premises service by Jabber clients?

• A. _collab-edge._tcp.<domain> SRV record
• B. _cisco-uds._tls.<domain> SRV record
• C. _cisco-uds._tcp.<domain> SRV record
• D. <tftp server FQDN> A record

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/Windows/9_7/CJAB_BK_C606D8A9_00_cisco-jabber-dns-configuration-guide/CJAB_BK_C606D8A9_00_cisco-jabber-dns-configuration-guide_chapter_010.html

NEW QUESTION 10
Which Cisco Unified Connections Manager service is required for users to control their desk phones using Cisco Jabber?

• A. Cisco CTIManager
• B. Cisco CTL Provider
• C. Cisco Presence Engine
• D. Cisco Serviceability Reporter

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/11_5/CJAB_BK_D00D8CBD_00_deployment-installation-guide-cisco-jabber115/CJAB_BK_D00D8CBD_00_deployment-installation-guide- ciscojabber115_chapter_0111.html

NEW QUESTION 11
Which two child elements can be in an XMPP message stanza? (Choose two.)

• A. <server/>
• B. <error/>
• C. <client/>
• D. <body/>
• E. <subject/>

Answer: DE

NEW QUESTION 12
Which statement describes a role of AXL communications in the BLF Plug-in Service of the Cisco Unified Attendant Console?

• A. The AXL communications allow registered attendants to log in to Cisco Unified Communications Manager and receive calls.
• B. The AXL communications enable Device Resolution Manager to resolve the device statuses of operator and system devices.
• C. The AXL communications is required after installation to verify that the specified CTI manager or managers and Cisco Unified Attendant Console versions match.
• D. The AXL communications is required after installation to verify that the specified CTI manager or managers and Cisco Unified CM versions.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/cucmac/cuaca/12_0_4/design_guides/CUACA_DG_120401.pdf

NEW QUESTION 13

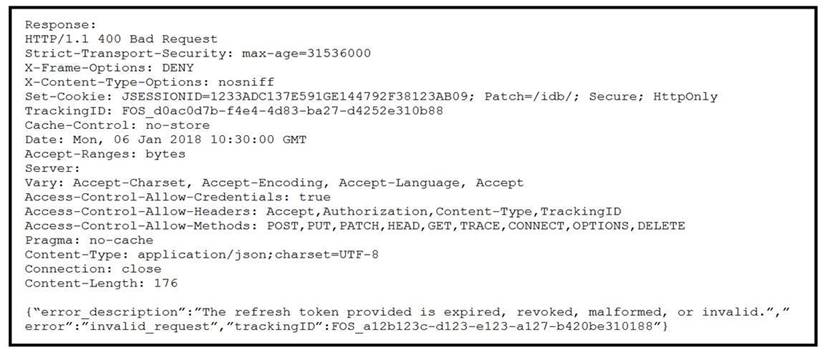

Refer to the exhibit.

Apple Push Notification integration is configured in a Cisco Unified IM and Presence deployment and has been working property. Administrators now report the error “Push notification settings cannot be configured. 400 Bad Request.” in the GUI, and HTTP logs are displaying the errors that are shown in the exhibit. Which action solves this issue?

• A. Fix the network connectivity to Apple iCloud.
• B. Reboot the IM&P cluster.
• C. Change the HTTP proxy settings to remove errors in request syntax.
• D. Update Refresh Token Manually.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/push_notifications/cucm_b_push-notifications-deployment-guide.pdf

NEW QUESTION 14

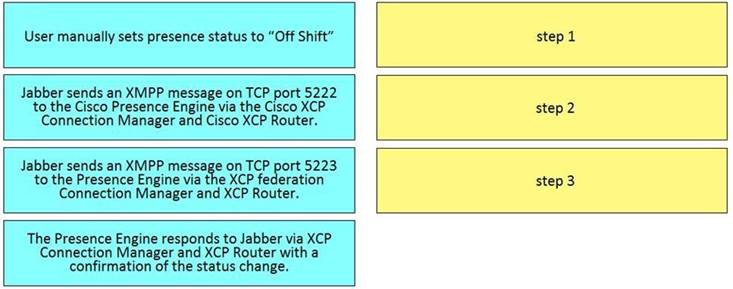

DRAG DROP
Drag and drop the steps from the left into the correct order on the right that describes the flow of presence updates when a user manually sets the presence status in Cisco Jabber. Not all options are used.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

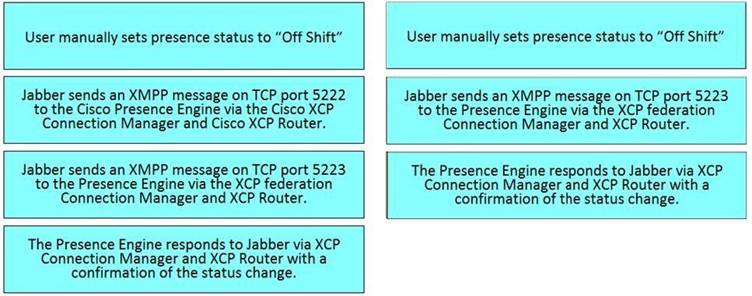

NEW QUESTION 15
Which two command line arguments can you specify when installing Cisco Jabber for windows? (Choose two.)

• A. CISCO_UDS_DOMAIN
• B. TFTP_ADDRESS
• C. VOICEMAIL_SERVER_ADDRESS
• D. SERVICES_DOMAIN
• E. TFTP

Answer: DE

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/11_0/CJAB_BK_D657A25F_00_deployment-installation-guide-jabber-110/CJAB_BK_D657A25F_00_deployment-installation-guide-jabber- 110_chapter_01100.html#JABW_RF_CE43EF4C_00

NEW QUESTION 16

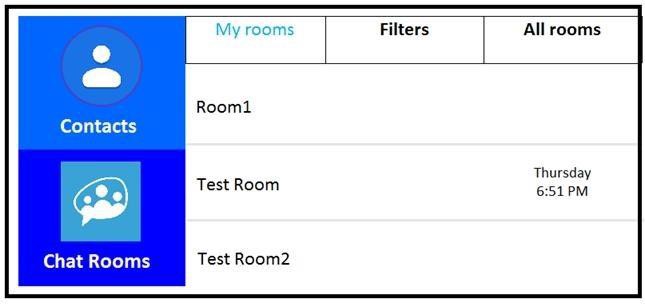

Refer to the exhibit.

Users report that they cannot see the Chat Rooms icon on their Cisco Jabber clients. This feature works without issue in the lab. An engineer reviews the Cisco IM&P and Jabber configuration and finds that the jabber-config.xml file is configured properly to support this feature. Which activity should be performed on the IM&P server to resolve this issue?

• A. Activate Cisco XCP Connection Manager in Cisco Unified Serviceability > Tools > Service Activation.
• B. Restart Cisco XCP Message Archiver in Cisco Unified Serviceability > Tools > Control Center – Feature Services.
• C. Restart XCP Text Conference Manager in Cisco Unified Serviceability > Tools > Control Center – Network Services.
• D. Activate XCP Text Conference Manager in Cisco Unified Serviceability > Tools > Service Activation.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/jabber-windows/118684-probsol-chat-00.html

NEW QUESTION 17
Which dial-peer configuration routes calls from SIP-based phones on Cisco Unified Communications Manager Express to Cisco Unity Express?

• A. dial-peer voice 7000 voip destination-pattern 7000 session protocol sipv2 session target ipv4: 10.3.6.127 codec g711alaw
• B. dial-peer voice 7000 voip destination-pattern 7000 session protocol sipv2 session target ipv4: 10.3.6.127 codec ilbc
• C. dial-peer voice 7000 voip destination-pattern 7000 session protocol sipv2 session target ipv4: 10.3.6.127 codec g711ulaw
• D. dial-peer voice 7000 voip destination-pattern 7000 session protocol sipv2 session target ipv4: 10.3.6.127 codec g729r6

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/voice-unified-communications/unity-express/62609-tdcmecue.html

NEW QUESTION 18
An engineer is checking the Cisco Unified Communications Manager and Cisco Unity Connection integration and presses the Message button on a phone to check the voicemail. Which action does Cisco Unified CM take?

• A. Cisco Unified CM looks up the voicemail pilot configured to dial.
• B. Cisco Unified CM routes the configured hunt pilot to Unity Connection.
• C. Cisco Unified CM looks up the hunt pilot configured to dial.
• D. Cisco Unified CM sends an AXL query to Unity Connection.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/9_1_1/ccmsys/CUCM_BK_C5565591_00_cucm-system-guide-91/CUCM_BK_C5565591_00_cucm-system-guide-91_chapter_011110.html

NEW QUESTION 19
Which function of the Cisco IM and Presence high availability solution is true?

• A. When the server has been restored to a normal state, user sessions remain on the backup server.
• B. When an event takes place, the end user sessions are not moved from the failed server to the backup.
• C. When the server has been restored, the server automatically fails back.
• D. When a high availability event takes place, the end user sessions are moved from the failed server to the backup.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-communications-manager-im-presence-service/200958-IM-and-Presence-Server-High-Availability.html

NEW QUESTION 20
SAML SSO is enabled in Cisco Unified Communications Manager. What happens when a browser-based client attempts to access a protected resource on a service provider?

• A. The browser follows the redirect and issues an HTTPS GET request to the IdP.
• B. The IdP checks for a valid browser session.
• C. The service provider generates a SAML authentication request.
• D. The SAML request is maintained as a query parameter in the GET request.

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/SAML_SSO_deployment_guide/12_5_1/cucm_b_saml-sso-deployment-guide-12_5/cucm_b_saml-sso-deployment-guide-12_5_chapter_01.html
