NEW QUESTION 1
If all patterns below are configured in Cisco Unified Communications Manager which would be used when dialing the pattern “123”?

• A. 12!
• B. 12X (urgent priority set)
• C. 1XX (urgent Priority Set)
• D. 12[2-5]

Answer: B

NEW QUESTION 2
A user reports that when they attempt to log out from the Cisco Extension Mobility service by pressing the Services button, they cannot log out. What is the most likely cause of this issue?

• A. The Cisco Extension Mobility service has not been configured on the phone.
• B. There might be a significant delay between the button being pressed and the Cisco Extension Mobility service recognizing i
• C. It would be best to check network latency.
• D. The user device profile has not been assigned to the user.
• E. The user device profile is not subscribed to the Cisco Extension Mobility service.

Answer: D

NEW QUESTION 3
Which services are needed to successfully implement Cisco Extension Mobility in a standalone Cisco Unified Communications Manager server?

• A. Cisco Extended Functions, Cisco Extension Mobility, and Cisco AXL Web Service
• B. Cisco CallManager, Cisco TFTP, and Cisco CallManager SNMP Service
• C. Cisco CallManager, Cisco TFTP, and Cisco Extension Mobility
• D. Cisco TAPS Service, Cisco TFTP, and Cisco Extension Mobility

Answer: C

NEW QUESTION 4
What is a component of Cisco Unified Mobility?

• A. Unified IVR
• B. Mobile Connect
• C. Smart Client Support
• D. Single Number Connect

Answer: B

NEW QUESTION 5
Which call pickup feature allows users to pick up incoming calls in a group that is associated with their own group?

• A. Other Group Pickup
• B. BLF Call Pickup
• C. Group Call Pickup
• D. Directed Call Pickup

Answer: A

NEW QUESTION 6
In Cisco Unified Communications Manager globalized call routing is implemented and must confirm that it is correctly implemented without making a call. Which tool do you use for verification?

• A. Dialed Number Analyzer
• B. Real-Time Monitoring Tool
• C. SDI trace
• D. SDL trace

Answer: A

NEW QUESTION 7
For s SIP to SIP call flow, when does Cisco Unified Border Element require transcoding resources for DTMF?

• A. interworking between an OOB method and RFC2833 for flow-around calls
• B. interworking between h245-signal and rtp-nte
• C. interworking between an OOB method and RFC2833 for flow-through calls
• D. interworking between h245-alpha numeric and sip-kpml

Answer: A

NEW QUESTION 8
An administrator is configuring a cluster for ILS and wants to limit the amount of entities that Cisco Unified Communications Manager can write to the database for data that is learned through ILS. Which service parameter is used to adjust this limit?

• A. ILS Max Number of Learned Objects in Database
• B. ILS Active Learned Object Upper Limit
• C. Global Data Service Parameter Limit
• D. Imported Dial Plan Replication Database Object Lower Limit

Answer: A

NEW QUESTION 9

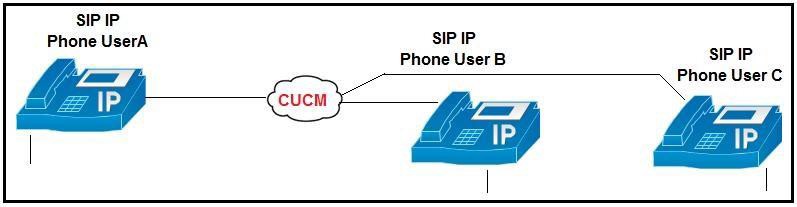

Refer to the exhibit. In an active SIP call between phone user A and phone user B, phone A initiates a call transfer to phone user C. Which two scenarios are correct? (Choose two.)

• A. Phone_A sends a SIP-REFER message to the Cisco Unified Communications Manager with Phone_C information in the Refer-To section.
• B. Phone_B sends a SIP-REFER message to the Cisco Unified CM with Phone_C information in the Refer-To section.
• C. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the MOH and the MOH audio is chosen from Phone_B User Hold MOH Audio Source settings.
• D. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the music on hold and the MOH audio is chosen from Phone_A Network Hold MOH Audio Source settings.
• E. As soon as Phone_A presses the Transfer button for the first time, Phone_B hears the MOH and the MOH audio is chosen from Phone_A User Hold MOH Audio Source settings.

Answer: AC

NEW QUESTION 10

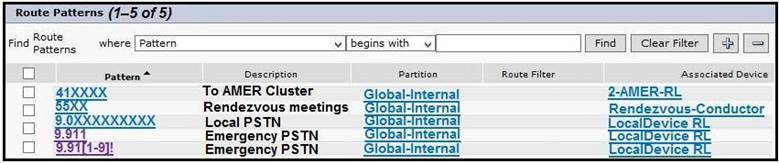

Refer to the exhibit. Users report that when they dial the emergency number 9911 from any internal phone, it takes a long time to connect with the emergency operator. Which action resolves this issue?

• A. Adjust the service parameter T302 timet to the desired value.
• B. Adjust the service parameter T204 timer to the desired value.
• C. Check the Urgent Priority check box under 9.911 pattern.
• D. Point the emergency pattern directly to the PSTN gateway.

Answer: C

NEW QUESTION 11
End users at a new site report being unable to hear the remote party when calling or being called by users at headquarters. Calls to and from the PSTN work as expected. To investigate the SIP signaling to troubleshoot the problem, which field can provide a hint for troubleshooting?

• A. Contact: header of the 200 OK response
• B. Allow: header if the 200 OK response
• C. o= line of SDP content
• D. c= line of SDP content

Answer: C

NEW QUESTION 12
When locations-based Call Admission Control denies the call, which two masks can AAR apply when routing the call through the PSTN? (Choose two.)

• A. AAR destination mask
• B. called party transform mask
• C. external phone number mask
• D. +E.164 alternate number mask
• E. enterrise alternate number mask

Answer: AC

NEW QUESTION 13

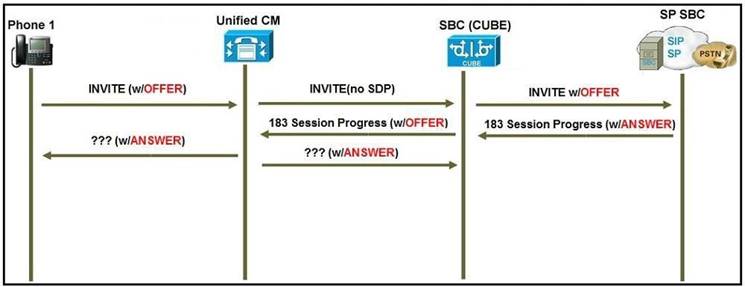

Refer to the exhibit. A user reports that when they call a specific phone number, no one answers the call, but when they call from a mobile phone, the call is answered. The engineer troubleshooting the issue is expecting the far-end gateway to cut through audio on the 183 Session Progress SIP message. Which SIP Profile configuration element is necessary for the Cisco Unified Communications Manager to send acknowledgement of provisional responses?

• A. Allow Passthrough of Configured Line Device Caller Information must be enabled.
• B. Accept Audio Codec Preferences in Received Offer must be set to On.
• C. On the SIP Profile, the configuration parameter SIP Rel1XX Options must be set to Send PRACK for all 1xx Messages.
• D. Early Offer for G Clear Calls must be enabled.

Answer: C

NEW QUESTION 14
An engineer is configuring a call park feature in Cisco Unified Communications Manager Express. Which command does the engineer use to ensure that the call is reverted to the user after 60 seconds?

• A. R2(config-ephone-dn)#park reservation-group 60
• B. R2(config-ephone-dn)#park-slot timeout 60 limit 2 recall alternate 3002
• C. R2(config-ephone-dn)#park reservation-group 1
• D. R2(config-ephone-dn)#park-slot timeout 30 limit 2 recall alternate 3002

Answer: B

NEW QUESTION 15
What is first preference condition matched in a SIP-enabled incoming dial peer?

• A. incoming uri
• B. target carrier-id
• C. answer-address
• D. incoming called-number

Answer: A

NEW QUESTION 16
Cisco SIP IP telephony is implemented on two floors of your company. Afterward, users report intermittent voice issues in calls established between floors. All calls are established, and sometimes they work well, but sometimes there is oneway audio or no audio. You determine that there is a firewall between the floors, and the administrator reports that it is allowing SIP signaling and UDP ports from 20000 to 22000 bidirectionally. What are two possible solutions? (Choose two.)

• A. Go to the SIP profile assigned to these IP phones in Cisco Unified CM and change the range of media ports to 16384-32767
• B. Ask the firewall administrator to change the ports to TCP.
• C. Ask the firewall administrator to change the range of UDP ports to 16384-32767.
• D. Go to the SIP profile assigned to these IP phones in Cisco Unified CM and change the range of media ports to 20000-22000.
• E. Go to System Parameters in Cisco Unified Communications Manager and change the range of media ports to 20000-22000.

Answer: AC

NEW QUESTION 17
What are the elements for Device Mobility configuration?

• A. physical location, device pool, and Device Mobility group
• B. device pool, Device Mobility group, and region
• C. physical locatio
• D. Device Mobility group, and region
• E. device pool, Device Mobility group, and Cisco IP phone

Answer: A

NEW QUESTION 18
How does an engineer globalize routing for ingress calls coming from the PSTN to internal DNs?

• A. At the PSTN gateway, put the calling number in PSTN format and the called number in DN format.
• B. At Cisco Unified CM, put the calling number in E.164 format and the called number in PSTN format.
• C. At the PSTN gateway, put the calling number in E.164 format and the called number in localized (DN) format.
• D. At Cisco Unified Communications Manager, put the calling number in E.164 format and the called number in E.164 format.

Answer: B

NEW QUESTION 19
Why would RTP traffic that is sent from the originating endpoint fail to be received on the far endpoint?

• A. The far end connection data (c=) in the SDP was overwritten by deep packet inspection in the call signaling path.
• B. Cisco Unified Communications Manager invoked media termination point resources.
• C. The RTP traffic is arriving beyond the jitter buffer on the receiving end.
• D. A firewall in the media path is blocking TCP ports 16384-32768.

Answer: D

NEW QUESTION 20
A user reports when they press the services key they do not receive a user ID and password prompt to assign the phone extension. Which action resolves the issue?

• A. Create the default device profiles for all phone models that are used.
• B. Subscribe the phone to the Cisco Extension Mobility service.
• C. Create the end user and associate it to the device profile.
• D. Assign the extension as a mobile extension.

Answer: B

NEW QUESTION 21
Which two extended capabilities must be configured on dial peers for fast start-to-early media scenarios (H.323 to SIP interworking)? (Choose two.)

• A. DTMF
• B. BFCP
• C. VIDEO
• D. FAX
• E. AUDIO

Answer: AB
