NEW QUESTION 1
What are the three components of Avaya Aura® Messaging (AAM)? (Choose three.)

• A. Messaging Distributor
• B. Application Server
• C. Messaging Store
• D. AxC/Directory
• E. SM100 Module

Answer: BCD

Explanation:
The AXC connector is always co-resident with the Avaya message store.

References: Administering Avaya Aura® Messaging Release 6.2, Issue 2.2 (December 2013)
https://downloads.avaya.com/css/P8/documents/100172127

NEW QUESTION 2
Which component converts WebRTC Media Stream to SIP Media Stream?

• A. HTTP Reverse Proxy
• B. Avaya Aura® Media Server (AAMS)
• C. STUN/TURN server
• D. G.450/430 or G.650 Medpro board

Answer: C

Explanation:
Provisioning Avaya Aura® Media Server for the WebRTC Snap-in.
Procedure
* 1. Log in to the Avaya Aura®
Media Server Element Manager.
* 2. Check that Avaya Aura®
Media Server nodes and routes are set up correctly.
See Deploying Avaya Breeze™ for details on configuring Avaya Aura®
Media Server forAvaya Breeze™.
* 3. Go to System Configuration > Server Profile > General Settings, enable Firewall NAT Tunneling Media Processor and then click Save.
* 4. Go to System Configuration > Signaling Protocols > SIP > General Settings, enable Always use SIP default outbound proxy, and then click Save.
Go to System Configuration > Media Processing > ICE > TURN/STUN Servers > Accounts and create a TURN/STUN account. This account ID and password must
match the account created on the Avaya SBCE.
* 6. Go to System Configuration > Media Processing > ICE > TURN/STUN Servers > Servers to add the TURN/STUN connection to the Avaya SBCE server
Etc.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 23
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 3
You are setting up the SIP connection between Avaya Aura® Messaging (AAM) and the Avaya Aura® Core, and the information you have entered for the Far-end connection is:
Far-end Connections = 1 Gateway ID = 1
IP address = 135.60.135.11 Transport = TLS
Port = 5061
What should you conclude from all this information?

• A. The connection cannot work because 5061 is not the Well-known port corresponding to TLS by standard.
• B. There will be conflicts in the TLS connections given that 5061 is a well-known port that other Endpoints and Servers use within the same network.
• C. A Security Certificate from the same Certificate Authority as the other Avaya Aura® components, must be installed on the AAM Server to guarantee successful TLS Connections.
• D. The IP address is wrong because its range does not correspond to a valid TLS-compatible IP address.

Answer: C

Explanation:
Incorrect Answers:
A: 5060 is typically used for TCP connection. 5061 for TLS.

NEW QUESTION 4
In Avaya Aura® System Manager, how is Avaya Aura® Messaging (AAM) added to the list of Managed Elements?

• A. It is added when you configure the AAM SIP Entity in SMGR.
• B. It is automatically added during the enrollment process.
• C. It can only be manually added.
• D. It is automatically added using initTM –f command on the Command Line Interface of AAM.

Answer: D

Explanation:
In System Manager, element installation sets up the trust between System Manager and its managed elements. . Similarly, UCM has a trust management process
to set up the trust between UCM and its managed elements. To enable managed elements of UCM to be in the same trust domain as the System Manager
managed elements, you must import the UCM Certificate Authority (CA) certificate to the System Manager managed element's trusted certificate list.
Note: To force a re-initialization of trust management
* 1. Ensure the enrollment password in the System Manager Security -> Enrollment Password screen is valid and set. Make note of this password as it will be needed
when running the trust management initialization command.
* 2. Log into the Session Manager virtual machine IP address with an ssh client as the craft or customer account login
* 3. Execute the following shell command once at the shell prompt:
$ initTM –f
This will prompt you for the enrollment password and then initialize trust management and the database replication service of the Session Manager.
References: Administering Avaya Aura System Manager for Release 6.3.11 and later, Release 6.3, Issue 8, November 2016, page 1073
https://downloads.avaya.com/css/P8/documents/101008185
https://downloads.avaya.com/css/P8/documents/100161692

NEW QUESTION 5
Which three functionalities does WebRTC provide? (Choose three.)

• A. NAT / Firewall Traversal
• B. adds click-to-call capabilities from a web application to an Avaya endpoint
• C. Internet-friendly codecs and Privacy
• D. real-time audio and video conferencing

Answer: ABD

Explanation:
* One of the primary differentiating features for the WebRTC Snap-in is that the web application handles authentication and authorization of calls. This includes the
capability to assert a calling user’s phone number and restrict the numbers that can be called.
* The Avaya SBCE enables secure firewall traversal for HTTP and SRTP packets, facilitates sending DTLS to provide secured key exchange for the SRTP flow,
and takes care of all security requirements mentioned in the TURN protocol for the solution.
* WebRTC can be a game changer for enterprise communications and customer engagement. Enterprises can now add real-time communications to any website.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 9
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 6
To allow trust between Avaya Aura® System Manager (SMGR) and Avaya Aura® Messaging (AAM), there is a password set when you add the Trusted Server on AAM. This password must match with the password also configured in SMGR.
Which statement about the password in SMGR is true?

• A. It needs to match the Enrollment Password.
• B. It needs to match the admin password used to login to SMGR using a web browser.
• C. It needs to match the Attributes of the Messaging Managed Element in the Inventory.
• D. It needs to match the root password used to login to SMGR command line.

Answer: C

Explanation:
Configuring Messaging in the normal operational mode
Before you begin
* Add both the primary and secondary servers as Trusted Servers in the Messaging system.
* Update the Login, Password, and Confirm Password fields with the appropriate trusted server defined on the Messaging system.
Procedure
* 1. Log on to the Messaging system that System Manager manages.
* 2. Add the secondary System Manager server as Trusted Servers in the Messaging system.
* 3. Log on to the secondary System Manager server.
* 4. On the System Manager web console, click Services > Inventory.
* 5. In the left navigation pane, click Manage Elements.
* 6. On the Manage Elements page, select the Messaging system that you want to change to the secondary System Manager server.
* 7. Click Edit.
* 8. On the Attributes tab, fill the Login, Password, and Confirm Password fields with the corresponding name and password of the Messaging trusted server.
* 9. Click Commit.
* 10. Click Inventory > Synchronization > Messaging System, and select the required Messaging element.
* 11. Click Now.
The secondary System Manager server retrieves all data from Messaging and is now ready to administer and manage Messaging.
References: Administering Avaya Aura System Manager for Release 6.3.11 and later, Release 6.3, Issue 8 (November 2016), page 104
https://downloads.avaya.com/css/P8/documents/101008185

NEW QUESTION 7
In the Avaya Session Border Controller for Enterprise (SBCE), before a traffic carrying Network Interface (A1 or B1) can be pinged, to which state do you have to toggle the status on Device Specific Settings > Network Management / Interfaces?

• A. Enabled
• B. In-Service
• C. Accept Service
• D. Active

Answer: A

Explanation:
Commission the SBC—SBC Configuration

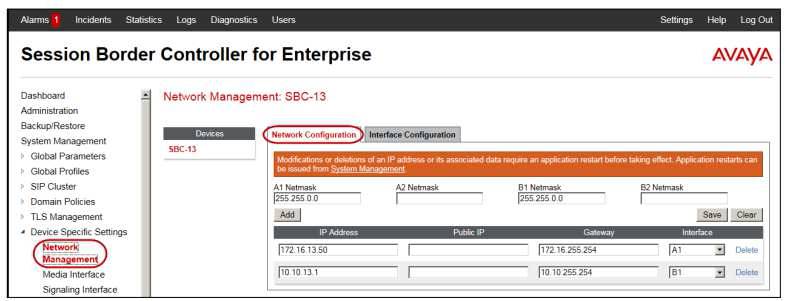

* 1. The A1 and B1 interfaces display on the Network Configuration tab:

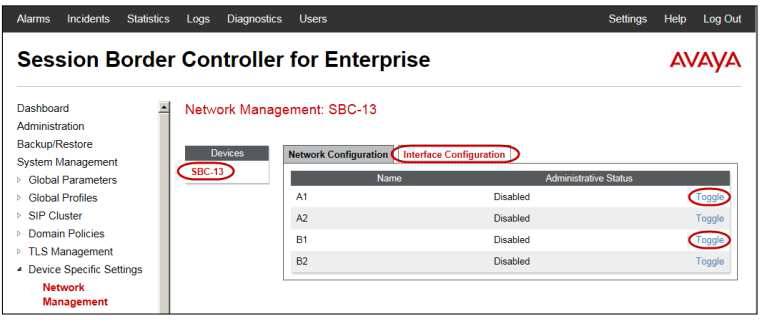

* 2. Click on the Interface Configuration tab:

* 3. Click the Toggle link for both the A1 and the B1 interfaces.

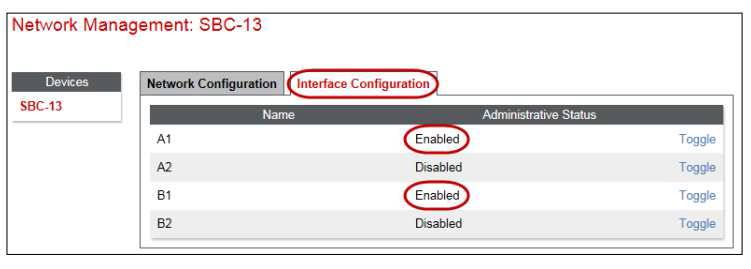

The Administrative Status for both A1 and B1 changes to Enabled:

References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 203

NEW QUESTION 8
To watch Avaya Session Border Controller for Enterprise (SBCE) messages in real-time as they pass
through the SBCE, which tool on the SIP command line do you use?

• A. traceSBC
• B. traceSM –m
• C. traceTOOL
• D. trace

Answer: A

Explanation:
The tcpdump tool is the main troubleshooting tool of Avaya SBCE, which can capture network traffic.
Using tcpdump is a reliable way to analyze the information arriving to and sent from the SBC.
However, tcpdump has its own limitations, which can make troubleshooting difficult and time
consuming. This traditional tool is not useful in handling encrypted traffic and real-time troubleshooting.
The traceSBC tool offers solutions for both issues.
In Real-time mode, traceSBC must be on active Avaya SBCE. traceSBC is started without specifying a
file in the command line parameters. The tool automatically starts processing the log files. The live
capture can be started and stopped anytime without affecting service.
Example:
# traceSBC
References: Troubleshooting and Maintaining Avaya Session Border Controller for Enterprise
(December 2015), page 27
https://downloads.avaya.com/css/P8/documents/101014063

NEW QUESTION 9
In Avaya Aura® Messaging (AAM) 6.3, how many Call Answering Ports can one Application Server support?

• A. up to 100 Ports
• B. up to 10 Ports
• C. up to 1000 Ports
• D. up to 10000 Ports

Answer: A

Explanation:
The Call Answer Ports range is 2–100.
References: Administering Avaya Aura Messaging, page 34
https://downloads.avaya.com/css/P8/documents/100112131

NEW QUESTION 10
To route calls to Avaya Aura® Messaging (AAM), which routing strategy is used by Avaya Aura® Session Manager (SM)?

• A. Automatic Route Selection (ARS)
• B. Automatic Alternate Routing (AAR)
• C. Network Routing Policies (NRP)
• D. Registry Routing

Answer: C

Explanation:
Routing policies describe the conditions under which Session Manager will route calls between Communication Manager and Avaya Aura Messaging.
References: Application Notes for Configuring Avaya Aura® Messaging 6.1 as a Voice Messaging Solution for Avaya Aura® Communication Manager 6.0.1 Feature
& Evolution Server Using SIP Trunks and Avaya Aura® Session Manager 6.1 –Issue 1.0, page 25
https://www.devconnectprogram.com/fileMedia/download/08ad7375-7c2e-4767-929f-15f4e8130a0d

NEW QUESTION 11
From a remote worker’s SIP Endpoint connected via Mobile Workspace, which tool is used to trace the successful way through Avaya Session Border Controller for Enterprise (SBCE) of an Invite message?

• A. traceRT
• B. traceSM
• C. traceMW
• D. traceSBC

Answer: B

Explanation:
traceSM is an interactive perl script that allows an administrator to capture, view, and save call processing
activity on a Session Manager. While not as powerful or versatile as wireshark, traceSM is absolutely essential when it comes to working with Avaya SIP. First off, it allows you to view SIP messages even if they have been encrypted with TLS.

NEW QUESTION 12
A company is deploying Avaya Session Border Controller for Enterprise (SBCE) to support SIP trunking.
What is the minimum number of IP-addresses they need to assign to the private and public Network Interface Cards (NICs)?

• A. Two addresses are assigned to the private NIC and two addresses are assigned to the public NIC.
• B. One address is assigned to the private NIC and one address is assigned to the public NIC.
• C. Two addresses are assigned to the private NIC and one address is assigned to the public NIC.
• D. One address is assigned to the private NIC and two addresses are assigned to the public NIC.

Answer: B

Explanation:

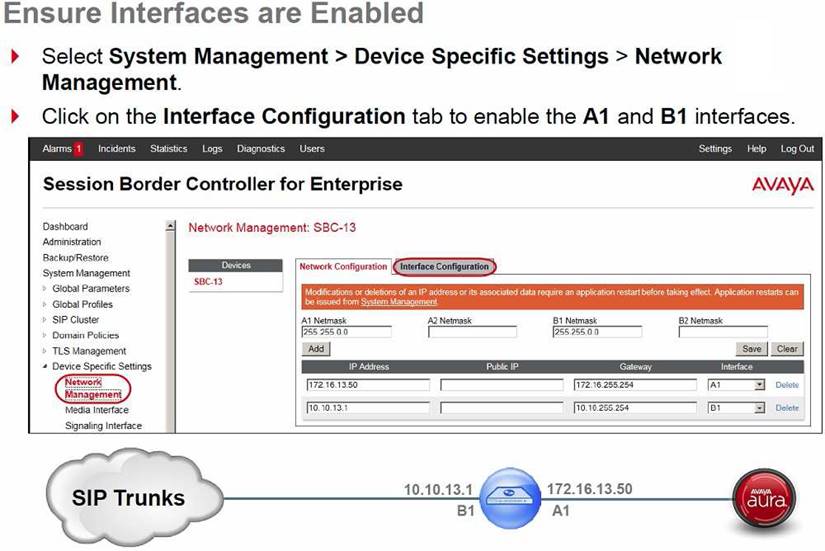

Example configuration:

References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 305

NEW QUESTION 13
For an Avaya SIP telephone, working as a Remote Worker via the Avaya Session Border Controller for Enterprise (SBCE), which IP address should be configured in the Server List of the one-X® Communicator?

• A. the SBCE Internal Interface allocated for Mobile Workspace Endpoint
• B. the SBCE External Interface allocated for Mobile Workspace Endpoint
• C. the Internal Avaya Aura® Session Manager SM100 IP Address
• D. the Avaya Aura® Session Manager External Interface allocated for Mobile Workspace Endpoints.

Answer: D

Explanation:
Remote Worker Avaya one-X Communicator Configuration
The following screens illustrate Avaya one-X Communicator administration settings for the Remote Worker used in the reference configuration.
Example:
* 1. On the Avaya one-X Communicator application running on the PC, click on the Settings icon on the top right to display the Settings window.
* 2. Click on Telephony, the General Settings window will appear. The following values were used in the reference configuration:
Under Using: select SIP (SIP must be selected; H.323 is not supported for Remote
Workers).
* Under Server List, click Add (the Add Server window to the right will appear).
* Under Proxy Server enter 192.168.157.180 (This is one of the two “public” IP addresses for interface B1 on the Avaya SBCE used for Remote Worker access to
Session Manager (public IP not used for relay services).
Etc.
References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura® Communication Manager Rel. 6.3 and Avaya
Aura® Session Managers Rel. 6.3 - Issue 1.0, page 81
https://downloads.avaya.com/css/P8/documents/100183254

NEW QUESTION 14
Avaya Aura® Presence Services 7.x is implemented on Avaya Breeze™ (formerly Engagement Development Platform (EDP)).
When looking at Elements > Breeze > Service Management > Services, which status would you expect for a Presence Services snap-in that is ready to support Avaya Aura® Presence Services?

• A. Accepting
• B. Loaded
• C. Installed
• D. Active

Answer: A

NEW QUESTION 15
Which two options describe the purpose of TraceSM in the Avaya Aura® Presence Services? (Choose two.)

• A. It captures Packet-Size statistics from every telephone call in Avaya Aura® 7.
• B. It captures real-time XMPP traffic.
• C. It captures Voice and Video Calls media packets in real-time.
• D. It captures live traces for both SIP and H323/XMPP clients.
• E. It captures Contact details from every user connected to Avaya Aura® Presence Services.

Answer: BD

Explanation:
It’s important to know that traceSM is a real-time capture tool.
traceSM is an interactive perl script that allows an administrator to capture, view, and save call processing
activity on a Session Manager. While not as powerful or versatile as wireshark, traceSM is absolutely essential when it comes to working with Avaya SIP. First off, it allows you to view SIP messages even if they have been encrypted with TLS.
References: https://andrewjprokop.wordpress.com/2014/06/02/a-necessary-guide-to-the-avaya-tracesm-utility/

NEW QUESTION 16
What are three ways of accessing Avaya Aura® Application Enablement Services (AES) to perform administration? (Choose three.)

• A. with an Open X.11 terminal window
• B. with web access
• C. with remote access using Rlogin
• D. with local access using a system console
• E. with remote access using SSH

Answer: BDE

Explanation:
B: You can use a Web browser to access the Application Enablement Services Management Console (AE
Services Management Console).
DE: Administrators can access the AE Services Linux shell (command prompt) either locally using a system
console or remotely using a secure shell (ssh) client. This access method applies primarily to AE Services
Technicians (craft users) who perform specific tasks, such as viewing trace logs, installing patches, and so
forth.
References: Avaya Aura® Application Enablement Services Administration and Maintenance Guide , page 52
https://downloads.avaya.com/css/P8/documents/100171737

NEW QUESTION 17
In which location is the AAMS URI ‘ce-msml@avaya.com’ configured?

• A. Elements > Breeze > Configuration > HTTP Security and as a Regular Expression
• B. Elements > Breeze > Configuration > HTTP Security and as a Dial Pattern
• C. Home > Elements > Breeze > Configuration > Avaya Aura® Media Server and as a Dial Pattern
• D. Home > Elements > Breeze > Configuration > Avaya Aura® Media Server and as a Regular Expression

Answer: D

Explanation:
Creating the Avaya Aura Media Server Routing Pattern
Procedure
* 1. On System Manager, click Elements > Routing > Routing Policies .
* 2. Click New.
* 3. Type a Name for the Routing Policy.
* 4. From the SIP Entity as Destination field, click Select.
* 5. Select the Avaya Aura®
Media Server SIP Entity that you created.
Select the Local Host Name FQDN SIP Entity if you are using High Availability for the Avaya Aura®
Media Server routing.
* 6. Click Commit .
* 7. Navigate to Home > Elements > Routing > Regular Expressions and click New.
* 8. In the Pattern field, type ce-msml@<sip-domain>.*
This sip-domain value must match:
• The SIP domain that you entered in the Home > Elements > Routing > Domains page.
• The default SIP domain that you entered on the Avaya Breeze™ Cluster Administration page.
* 9. Click Commit
https://downloads.avaya.com/css/P8/documents/101014426

NEW QUESTION 18
In Avaya Aura® Communication Manager (CM) for TSAPI, which type of CTI-link needs to be configured?

• A. ASAI-IP
• B. TSAPI-IP
• C. ADJ-IP
• D. DMCC-IP

Answer: C

Explanation:
The Avaya AES server forwards CTI requests, responses, and events between Invision CTI
Server and Communication Manager. The Avaya AES server communicates with Communication Manager over an AES link. Within the AES link, CTI links may be
configured to provide CTI services to CTI applications such as Invision CTI.
Step 1: Enter the display system-parameters customer-options command. On Page 3, verify that Computer
Telephony Adjunct Links is set to y.
Step 2: Enter the add cti-link m command, where m is a number between 1 and 64, inclusive.
Enter a valid Extension under the provisioned dial plan in Avaya Communication Manager, set the Type field to ADJ-IP, and assign a descriptive Name to the CTI link.
Etc.
References: Application Notes for Invision CTI with Avaya Aura® Communication Manager and Avaya
Aura® Application Enablement Services – Issue 1.0, page 6
https://www.devconnectprogram.com/fileMedia/download/edd26666-ae98-4f15-9a2a-a156d0807160

NEW QUESTION 19
By default, which Codec does Avaya Aura® Messaging (AAM) support?

• A. G.726
• B. G.722
• C. G.711
• D. G.729

Answer: C

Explanation:
You must configure the Messaging system to use the G.711 encoding format.
Note: The G.711 format provides the highest audio quality especially when voice networks use multiple encodings and decodings. Avaya requires that you use the
G.711 encoding format in Messaging systems that support TTY devices.
The G.711 encoding format uses a higher encoding rate than GSM. The G.711 encoding format therefore produces larger files and requires more storage space for
messages. Messaging provides customers with adequate storage space for message playback and networking.
References: Administering Avaya Aura® Messaging, Release 6.2 Issue 2.2 (December 2013) , page 201
https://downloads.avaya.com/css/P8/documents/100172127

NEW QUESTION 20
To which other component does the Avaya Aura® Application Enablement Services (AES) Switch Connections connect?

• A. Avaya Aura® Media Server (AAMS) using H.323
• B. Avaya Aura® Session Manager (SM) using SIP
• C. Avaya Aura® Communications Manager (CM) using H.323
• D. Avaya Aura® Communications Manager (CM) using SIP

Answer: C

Explanation:
Adding a switch connection
The procedure include the following steps:
* 1.From theAE Services Management Console main menu, select Communication Manager Interface > Switch Connections.
* 2. On the Switch Connections page, in the Add Connection field, type a switch connection name (for example Switch1)
For the Secure H323 Connection check box, do one of the following:
* For Communication Manager6.3.6 or later and TLS for the H.323 Signaling Channel (normally associated with FIPS Mode), select the Secure H323 Connection
check box.
* For any previous release of Communication Managerwithout TLS for the H.323 Signaling Channel, uncheck the Secure H323 Connection check box.
Etc.
References: Avaya Aura® Application Enablement Services Administration and Maintenance Guide, page 73
https://downloads.avaya.com/css/P8/documents/100171737

NEW QUESTION 21
You want to multiplex all remote workers SIP messages to Avaya Aura® Session Manager (SM) over the same TCP connection, rather than open a dedicated TCP connection for each user.
Which feature needs to be enabled for Avaya Session Border Controller for Enterprise (SBCE)?

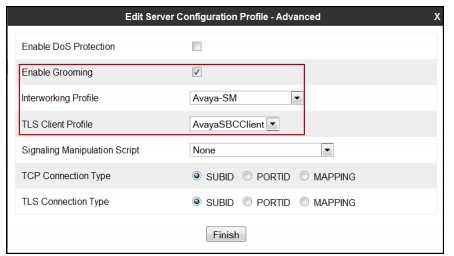

• A. the Enable Grooming feature in the Advanced tab of the Avaya Aura® Session Manager (SM) Server Profile
• B. the Enable Shared Control feature in the Signaling Interface.
• C. the Stream Users Over Transport Link feature in the Signaling Interface
• D. the Share Transport Link feature in the Advanced tab of the Avaya Aura® Session Manager (SM) Server Profile

Answer: A

Explanation:

References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura® Communication Manager Rel. 6.3 and Avaya
Aura® Session Managers Rel. 6.3 - Issue 1.0, page 36
https://downloads.avaya.com/css/P8/documents/100183254

NEW QUESTION 22
......
