NEW QUESTION 1
When new VMs are added the ACP 4200, which action is mandatory?

• A. The new VMs must be configured to send SNMP Traps to Avaya Orchestrator.
• B. CPU and Memory reservations must be manually configured to the application recommendations for the new VMs.
• C. Avaya Orchestrator must be configured to recognize the new VMs.
• D. ACP Configurator Tool must be used to calculate resource availability for the ACP to support the new VMs.

Answer: A

NEW QUESTION 2
The customer’s networking team is considering connectivity options to the ACP 4200.
When would the ACP 4200 use Fabric Connect for network connectivity to the customer network?

• A. When the customer network uses stackable switches.
• B. When the customer network uses routers or switches that have an integrated switch fabric.
• C. When the customer network uses Extreme Networks VSP switches.
• D. When the customer network uses Cisco routers with VRRP.

Answer: C

NEW QUESTION 3
An installation engineer is installing the power connections to the ACP 4200. What must the installation engineer be aware of?

• A. Before connecting the power, the power switches of all components in the rack must be in the OFF position.
• B. Power cables must only access the rack from the top of the rack.
• C. Power connections must be within 10 feet (3 meters) of the rack.
• D. Power cables must only access the rack from the bottom of the rack.

Answer: A

NEW QUESTION 4
Which statement describes a feature of VMware HA?

• A. It adds VPFM as a SNMP management server.
• B. It detects host failures and starts applications on other hosts in the cluster.
• C. It monitors the memory and CPU load on the host servers and balances them by moving VMs between the hosts.
• D. It moves a running VM from one host to another.

Answer: B

NEW QUESTION 5

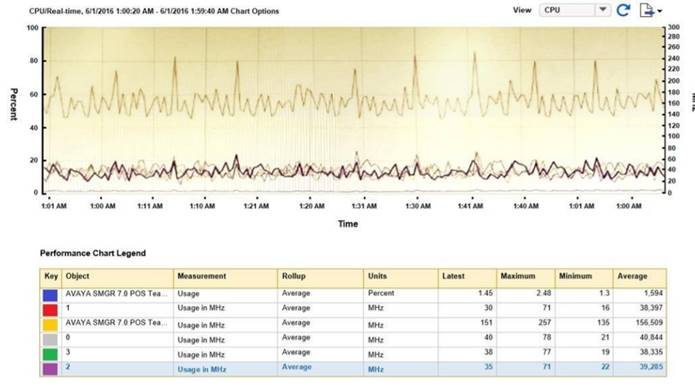

Refer to the exhibit.

Why is the usage measurement of CPU2 (in Purple) shown in the chart highlighted in the table?

• A. Because the CPU2 has been nominated as the primary CPU in this Virtual Machine.
• B. Because the CPU2 has been highlighted with an active alarm.
• C. Because the CPU2 usage is closest to the average usage of all the CPUs.
• D. Because the CPU2 has been selected in the table under the chart.

Answer: D

NEW QUESTION 6
The customer's networking team is considering connectivity options to the ACP 4200.
For which customers would an ACP 4200 Layer 2-only networking topology be deployed, and why?

• A. Customers who have a Layer 2 Data Cente
• B. The ACP will provide Layer 3 routing for the customer.
• C. Customers who wish to retain existing VLANs, subnets, and IP subnet
• D. The ACP will extend VLANs out to the Data Center routers which will provide Layer 3 routing.
• E. Customers who do not use Dynamic routing protocol
• F. The ACP will use static routes for connectivity to the Data Center.
• G. Customers who wish to upgrade their Data Center to Fabric Connec
• H. The ACP will use Fabric Extend to integrate with the customer's Data Center switches.

Answer: D

NEW QUESTION 7
Which statement about the factory default configuration of the Avaya Session Border Controller for Enterprise (ASBCE) in ACP 4200 is true?

• A. The A1 LAN interface of the SBC is connected to the Application 3 VLAN of the ACP 4200.
• B. The A1 LAN interface of the SBC is connected to the Application 1 VLAN of the ACP 4200.
• C. The B1 LAN interface of the SBC is connected to the Application 2 VLAN of the ACP 4200.
• D. The M1 LAN interface of the SBC is connected to the Application 3 VLAN of the ACP 4200.

Answer: A

NEW QUESTION 8
Which two statements about the HP Nimble storage systems used in ACP 4200 are true? (Choose two.)

• A. ACP 4200 may use the HP Nimble 33 Base unit with up to 2 Expansion units.
• B. ACP 4200 may use the HP Nimble 16 Base unit with up to 5 Expansion units.
• C. ACP 4200 may use the HP Nimble 16 Base unit with up to 2 Expansion units.
• D. ACP 4200 may use the HP Nimble 33 Base unit with up to 5 Expansion units.

Answer: AB

NEW QUESTION 9
Which Extreme Networks switch model is used in a new ACP 4200 release 4.0?

• A. VSP 4850
• B. VSP 7254
• C. VSP 8400
• D. VSP 7024

Answer: B

NEW QUESTION 10
When an administrator logs into Avaya Orchestrator and on the Home Dashboard, the administrator sees dashlets for Storage, Network, Power and Rack View.
What does this indicate?

• A. The Home Dashboard is behaving normally.
• B. The Servers have Warning or Error messages.
• C. The Storage, Network, Power and Rack systems have Warning or Error messages.
• D. The Servers have not been added to Avaya Orchestrator's ACP 4200 Configuration Wizard.

Answer: A

NEW QUESTION 11
Aside from the difference in the depth of the enclosure, what other difference is there between the 48 Inch Model and 42 Inch Model of the ACP 4200 Avaya-branded Enclosure?

• A. There is no other difference between the 48 Inch Model and 42 Inch Model.
• B. The 48 Inch Model has a higher maximum wattage capacity compared to the 42 Inch Model.
• C. The 48 Inch Model has a higher maximum weight compared to the 42 Inch Model.
• D. The 48 Inch Model is only available in Grey while the 42 Inch Model is only available in Black.

Answer: B

Explanation:
Reference https://downloads.avaya.com/css/P8/documents/101054952 (15)

NEW QUESTION 12
Using VMware networking in ACP 4200, how are Virtual NICs mapped to physical NICs?

• A. Via DRS rules
• B. On a 1-to-1 basis
• C. Via Virtual Switches and Port Groups
• D. Via the VNIIC mapping tables

Answer: D

NEW QUESTION 13

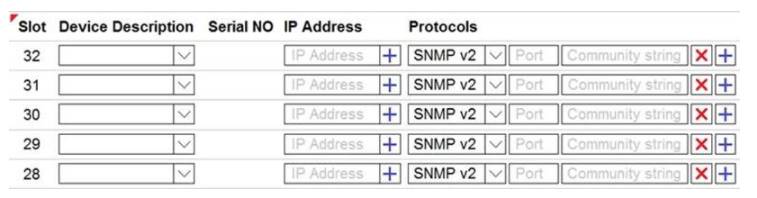

Refer to the exhibit.

An administrator is adding new equipment to the ACP 4200 in the Avaya Orchestrator Configuration Wizard. How do the Device Description and Serial Number fields get populated in the Avaya Orchestrator
Configuration Wizard?

• A. These are optional fields that do not need to be populated.
• B. These are automatically detected by clicking on the Detect Hardware button.
• C. These are manually entered by the administrator.
• D. These are imported from the ACP Configurator Tool Excel spreadsheet.

Answer: C

NEW QUESTION 14
Which statement about System Manager (SMGR) and ACP 4200 is true?

• A. SMGR is used to manage licensing, user account, and device credential management for Avaya Orchestrator.
• B. SMGR is a management tool for the VM’s within the ACP 4200.
• C. SMGR is a management tool for the Hardware Infrastructure within the ACP 4200.
• D. SMGR is used to manage the Avaya Aura® Applications within the ACP 4200.

Answer: C

NEW QUESTION 15
When used for an ACP 4200, which two features of the 48 inch Avaya branded enclosures are different from the 42 inch models? (Choose two.)

• A. More space for PDUs (up to 15000 Watts)
• B. More space for additional servers
• C. Higher operating temperature (up to 45 degrees Celsius)
• D. More space for fans and better cooling capacity (51,200 BTU)
• E. Use of vertical PDUs instead of horizontal

Answer: AC

NEW QUESTION 16
Why does enabling VMware Enhanced vMotion Compatibility (EVC) prevent vMotion migrations from falling?

• A. Because of incompatible DRS rules across the cluster
• B. Because of incompatible HA rules across the cluster
• C. Because of insufficient memory across the cluster
• D. Because of incompatible CPUs across the cluster

Answer: D

NEW QUESTION 17
Avaya Orchestrator monitors the ACP 4200 components by organizing them into which two groups? (Choose two.)

• A. Power
• B. Virtual Machines
• C. Storage
• D. Applications

Answer: AC

NEW QUESTION 18
When powering up the virtual machines, what is the first virtual machine that needs to be powered on?

• A. vCenter Server
• B. WebLM
• C. System Manager
• D. Communication Manager

Answer: A

NEW QUESTION 19
An administrator is examining the Hosts monitored by Avaya Orchestrator. Which two are examples of these Hosts? (Choose two.)

• A. Storage Devices
• B. vCenter Server Appliance
• C. Network Switches
• D. System Manager

Answer: AC
