NEW QUESTION 1
If using H.264 compression, in theory, what could a video containing no l-frames look like?

• A. The first P-frame is visible during the whole video
• B. A black image is visible during the whole video
• C. All moving objects will be visible
• D. All non-moving objects will be visible

Answer: C

NEW QUESTION 2
IP51 and IP52 means that the camera

• A. Can be placed in or outdoors.
• B. Is resistant to dust and dripping water.
• C. Is vandal resistant.
• D. Is designed for tough environments.

Answer: B

NEW QUESTION 3
Which is true regarding the use of a smoked (tinted) dome instead of a clear dome?

• A. Decreases color fidelity
• B. Decreases field of view
• C. Disables infrared capabilities
• D. Reduces light sensitivity

Answer: D

NEW QUESTION 4
Looking at the picture below, which setting would best address the blurring that's occurring with faster moving objects?

• A. Increase image brightness
• B. Adjust the exposure settings
• C. Uncheck backlight compensation
• D. Increase image contrast

Answer: B

NEW QUESTION 5

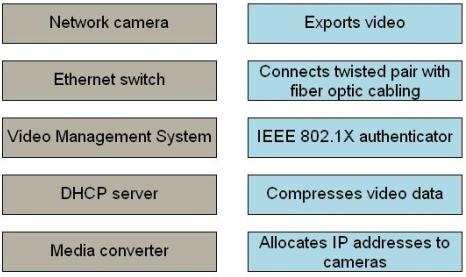

Match each function to the correct video surveillance system component. Drag each gray box from the left column to the matching blue box in the right column.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 6
The term f-stop, or f-number,

• A. Relates the focal length of the lens to the zoom factor.
• B. Measures the lens' capability to focus on objects at short distance.
• C. Is the end position of the focus motor in an autofocus system.
• D. Measures the lens' capability to collect light.

Answer: D

NEW QUESTION 7
Which of the following statements about multicast video streaming are true? (Choose three)

• A. Multicast can help to save bandwidth in a network
• B. Multicast can typically not be used to provide video over internet
• C. Multicast uses TCP as transport protocol
• D. Multicast extends the viewer capacity of a camera or an encoder from 10-20 to an unlimited number
• E. RTSP streams are always sent through multicast

Answer: ABD

NEW QUESTION 8
When zooming in on an object with varifocal or zoom lens, light sensitivity of the camera is

• A. increasing
• B. decreasing
• C. the same
• D. dependent on lens

Answer: B

NEW QUESTION 9
A customer asks for a fixed mini dome with a DC-iris lens. 2.8-10 mm varifocal lens and wide dynamic range. Which of the following cameras is the only choice to fit all of the requirements?

• A. AXIS P3301
• B. AXIS M3203
• C. AXIS Q1604
• D. AXIS M5014

Answer: A

NEW QUESTION 10
An installer wants to connect and power a P|R sensor from an Axis camera's I/O port. What would be the output DC voltage?

• A. 1, 5V
• B. 3. 3 V
• C. 5V
• D. 7 V

Answer: B

NEW QUESTION 11
Which is an advantage of the H.264 compression standard?

• A. Bandwidth and storage usage is independent of the amount of motion in the video
• B. Compared to Motion JPE
• C. H.264 video reduces the CPU load when viewing the video
• D. In most situations, compared to Motion JPE
• E. H.264 video reduces bandwidth and storage usage
• F. The intra-frame coding makes the video less sensitive to network dropouts

Answer: C

NEW QUESTION 12
A customer has strict requirements of 30 fps for recorded video. Which encoder choice would they select if they wanted three streams, per every one encoded channel, of D1 resolution video run at 30 fps in H.264?

• A. AXISM7210
• B. AXISP7210
• C. AXISP7214
• D. AXISQ7406

Answer: D

NEW QUESTION 13
Which of the following conditions has to be met to use multicast streaming?

• A. The network infrastructure has to support multicast
• B. The client has to run AXIS Camera Management or AXIS Camera Station
• C. The client has to support streaming over RTSP
• D. The video device needs to run on firmware version 5.20 or higher

Answer: A

NEW QUESTION 14
What is the appropriate usage for an Axis thermal camera?

• A. Identifying people in complete darkness
• B. Detecting motion only at nighttime
• C. Measuring exact temperatures in daytime
• D. Detecting activity in daylight and complete darkness

Answer: D

NEW QUESTION 15
If a surveillance camera is installed in an environment with fluorescent lighting, which effect may this have on the video quality?

• A. Increased color saturation
• B. Flickering effects on video
• C. Increased random noise
• D. Motion blur on moving objects

Answer: B

NEW QUESTION 16

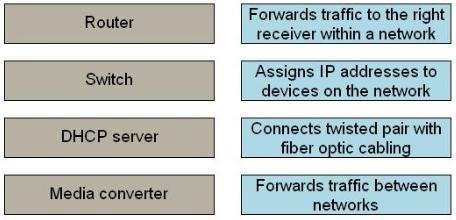

Match each device with the correct description. Drag each gray box from the left column to the matching blue box in the right column.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 17
An analog system that should be upgraded to IP using encoders must have the end of the analog signal terminated. How many Ohm () should that be?

• A. 50
• B. 70
• C. 75
• D. 80

Answer: C
