NEW QUESTION 1

A Dell EMC PowerEdge server has been updated with an LCC and iDRAC DUP to the latest firmware when performing a firmware rollback?

• A. Both the iDRAC and the LCC can be rolled back
• B. The LCC can be rolled back; the iDRAC cannot be rolled back
• C. The iDRAC can be rolled back; the LCC cannot be rolled back
• D. The iDRAC cannot be rolled back and the LCC cannot be rolled back

Answer: B

NEW QUESTION 2

Which rear disk drive option is available in a Dell EMC PowerEdge R740xd server?

• A. 4x 3.5" drives
• B. 2x3.5" drives
• C. 8x2 5" drives
• D. 6x2 5" drives

Answer: B

NEW QUESTION 3

A Dell EMC PowerEdge 14G server uses Intel OPTANE DC Persistent Memory in App Direct mode. What is the minimum size DIMM supported for this type of memory?

• A. 64 GB
• B. 128 GB
• C. 256 GB
• D. 512 GB

Answer: C

NEW QUESTION 4

What is required to use the iSM Automatic System Recovery feature?

• A. Server Administrator installed
• B. OS watchdog timer disabled
• C. Server Administrator not installed
• D. OS watchdog timer enabled

Answer: B

NEW QUESTION 5

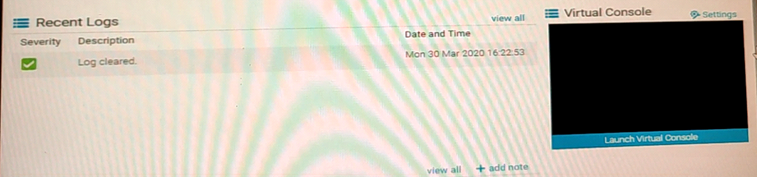

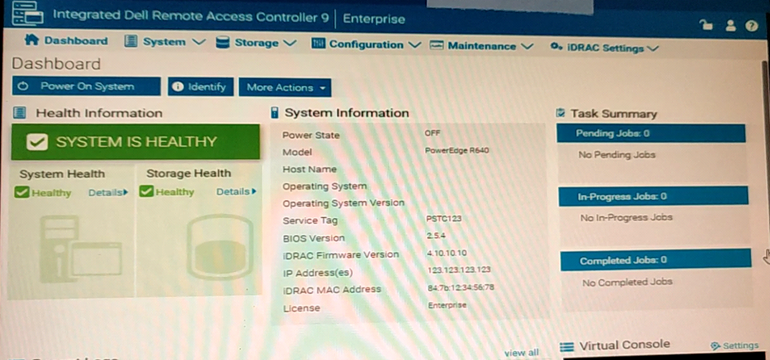

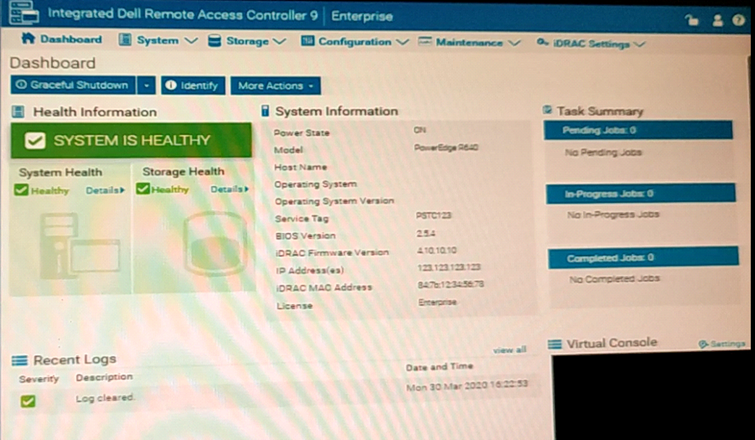

A technician wants to remotely log in to a server but finds that the IDRAC virtual Console feature Is not available. Use the simulator to explore the system. What Is the cause of this Issue?


Note: It is necessary to dose (x) the simulator window before you can select a response to this question.

• A. The Virtual Console is disabled
• B. Operating system not installed on remote server
• C. The server has been powered down
• D. There are more than the maximum number of active sessions

Answer: C

NEW QUESTION 6

How can a technician know whether IDRAC9 System Lockdown mode is enabled?

• A. Lockdown activation message in red box in the iDRAC web GUI Access to LCC is disabled when the server boots
• B. Lockdown activation message in red box in the iDRAC web GUI Access to LCC requires a password when the server boots
• C. Lockdown activation message in yellow box in the iDRAC web GUI Access to LCC is disabled when the server boots
• D. Lockdown activation message in yellow box in the iDRAC web GUI Access to LCC requires a password when the server boots

Answer: A

NEW QUESTION 7

A technician needs to update the IDRAC license on a Dell EMC PowerEdge R740 server from Express to Enterprise. The server has the following components:
* 2x CPUs
* 384 GB RAM
* 6x 1 TB drives
* 1x PSU
The server is connected to active AC, but it is powered down, and it needs to stay powered down No errors are presently displayed
How can the technician upgrade the license?

• A. The license cannot be upgraded on a single PSU system
• B. Power on the server, then connect to the iDRAC and upgrade iDRAC license before powering down the server
• C. The license cannot be upgraded because the user will not allow the server to be powered on
• D. Connect to the iDRAC GUI and upgrade the .DRAC license while the server .s powered down

Answer: A

NEW QUESTION 8

A technician is creating a virtual disk in the iDRAC (2x 4 TB NL-SAS in RAID 1) to install Windows 2016 They manually boot to the OS installation media without using the Lifecycle Controller OS Deployment wizard Only the first 2048 GB on the virtual disk can be partitioned
How should the technician obtain access to the remaining 2 TB (approximately) of storage?

• A. Use the Lifecycle Controller OS Deployment Wizard to deploy the OS on this server
• B. Delete the 4 TB virtual disk and create a virtual (boot) disk no larger than 2048 GB
• C. Upgrade to a newer version of the operating system
• D. Use F2 to go into the BIOS, change the BIOS boot mode to UEFI, and try again

Answer: C

NEW QUESTION 9

For security reasons, the Dell EMC PowerEdge server power button must be disabled. Use the System Setup Utility in the simulator to disable the power button. When you have finished using the simulator, click Next.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 10

What are the default settings used when applying firmware and a configuration to a replaced part using the Lifecycle Controller?

• A. Firmware: Upgrade to latest available version Configuration Apply always
• B. Firmware Allow version upgrade only Configuration: Disabled
• C. Firmware: Match firmware of replaced part Configuration Apply always
• D. Firmware DisabledConfiguration Apply only if firmware match

Answer: C

NEW QUESTION 11

What is used by the Lifecycle Controller to directly back up the server profile on a 14G Dell EMC PowerEdge server?

• A. Network share
• B. vFlash SD card
• C. USB Flash drive
• D. IDSDM SD card

Answer: A

NEW QUESTION 12

What is a characteristic of SupportAssist Enterprise on Dell EMC PowerEdge 14G servers?

• A. Used for customers that want monitoring of fewer than 1,000 server, storage, and networking devices
• B. Dispatches technical support from Dell for all Dell servers, storage, and networking devices
• C. Proactive, predictive, and automated support technology to enable faster resolution and reporting
• D. Includes onsite monitoring and automated collection of system state information

Answer: D

NEW QUESTION 13

Where is the data stored to allow Easy Restore to successfully complete a system board replacement?

• A. NAND Flash module on the disk drive mid plane
• B. IDSDM SD card
• C. vFlash SD card
• D. Serial Flash storage in the server's front panel

Answer: C

NEW QUESTION 14

A Dell EMC PowerEdge R740 server requires a vFlash SD card urgently. Additional vFlash Cards and components from other servers are available.
What is the recommended solution?

• A. Use a configuration option to convert an NVMe drive to a virtual vFlash
• B. Use a configuration option to convert BOSS to a virtual vFlash
• C. Reuse an existing vFlash SD card from a 14G server
• D. Reuse an existing vFlash SD card from either a 13G or 14G server

Answer: C

NEW QUESTION 15

You are creating a new RAID 5 storage pool on a Dell EMC PowerEdge server based on 30 x 1TB drives Which PERC model best supports this configuration?

• A. S140
• B. H740P
• C. H740T
• D. H330

Answer: A
