NEW QUESTION 1
What is the maximum number of LUNs in a Consistency Group?

• A. 25
• B. 50
• C. 75
• D. 100

Answer: C

Explanation:
The consistency group (CG) term is used for grouping several LUNs together in order to ensure write-order consistency over several volumes. Each LUN can contain up to 2 TB, and the total supported capacity can be up to 150 TB.
References: https://en.wikipedia.org/wiki/RecoverPoint

NEW QUESTION 2
Which FAST Cache operation proactively copies dirty pages to underlying hard disk drives?

• A. FAST Cache flushing
• B. FAST Cache promotion
• C. FAST Cache warming
• D. FAST Cache cleaning

Answer: A

NEW QUESTION 3
On which storage objects is data Reduction supported?

• A. Thick LUNs and VVols
• B. VMFS datastores and VVols
• C. Thin LUNs and thin VMFS datastores
• D. Thin LUNs and thick LUNs

Answer: D

NEW QUESTION 4
Which feature provides the ability to provision block and file storage for Microsoft Windows or Microsoft SharePoint sites?

• A. EMS Storage Integrator for Windows
• B. Array Offloaded Data Transfer
• C. vStorage APIs for Array Integration
• D. EMC Virtual Storage Integrator

Answer: A

NEW QUESTION 5
What is the maximum number of Thin Clones that can be created from a Base LUN on a Dell EMC Unity array?

• A. 8
• B. 16
• C. 32
• D. 64

Answer: B

NEW QUESTION 6
A system administrator is browsing their local management station for a Unity license file. Which file extension is used for Unity license files?

• A. .lic
• B. .rsa
• C. .lin
• D. .cer

Answer: A

Explanation:
You need to obtain the license file (.lic) from the EMC license management web site. References: https://www.emc.com/techpubs/vipr/license_vipr-1.htm

NEW QUESTION 7
How long before a license expires will UnityVSA send the first alert warning?

• A. 3 days
• B. 7 days
• C. 15 days
• D. 1 month

Answer: D

Explanation:

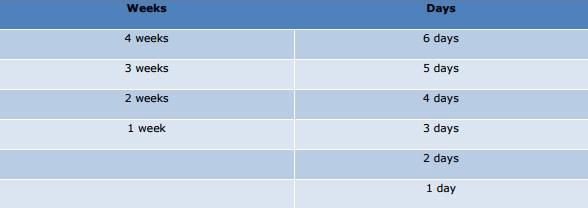

As a reminder, UnityVSA displays several alerts in Unisphere prior to the license expiration date. The table below shows when alerts are generated leading up to the expiration date.

NEW QUESTION 8
A Storage administrator needs to expand their FAST Cache. The current configuration consists of four 200 GB SAS Flash 2 drives.
What can be used to expand the FAST Cache?

• A. Two 200 GB SAS Flash 2 drives
• B. Two 400 GB SAS Flash 2 drives
• C. Two 200 GB SAS Flash 3 drives
• D. Two 400 GB SAS Flash 3 drives

Answer: A

NEW QUESTION 9
What is the maximum number of Dell EMC Unity arrays that can participate is a Synchronous Replication topology?

• A. 2
• B. 4
• C. 5
• D. 16

Answer: A

NEW QUESTION 10
How is encryption set for a Unity storage system?

• A. Clicking the “Mode” checkbox on the Manage Encryption page
• B. Selecting “Status” on the Manage Encryption page
• C. Automatically set at the factory
• D. First time the license is applied

Answer: D

Explanation:
D@RE is included by default on Unity arrays and included in the Unity license file unless otherwise requested during ordering. Therefore, all that is needed to activate D@RE is to install the D@RE enabled license file. The license installation process is not specific to D@RE, and is required to be performed before using the array. When logging into Unisphere for the first time, license installation appears as a step of the Unisphere Configuration Wizard, prompting the administrator to install the license file obtained from EMC. If this license file includes D@RE functionality, D@RE will be enabled once the license file is installed successfully
Note: Unity storage systems address sensitive data concerns through controller-based Data at Rest Encryption
(D@RE), which encrypts stored data as it is written to disk.
D@RE is a license controlled feature available by default on Unity storage systems, and, being designed to be largely invisible to administrative end users, requires almost no effort to enable or manage. Enabling the feature or backing up the encryption keys externally takes just seconds, and redundant keystore backups stored on array ensure that user data is always as available as it is secure.

NEW QUESTION 11
What storage resources can be provisioned to a host that is connected to a Dell EMC Unity XT storage system via Fibre Channel?

• A. LUNs, CIFS shares, and Consistency Group LUNs
• B. VMFS datastores, NFS datastores, and VVol(file) datastores
• C. LUNs, Consistency Group LUNs, and NFS datastores
• D. Consistency Group LUNs, VMFS datastores, and VVol (block) datastores

Answer: B

NEW QUESTION 12
A storage administrator wants to configure a Unity system to join the list of arrays remotely monitored for activity and system status using Unisphere Central. The security policy on the Unisphere server was set to “automatic”.
What additional security information must be specified in the Unisphere Settings window to enable communication with Unisphere Central?

• A. Unisphere Central IP address and login credentials
• B. Unisphere Central IP address and Central Hash
• C. Unisphere Central Hash and login credentials
• D. Unisphere Central Hash and challenge phrase

Answer: D

Explanation:
Configure the security policy to specify how storage systems are verified when connecting to Unisphere Central. Automatic verification automatically verifies storage systems when they connect to Unisphere Central using a preconfigured security certificate hash and passphrase.
References: https://www.emc.com/collateral/white-papers/h13827-unisphere-central-v4-wp.pdf (page 21)

NEW QUESTION 13
If each Storage Processor in a Unity storage array has two on-board CNA ports with a dual personality controller, which protocols are supported by these CNA ports?

• A. Fibre Channel at 2/4/8/16 Gb/s and iSCSI at 10 Gb/s.
• B. Fibre Channel at 4/8/16 Gb/s and iSCSI at 10 Gb/s.
• C. Fibre Channel at 4/8/16 Gb/s and FICON at 8 Gb/s.
• D. FCoE at 10 Gb/s and iSCSI at 10 Gb/s

Answer: B

Explanation:
References: https://www.emc.com/collateral/TechnicalDocument/docu69319.pdf

NEW QUESTION 14
You are creating a dynamic pool using 12 drives in the Unisphere GUI. Which RAID stripe width will be set when creating the dynamic pool using RAID 6?

• A. 4+2
• B. 6+2
• C. 8+2
• D. 10+2

Answer: D

NEW QUESTION 15
The preferred production interface is active. What does the Dell EMC Unity XT system do once a NAS Server starts outbound traffic to an external service?

• A. Selects interfaces based on advanced static routes
• B. Uses Packet Reflect for outbound communication
• C. Uses the active production interface
• D. Selects the shortest path available

Answer: C

NEW QUESTION 16
When configuring integrated ESRS access to a Dell EMC Unity XT array, which firewall ports need to be open?

• A. 443 and 8443
• B. 443 and 9443
• C. 8443 and 9443
• D. 22 and 8443

Answer: A

NEW QUESTION 17
A storage administrator has configured an SMB share with the Pool Automatic Deletion retention policy. With default settings applied, what will happen when the pool crosses 95%?

• A. The Dell EMC Unity system will only delete the oldest snapshot of the configured schedule.
• B. Nothin
• C. The default setting is that no snapshots will be deleted automatically.
• D. The Dell EMC Unity system will delete snapshots until 85%, pool space is reached.
• E. Nothin
• F. When the snapshot reaches 25% of the pool size, snapshots will be deleted until 20% of thepool size is reached.

Answer: C

NEW QUESTION 18
What is the significance of setting a soft quota limit?

• A. Allows the user the ability to compress the offending data.
• B. Prevents UNIX hosts from encountering a stale mount.
• C. Required to meet SEC regulatory requirements.
• D. Provides a grace period before enforcing the quota limit.

Answer: D

Explanation:
References:
https://www.dellemc.com/en-us/documentation/unity-family/unity-p-configure-smb-file-sharing/06-unity-smb-c

NEW QUESTION 19
The embedded FC ports allow connection at what speeds?

• A. 4Gb/s, 8 Gb/s, and 16 Gb/s
• B. 10 Gb/s and 16 Gb/s
• C. 8 Gb/s and 16 Gb/s only
• D. 1 Gb/s and 10 Gb/s

Answer: A

NEW QUESTION 20
What is the granularity of FAST VP when relocating data in the pool?

• A. 128 MB
• B. 256 MB
• C. 512 MB
• D. 1024 MB

Answer: B
