NEW QUESTION 1
You are troubleshooting an HPE ProLiant rack-mount server. You need to collect event data from the server, even when it is not operational.
Which tool should you use?

• A. Insight Online
• B. InfoSight
• C. OS Event Viewer
• D. Integrated Management Log

Answer: A

NEW QUESTION 2
What has HPE implemented in the HPE ProLiant Gen10 to prevent malware?

• A. jitter smoothing
• B. application isolation control
• C. persistent memory
• D. silicon root of trust

Answer: D

NEW QUESTION 3
You are troubleshooting an HPE Proliant ML350 Gen server. You determine that the active ROM is corrupt and the system has not automatically switched to the redundant ROM. You need to manually switch the ROM.
What should you do?

• A. Select the backup ROM in the BIOS.
• B. Reset the iLO controller
• C. Change the position of the system maintenance switch options.
• D. Move the system maintenance jumper to pins one and two.

Answer: C

NEW QUESTION 4
You are installing new drives into the internal cage of a HPE ProLiant DL380 server. How is the drive device number set?

• A. The Smart Array controller assigns the device number automatically based on the bay
• B. HPE OneView uses the server profile to assign the device number
• C. The operating system assigns the device number automatically based on the drive installation order
• D. You must use Smart Storage Administrator to assign the device number

Answer: A

NEW QUESTION 5
You are designing a system for a customer that has a contract with a government agency. The contract requires the highest level of security algorithms possible.
Which HPE ProLiant Gen10 feature set will address this customer’s needs?

• A. CNSA mode
• B. FIPS 140-2 mode
• C. high security mode
• D. production mode

Answer: A

NEW QUESTION 6
A customer needs to share files cost-effectively among their Microsoft Windows server over a local network. Which storage solution meets this requirement?

• A. Storage Area Network (SAN)
• B. Network File System (NFS)
• C. Direct Attached Storage (DAS)
• D. Network Attached Storage (NAS)

Answer: D

NEW QUESTION 7
You are installing a HPE MSA storage system and need to connect the power cooling module (PCM). What should you do to ensure power redundancy?

• A. Ensure that a physical service processor is properly connected to each PCM
• B. Verify that each cooling fan is cabled to a separate controller
• C. Connect each PCM within a shelf to a different power distribution unit (PDU)
• D. Connect redundant power cords from the PCM controller to independent power supplies

Answer: C

NEW QUESTION 8
You need to update the firmware on an MSL2024. Which HPE utility do you need to use?

• A. Smart Storage Administrator
• B. OneView Standard
• C. Central Management Console
• D. Library & Tape Tools

Answer: D

NEW QUESTION 9
What can you do when installing an HPE switch to provide protection from electrostatic discharge?

• A. Install the switch in a rack with rubber insulators.
• B. Use a power surge protector.
• C. Load balance the power supplies.
• D. Connect the switch grounding cable correctly.

Answer: D

NEW QUESTION 10
A customer plans to back up a file server that holds 2 TB of data. The customer wants to upgrade their network infrastructure to support backup and to implement a datacenter network solution.
Which solutions would HPE recommend to meet the customer needs? (Choose two.)

• A. FlexFabric 5900
• B. StoreEasy 1450
• C. StoreVirtual VSA
• D. Aruba 2900
• E. StoreOnce 3100

Answer: AE

NEW QUESTION 11

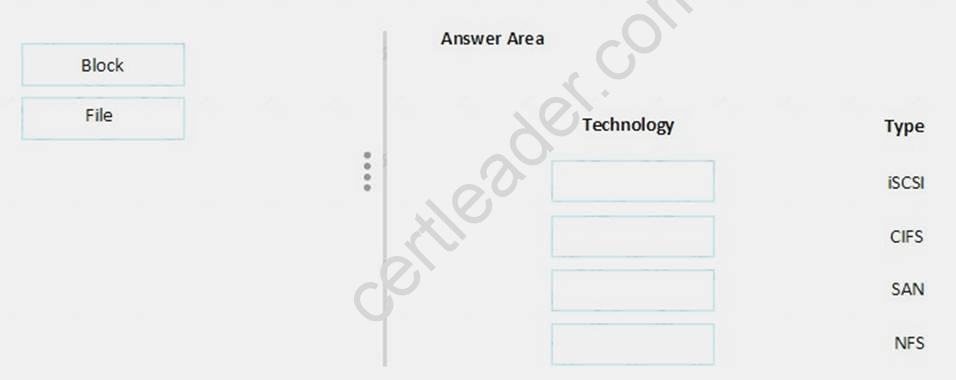

Match the storage technology to the storage type.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
BLOCK = iSCSi
File = CIFS BLOCK = SAN
File = NFS

NEW QUESTION 12
You are troubleshooting a customer’s HPE ProLiant rack-mount server. The customer has configured the server in Legacy Boot BIOS Mode and is trying to boot from a USB 3.0 drive. The server will not boot from the drive.
What should you do?

• A. Set the USB 3.0 mode to Enabled.
• B. Set the USB 3.0 mode to Auto.
• C. Use the internal USB 3.0 connector.
• D. Use the front-facing USB 3.0 connector.

Answer: A

NEW QUESTION 13
A customer needs to centralize their backup environment for their branch office They plan to use HPE StoreOnce with catalyst
What should they implement within their backups software to minimize the network load on the remote site?

• A. source-side deduplication
• B. target-side deduplication
• C. thin provisioning
• D. native compression

Answer: A

NEW QUESTION 14
A customer needs to know if the storage solution you proposed contains components that are compatible with existing products currently in the data center.
Which HPE resource should you use to provide this information?

• A. Storage Size
• B. One Config Advance (OCA)
• C. One Config Simple (OCS)
• D. Single Point of Connectivity Knowledge (SPOCK)

Answer: D

NEW QUESTION 15
A customer needs to purchase a redundant pair of SAN switches for their virtualization environment. The customer requires a total of eight 16 Gbps FC storage ports and eighteen 8 Gbps FC host attachments.
Which switch meets the customer’s needs at the lowest cost?

• A. HPE StoreFabric SN6010C 48-port Switch
• B. HPE StoreFabric SN6010C 12-port Switch with an On Demand Port Activation License
• C. HPE 8/24 SAN Switch 16-port Switch with an 8-port Upgrade License
• D. HPE 8/24 SAN Switch 16-port Switch

Answer: B

NEW QUESTION 16
A customer is building out their rack of servers and storage systems. They need a high-performance network with a simple centralized management capability and deep buffer support for iSCSI. They expect high growth in their virtualization environment.
Which solution will best meet the customer’s needs?

• A. Aruba
• B. Altoline
• C. Arista
• D. FlexFabric

Answer: D

NEW QUESTION 17
You are troubleshooting a POST error on a HPE ProLiant rack-mount server. HPE support has directed you to test a minimum hardware configuration.
Which components should you remove? (Choose two.)

• A. CMOS battery
• B. all cooling fans
• C. all expansion boards
• D. all external storage media
• E. redundant processors

Answer: DE

NEW QUESTION 18
ou are designing a system for a customer that runs an OLTP application. The customer has SAN based storage. They need to accelerate application performance.
Which HPE ProLiant Gen10 feature set will address this customer’s needs?

• A. intelligent system tuning
• B. intelligent provisioning
• C. CNSA suite
• D. scalable persistent memory

Answer: A

NEW QUESTION 19
Which component of HPE iLO provides continuous monitoring of more than 1600 parameters?

• A. insight Diagnostics
• B. Active Health System
• C. Insight Remote Support
• D. Silicon root of trust

Answer: B

NEW QUESTION 20
You are working on a server, and you notice that the blue UID light on the server is flashing slowly. What does this indicate?

• A. The host server is in standby mode
• B. The system is being managed remotely
• C. The host has rebooted and is performing POST actions
• D. The system is experiencing power issues

Answer: B

NEW QUESTION 21
You are onsite at a customer location to install a new network switch. The customer wants users to be able to manage the switch through the IP network.
How should you connect the switch to the network?

• A. Configure multiple user IDs or roles for the console connection
• B. Configure the management IP address on the switch and enable Telnet or SSH access
• C. Use a dedicated console cable to create a dedicated management network for every user
• D. Connect the switch to the network by using the serial cable that ships with the switch

Answer: B

NEW QUESTION 22
A customer needs to update firmware and perform diagnostic tests on various components of a HPE ProLiant server.
Which utility should they use?

• A. Insight Online
• B. Intelligent Provisioning
• C. Intelligent Management Center
• D. UEFI

Answer: B

NEW QUESTION 23
Which two HPE applications are installed on Windows operating systems with intelligent Provisioning? (Choose two.)

• A. Lights-Out Online Configuration Utility
• B. OneView
• C. UEFI Control Suite
• D. Intelligent Management Center
• E. Smart Storage Administrator

Answer: AE

NEW QUESTION 24
Which HPE tool can securely erase current content of a server and help with consistent and easy operating system installation?

• A. HPE System Insight Manager
• B. HPE Intelligent Management Center (IMC)
• C. HPE OneView
• D. HPE Intelligent Provisioning

Answer: D
