NEW QUESTION 1

You are installing a rack at customer site.
How can you ensure redundant power to the rack?

• A. Install two power distribution units (PDUs) with each one connected to a power socket supplied by an independent electrical power source.
• B. Ensure 3-phase power is available in the data center.
• C. Connect an uninterruptible power supply (UPS) to redundant circuit breakers at the facility power source.
• D. Use two different power cords to connect the server to the power grid at the customer site.

Answer: C

NEW QUESTION 2

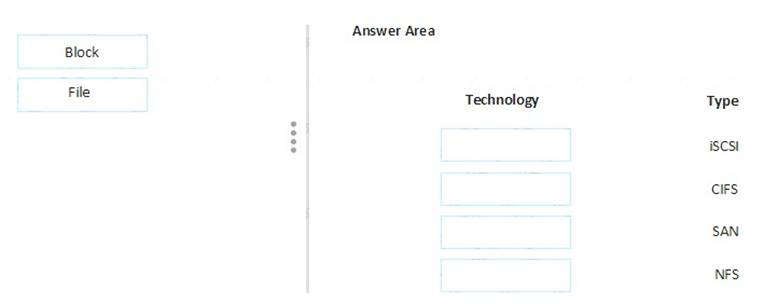

Match the storage technology to the storage type.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
BLOCK = iSCSi
File = CIFS BLOCK = SAN
File = NFS

NEW QUESTION 3

A customer needs a virtual desktop infrastructure environment to quickly deploy new desktop images to more than 70 onsite contractors. They plan to use HPE ProLiant DL360 Gen10 servers running VMware ESXi connected to a shared storage device. The customer requires deduplication because they are concerned about the required storage capacity for the full clone images.
Which storage device would best address their concerns?

• A. HPE MSA 1040
• B. HPE MSA 2052
• C. HPE Nimble AF20
• D. HPE Nimble HF20C

Answer: D

NEW QUESTION 4

When is it appropriate for a customer to implement HPE OneView Standard?

• A. To manage multiple servers
• B. To monitor their services
• C. To enable the Advanced iLO license
• D. To update firmware

Answer: B

NEW QUESTION 5

A retail company recently implemented a Video surveillance solution. They now need an MSA storage solution with 100TB capacity. They want to be able to add more disk capacity if needed.
Which HPE tool can help you choose a storage solution, determine the total usable capacity, and create a BOM?

• A. HPE SPOCK
• B. HPE NinjaSTARS
• C. HPE Storage Sizing Tool
• D. HPE One Config Advanced

Answer: A

NEW QUESTION 6

A customer has implemented an HPE ProLiant server with internal storage and needs to monitor the array health status.
Which management application can the customer use to discover errors quickly and minimize the possible downtime?

• A. Insight Online
• B. Smart Storage Administrator
• C. Intelligent Management Center
• D. InfoSight

Answer: B

NEW QUESTION 7

While troubleshooting a HPE ProLiant Gen10 rack-mount server, you determine that the current and backup system ROMs are corrupt.
What should be the next step to fix the server?

• A. Restore the system firmware from a USB drive
• B. Restore the system firmware from a UEFI shell prompt
• C. Replace the CMOS battery
• D. Restore the system firmware from the iLO repository
• E. Replace the system board

Answer: E

NEW QUESTION 8

When should you use the HPE Switch Selector?

• A. when you need to list the price information of the switches
• B. when you need to select a switch VLAN configuration
• C. when you need to compare features between multiple switches
• D. when you need to perform a competitive analysis between vendors

Answer: C

NEW QUESTION 9

A customer needs to reconfigure their data center network because their network often becomes congested, and the customer cannot monitor the network.
How should the customer configure their network?

• A. Isolate the management network from production traffic
• B. Isolate the SAN on a public network and use a virtual private network (VPN) for secure data
• C. Configure IRF on the switches
• D. Configure in-band management to manage the switches through gigabit Ethernet ports

Answer: A

NEW QUESTION 10

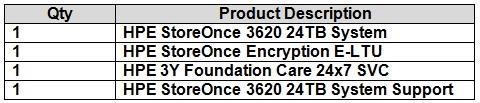

Refer to the exhibit.

A customer has been using VEEAM and the HPE StoreOnce 3620 shown in the exhibit to backup their environment. The customer’s legal team has asked to double their retention times for all backup sets, and they are starting to run out of space on the StoreOnce.
Which options could you recommend that the customer add to their existing configuration to accommodate the new requirement? (Select two. Each option represents a separate solution.)

• A. HPE StoreOnce Cloud Bank Storage
• B. HPE StoreOnce 3620 24TB Capacity Upgrade Kit
• C. HPE StoreOnce Gen4 16Gb Fibre Channel Network Card
• D. HPE StoreOnce Gen4 10/25Gb SFP Network card
• E. HPE D3710 Storag

Answer: BD

NEW QUESTION 11

You are designing a system for a customer that has a contract with a government agency. The contract requires the highest level of security algorithms possible.
Which HPE ProLiant Gen10 feature set will address this customer’s needs?

• A. CNSA mode
• B. FIPS 140-2 mode
• C. high security mode
• D. production mode

Answer: A

NEW QUESTION 12

A Network administrator connects two switches together with multiple links of the same speed, duplex, and media type. The administrator expected the links to be aggregated, but they are not. The administrator confirmed that the ports are part of the appropriate link aggregation groups and that the permitted VLANs match.
Switch A has the lower LACP System Priority.
Which LACP operation states describe the failure above?

• A. Switch A: Active; Switch B: Active
• B. Switch A: Active; Switch B: Passive
• C. Switch A: Passive; Switch B: Passive
• D. Switch A: Passive; Switch B: Active

Answer: C

NEW QUESTION 13

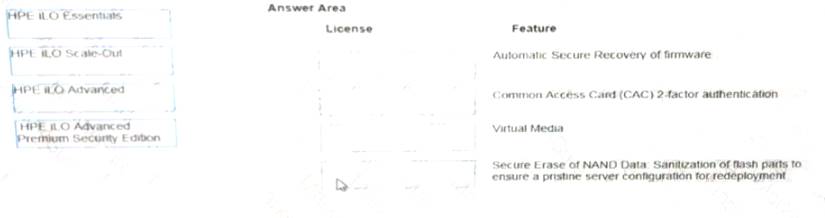

Match the feature to the lowest iLO5 license in which it is available

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Last - last 3-2
1-1
3-3

NEW QUESTION 14

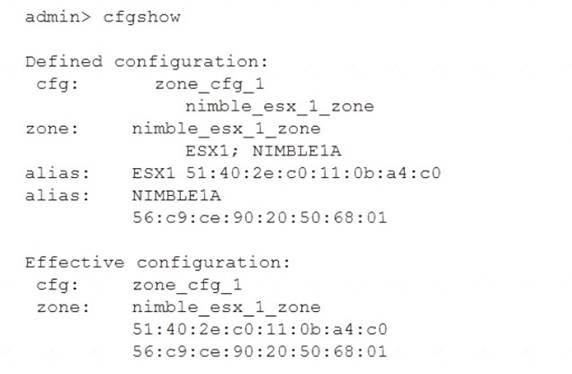

Refer to the exhibit.

When performing a code upgrade on an HPE Nimble array, you noticed a connection failure on ESX1. Refer to the exhibit showing the complete zoning configuration of one of the HPE SN3000B switches.
What should you do to ensure storage access is not interrupted when doing the next update?

• A. Create and ISL between the two HPE SN3000B switches.
• B. Create a new zone for ESX1 and the second storage controller.
• C. Change the timeout values on the SN3000B switch.
• D. Configure the same zone on a second HPE SN3000B.

Answer: C

NEW QUESTION 15

You are troubleshooting HPE ProLiant servers for a customer. The customer has granted you read-only access to HPE OneView. You need to download the audit log from OneView.
Which permission level should the customer give you?

• A. Network administrator
• B. Infrastructure administrator
• C. Backup administrator
• D. Server administrator

Answer: D

NEW QUESTION 16

ou are designing a system for a customer that runs an OLTP application. The customer has SAN based storage. They need to accelerate application performance.
Which HPE ProLiant Gen10 feature set will address this customer’s needs?

• A. intelligent system tuning
• B. intelligent provisioning
• C. CNSA suite
• D. scalable persistent memory

Answer: A

NEW QUESTION 17

You need to install 10 HPE ProLiant servers in an environment without DHCP. Which tool can you use to set up remote management?

• A. Intelligent Provisioning
• B. UEFI System Utilities
• C. Intelligent Management Center
• D. iLO 5 Configuration Utility

Answer: C

NEW QUESTION 18

Exhibit:

Which HPE ProLiant Server meets the customer's requirements?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: B

NEW QUESTION 19

A customer plans to back up a file server that holds 2 TB of data. The customer wants to upgrade their network infrastructure to support backup and to implement a datacenter network solution.
Which solutions would HPE recommend to meet the customer needs? (Choose two.)

• A. FlexFabric 5900
• B. StoreEasy 1450
• C. StoreVirtual VSA
• D. Aruba 2900
• E. StoreOnce 3100

Answer: AE

NEW QUESTION 20

In which layer of the OSI model would you find an IP address?

• A. Application
• B. Network
• C. Physical
• D. Data link

Answer: B

NEW QUESTION 21

A customer has a VMware environment with HPE ProLiant servers and Nimble storage. They have been using a Windows VM to provide file services for their employees.
The customer is experiencing performance issues with the solution due to memory constraints on the virtual environment.
What could be added to the existing environment that will provide dedicated file services with better performance that would still utilize the existing storage and backup solutions?

• A. HPE StoreEver 30750
• B. HPE Storage Performance File Controller
• C. HPE StoreEasy 1460 Storage
• D. HPE StoreEasy 1650 Expanded Storage

Answer: C

NEW QUESTION 22

A customer is planning to deploy a new Top of Rack solution. They plan to use a stacking technology that meets the following requirements:
Support for Multi Chassis Link Aggregation in an active-active mode. The control plane must not be a single point of failure.
Rapid Fail-over. Unified Management.
They require a maximum of two switches per stack.
Which stacking technology meets the customer’s requirements?

• A. HPE Intelligent Resilient Framework (IRF)
• B. HPE Distributed Trunking
• C. Aruba Virtual Switching Extension (VSX)
• D. Aruba Virtual Switching Framework (VSF)

Answer: C
