NEW QUESTION 1

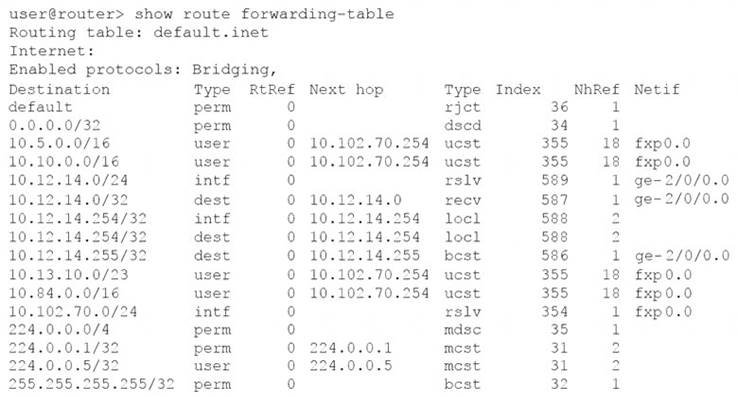

Click the Exhibit button.

Referring to the exhibit, what happens to a packet that has a destination address of 172.17.0.1?

• A. The packet is forwarded to the next hop defined in the default route.
• B. The packet is silently discarded.
• C. The packet is rejected and an ICMP network unreachable message is sent to the source address.
• D. The packet is forwarded to the next hop of the management network.

Answer: C

NEW QUESTION 2
Which parameter of the monitor traffic command should be used with caution when considering storage space on a Junos device?

• A. detail
• B. write-file
• C. layer2-headers
• D. extensive

Answer: B

NEW QUESTION 3
A Junos device is configured with multiple routing protocols to the same destination prefix. By Default, which route will be active in the forwarding table?

• A. A static route
• B. An OSPF route
• C. An IS-IS route
• D. A BGP route

Answer: A

NEW QUESTION 4
What are two examples of transit traffic? (Choose two.)

• A. SFTP traffic that enter one interface and is destine for another interface on the local router.
• B. SCP traffic that enters one interface and exit another interface on the local router.
• C. SFTP traffic that enters and exits the same interface on the local router.
• D. SCP traffic that is destined for the router's loopback interface.

Answer: BC

NEW QUESTION 5
You are connected to your Junos device using an SSH connection to the fxp0 interface. No other interface are currently configured beyond their default setting. You commit a configuration that makes the fxp0 interface unreachable from your management network. In this scenario, how would you re-establish communication with the device?

• A. Unplug the network cable and plug it back in.
• B. Power off and power on the device.
• C. Establish an SSH connection to the loopback interface.
• D. Connect to the console of the device.

Answer: D

NEW QUESTION 6
You are considering to upgrade from 19.1R1 and want to ensure that only bug fixes are included. Which two software versions should you use in the current situation? Choose Two

• A. 19.3R2
• B. 19.1R3
• C. 19.1R1-S2
• D. 19.3R1-S1

Answer: AB

NEW QUESTION 7
Which two platforms are supported in physical and virtual form factors? (Choose two.)

• A. NFX Series
• B. SRX Series
• C. MX Series
• D. ACX Series

Answer: BC

NEW QUESTION 8
Which two types of traffic are processed by the Routing Engine (RE)?

• A. IP packet with the IP Options field
• B. time-to-live (TTL) expired messages
• C. ICMP destination unreachable messages
• D. OSPF update messages
• E. ge-2/0/2.0
• F. et-5/0/0
• G. ae1.1

Answer: AB

NEW QUESTION 9
How would you change the display so the display so that 40 lines will be displayed in the terminal program when you are logged into a Junos device?

• A. Issue the set cli screen-length 40 command from configuration mode.
• B. Set the display options in your terminal program.
• C. Issue the set cli screen-length 40 command from operational mode.
• D. Set the windows size of your terminal program.

Answer: C

NEW QUESTION 10
Which account is used to access a Junos device in a factory-default configuration?

• A. root
• B. admin
• C. lab
• D. juniper

Answer: A

NEW QUESTION 11
Given the following configuration,
set system authentication-order [ tacplus ]
Which two statements are correct? (Choose two.)

• A. If the TACACS+ server is available and rejects the username/password provided, the user is not allowed to access the device.
• B. If the TACACS+ server is available and rejects the username/password provided, the local password database is checked.
• C. If the TACACS+ server is not available, the user is not allowed to access the device.
• D. If the TACACS+ server is not available, the local user database is checked.

Answer: CD

NEW QUESTION 12
Which two statements describe the connection between control plane and the forwarding plane? Choose Two

• A. No rate limiter is configured by default
• B. A rate limiter is configured by default
• C. Exception traffic is preferred over the control traffic during congestion
• D. Control traffic is preferred over the exception traffic during congestion

Answer: AD

NEW QUESTION 13
What are three functions of the RE? (Choose three.)

• A. to maintain the forwarding tables
• B. to enforce stateless firewall filters
• C. to manage the PFE
• D. to monitor the chassis
• E. to implement policing

Answer: ABD

NEW QUESTION 14
What are two services performed by the Packet Forwarding Engine? (Choose two.)

• A. to process transit traffic
• B. to implement stateless firewall filtering
• C. to handle processes that control the device’s Interfaces
• D. to maintain the routing tables

Answer: CD

NEW QUESTION 15
What is the initial prompt displayed when logging in as the root user?

• A. root@router>
• B. root@router%
• C. root@router#
• D. root@router*

Answer: B

NEW QUESTION 16
Which command is used to load the rescue configuration?

• A. load merge rescue
• B. rollback rescue
• C. rollback 0
• D. load replace rescue

Answer: B

NEW QUESTION 17
In which directory are trace option files stored by default?

• A. /var/tmp/
• B. /var/log/
• C. /var/home/
• D. /var/db/

Answer: B

NEW QUESTION 18
Which two statements are true about the default behavior of Junos routing policies? (Choose two.)

• A. Routing policies can export active and inactive routes.
• B. Routing policies can export only active routes.
• C. Routing policies control the flow of routing information going to and from the routing table.
• D. Routing policies control the flow of routing information going to and from the forwarding table.

Answer: BD

NEW QUESTION 19
......
