NEW QUESTION 1

Which key could you use to auto-complete a command in the Junos CLI?

• A. Delete
• B. Ctrl+Z
• C. Spacebar
• D. Right Arrow

Answer: C

NEW QUESTION 2

A user has entered the sequence of commands shown in the exhibit

At which level of the configuration hierarchy would the user be after typing the exit command?

• A. [edit]
• B. [edit interfaces ge-0/0/0]
• C. [edit interfaces ge-0/0/0 unit 01 ]
• D. [edit interfaces]

Answer: C

NEW QUESTION 3

The marketing team needs access to a server on subnet 172.0.46.0/24. The next- hop router is 10.0.4.2/30. A static route on their gateway has been configured to accomplish the task. You want to keep the static route from being redistributed into dynamic routing protocols.
Which command will satisfy this requirement?

• A. set routing-options static route 172.0.46.0/24 next-hop 10.0.4.2/30
• B. set routing-options static route 172.0.46.0/24 next-hop 10.0.4.2/30 no-resolve
• C. set routing-options static route 172.0.46.0/24 next-hop 10.0.4.2/30 no-redistribute
• D. set routing-options static route 172.0.46.0/24 next-hop 10.0.4.2/30 no readvertise

Answer: A

NEW QUESTION 4

Which two types of traffic are processed by the Routing Engine (RE)?

• A. IP packet with the IP Options field
• B. time-to-live (TTL) expired messages
• C. ICMP destination unreachable messages
• D. OSPF update messages

Answer: BC

NEW QUESTION 5

A BGP route does not match any term within a routing policy applied to BGP. Which action is taken by the router for this route?

• A. It discards the route by the implicit ‘discard all’ at the end of the policy.
• B. It advertises the route according to BGP rules.
• C. It discards the route by the default routing protocols policy.
• D. It discards the route because it is unable to match the route to a configured action.

Answer: B

NEW QUESTION 6

Which three connection protocols allow you to gather operational information from the Junos device? (Choose three.)

• A. NETCONF
• B. Telnet
• C. XML
• D. JSON
• E. SSH

Answer: ABE

NEW QUESTION 7

A Junos device is configured with multiple routing protocols to the same destination prefix. By Default, which route will be active in the forwarding table?

• A. A static route
• B. An OSPF route
• C. An IS-IS route
• D. A BGP route

Answer: A

NEW QUESTION 8

Which routing table is used for multicasting forwarding cache?

• A. Inet.3
• B. Inet.0
• C. Inet.1
• D. Inet.2

Answer: C

NEW QUESTION 9

What is the network ID address of the IPv4 subnet that includes the IP address 114.180.192.120/28?

• A. 114.180.192.118/28
• B. 114.180.192.100/28
• C. 114.180.192.112/28
• D. 114.180.192.106/28

Answer: C

NEW QUESTION 10

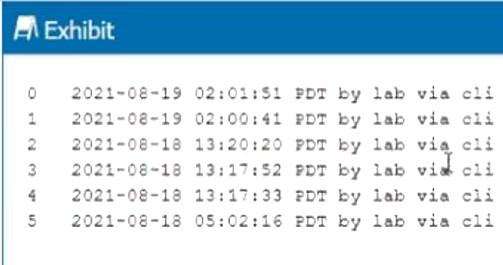

Click the Exhibit button.

Which operational mode command in Junos OS produces the output shown in the exhibit?

• A. show system users
• B. show system connections
• C. show system commit
• D. show system reboot

Answer: C

NEW QUESTION 11

Click the Exhibit button.

The next hop identified in the static route command is not directly connected to your router. Referring to the exhibit, what must be added to the command for the static route to work?

• A. retain
• B. resolve
• C. readvertise
• D. install

Answer: B

NEW QUESTION 12

Routing policies contain which two type of statements? (Choose two.)

• A. and
• B. from
• C. default
• D. then

Answer: BD

NEW QUESTION 13

Which statement about the forwarding table is correct?

• A. It contains all known routes including IPv6
• B. It is only available on the PFE
• C. It is only available on the RE
• D. It is available on both the RE and the PFE.

Answer: B

NEW QUESTION 14

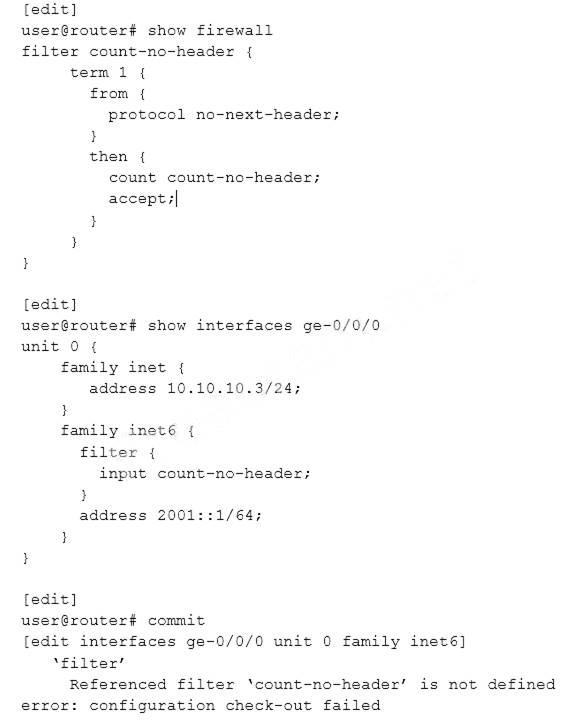

Refer to the exhibit.

You asked to create a firewall filter to count IPv6 packets that arrive with a no next header value. As shown in the exhibit, you have created and applied the count-no-header firewall filter to the ge-0/0/0 interface. The commit operation fails.
What is causing this problem?

• A. IPv6 interfaces do not support firewall filters.
• B. The filter name must be different than the counter name.
• C. The firewall term does not include inet6 in the from statement.
• D. The firewall family is not correct.

Answer: D

NEW QUESTION 15

Which two statements describe IPv4 default behavior for BGP? Choose Two

• A. All Active BGP routes are exported to configured EBGP neighbors
• B. All BGP routes are exported to configured EBGP neighbors
• C. All BGP routes are imported into the inet.0 routing table
• D. All BGP routes are imported into the inet4.0 routing table

Answer: AC

NEW QUESTION 16

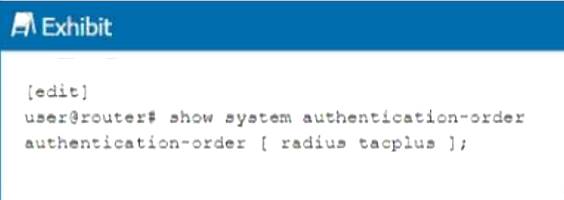

Click the Exhibit button.

Referring to the exhibit, which statement is correct?

• A. The device will attempt to authenticate using the local database if RADIUS and TACACS+ are unresponsive.
• B. The device will never attempt to authenticate using the local database.
• C. The device will attempt to authenticate using RADIUS and TACACS+ at the same time.
• D. The device will randomly select the authentication method used for each new login attempt.

Answer: B

NEW QUESTION 17

Which layer of the OSI model does a router use to make forwarding decisions?

• A. Layer 3
• B. Layer 4
• C. Layer 5
• D. Layer 2

Answer: A

NEW QUESTION 18

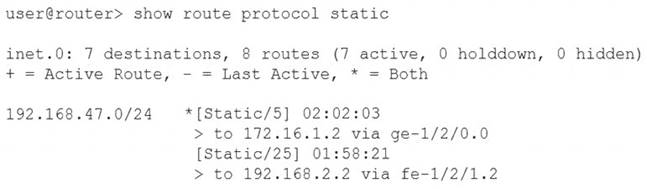

Referring to the Exhibit,

What information is provided about the route to 192.168.47.0/24? Choose Two

• A. There is a single active route to 192.168.47.0/24
• B. There are two next-hops available to 192.168.47.0/24
• C. There is a single next-hop available to 192.168.47.0/24
• D. There are two active route to 192.168.47.0/24

Answer: AB

NEW QUESTION 19
......
