NEW QUESTION 1
An API client calls one method from an existing API implementation. The API implementation is later updated. What change to the API implementation would require the API client's invocation logic to also be updated?

• A. When the data type of the response is changed for the method called by the API client
• B. When a new method is added to the resource used by the API client
• C. When a new required field is added to the method called by the API client
• D. When a child method is added to the method called by the API client

Answer: C

Explanation:

Correct Answer
When a new required field is added to the method called by the API client
*****************************************
>> Generally, the logic on API clients need to be updated when the API contract breaks.
>> When a new method or a child method is added to an API , the API client does not break as it can still continue to use its existing method. So these two options are out.
>> We are left for two more where "datatype of the response if changed" and "a new required field is added".
>> Changing the datatype of the response does break the API contract. However, the question is insisting on the "invocation" logic and not about the response handling logic. The API client can still invoke the API successfully and receive the response but the response will have a different datatype for some field.
>> Adding a new required field will break the API's invocation contract. When adding a new required field, the API contract breaks the RAML or API spec agreement that the API client/API consumer and API provider has between them. So this requires the API client invocation logic to also be updated.

NEW QUESTION 2
What condition requires using a CloudHub Dedicated Load Balancer?

• A. When cross-region load balancing is required between separate deployments of the same Mule application
• B. When custom DNS names are required for API implementations deployed to customer-hosted Mule runtimes
• C. When API invocations across multiple CloudHub workers must be load balanced
• D. When server-side load-balanced TLS mutual authentication is required between API implementationsand API clients

Answer: D

Explanation:
Correct Answer
When server-side load-balanced TLS mutual authentication is required between API implementations and API clients
*****************************************
Fact/ Memory Tip: Although there are many benefits of CloudHub Dedicated Load balancer, TWO important things that should come to ones mind for considering it are:
>> Having URL endpoints with Custom DNS names on CloudHub deployed apps
>> Configuring custom certificates for both HTTPS and Two-way (Mutual) authentication. Coming to the options provided for this question:
>> We CANNOT use DLB to perform cross-region load balancing between separate deployments of the same Mule application.
>> We can have mapping rules to have more than one DLB URL pointing to same Mule app. But vicevera (More than one Mule app having same DLB URL) is NOT POSSIBLE
>> It is true that DLB helps to setup custom DNS names for Cloudhub deployed Mule apps but NOT true for apps deployed to Customer-hosted Mule Runtimes.
>> It is true to that we can load balance API invocations across multiple CloudHub workers using DLB but it is NOT A MUST. We can achieve the same (load balancing) using SLB (Shared Load Balancer) too. We DO NOT necessarily require DLB for achieve it.
So the only right option that fits the scenario and requires us to use DLB is when TLS mutual authentication is required between API implementations and API clients.

NEW QUESTION 3
What is a best practice when building System APIs?

• A. Document the API using an easily consumable asset like a RAML definition
• B. Model all API resources and methods to closely mimic the operations of the backend system
• C. Build an Enterprise Data Model (Canonical Data Model) for each backend system and apply it to System APIs
• D. Expose to API clients all technical details of the API implementation's interaction wifch the backend system

Answer: B

Explanation:

Correct Answer
Model all API resources and methods to closely mimic the operations of the backend system.
*****************************************
>> There are NO fixed and straight best practices while opting data models for APIs. They are completly contextual and depends on number of factors. Based upon those factors, an enterprise can choose if they have to go with Enterprise Canonical Data Model or Bounded Context Model etc.
>> One should NEVER expose the technical details of API implementation to their API clients. Only the API interface/ RAML is exposed to API clients.
>> It is true that the RAML definitions of APIs should be as detailed as possible and should reflect most of the documentation. However, just that is NOT enough to call your API as best documented API. There should be even more documentation on Anypoint Exchange with API Notebooks etc. to make and create a developer friendly API and repository..
>> The best practice always when creating System APIs is to create their API interfaces by modeling their resources and methods to closely reflect the operations and functionalities of that backend system.

NEW QUESTION 4
What is the main change to the IT operating model that MuleSoft recommends to organizations to improve innovation and clock speed?

• A. Drive consumption as much as production of assets; this enables developers to discover and reuse assets from other projects and encourages standardization
• B. Expose assets using a Master Data Management (MDM) system; this standardizes projects and enables developers to quickly discover and reuse assets from other projects
• C. Implement SOA for reusable APIs to focus on production over consumption; this standardizes on XML and WSDL formats to speed up decision making
• D. Create a lean and agile organization that makes many small decisions everyday; this speeds up decision making and enables each line of business to take ownership of its projects

Answer: A

Explanation:

Correct Answer
Drive consumption as much as production of assets; this enables developers to discover and reuse assets from other projects and encourages standardization
*****************************************
>> The main motto of the new IT Operating Model that MuleSoft recommends and made popular is to change the way that they are delivered from a production model to a production + consumption model, which is done through an API strategy called API-led connectivity.
>> The assets built should also be discoverable and self-serveable for reusablity across LOBs and organization.
>> MuleSoft's IT operating model does not talk about SDLC model (Agile/ Lean etc) or MDM at all. So, options suggesting these are not valid.
References:
https://blogs.mulesoft.com/biz/connectivity/what-is-a-center-for-enablement-c4e/ https://www.mulesoft.com/resources/api/secret-to-managing-it-projects

NEW QUESTION 5
A company uses a hybrid Anypoint Platform deployment model that combines the EU control plane with customer-hosted Mule runtimes. After successfully testing a Mule API implementation in the Staging environment, the Mule API implementation is set with environment-specific properties and must be promoted to the Production environment. What is a way that MuleSoft recommends to configure the Mule API implementation and automate its promotion to the Production environment?

• A. Bundle properties files for each environment into the Mule API implementation's deployable archive, then promote the Mule API implementation to the Production environment using Anypoint CLI or the Anypoint Platform REST APIsB.
• B. Modify the Mule API implementation's properties in the API Manager Properties tab, then promote the Mule API implementation to the Production environment using API Manager
• C. Modify the Mule API implementation's properties in Anypoint Exchange, then promote the Mule API implementation to the Production environment using Runtime Manager
• D. Use an API policy to change properties in the Mule API implementation deployed to the Staging environment and another API policy to deploy the Mule API implementation to the Production environment

Answer: A

Explanation:

Correct Answer
Bundle properties files for each environment into the Mule API implementation's deployable archive, then promote the Mule API implementation to the Production environment using Anypoint CLI or the Anypoint Platform REST APIs
*****************************************
>> Anypoint Exchange is for asset discovery and documentation. It has got no provision to modify the properties of Mule API implementations at all.
>> API Manager is for managing API instances, their contracts, policies and SLAs. It has also got no provision to modify the properties of API implementations.
>> API policies are to address Non-functional requirements of APIs and has again got no provision to modify the properties of API implementations.
So, the right way and recommended way to do this as part of development practice is to bundle properties files for each environment into the Mule API implementation and just point and refer to respective file per environment.

NEW QUESTION 6
An Anypoint Platform organization has been configured with an external identity provider (IdP) for identity
management and client management. What credentials or token must be provided to Anypoint CLI to execute commands against the Anypoint Platform APIs?

• A. The credentials provided by the IdP for identity management
• B. The credentials provided by the IdP for client management
• C. An OAuth 2.0 token generated using the credentials provided by the IdP for client management
• D. An OAuth 2.0 token generated using the credentials provided by the IdP for identity management

Answer: A

Explanation:

Correct Answer
The credentials provided by the IdP for identity management
*****************************************

NEW QUESTION 7
What is most likely NOT a characteristic of an integration test for a REST API implementation?

• A. The test needs all source and/or target systems configured and accessible
• B. The test runs immediately after the Mule application has been compiled and packaged
• C. The test is triggered by an external HTTP request
• D. The test prepares a known request payload and validates the response payload

Answer: B

Explanation:

Correct Answer
The test runs immediately after the Mule application has been compiled and packaged
*****************************************
>> Integration tests are the last layer of tests we need to add to be fully covered.
>> These tests actually run against Mule running with your full configuration in place and are tested from external source as they work in PROD.
>> These tests exercise the application as a whole with actual transports enabled. So, external systems are affected when these tests run.
So, these tests do NOT run immediately after the Mule application has been compiled and packaged.
FYI... Unit Tests are the one that run immediately after the Mule application has been compiled and packaged.

NEW QUESTION 8

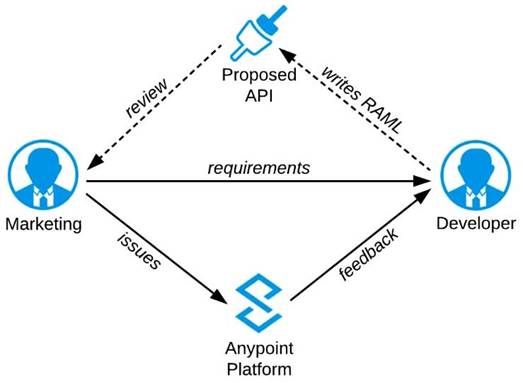

Refer to the exhibit.

A RAML definition has been proposed for a new Promotions Process API, and has been published to
Anypoint Exchange.
The Marketing Department, who will be an important consumer of the Promotions API, has important requirements and expectations that must be met.
What is the most effective way to use Anypoint Platform features to involve the Marketing Department in this early API design phase?

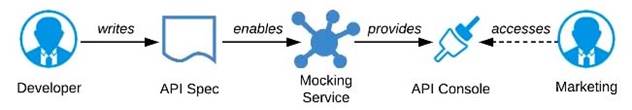

A) Ask the Marketing Department to interact with a mocking implementation of the API using the automatically generated API Console

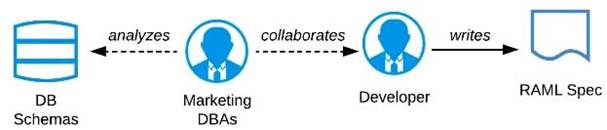

B) Organize a design workshop with the DBAs of the Marketing Department in which the database schema of the Marketing IT systems is translated into RAML

C) Use Anypoint Studio to Implement the API as a Mule application, then deploy that API implementation to CloudHub and ask the Marketing Department to interact with it

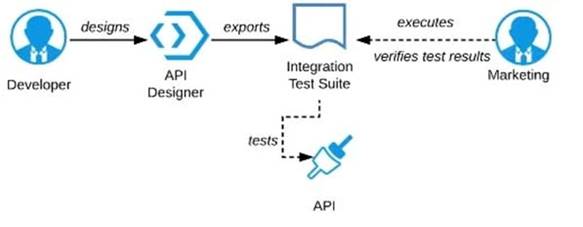

D) Export an integration test suite from API designer and have the Marketing Department execute the tests In that suite to ensure they pass

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: A

Explanation:
Correct Answer
Ask the Marketing Department to interact with a mocking implementation of the API using the automatically generated API Console.
***************************************** As per MuleSoft's IT Operating Model:
>> API consumers need NOT wait until the full API implementation is ready.
>> NO technical test-suites needs to be shared with end users to interact with APIs.
>> Anypoint Platform offers a mocking capability on all the published API specifications to Anypoint Exchange which also will be rich in documentation covering all details of API functionalities and working nature.
>> No needs of arranging days of workshops with end users for feedback.
API consumers can use Anypoint Exchange features on the platform and interact with the API using its mocking feature. The feedback can be shared quickly on the same to incorporate any changes.

NEW QUESTION 9
In an organization, the InfoSec team is investigating Anypoint Platform related data traffic.
From where does most of the data available to Anypoint Platform for monitoring and alerting originate?

• A. From the Mule runtime or the API implementation, depending on the deployment model
• B. From various components of Anypoint Platform, such as the Shared Load Balancer, VPC, and Mule runtimes
• C. From the Mule runtime or the API Manager, depending on the type of data
• D. From the Mule runtime irrespective of the deployment model

Answer: D

Explanation:

Correct Answer
From the Mule runtime irrespective of the deployment model
*****************************************
>> Monitoring and Alerting metrics are always originated from Mule Runtimes irrespective of the deployment model.
>> It may seems that some metrics (Runtime Manager) are originated from Mule Runtime and some are (API Invocations/ API Analytics) from API Manager. However, this is realistically NOT TRUE. The reason is, API manager is just a management tool for API instances but all policies upon applying on APIs eventually gets executed on Mule Runtimes only (Either Embedded or API Proxy).
>> Similarly all API Implementations also run on Mule Runtimes.
So, most of the day required for monitoring and alerts are originated fron Mule Runtimes only irrespective of whether the deployment model is MuleSoft-hosted or Customer-hosted or Hybrid.

NEW QUESTION 10
A company has started to create an application network and is now planning to implement a Center for Enablement (C4E) organizational model. What key factor would lead the company to decide upon a federated rather than a centralized C4E?

• A. When there are a large number of existing common assets shared by development teams
• B. When various teams responsible for creating APIs are new to integration and hence need extensive training
• C. When development is already organized into several independent initiatives or groups
• D. When the majority of the applications in the application network are cloud based

Answer: C

Explanation:
Correct Answer
When development is already organized into several independent initiatives or groups
*****************************************
>> It would require lot of process effort in an organization to have a single C4E team coordinating with multiple already organized development teams which are into several independent initiatives. A single C4E works well with different teams having at least a common initiative. So, in this scenario, federated C4E works well instead of centralized C4E.

NEW QUESTION 11
Which layer in the API-led connectivity focuses on unlocking key systems, legacy systems, data sources etc and exposes the functionality?

• A. Experience Layer
• B. Process Layer
• C. System Layer

Answer: C

Explanation:
Correct Answer
System Layer

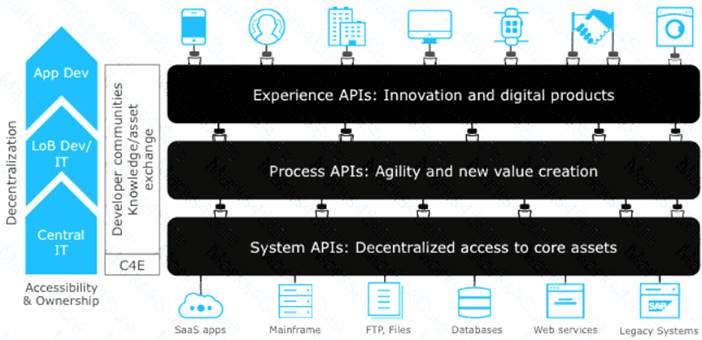

The APIs used in an API-led approach to connectivity fall into three categories:
System APIs – these usually access the core systems of record and provide a means of insulating the user from the complexity or any changes to the underlying systems. Once built, many users, can access data without any need to learn the underlying systems and can reuse these APIs in multiple projects.
Process APIs – These APIs interact with and shape data within a single system or across systems (breaking down data silos) and are created here without a dependence on the source systems from which that data originates, as well as the target channels through which that data is delivered.
Experience APIs – Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source, rather than setting up separate
point-to-point integrations for each channel. An Experience API is usually created with API-first design principles where the API is designed for the specific user experience in mind.

NEW QUESTION 12
A System API is designed to retrieve data from a backend system that has scalability challenges. What API policy can best safeguard the backend system?

• A. IPwhitelist
• B. SLA-based rate limiting
• C. Auth 2 token enforcement
• D. Client ID enforcement

Answer: B

Explanation:

Correct Answer
SLA-based rate limiting
*****************************************
>> Client Id enforement policy is a "Compliance" related NFR and does not help in maintaining the "Quality of Service (QoS)". It CANNOT and NOT meant for protecting the backend systems from scalability challenges.
>> IP Whitelisting and OAuth 2.0 token enforcement are "Security" related NFRs and again does not help in maintaining the "Quality of Service (QoS)". They CANNOT and are NOT meant for protecting the backend systems from scalability challenges.
Rate Limiting, Rate Limiting-SLA, Throttling, Spike Control are the policies that are "Quality of Service (QOS)" related NFRs and are meant to help in protecting the backend systems from getting overloaded.
https://dzone.com/articles/how-to-secure-apis

NEW QUESTION 13
An organization has created an API-led architecture that uses various API layers to integrate mobile clients with a backend system. The backend system consists of a number of specialized components and can be accessed via a REST API. The process and experience APIs share the same bounded-context model that is different from the backend data model. What additional canonical models, bounded-context models, or anti-corruption layers are best added to this architecture to help process data consumed from the backend system?

• A. Create a bounded-context model for every layer and overlap them when the boundary contexts overlap, letting API developers know about the differences between upstream and downstream data models
• B. Create a canonical model that combines the backend and API-led models to simplify and unify data models, and minimize data transformations.
• C. Create a bounded-context model for the system layer to closely match the backend data model, and add an anti-corruption layer to let the different bounded contexts cooperate across the system and process layers
• D. Create an anti-corruption layer for every API to perform transformation for every data model to match each other, and let data simply travel between APIs to avoid the complexity and overhead of building canonical models

Answer: C

Explanation:
Correct Answer
Create a bounded-context model for the system layer to closely match the backend data model, and add an anti-corruption layer to let the different bounded contexts cooperate across the system and process layers
*****************************************
>> Canonical models are not an option here as the organization has already put in efforts and created bounded-context models for Experience and Process APIs.
>> Anti-corruption layers for ALL APIs is unnecessary and invalid because it is mentioned that experience and process APIs share same bounded-context model. It is just the System layer APIs that need to choose their approach now.
>> So, having an anti-corruption layer just between the process and system layers will work well. Also to speed up the approach, system APIs can mimic the backend system data model.

NEW QUESTION 14
An organization wants MuleSoft-hosted runtime plane features (such as HTTP load balancing, zero downtime, and horizontal and vertical scaling) in its Azure environment. What runtime plane minimizes the organization's effort to achieve these features?

• A. Anypoint Runtime Fabric
• B. Anypoint Platform for Pivotal Cloud Foundry
• C. CloudHub
• D. A hybrid combination of customer-hosted and MuleSoft-hosted Mule runtimes

Answer: A

Explanation:

Correct Answer
Anypoint Runtime Fabric
*****************************************
>> When a customer is already having an Azure environment, It is not at all an ideal approach to go with hybrid model having some Mule Runtimes hosted on Azure and some on MuleSoft. This is unnecessary and useless.
>> CloudHub is a Mulesoft-hosted Runtime plane and is on AWS. We cannot customize to point CloudHub to customer's Azure environment.
>> Anypoint Platform for Pivotal Cloud Foundry is specifically for infrastructure provided by Pivotal Cloud Foundry
>> Anypoint Runtime Fabric is right answer as it is a container service that automates the deployment and orchestration of Mule applications and API gateways. Runtime Fabric runs within a customer-managed infrastructure on AWS, Azure, virtual machines (VMs), and bare-metal servers.
-Some of the capabilities of Anypoint Runtime Fabric include:
-Isolation between applications by running a separate Mule runtime per application.
-Ability to run multiple versions of Mule runtime on the same set of resources.
-Scaling applications across multiple replicas.
-Automated application fail-over.
-Application management with Anypoint Runtime Manager.

NEW QUESTION 15
What is a key performance indicator (KPI) that measures the success of a typical C4E that is immediately apparent in responses from the Anypoint Platform APIs?

• A. The number of production outage incidents reported in the last 24 hours
• B. The number of API implementations that have a publicly accessible HTTP endpoint and are being managed by Anypoint Platform
• C. The fraction of API implementations deployed manually relative to those deployed using a CI/CD tool
• D. The number of API specifications in RAML or OAS format published to Anypoint Exchange

Answer: D

Explanation:
Correct Answer
The number of API specifications in RAML or OAS format published to Anypoint Exchange
*****************************************
>> The success of C4E always depends on their contribution to the number of reusable assets that they have helped to build and publish to Anypoint Exchange.
>> It is NOT due to any factors w.r.t # of outages, Manual vs CI/CD deployments or Publicly accessible HTTP endpoints
>> Anypoint Platform APIs helps us to quickly run and get the number of published RAML/OAS assets to Anypoint Exchange. This clearly depicts how successful a C4E team is based on number of returned assets in the response.

NEW QUESTION 16
An organization is implementing a Quote of the Day API that caches today's quote.
What scenario can use the GoudHub Object Store via the Object Store connector to persist the cache's state?

• A. When there are three CloudHub deployments of the API implementation to three separate CloudHub regions that must share the cache state
• B. When there are two CloudHub deployments of the API implementation by two Anypoint Platform business groups to the same CloudHub region that must share the cache state
• C. When there is one deployment of the API implementation to CloudHub and anottV deployment to a customer-hosted Mule runtime that must share the cache state
• D. When there is one CloudHub deployment of the API implementation to three CloudHub workers that must share the cache state

Answer: D

Explanation:

Correct Answer
When there is one CloudHub deployment of the API implementation to three CloudHub workers that must share the cache state.
***************************************** Key details in the scenario:
>> Use the CloudHub Object Store via the Object Store connector Considering above details:
>> CloudHub Object Stores have one-to-one relationship with CloudHub Mule Applications.
>> We CANNOT use an application's CloudHub Object Store to be shared among multiple Mule applications running in different Regions or Business Groups or Customer-hosted Mule Runtimes by using Object Store connector.
>> If it is really necessary and very badly needed, then Anypoint Platform supports a way by allowing access to CloudHub Object Store of another application using Object Store REST API. But NOT using Object Store connector.
So, the only scenario where we can use the CloudHub Object Store via the Object Store connector to persist the cache’s state is when there is one CloudHub deployment of the API implementation to multiple CloudHub workers that must share the cache state.

NEW QUESTION 17
An organization wants to make sure only known partners can invoke the organization's APIs. To achieve this security goal, the organization wants to enforce a Client ID Enforcement policy in API Manager so that only registered partner applications can invoke the organization's APIs. In what type of API implementation does MuleSoft recommend adding an API proxy to enforce the Client ID Enforcement policy, rather than embedding the policy directly in the application's JVM?

• A. A Mule 3 application using APIkit
• B. A Mule 3 or Mule 4 application modified with custom Java code
• C. A Mule 4 application with an API specification
• D. A Non-Mule application

Answer: D

Explanation:
Correct Answer
A Non-Mule application
*****************************************
>> All type of Mule applications (Mule 3/ Mule 4/ with APIkit/ with Custom Java Code etc) running on Mule Runtimes support the Embedded Policy Enforcement on them.
>> The only option that cannot have or does not support embedded policy enforcement and must have API Proxy is for Non-Mule Applications.
So, Non-Mule application is the right answer.

NEW QUESTION 18
In which layer of API-led connectivity, does the business logic orchestration reside?

• A. System Layer
• B. Experience Layer
• C. Process Layer

Answer: C

Explanation:

Correct Answer
Process Layer
*****************************************
>> Experience layer is dedicated for enrichment of end user experience. This layer is to meet the needs of different API clients/ consumers.
>> System layer is dedicated to APIs which are modular in nature and implement/ expose various individual functionalities of backend systems
>> Process layer is the place where simple or complex business orchestration logic is written by invoking one or many System layer modular APIs
So, Process Layer is the right answer.

NEW QUESTION 19
......
