NEW QUESTION 1
What does the traceroute command that is entered on an ArubaOS switch identify?

• A. each physical device between the switch and a destination
• B. the path to each router connected to the switch
• C. each Layer 3 device between the switch and a destination
• D. debug output tracing entries to the routing table

Answer: C

NEW QUESTION 2
What is a valid setup for a Virtual Switching Framework (VSF) fabric?

• A. one 5406R zl2 switch as commander and one 5412R zl2 switch as a standby member
• B. one 5412R zl2 switch as commander and two 5406R zl2 switches as standby members
• C. one 5406R zl2 switch as commander and two 5412R zl2 switches as standby members
• D. one 5412R zl2 switch as commander and one 5412R zl2 switch as a standby member

Answer: D

NEW QUESTION 3

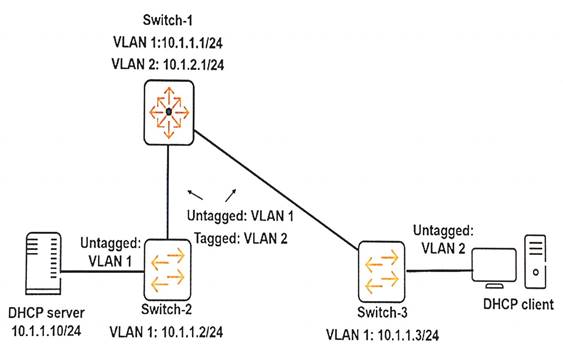

Refer to the exhibit.

All of the switches shown in the exhibit are ArubaOS switches.
Where should the network administrator configure an IP helper address of 10.1.1.10?

• A. on VLAN 2 on Switch-1
• B. on VLAN 2 on Switch-3
• C. on VLAN 1 on Switch-1
• D. on VLAN 1 on Switch-2

Answer: A

NEW QUESTION 4

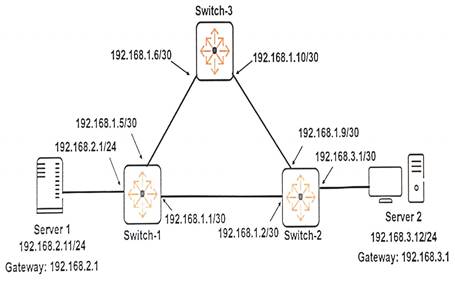

Refer to the exhibit. Exhibit 1.

Exhibit 2.

The routing configuration must support this behavior:
What must the network administrator change to meet these criteria?

• A. On Switch 3, add a route to 192.168.2.0/24 through 192.168.1.9 and a route to 192.168.3.0/24 through 192.168.1.5.
• B. On Switch-1, Switch-2, and Switch-3, change the next hop in each static route to specify an IP address that exists on that switch.
• C. On Switch-1, raise the administrative distance for the second route to 192.168.3.0/24; on Switch-2, raise the administrative distance for the second route to 192.168.2.0/24
• D. On Switch-1, add a route to 192.168.1.8/30 through 192.168.0.3; on Switch-2, add a route to 192.168.1.4/30 through 192.168.1.1; on Switch-3, add a route to 192.168.1.0/30 through 192.169.1.4.
• E. On Switch-1, add a route to 192.168.1.8/30 through 192.168.1.2; on Switch-2, add a route to 192.168.1.4/30 through 192.168.1.1; on Switch-3, add a route to 192.168.1.0/30 through 192.168.1.4.

Answer: C

NEW QUESTION 5
For which task does a network administrator need to access the enable context on an ArubaOS switch?

• A. to view interface statistics
• B. to view CPU statistics
• C. to ping an IP address
• D. to view configuration files

Answer: D

NEW QUESTION 6
Refer to the exhibit.

Which issue could cause the Blocked status on A2?

• A. A1 and A2 are connected to different switches.
• B. A1 and A2 use different trunk load balancing modes.
• C. A1 and A2 support different VLANs.
• D. A1 and A2 have spanning tree enabled on the link aggregation.

Answer: D

NEW QUESTION 7
Several servers are connected to an ArubaOS switch. The servers send traffic with 802.1Q VLAN ID 5. How should the network administrator configure the ArubaOS switch to receive this traffic?

• A. Make VLAN 5 the Default VLAN on the switch before the servers connect to their switch ports.
• B. Make switch ports connected to servers untagged members of VLAN 5.
• C. Make switch ports connected to servers tagged members of VLAN 5.
• D. Make VLAN 5 the Primary VLAN on the switch.

Answer: C

NEW QUESTION 8

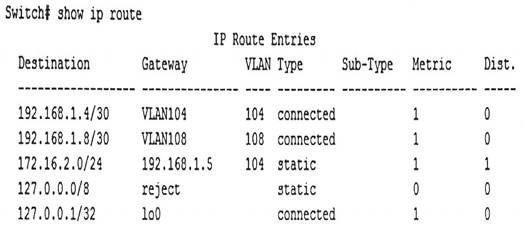

Refer to the exhibit.

The network administrator enters this command:
Switch(config)# ip route 172.16.2.0/30 192.168.1.100 metric 1 distance 1 Why does this route fail to appear in the IP routing table?

• A. Its prefix length is invalid.
• B. Its next hop is unreachable.
• C. Its administrative distance is the same as an existing static route.
• D. Its metric is the same as an existing static route.

Answer: B

NEW QUESTION 9
A network administrator wants to download a configuration from an ArubaOS switch. The administrator does not have local access to the switch and wants to copy the configuration in a secure manner that prevents eavesdroppers from reading the configuration. Which two options can the administrator use to copy the configuration?

• A. SFTP and HTTPS
• B. ZModem and SFTP
• C. HTTPS and TFTP
• D. HTTPS and ZModem

Answer: A

NEW QUESTION 10
Why would a network administrator use strict provisioning to configure the standby member in a Virtual Switching Framework (VSF) fabric?

• A. The network administrator wants to control which device can join the VSF fabric.
• B. The network administrator needs to configure the correct domain ID on the standby member before this member joins the VSF fabric.
• C. The network administrator wants to ensure the standby member is configured with the same settings as the commander.
• D. The network administrator does not know the MAC address of the standby member.

Answer: A

NEW QUESTION 11
A network administrator needs to configure a static route. What should the administrator use as the next hop address?

• A. the lowest IP address on the neighboring router in the path towards its destination
• B. the IP address on the local interface that is used to egress traffic towards its destination
• C. the IP address of the default gateway in the destination subnet
• D. the IP address on the connected interface of a neighboring router in the path towards its destination

Answer: D

NEW QUESTION 12

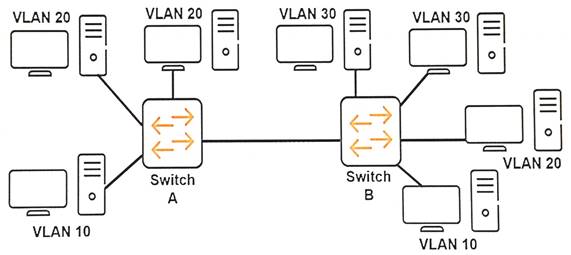

Refer to the exhibit.

The network consists of two ArubaOS switches with routing disabled.
How should the network administrator configure the link between Switch A and Switch B to ensure that all hosts can communicate to all the other hosts within their respective VLANs?

• A. tagged for VLAN 20 and tagged for VLAN 30
• B. untagged for VLAN 10 and tagged for VLAN 30
• C. tagged for VLAN 10 and tagged for VLAN 20
• D. untagged for VLAN 10, untagged for VLAN 20, and tagged for VLAN 30

Answer: C

NEW QUESTION 13
An ArubaOS switch operates at its factory default settings. A network administrator connects the switch to a VLAN with a DHCP server. The switch-to-switch connection carries untagged traffic. The administrator wants to use Telnet log in to the switch CLI.
How should the administrator contact the switch and log in?

• A. Contact the switch at its default IP address 172.16.0.254/24 and log in without entering a password.
• B. Contact the switch at its default IP address 192.168.1.1/24 and log in with the default password admin.
• C. Contact the switch at its DHCP-assigned IP address and log in without entering a password.
• D. Contact the switch at its DHCP-assigned IP address and log in with the default password aruba.

Answer: B

NEW QUESTION 14
Which security options for a WLAN can authenticate either the computer or the user?

• A. Open with MAC authentication
• B. MAC authentication with WPA2 Enterprise (802.1X) fail-thru
• C. Personal (preshared key) authentication with WEP
• D. Personal (preshared key) authentication with WPA2

Answer: B

NEW QUESTION 15
Which type of 802.11 wireless network can be hosted by an endpoint device such as a laptop?

• A. a wireless distribution system
• B. an ad hoc network
• C. a wireless mesh or bridge
• D. an infrastructure network

Answer: B

NEW QUESTION 16
What is one benefit that Aruba AirWave can provide to a customer with ArubaOS switches?

• A. It can audit switch firmware (software) and automate updates.
• B. It can enable the switches to provide mobility controller functions for connected Instant APs (IAPs).
• C. It can provide centralized authentication and authorization for users who log in to the switch CLI.
• D. It can program the switches to dynamically adjust QoS settings to prioritize Skype for Business traffic.

Answer: A

NEW QUESTION 17
Which benefit does Aruba Clarity in Aruba AirWave provide?

• A. It provides an easily searchable network topology that includes physical wired, physical wireless, and virtual network infrastructure devices.
• B. It helps managers use the AirWave Management Platform (AMP) with its context-specific help and links to additional resources.
• C. It enables managers to view all configuration templates for APs, and switches from a single dashboard.
• D. It provides at-a-glance views of issues such as DHCP request and 802.1X authentication failures to aidin troubleshooting.

Answer: A

NEW QUESTION 18
Which technology enables a network administrator to group users by logical function instead of physical location, reduce bandwidth waste by limiting broadcast traffic, and improve security by isolating users at Layer2?

• A. 802.1X
• B. SNMPv3
• C. VLANs
• D. Virtual Switching Framework (VSF)

Answer: D

NEW QUESTION 19

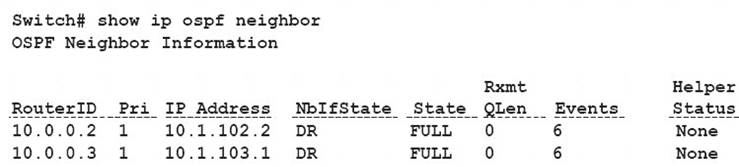

Refer to the exhibit.

Based on the output shown in this exhibit, which statement is true about the 10.0.0.2 neighbor?

• A. The neighbor rejects communications because it already has its maximum number of neighbors.
• B. The neighbor has mismatched settings and cannot exchange information with this switch.
• C. The neighbor communicates with this switch, but it cannot hold any more routes in its database.
• D. The neighbor communicates with this switch, and they have exchanged all topology information.

Answer: D

NEW QUESTION 20

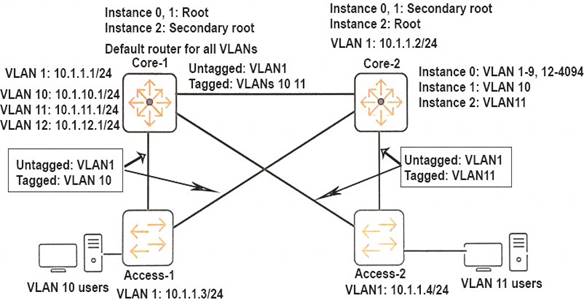

Refer to the exhibit.

The link between Core-1 and Core-2 shown in the exhibit fails, and some users lose connectivity. What should the network administrator do to prevent this issue in a situation such as this?

• A. Configure BPDU protection on all Core-2 ports.
• B. Enable IP routing on Core-2.
• C. Create routes to 10.1.10.0/24 and 10.1.11.0/24 through 10.1.1.3 on Core-2.
• D. Extend VLANs 10 and 11 on all switch-to-switch links.

Answer: D

NEW QUESTION 21
A network administrator needs to set up a static LACP link aggregation. How should the administrator configure the VLAN settings for the link aggregation?

• A. Configure the VLANs on the physical interface with the lowest port ID before link aggregation setup.
• B. Configure the VLANs on both physical interfaces after link aggregation setup.
• C. Configure the VLANs on the link aggregation interface after the link aggregation setup.
• D. Configure the VLANs on both physical interfaces before link aggregation setup.

Answer: A

NEW QUESTION 22

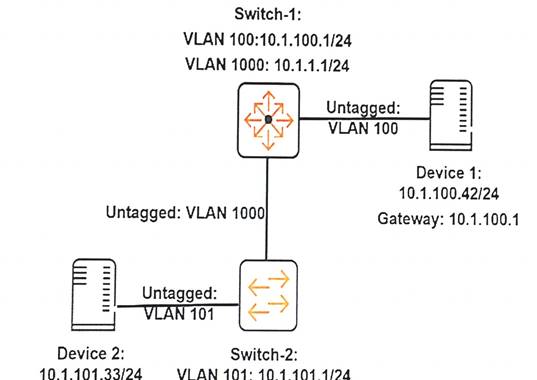

Refer to the exhibit.


A network administrator executes this command on an ArubaOS switch, Switch-2: Switch-2(config)# ip route 10.1.100.0/24 10.1.1.1
The administrator successfully pings Device 1 at 10.1.100.42 from Switch-2. However, Device 2 cannot ping Device 1.
The administrator confirms that Device 1 is correctly set up.
What should the administrator check on Switch-2 to resolve this issue?

• A. that ARP proxy is enabled
• B. that IP routing is enabled
• C. that spanning tree is disabled
• D. that ICMP is enabled

Answer: B
