NEW QUESTION 1
Click the Exhibit.

Referring to the exhibit, which two statements are true? (Choose two.)

• A. The LSP is protected with link protection.
• B. The last node in the path will not pop the MPLS label.
• C. The last node in the path will pop the MPLS label.
• D. The LSP is protected with fast reroute.

Answer: AC

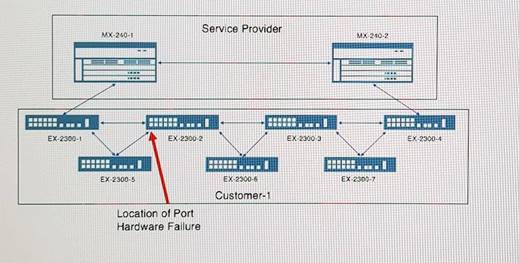

NEW QUESTION 2
Click the exhibit.

Customer 1 has experienced some hardware failures that erroneously transitioned some links into a forwarding state, as shown in the exhibit.
In this scenario, which STP feature set would solve this problem?

• A. MAC movement protection
• B. Loop protection
• C. BPDU protection
• D. Root protection

Answer: B

NEW QUESTION 3
An IS-IS TLV includes which two attributes? (Choose two.)

• A. Topology
• B. Vector
• C. Length
• D. Value

Answer: CD

NEW QUESTION 4
You are using RSVP to signal an MPLS LSP. Which statement is true in this scenario?

• A. LSPs can be configured without any traffic engineering constraints.
• B. The traffic engineering database must be used for all LSPs.
• C. A primary path must be configured to establish an LSP.
• D. A secondary path must be configured to establish an LSP.

Answer: A

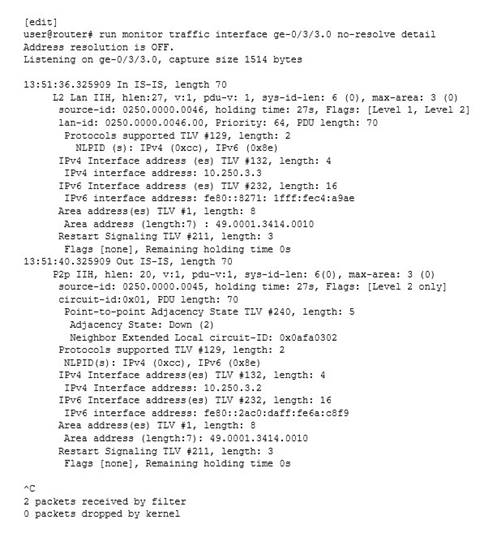

NEW QUESTION 5
Click the Exhibit.

You have just configured IS-IS, but the adjacency is not coming up. Referring to the exhibit, what is the cause?

• A. Only one side is configured using the point-to-point parameter.
• B. One router is configured for Level 2 only.
• C. The routers must be in different areas.
• D. The family iso parameters is missing on the interfaces.

Answer: A

NEW QUESTION 6
Which statement is true about GRE encapsulation?

• A. Only the IP payload is encapsulated by GRE.
• B. Only the IP header is encapsulated by GRE.
• C. The entire packet is encapsulated by GRE.
• D. The entire frame is encapsulated by GRE.

Answer: B

NEW QUESTION 7
You are configuring a default static route using the default preference value. You want to ensure that any static route that you configure in the future will be less preferred than the OSPF routes that are configured on the network.
Which command will accomplish this task?

• A. set protocols ospf preference 6
• B. set routing-options static route <IP address> preference 9
• C. set routing-options static defaults preference 20
• D. set routing-options static defaults passive

Answer: C

NEW QUESTION 8

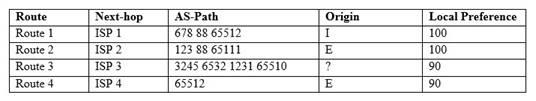

Click the Exhibit.

You are receiving the same route prefix from four EBGP neighbors.
Based on the information provided in the exhibit, which route will become active?

• A. Route2
• B. Route3
• C. Route4
• D. Route1

Answer: D

NEW QUESTION 9
What is the TTL value for EBGP?

• A. 64
• B. 48
• C. 255
• D. 1

Answer: D

NEW QUESTION 10
Click the Exhibit.

Referring to the exhibit, which IS-IS router will be selected as the DIS?

• A. Router 1
• B. Router 4
• C. Router 2
• D. Router 3

Answer: B

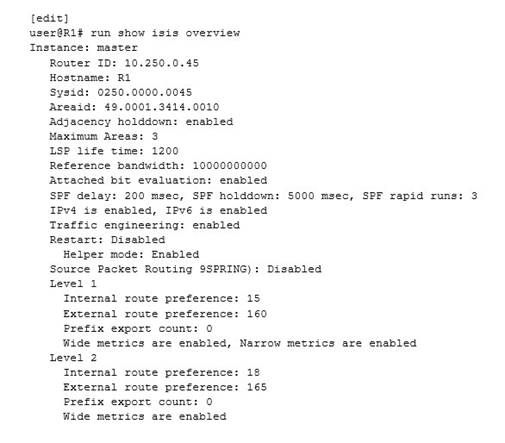

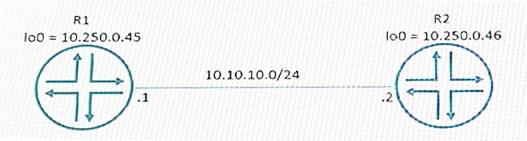

NEW QUESTION 11
Click the exhibit.


Referring to the exhibit, which configuration must be set on R2 to from a Level 1 IS-IS adjacency with R1?

• A. Set interfaces lo0 unit 0 family iso address 49.0001.3415.0010.0250.0000.0046.00
• B. Set interfaces lo0 unit 0 family iso address 49.0002.3414.0010.0250.0000.0046.00
• C. Set interfaces lo0 unit 0 family iso address 49.0002.3415.0010.0250.0000.0046.00
• D. Set interfaces lo0 unit 0 family iso address 49.0001.3414.0010.0250.0000.0046.00

Answer: A

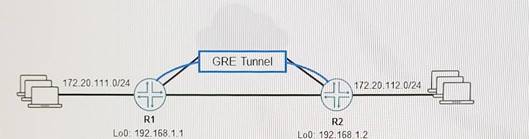

NEW QUESTION 12

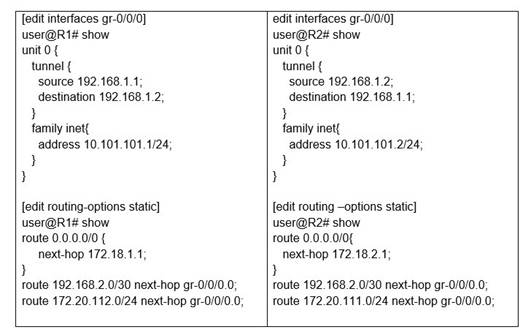

Click the Exhibit.


You have just configured a GRE tunnel, but you notice that the GRE tunnel is flapping. Referring to the exhibit, which two would you take to solve this problem? (Choose two.)

• A. Add a specific static route to the local peer’s network with the remote devices’loopback address as the next-hop gateway.
• B. Add a specific route to the remote device’s loopback address with the next-hop devicedefined as the next-hop gateway.
• C. Set the GRE interface with a larger TTL value.
• D. Remove the existing 192.168.2.0/30 static route.

Answer: BD

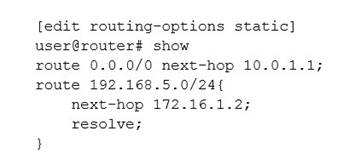

NEW QUESTION 13
Click the Exhibit.

Referring to the configuration in the exhibit, which statement is true?

• A. The next-hop 172.16.1.2 must be directly connected to the router for route 192.168.5.0/24 to be active.
• B. The next-hop 172.16.1.2 must be part of an active route in route table inet.0 for route 192.168.5.0/24 to be active.
• C. The next-hop 172.16.1.2 must respond to ping commands for the route 192.168.5.0/24 to be active.
• D. The next-hop 172.16.1.2 must be active in route table inet.3 for the route 192.168.5.0/24 to be active.

Answer: B

NEW QUESTION 14

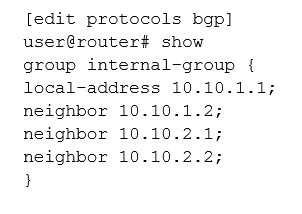

Click the Exhibit.

You have configured the IBGP group shown in the exhibit. However, committing your configuration fails.
Which parameter should you add to the IBGP group configuration to correct the problem?

• A. Type external
• B. Type internal
• C. Export <policy name>
• D. As -override

Answer: B

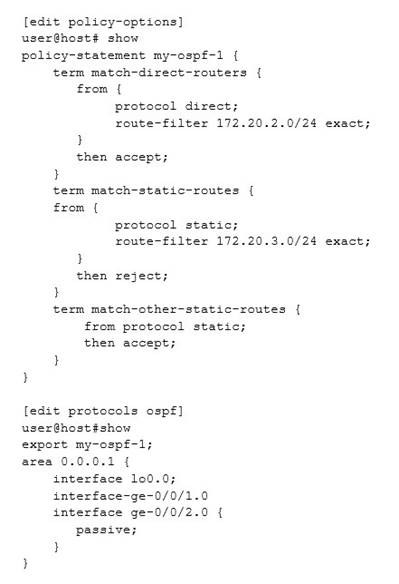

NEW QUESTION 15
Click the Exhibit.
The router with the configuration shown in the exhibit has two interfaces, both of which are operational and can pass traffic. These interfaces are connected to two different routers, both of which are configured for OSPF area 0.0.0.1. The router has received LSAs and can now send traffic into the backbone area.
Which two statements are correct? (Choose two.)

• A. The router is an ASBR.
• B. The router has only a single OSPF adjacency.
• C. The router is an ABR.
• D. The router has two OSPF adjacencies.

Answer: AB

NEW QUESTION 16

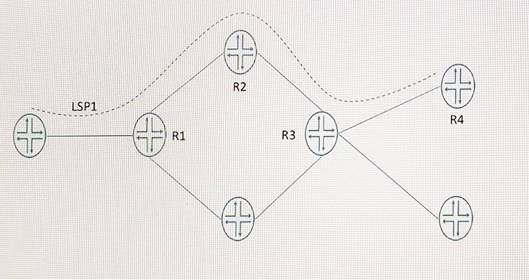

Click the Exhibit.

By default, at which router will the implicit null (Label3) action take place for LSP shown in the exhibit?

• A. R4
• B. R2
• C. R1
• D. R3

Answer: D

NEW QUESTION 17
Which statement is true about routing instances on Junos devices?

• A. Routing information cannot be shared between routing instance.
• B. Each routing protocol runs in a separate routing instance.
• C. Junos device support only one routing instance.
• D. Each routing instance is a unique grouping of routing tables, interfaces, and routing protocol parameters.

Answer: D

NEW QUESTION 18
Click the Exhibit. Route
Next-hop AS-Path Origin
Local Preference Route 1
ISP 1
123 88 65512
I 100
Route 2
ISP 2
678 651111
E 100
Route 3
ISP 3
3245 6532 1231 65510
? 200
Route 4
ISP 4
65512
E 150
You are receiving the same route prefix from four EBGP neighbors.
Based on the information provided in the exhibit, which route will be selected?

• A. Route 4
• B. Route 1
• C. Route 2
• D. Route 3

Answer: C

NEW QUESTION 19
Which statement is true regarding default MPLS label handling?

• A. A router that pops a label from a label stack always pushes a new label on the packet
• B. A router that pops a label from a label stack forwards a frame based on the label that was popped.
• C. A router that pops a label from a label stack forwards a frame based on the underlying destination IP address.
• D. A router that pops a label from a label stack applies class of service based on the IP header to ToS bits.

Answer: C

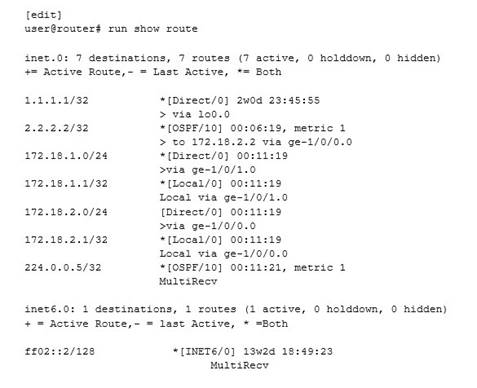

NEW QUESTION 20

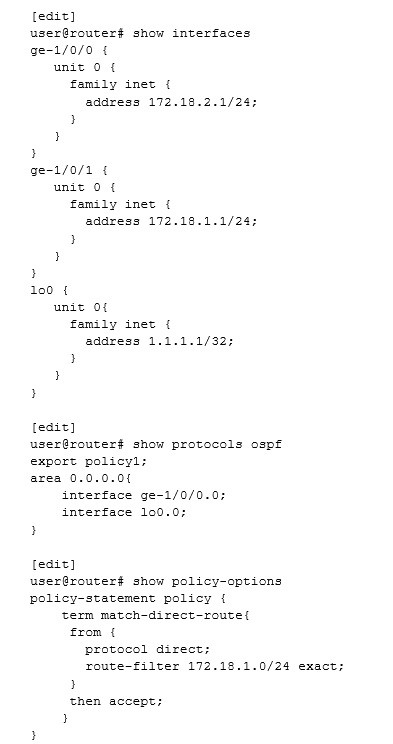

Click the Exhibit.


Referring to the exhibit, what is the result of applying this policy?

• A. The 172.18.1.0/24 prefix will be redistributed into OSPF as an internal route.
• B. The 172.18.1.1/32 prefix will be redistributed into OSPF as an external route.
• C. The 172.18.1.0/24 prefix will be redistributed into OSPF as an external route.
• D. The 172.18.1.1/32 prefix will be redistributed into OSPF as an internal route.

Answer: C

NEW QUESTION 21
Which two statements are true about VRRP? (Choose two.)

• A. VRRP requires redundant REs on each member.
• B. Interfaces within the same VRRP group do not have to be on the same subnet for each member.
• C. Interfaces within the same VRRP group must be on the same subnet for each member.
• D. VRRP does not require redundant REs on each member.

Answer: CD

NEW QUESTION 22
What must be configured for all IBGP speakers in an AS to have consistent routing information?

• A. Partial mesh of EBGP sessions between EBGP speakers
• B. Default routes to the IBGP gateways
• C. Static routes to the EBGP gateways
• D. Full mesh of IBGP sessions between IBGP speakers

Answer: D

NEW QUESTION 23
Which two statements are correct regarding TLVs in IS-IS? (Choose two.)

• A. PDUs contain different TLVs.
• B. TLVs contain different PDUs.
• C. The TLV attributes are type, length, and value.
• D. The TLV attributes are tim
• E. Length, and variable.

Answer: AC
