NEW QUESTION 1
Which situation results in a flashing blue status LED on a Cisco Nexus 7000 switch I/O module?

• A. The switch has just been powered on, and the module is resetting.
• B. The module is resetting and both ejector levers are out.
• C. The module has been inserted during the initialization process.
• D. The module could not power up because of insufficient power.
• E. The operator has activated this LED to identify this module in the chassis.

Answer: E

NEW QUESTION 2

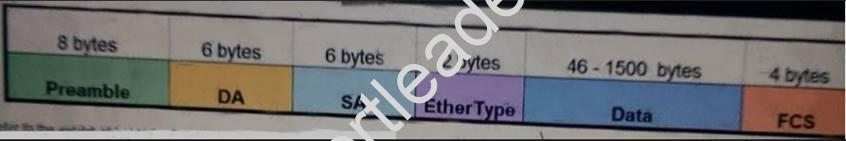

Refer to the exhibit.

Which type of network communication is depicted?

• A. TCP packet
• B. EEE 802.3 with LLC frame
• C. Ethernet frame
• D. EEE802.3 with SNAP frame

Answer: A

NEW QUESTION 3

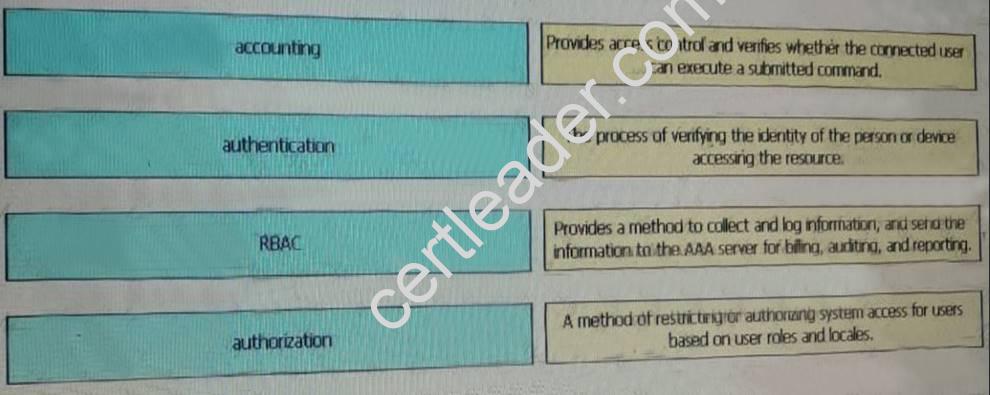

Drag and drop the feature on the left to the correct description on the right.

Answer:

Explanation: Authorization = Provide access control and verifies whether the connected user can execute a submitted
command.
Authentication = The process of verifying the identity of the person or device accessing the resource. Accounting = Provides a method to collect and log information, and send the information to the AAA server
for billing, auditing, and reporting
RBAC = A method of restricting or authorization system access for users based on user roles and locales.

NEW QUESTION 4
What protocol is used by TMS when a system cannot be contacted using SNMP?

• A. H.245
• B. https
• C. H 239
• D. TIP

Answer: B

NEW QUESTION 5
Which reason for configuring a Cisco Nexus 5000 Series switch in NPV mode is valid?

• A. to increase the domain ID limit by assigning subdomain IDs to the edge switches
• B. to share all the domain IDs with the core and edge switches
• C. to eliminate the domain ID limit by assigning a different domain ID to the core switch
• D. to alleviate the domain ID limit by sharing the domain ID with the edge switches

Answer: C

NEW QUESTION 6
How many Fire Channel zone sets can be active at one time for any given VSAN?

• A. 1
• B. 2
• C. 3
• D. 4

Answer: A

NEW QUESTION 7
Which management solution works with endpoints registered to UCM, VCS and Expressway?

• A. TMS
• B. Time
• C. CMA
• D. CMR

Answer: B

NEW QUESTION 8
When you enter the feature npv command on a storage-capable switch from Cisco, what is the result?

• A. N-port Virtualization is enabled without rebooting.
• B. the switch erases the current configuration before it enables the feature N-port Virtualization.
• C. The switch reloads and erases the current configuration before it enables the feature N-port Virtualization.
• D. N-port ID Virtualization is enabled without rebooting.

Answer: C

NEW QUESTION 9
Which Cisco UCS power policy mode enables a configuration that can tolerate the loss of an input power circuit?

• A. nonredundatnt
• B. Grid
• C. N+1 in normal mode
• D. N+1 in high-density mode

Answer: B

Explanation: Grid Redundant (N+N) – below: The purpose of the grid redundant mode is to enable a configuration that can tolerate the loss of either a power supply or a input power circuit. In grid-redundant mode the system can withstand the loss of any two power supplies. The Figure 5 shows the required wiringScheme for Grid Redundant power where N=2.

NEW QUESTION 10
Where are license keys entered in TMS?

• A. Administrative Settings
• B. Diagnostics
• C. General Settings
• D. Maintenance

Answer: C

NEW QUESTION 11
Which two descriptions of fibre Channel WWNs are true? (Choose two.)

• A. 48 bits long
• B. 64 or 128 bits long
• C. 96 bits long
• D. manually configured on each device by an administrator
• E. allocated to manufacturers by IEEE

Answer: BE

NEW QUESTION 12
Which address type is used in IPv4 but is not used in IPv6?

• A. multicast
• B. broadcast
• C. anycast
• D. unicast

Answer: B

NEW QUESTION 13
Which two layers of the OSI model relate to the transmission of bits over the wire and packet forwarding based on destination IP address? (Choose two.)

• A. 1
• B. 2
• C. 3
• D. 4
• E. 5

Answer: AC

Explanation: Bits - 1 layer Packets - 3 layer
http://en.wikipedia.org/wiki/OSI_model

NEW QUESTION 14
For which reason would you implement a VSAN?

• A. to overcome the limitations of zoning
• B. to virtualize storage
• C. to segment the physical fabric into multiple logical fabrics
• D. to overcome the limitations of LUN masking

Answer: C

NEW QUESTION 15

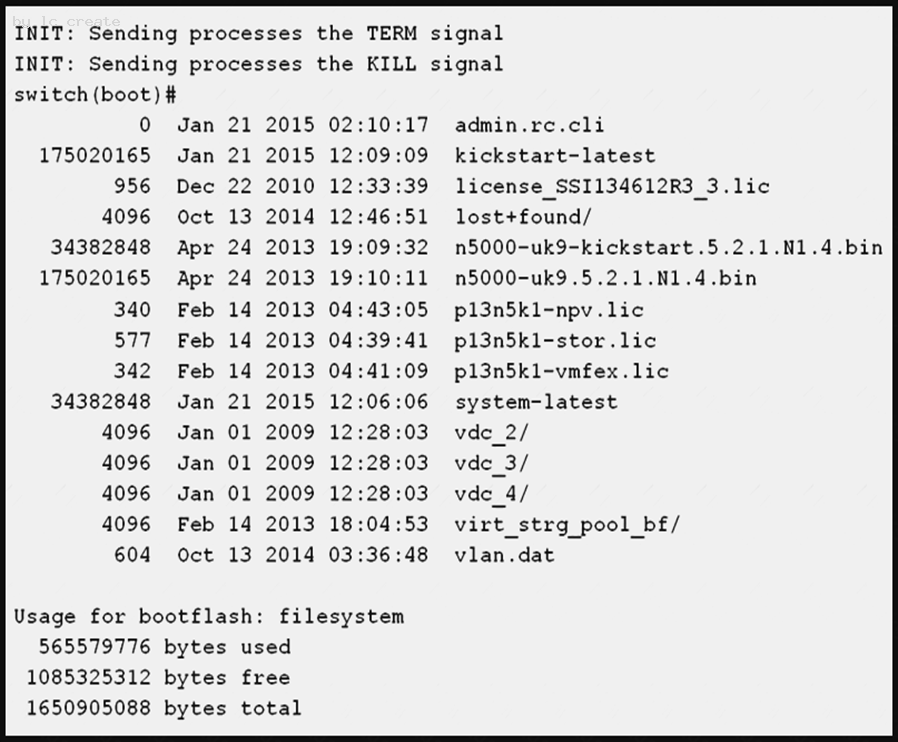

Refer to the exhibit. Which command allows the Cisco Nexus 5000 switch to continue to start up?

• A. switch(boot)# load n5000-uk9.5.2.1.N1.4.bin
• B. switch(boot)# configure terminalswitch(boot-config)# admin-password Cisco123
• C. switch(boot)# load n5000-uk9-kickstart.5.2.1.N1.4.bin
• D. switch(boot)# load system-latest

Answer: A

NEW QUESTION 16
A network design team has decided to use a standard protocol to consolidate the Ethernet and San data using the existing Nexus switches. Which I/O technology can satisfy this need?

• A. FCoE
• B. IEEE 802. 1AB
• C. SCS
• D. AToM

Answer: A

NEW QUESTION 17
Which type of media uses electromagnetic waves that are generated by lasers, is often used in campus backbones, and is capable of transmitting to a distance of 60 kilometers?

• A. shielded twisted-pair cable
• B. coaxial cable
• C. multimode fiber-optic cable
• D. single-mode fiber-optic cable

Answer: C
