NEW QUESTION 1
Which three statements accurately describe end host mode on cisco UCS Fabric interconnect? (choose Three)

• A. The Fabric interconnect must be rebooted to enable end host mode
• B. Network to server unicast traffic is forward to the server only if the traffic arrived on pinned up link mode
• C. RPF and Deja -Vue checks apply to multicast traffic
• D. The uplink port are placed in rapid PVST+ edge trunk state
• E. Mac address learning occurs only on the server ports
• F. The vtp is enabled on fabric interconnect

Answer: ABE

NEW QUESTION 2
Why would you configure FCoE to use jumbo frames?

• A. to enable the network to create a no-drop CoS
• B. to provide a credit-based flow control mechanism
• C. to prevent a Fibre Channel frame from being split into two Ethernet frames
• D. to provide prioritized processing that is based on bandwidth allocation and low latency

Answer: B

NEW QUESTION 3
Which component of a Cisco Nexus 1000V Series switch is responsible for propagating configurations to virtual switches?

• A. SUP
• B. FEX
• C. VSM
• D. VEM

Answer: C

Explanation: Product Architecture
The Cisco Nexus 1000V Series Switch has two major components (Figure 1): the virtual Ethernet module (VEM), which runs inside the hypervisor, and the virtual supervisor module (VSM), which manages the VEMs.
Virtual Supervisor Module
The Cisco Nexus 1000V Series VSM controls multiple VEMs as one logical modular distributed virtual switch. Configuration is performed through the VSM and is automatically propagated to the VEMs.
http://www.cisco.com/c/en/us/products/collateral/switches/nexus-1000v-switch-vmware-vsphere/data_sheet_c78

Topic 2, Main Exam Set 2 (NEW QUESTIONS)

NEW QUESTION 4
You are designing a fabric interconnect solution operating in END host MODE and connected to the upstream Cisco nexus 7000 series Switches for LAN and SAN traffic.
Which statement about the setup is true?

• A. All PLOGLS from the nodes that are connected to the end host fabric interconnect switch must be translated to FDISCs
• B. All PLOGLS from the nodes that are connected to the end host fabric interconnect switch must be translated to Flogls
• C. All PLOGLS from the nodes that are connected to the end host fabric interconnect switch must be translated toPLOGls
• D. FDISCs

Answer: B

NEW QUESTION 5
Which two terms relate to the capability of a physical NIC to present virtual NICs to the operating system or hypervisor? (Choose two.)

• A. VM-FEX
• B. NPIV
• C. Adapter-FEX
• D. NIV
• E. host vPC
• F. NIC teaming

Answer: CD

NEW QUESTION 6
Which option accurately describes updating vNICs templates?

• A. can be used to automate the configuration of STP
• B. requires that the same VLANs be enabled on all service profiles and Cisco UCS Fabric Interconnects
• C. requires that STP be enabled on all service profiles and Cisco UCS Fabric Interconnects
• D. can be used to add or remove VLANs from all of the associated service profiles

Answer: D

NEW QUESTION 7
You have a Cisco UCS B-Series chassis. To connect to a blade server by using a remote KVM console, you should connect to the IP address of which component?

• A. mgmt0
• B. CIMC
• C. IPMI
• D. CMP

Answer: B

NEW QUESTION 8
You must configure resiliency for Fiber Channel uplink ports on Cisco UCS Fabric Interconnects. Which feature should you configure?

• A. A port channels
• B. An appliance ports
• C. vPC
• D. a unified storage ports

Answer: A

NEW QUESTION 9
Which two options can be performed only from the Admin VDCs on the Cisco Nexus 7000 Series platform? (Choose two)

• A. Create SPAN ports on other VDCs
• B. Create, modify, and delete VDCs
• C. Configure Cisco Fabric Path in other VDCs
• D. Access the CLI of other VDCs
• E. Process-data plane traffic

Answer: BD

NEW QUESTION 10
For which two items can you change the default settings by using a Fibre Channel adapter policy? (Choose two.)

• A. WWNN pool
• B. queue
• C. MTU
• D. SAN pin group
• E. RSS hash

Answer: BE

NEW QUESTION 11
Which two characteristics are associated with the core layer of a Data Center Unified Fabric network? (Choose two.)

• A. Layer 2 default gateway redundancy
• B. QoS—policing
• C. no packet manipulation
• D. QoS—classification and queuing
• E. scalable routing protocols like OSPF

Answer: CE

NEW QUESTION 12
LISP provides which capability?

• A. host connectivity redundancy
• B. physical host mobility
• C. VM mobility
• D. VXLAN mobility

Answer: B

NEW QUESTION 13
What is used to insert services when using Layer 4 to Layer 7 service insertion in the Cisco ACI?

• A. device scripts
• B. tenant administrators
• C. policies
• D. function profiles

Answer: D

NEW QUESTION 14

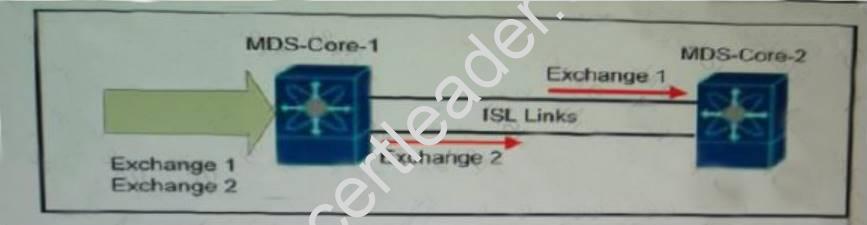

Refer to the exhibit.

Your client has an existing San network includes two ISL link between two cisco MDS Core switches a client ask you design a feature the load balance the iScSI exchanges coming from the initiator over the two ISL link the design must be capable for over coming failures, which design is required?

• A. ECMP
• B. FSPF supports the load balancing without the need of any additional features
• C. Fabric Path
• D. OXID

Answer: D

NEW QUESTION 15
Which two options are supported on Cisco UCS Fabric Interconnects that use native Fibre Channel connectivity? (Choose two)

• A. iSCSI
• B. NFS
• C. DAS
• D. SAN
• E. iFCP

Answer: CD

NEW QUESTION 16
You are designing an OSPF topology for a client using cisco NEXUS 7000 series switches. your client as if it is possible to and graceful restart on the cisco nexus switches because they will connect to the gateway routers of another vendor.
How do you respond?

• A. Nexus 7000 series switches support NSF and GR with cisco devices only
• B. Nexus 7000 series switches must connect to cisco catalyst 6800/6900 series switches to support NSF and GR with the routers
• C. Nexus 7000 series switches lack support for NSF and GR
• D. Nexus 7000 series switches support the IETF method and NSF and GR will function properly.

Answer: D

NEW QUESTION 17
In a three-tier SAN topology, which network layer should you connect the SAN initiators to?

• A. storage edge
• B. core
• C. host edge
• D. distribution

Answer: C

NEW QUESTION 18
Which technology provides additional scalability and simplification of an Ethernet network, providing more efficient forwarding and eliminating the need for the STP?

• A. OTV
• B. vPC
• C. PVST+
• D. FabricPath

Answer: D

NEW QUESTION 19
Which technology provides the ability to use all links in a LAN topology by providing an active-active path to the upstream switch?

• A. STP
• B. vPC
• C. PVST+
• D. RSTP

Answer: B
