NEW QUESTION 1
Which two options are reasons to use Layer 3 routing to segment a data center instead of Layer 2 switching? (Choose two)

• A. Simply design
• B. Ease of routing protocol configuration
• C. Limit the scope of broadcast flooding
• D. Cost
• E. Limit the scope of spanning Tree Protocol

Answer: CE

NEW QUESTION 2
Refer to exhibit.

What is the result of the configuration

• A. The interface is disable if aggressive UDLD is configure on neighbor interface
• B. UDLD attempt to reestablish the connection to the neighbor by sending packets every second for 8 seconds before disable
• C. The interface operates a point to multipoint interface
• D. UDLD attempt to reestablish the connection to the neighbor once before disabling the port

Answer: D

NEW QUESTION 3
Which two components are contained within a device package that is installed on a cisco APIC?

• A. A device SDK
• B. A device driver
• C. A device Specification
• D. Device script
• E. Device management software

Answer: CD

NEW QUESTION 4
Which item represents a method of increasing storage utilization efficiency?

• A. thick provisioning
• B. thin provisioning
• C. transparent provisioning
• D. weighted provisioning

Answer: B

NEW QUESTION 5
Which components share a physical interface in a VDC deployment?

• A. two VDCs for Ethernet traffic
• B. storage VDC for FCoE traffic and a VDC for Ethernet traffic
• C. two storage VDCs for FCoE traffic
• D. interface VLAN and a VDC

Answer: B

NEW QUESTION 6

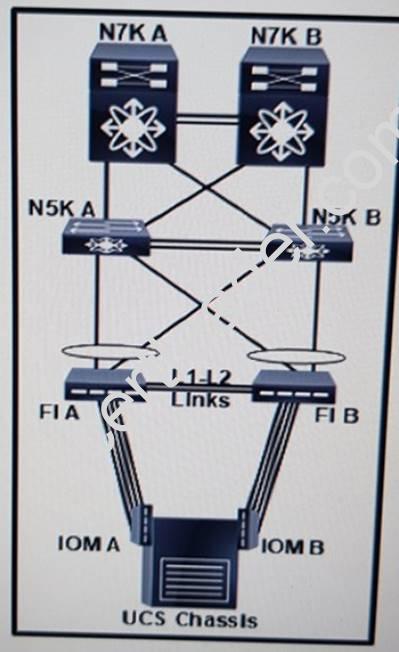

Refer to the exhibit.

Which two descriptions of the purpose of the L1-L2 links between FI A and FI B are true? (Choose two)

• A. synchronizes the configuration information
• B. provides a vPC peer link between the fabric interconnects.
• C. allows each fabric interconnect to monitor the status of the other fabric interconnect continuously.
• D. provides an alternate data path if an upstream link fails.
• E. migrates VIFs from FI A to FI B if FI fails.

Answer: AC

NEW QUESTION 7
Which component is required to run FCoE?

• A. converged network adapter
• B. iSCSI gateway
• C. host bus adapter
• D. Fibre Channel adapter

Answer: A

Explanation: Computers can connect to FCoE with converged network adapters (CNAs), which contain both Fibre Channel host bus adapter (HBA) and Ethernet Network Interface Card (NIC) functionality on the same adapter card. CNAs have one or more physical Ethernet ports. FCoE encapsulation can be done in software with a conventional Ethernet network interface card, however FCoE CNAs offload (from the CPU) the low level frame processing and SCSI protocol functions traditionally performed by Fibre Channel host bus adapters.

NEW QUESTION 8
When migrating an existing data center network to a unified fabric network, which transitions should you expect to see?

• A. IOS to Nexus networking equipment
• B. physical to virtual machines
• C. Fibre Chanel to FCoE
• D. iSCSI to NAS

Answer: C

NEW QUESTION 9
A customer is interested in endpoint security at the access layer, which option is Cisco recommended?

• A. ACLs
• B. DAI
• C. TrustSec
• D. stateful inspection
• E. UDLD

Answer: C

NEW QUESTION 10
Which two options are advantages of the core-edge SAN topology as compared to the collapsed-core SAM topology? (Choose two.)

• A. predictable performance
• B. minimized ISL usage
• C. easier to analyze and tune performance
• D. single management interface
• E. higher scalability

Answer: AE

Explanation: https://supportforums.cisco.com/document/125836/core-edge-and-collapse-core-san-topologies#Core-Edge_Top

NEW QUESTION 11
Which type of device can be deployed to add multi-homing capability to an OTV implementation?

• A. vPC
• B. IS-IS
• C. Edge
• D. Layer 2 gateway

Answer: C

NEW QUESTION 12
Which two Cisco technologies can be used to insert services, such as load balancing and firewalls, between VMs? (Choose two.)

• A. vShield
• B. vNIC
• C. vPath
• D. NFV
• E. service graphs

Answer: CE

NEW QUESTION 13
You have a Cisco UCS Fabric Interconnect that connects to upstream switches via four 10-Gbps port channels. You have a fully populated Cisco UCS B-Series Blade Server chassis that has a UCS-IOM 2208XP installed and uses all of the ports for the blade servers. What is the oversubscription ratio between the chassis and the upstream switch?

• A. 6:1
• B. 3:1
• C. 2:1
• D. 4:1

Answer: B

NEW QUESTION 14
You are configuring a switch as a LISP xTR. You plan to use the LISP xTR when deploying redundant map servers. Which action do you take?

• A. Register the LISP xTR to the anycast IP address of the map resolver.
• B. Register the LISP xTR to the IP address of each map server
• C. Configure the map notify group command by using the anycast IP address of the map resolver
• D. Configure the map-notify group command by using the IP address of each map server

Answer: C

NEW QUESTION 15
Which use case requires a design that contains multiple VRF instances in a VDC?

• A. Provide VRF-aware services to all Layer 3 interfaces.
• B. Provide a route policy for incoming packets.
• C. Provide routing updates between Layer 3 interfaces
• D. Provide Layer 3 isolation within a VDC

Answer: D

NEW QUESTION 16
Which technology does Cisco recommend tor connecting a main data center to a remote data center?

• A. LISP
• B. OTV
• C. FabricPath
• D. vPC

Answer: B

NEW QUESTION 17
Which option must be enabled to allow line-rate forwarding on a Fibre Channel port?

• A. F port
• B. TEport
• C. dedicated mode
• D. shared mode
• E. E port

Answer: C

NEW QUESTION 18
You deploy a new Cisco UCS system and use switching mode for storage communication. Which type of port should you configure as the interconnect to the SAN network?

• A. FCoE storage
• B. appliance
• C. server
• D. uplink
• E. FCoE uplink

Answer: E

NEW QUESTION 19
You must use one logical uplink for Fibre Channel traffic and Ethernet traffic on a Cisco UCS system. Which type of port should you use to accomplish this task?

• A. FCoE storage
• B. server
• C. FCoE uplink
• D. uplink

Answer: C

Explanation: Server and Uplink Ports on the Fabric Interconnect
Each fabric interconnect has a set of ports in a fixed port module that you can configure as either server ports or uplink Ethernet ports. These ports are not reserved. They cannot be used by a Cisco UCS instance until you configure them. You can add expansion modules to increase the number of uplink ports on the fabric interconnect or to add uplink Fibre Channel ports to the fabric interconnect.
You need to create LAN pin groups and SAN pin groups to pin traffic from servers to an uplink port. Each fabric interconnect can include the following types of ports:
Server Ports
Server ports handle data traffic between the fabric interconnect and the adapter cards on the servers.
You can only configure server ports on the fixed port module. Expansion modules do not include server ports.
Uplink Ethernet Ports
Uplink Ethernet ports handle Ethernet traffic between the fabric interconnect and the next layer of the network. All network-bound Ethernet traffic is pinned to one of these ports.
By default, Ethernet ports are unconfigured. However, you can configure them to function in the following ways:
Server
Uplink
FCoE
Appliance
You can configure uplink Ethernet ports on either the fixed module or an expansion module.
Uplink Fibre Channel Ports
Uplink Fibre Channel ports handle FCoE traffic between the fabric interconnect and the next layer of the network. All network-bound FCoE traffic is pinned to one of these ports.
By default, Fibre Channel ports are uplink. However, you can configure them to function as Fibre Channel storage ports. This is useful in cases where a Cisco UCS requires a connection to a Direct-Attached Storage (DAS) device.
You can only configure uplink Fibre Channel ports on an expansion module. The fixed module does not include uplink Fibre Channel ports.
