NEW QUESTION 1
What are two possible causes if an Ethernet interface is up and the line protocol is down? (Choose two)

• A. The Ethernet cable might not be attached properly
• B. There is a speed or duplex mismatch with the remote device
• C. The Ethernet interface has been manually disabled
• D. There is a Layer 2 mismatch in the encapsulation type
• E. Keepalives are not being received by the local device

Answer: BD

NEW QUESTION 2
Which sequence begins a unique local IP address in binary notation?

• A. 1111110
• B. 1111111
• C. 00000000
• D. 1111100

Answer: A

NEW QUESTION 3
Which two of the following CLI operating modes, by default, allow you to copy a Cisco IOS image to flash memory from TFTP server? (Choose two)

• A. User EXEC
• B. Privileged EXEC
• C. ROMMON
• D. Global configuration

Answer: BC

NEW QUESTION 4
Refer to the exhibit.

What is the result of setting the no login command?

• A. Telnet access is denied.
• B. Telnet access requires a new password at the first login.
• C. Telnet access requires a new password.
• D. no password is required for telnet access.

Answer: D

NEW QUESTION 5
Which command is necessary to permit SSH or Telnet access to a cisco switch that is otherwise configured for these vty line protocols?

• A. transport type all
• B. transport output all
• C. transport preferred all
• D. transport input all

Answer: D

NEW QUESTION 6
DRAG DROP

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
The correct answer is: Router(boot)# Router(config-if)# Router(config)# Router#
Rommon> Router>

NEW QUESTION 7
Which type if memory is used to permanently store the Cisco IOS software?

• A. Flash
• B. DRAM
• C. SRAM
• D. NVRAM

Answer: A

NEW QUESTION 8
At the interface configuration prompt, which command returns you to the main configuration prompt?

• A. Ctrl-Z
• B. end
• C. exit
• D. quit

Answer: C

NEW QUESTION 9
What are two ways to open Microsoft Notepad on a Windows-based computer? (Choose two)

• A. Start > Run Enter Notepad and 'Ink OK
• B. Start > Control Panel > Notepad
• C. Start > All Programs > Notepad
• D. Start > All Programs > Accessories > Notepad
• E. Start > All Programs > Microsoft Office > Notepad

Answer: AD

NEW QUESTION 10
Which command initiates copying the saved configuration of a Cisco device to a TFTP server?

• A. copy running-config tftp
• B. copy startup-config tftp
• C. copy tftp running-config
• D. copy tftp startup-config

Answer: B

NEW QUESTION 11
Which two commands display the saved configuration file? (Choose two)

• A. show configuration
• B. show file system
• C. show running-config
• D. show startup-config

Answer: AD

NEW QUESTION 12
What one of the feature is associated with single-mode fiber-optic cable?

• A. a single strand of glass fiber
• B. stored less bandwidth
• C. cost is less than multimode fiber
• D. operates over less distance than multimode fiber

Answer: A

NEW QUESTION 13
Which two pieces of information can be determined about a neighbor device from the CLI command show cdp neighbor? (Choose two)

• A. device ID
• B. IP address
• C. platform
• D. uptime

Answer: AC

NEW QUESTION 14
Which Ethernet interface command is present when you boot a new Cisco router for the first time?

• A. speed 100
• B. shutdown
• C. ip address 192.168.1.1 255.255.255.0
• D. duplex half

Answer: B

NEW QUESTION 15
Which two pairs of LAN Ethernet devices use an RJ-45 Straight-through cable? (Choose two)

• A. Switch to switch
• B. Switch to router
• C. Switch to server
• D. Router to router
• E. Switch to hub

Answer: BC

NEW QUESTION 16
The pins and RJ-45 are numbered from 1 through 8. With the material points of the plug facing toward you, pin 1 is the leftmost pin. Which two sets are looped on an RJ-45 T1 loopback plug? (Choose two)

• A. Pins 1 and 4
• B. Pins 1 and 7
• C. Pins 2 and 5
• D. Pins 2 and 8
• E. Pins 1 and 5
• F. Pins 2 and 7

Answer: AC

NEW QUESTION 17

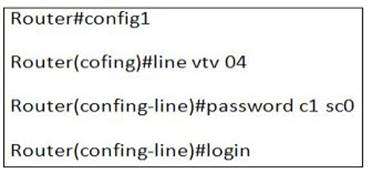

Refer to the exhibit.

Which user-mode password has just been set?

• A. Telnet
• B. Auxiliary
• C. SSH
• D. Console

Answer: A

NEW QUESTION 18
TFTP is a simple protocol files, such as a Cisco IOS or configuration file, from one device to another. Which device cannot be configured to be used as a TFTP server?

• A. Cisco router
• B. Cisco switch
• C. Computer
• D. Modem
• E. Cisco wireless LAN

Answer: D

NEW QUESTION 19
While performing password recovery on a Cisco device, the configuration register should be which value in order to bypass loading the startup configuration?

• A. 0x2102
• B. 0x2112
• C. 0x2122
• D. 0x2142

Answer: D

NEW QUESTION 20
A null modem cable uses which adapter type?

• A. RJ-11
• B. RJ-45
• C. RS-323
• D. RS-232
• E. USB

Answer: B

NEW QUESTION 21
What are two features that are associated with single-mode fiber-optic cable? (Choose two.)

• A. a single strand of glass fiber
• B. carries higher bandwidth than multimode fiber
• C. cost is less than multimode fiber
• D. operates over less distance than multimode fiber

Answer: AB

NEW QUESTION 22
Which two of the following statements are true? (Choose two)

• A. OEM products that are built for Cisco never get a Cisco logo applied.
• B. The Cisco logo, old or new, can be found on the front bezel of all Cisco rack-mountable or desktop products.
• C. Serial numbers are attached by label on all Cisco field-replaceable parts.
• D. At the network module level, the model number is the same as the part number.

Answer: BD

NEW QUESTION 23
Which type of memory stores the startup configuration file for the Cisco device?

• A. Flash
• B. NVRAM
• C. RAM
• D. ROM

Answer: B

NEW QUESTION 24
Which of the following describes the roles of devices in a WAN? (Choose three.)

• A. A CSU/DSU terminates a digital local loop.
• B. A modem terminates a digital local loop.
• C. A CSU/DSU terminates an analog local loop.
• D. A modem terminates an analog local loop.
• E. A router is commonly considered a DTE device.
• F. A router is commonly considered a DCE device.

Answer: ADE

NEW QUESTION 25
Which windows-based text editor is preferred when working with a simple text document such as a Cisco configuration?

• A. Microsoft Excel
• B. Microsoft Word
• C. Microsoft Notepad
• D. Microsoft Access

Answer: C
