NEW QUESTION 1

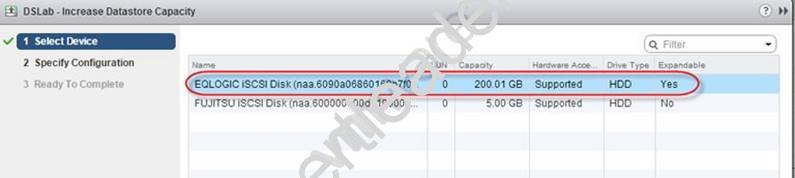

Refer to the Exhibit.

What will be the result of selecting the highlighted device?

• A. Datastore will grow up to 200.01GB using the remaining free space on the device.
• B. Datastore will add 200.01GB by adding the device as a second extent.
• C. The device size can be expanded to be larger than 200.01 GB in size.
• D. The device is not suitable for this operation.

Answer: A

Explanation: The datastore will use up 200.01 GBof free space on the device.

NEW QUESTION 2
Which two considerations should an administrator keep in mind when booting from Software Fiber Channel over Ethernet (FCoE)? (Choose two.)

• A. Software FCoE boot configuration can be changed from within ESXi.
• B. Software FCoE boot firmware cannot export information in FBFT format.
• C. Multipathing is not supported at pre-boot.
• D. Boot LUN cannot be shared with other hosts even on shared storage.

Answer: CD

Explanation: When you boot the ESXi host from SAN using software FCoE, certain requirements and considerations apply.
✑ You cannot change software FCoE boot configuration from within ESXi.
✑ Coredump is not supported on any software FCoE LUNs, including the boot LUN.
✑ Multipathing is not supported at pre-boot.
✑ Boot LUN cannot be shared with other hosts even on shared storage.
Reference: https://pubs.vmware.com/vsphere-55/index.jsp?topic=%2Fcom.vmware.vsphere.storage.doc%2FGUID-8E57EDC9-F122-4A81-8B80-FE19FFE832B1.html

NEW QUESTION 3
Which three statements are correct regarding Fibre Channel over Ethernet (FCOE)? (Choose three.)

• A. The network switch must have Priority-based Flow Control (PFC) set to AUTO.
• B. The network switch must have Priority-based Flow Control (PFC) set to ON.
• C. Each port on the FCoE card must reside on the same vSwitch.
• D. Each port on the FCoE card must reside on a separate vSwitch.
• E. The ESXi host will require a reboot after moving an FCoE card to a different vSwitch.

Answer: ADE

Explanation: Reference: https://pubs.vmware.com/vsphere-55/index.jsp?topic=%2Fcom.vmware.vsphere.storage.doc%2FGUID-6B49866F-7005-4099-84AC-4FB2A1A91F64.html

NEW QUESTION 4

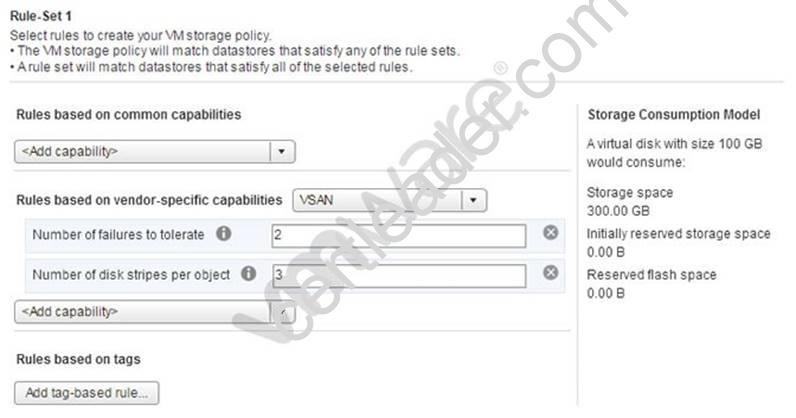

Refer to the Exhibit.

A Storage Policy for a Virtual SAN is set to the default policy, as shown in the Exhibit. Which change would reduce the storage consumption by one third?

• A. Number of failures to tolerate = 1
• B. Number of disk stripes per object = 2
• C. Number of failures to tolerate = 3
• D. Number of disk stripes per object = 1

Answer: A

Explanation: Number of failures to tolerate defines the number of host, disk, or network failures a virtual machine object can tolerate. For n failures tolerated, n+1 copies of the virtual machine object are created and 2n+1 hosts with storage are required.
Default value is 1. Maximum value is 3.
Reference: http://pubs.vmware.com/vsphere-55/index.jsp?topic=%2Fcom.vmware.vsphere.storage.doc%2FGUID-C8E919D0-9D80-4AE1-826B-D180632775F3.html

NEW QUESTION 5

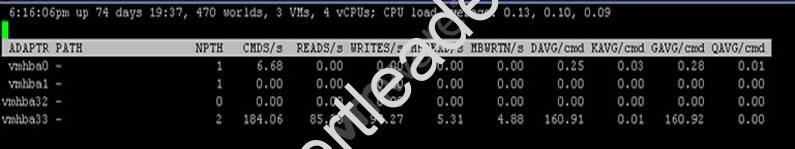

Refer to the Exhibit.

An administrator is using the esxtop command to troubleshoot storage performance issues on a virtual machine. The esxtop capture is shown in the Exhibit.
Based on the exhibit, which two statements are true? (Choose two.)

• A. The iSCSI device is experiencing high latency.
• B. The ESXi kernel is experiencing high latency.
• C. The Guest OS is experiencing high latency and response time.
• D. The NFS device is experiencing high latency.

Answer: AC

Explanation: The iSCSI device is having high latency. You can see the response time peaking with high latency for Guest OS.

Topic 4, Upgrade a vSphere Deployment

NEW QUESTION 6
An administrator would like to use a passphrase for their ESXi 6.x hosts which has these characteristics:
✑ Minimum of 21 characters
✑ Minimum of 2 words
Which advanced options must be set to allow this passphrase configuration to be used?

• A. retry=3 min=disabled, disabled, 7, 21, 7 passphrase=2
• B. retry=3 min=disabled, disabled, 21, 7, 7 passphrase=2
• C. retry=3 min=disabled, disabled, 2, 21, 7
• D. retry=3 min=disabled, disabled, 21, 21, 2

Answer: B

Explanation: To force a specific password complexity and disable all others, replace the number with the word with disabled. For example, to force passwords containing characters from all four- character classes:
password requisite /lib/security/$ISA/pam_passwdqc.so retry=3 min= disabled,disabled,disabled,disabled,7
Reference: http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC
&externalId=1012033

NEW QUESTION 7
An administrator observes that virtual machine storage activity on an ESXi 6.x host is negatively affecting virtual machine storage activity on another host that is accessing the same VMFS Datastore.
Which action would mitigate the issue?

• A. Enable Storage IO Control.
• B. Configure Storage DRS.
• C. Enable the Dynamic Queue Depth Throttling option.
• D. Configure the Disk.SchedNumReqOutstanding parameter.

Answer: A

Explanation: SIOC is extremely powerful, it can increase your consolidation ratios on the storage side, allowing more VM's per datastore. Which leads to lower storage costs and less administrative overhead.
So how does it work? At a basic level SIOC is monitoring the end to end latency of a datastore. When there is congestion (the latency is higher than the configured value) SIOC reduces the latency by throttling back VM's who are using excessive I/O. Now you might say, I need that VM to have all of those I/O's, which in many cases is true, you simply need to give the VMDK(s) of that VM a higher share value. SIOC will use the share values assigned to the VM's VMDK's to prioritize access to the datastore.
Just simply turning SIOC on will guarantee each VMDK has equal access to the datastore, shares fine tune that giving you the ability to give VMDK's more or less priority during times of contention.
Reference: http://blogs.vmware.com/vsphere/2014/05/enabling-monitoring-storage-io- control.html

NEW QUESTION 8
An administrator is upgrading vCenter Server and sees this error:
The DB User entered does not have the required permissions needed to install and configure vCenter Server with the selected DB. Please correct the following error(s): %s
Which two statements explain this error? (Choose two.)

• A. The database is set to an unsupported compatibility mode.
• B. The permissions for the database are incorrect.
• C. The permissions for vCenter Server are incorrect.
• D. The database server service has stopped.

Answer: AB

Explanation: Reference: http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2006904

NEW QUESTION 9
Which two vCenter Server services are migrated automatically as part of an upgrade from a Distributed vCenter Server running 5.x? (Choose two.)

• A. vCenter Single Sign-on Service
• B. vSphere Web Client
• C. vSphere Inventory Service
• D. Storage Policy Based Management

Answer: BC

Explanation: vSphere web client and vSphere inventory services are migrated automatically during the Distributed vcenter server 5.x upgrade.

NEW QUESTION 10
Which three troubleshooting actions should an administrator take to address slow performance when deploying a virtual machine template? (Choose three.)

• A. Increase network throughput by adding additional uplinks to the vSwitch.
• B. Change the destination datastore or volume for the virtual machine template.
• C. Configure a Provisioning Traffic vmkernel port to perform the deployment operation.
• D. Reduce the size of the virtual machine template’s virtual disk.
• E. Deploy the virtual machine template to the cluster and allow Distributed Resource Scheduler to register the virtual machine.

Answer: ABC

Explanation: Slow performance while deploying a virtual machine template can be annoying. To address this problem, you can increase network throughput by adding uplinks to the vSwitch. You
can also change the destination datastore for the virtual machine template. Similarly, you can configure provisioning traffic vmkernel port to do the deployment operation.

NEW QUESTION 11

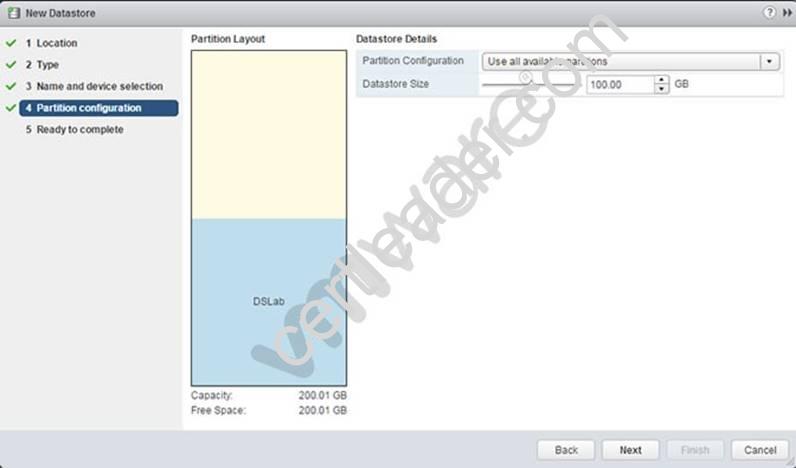

Refer to the Exhibit.

What will be created upon completion of the steps in this wizard?

• A. 100GB VMFS5 datastore with free space available for expansion
• B. 100GB VMFS5 datastore with free space available for a second datastore
• C. 100GB VMFS3 datastore
• D. 200.01 GB VMFS5 datastore

Answer: A

Explanation: As you can see in the exhibit, the 100GB VMFS5 datastore is created with free space available for expansion.

NEW QUESTION 12
Vmware vSphere Replication protects virtual machines from partial or complete site failures by replicating the virtual machines between which three sites? (Choose three.)

• A. From a source site to a target site.
• B. From within a single site from one cluster to another.
• C. From multiple source sites to a shared remote target site.
• D. From a single source site to multiple remote target sites.
• E. From multiple source sites to multiple remote target sites.

Answer: ABC

Explanation: vSphere Replication replaces storage-based replication. It protects virtual machines from partial or complete site failures by replicating the virtual machines from a primary site to a secondary site.
Reference: https://pubs.vmware.com/vsphere-51/index.jsp?topic=%2Fcom.vmware.vsphere.replication_admin.doc%2FGUID-C987AD18-7C2D-4FA6-B6E4-6B0DDA915A7A.html

NEW QUESTION 13

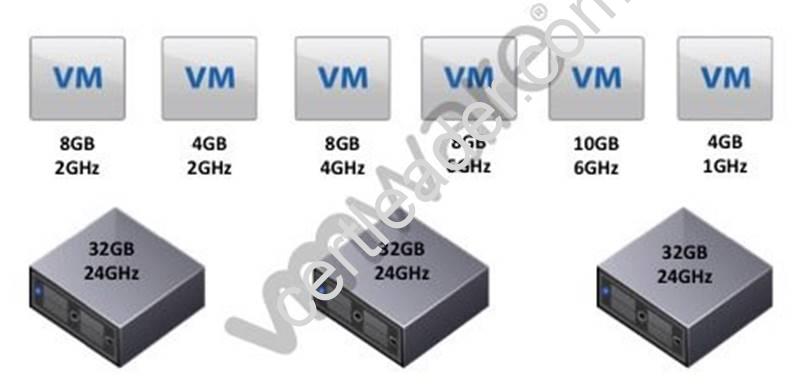

An administrator has configured a cluster with the Host Failures Cluster Tolerates admission control policy, as shown in the Exhibit:

Based on the exhibit, which two statements are true? (Choose two.)

• A. The number of slots per cluster node is four.
• B. The cluster can sustain loss of only one node.
• C. The number of slots per cluster node is three.
• D. The cluster can sustain the loss of two nodes.

Answer: BC

NEW QUESTION 14
An administrator is deploying ESXi 6.x hosts using Auto Deploy and wants the image profile to be available, even after closing and opening a new PowerCLI window.
Which command can be used to ensure that image profiles are preserved across PowerCLI sessions?

• A. Set-EsxImageProfile
• B. Export-EsxImageProfile
• C. Save-EsxImageProfile
• D. Preserve-EsxImageProfile

Answer: B

Explanation: Reference: https://pubs.vmware.com/vsphere-60/index.jsp?topic=%2Fcom.vmware.powercli.cmdletref.doc%2FExport- EsxImageProfile.html

Topic 9, Configure and Administer vSphere Availability Solutions

NEW QUESTION 15
An administrator needs two vCenter Servers to be visible within a single vSphere Web Client session.
Which two vCenter Server and Platform Services Controller (PSC) configurations would accomplish this? (Choose two.)

• A. Install a single PSC with two vCenter Servers registered to it.
• B. Install two PSCs in the same Single Sign-On domain with one vCenter Server registered to each PSC.
• C. Install a single PSC with two vCenter Servers registered to it and configure Linked Mode.
• D. Install two PSCs in the same Single Sign-On domain with one vCenter Server registered to each PSC and configure Linked Mode.

Answer: AB

Explanation: To have two vcenter servers visible within a single vSphere web client session, you have to install a single PSC with both vCenter servers registered. You also need to install two PSCs in the same SSO domain with one vCenter Server registered to each PSC.

NEW QUESTION 16
In which two vsphere.local groups should an administrator avoid adding members?
(Choose two.)

• A. SolutionUsers
• B. Administrators
• C. DCAdmins
• D. ExternalPDUsers

Answer: AB

Explanation: The vsphere.local domain includes several predefined groups. Assign users to one of those groups to be able to perform the corresponding actions.
For all objects in the vCenter Server hierarchy, permissions are assigned by pairing a user and a role with the object. For example, you can select a resource pool and give a group of users read privileges to that resource pool by giving them the corresponding role.
For some services that are not managed by vCenter Server directly, privileges are determined by membership to one of the vCenter Single Sign-On groups. For example, a user who is a member of the Administrator group can manage vCenter Single Sign-On. A user who is a member of the CAAdmins group can manage the VMware Certificate Authority, and a user who is in the LicenseService.Administrators group can manage licenses.
Reference: https://pubs.vmware.com/vsphere-60/index.jsp?topic=%2Fcom.vmware.vsphere.security.doc%2FGUID-87DA2F34-DCC9-4DAB-8900-1BA35837D07E.html

NEW QUESTION 17
An administrator is troubleshooting a virtual machine that has unexpectedly powered off. Which two logs should be used to troubleshoot the issue? (Choose two.)

• A. vmware.log
• B. hostd.log
• C. syslog.log
• D. shell.log

Answer: AB

Explanation: Vmware.log and hostd.log should be checked when the VM unexpectedly powers off.
Reference:
http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=1019064

NEW QUESTION 18
Which two methods are recommended for managing the VMware Directory Service? (Choose two.)

• A. Utilize the vmdir command.
• B. Manage through the vSphere Web Client.
• C. Manage using the VMware Directory Service.
• D. Utilize the dc rep command.

Answer: AB

Explanation: To manage VMware directory service, you can use vmdir command and vsphere web client. VMware directory service is always managed using vmdir command which is specifically used for directory services.

NEW QUESTION 19
Lockdown Mode has been enabled on an ESXi 6.x host and users are restricted from logging into the Direct Console User Interface (DCUI).
Which two statements are true given this configuration? (Choose two.)

• A. A user granted administrative privileges in the Exception User list can login.
• B. A user defined in the DCUI.Access without administrative privileges can login.
• C. A user defined in the ESXi Admins domain group can login.
• D. A user set to the vCenter Administrator role can login.

Answer: AB

Explanation: Reference: https://pubs.vmware.com/vsphere-60/index.jsp?topic=%2Fcom.vmware.vsphere.security.doc%2FGUID-F8F105F7-CF93-46DF-9319-F8991839D265.html

NEW QUESTION 20
A vSphere 6 High Availability cluster has been configured with default settings. Four virtual machines in the cluster have been configured with these priorities:
✑ Prod-DB. High
✑ Prod-Email: High
✑ Prod-VC. Medium
✑ Dev-VDI: Low
How many VM Overrides would need to be defined at the cluster level to meet the restart priorities?

• A. 1
• B. 2
• C. 3
• D. 4

Answer: B

Explanation: 2 overrides should be defined at the cluster level to meet restart priorities. VMs are restarted based on the setting defined at the cluster level defined in the window.
