NEW QUESTION 1
An administrator is using Auto Deploy to create several ESXi 6.x hosts that will be connected to a vSphere Distributed Switch. After the hosts are deployed, the administrator notices that LACP packets are not being sent between them.
Which statement best describes why this issue is occurring?

• A. LACP is not enabled on the vCenter Server.
• B. The LACP support settings do not exist in the host profile.
• C. The LACP installation bundle is not included in the image profile.
• D. LACP has not been configured on the Auto Deploy server.

Answer: B

Explanation: Link Aggregation Control Protocol (LACP) on a vSphere distributed switch allows network devices to negotiate automatic bundling of links by sending LACP packets to a peer. However, there are some limitations when using LACP with a vSphere-distributed switch.
✑ LACP only works with IP Hash load balancing and Link Status Network failover detection.
✑ LACP is not compatible with iSCSI software multipathing.
✑ vSphere only supports one LACP group per distributed switch, and only one LACP group per host.
✑ LACP settings do not exist in host profiles.
✑ LACP between two nested ESXi hosts is not possible.
✑ LACP does not work with port mirroring.

NEW QUESTION 2
When attempting to remove a host from a vSphere Distributed Switch (vDS), an administrator observes the error message:
The resource ‘16’ is in use
What are two reasons why this error would be displayed? (Choose two.)

• A. Vmkernel network adapters on the vDS are in use.
• B. Virtual machine network adapters are connected to the vDS.
• C. Network I/O Control has been configured on the vDS.
• D. There is active network traffic on the vDS.

Answer: AB

Explanation: Reference: https://pubs.vmware.com/vsphere-55/index.jsp?topic=%2Fcom.vmware.vsphere.troubleshooting.doc%2FGUID-038AC93F-D710-48ED-8E3B-258A23FB2930.html

NEW QUESTION 3
Which condition would cause a vCenter Server installation to fail when installing on a Windows virtual machine?

• A. The virtual machine does not have at least four vCPUs.
• B. The virtual machine is running Windows Server 2008.
• C. The virtual machine has an E1000 network device.
• D. The virtual machine does not have 16GB of RAM.

Answer: B

Explanation: If you use Simple Install to install vCenter Server and components on a Windows Server 2008 R2 or Windows 2012 host, and the host is configured to use DHCP IP addressing, the installation fails with warning and error messages.
Reference: https://www.vmware.com/support/vsphere5/doc/vsphere-vcenter-server-550b-release-notes.html#installissues

NEW QUESTION 4
When attempting to connect to a vCenter Server, an administrator observes the following at the top of the vSphere Web Client:
Could not connect to one or more vCenter Server Systems: https://vCenter.corp.com:443/sdk
What three reasons could be preventing the vSphere Web Client from communicating with this vCenter Server? (Choose three.)

• A. The vCenter Server machine is not responding via the network.
• B. An incorrect entry for this vCenter Server exists in the Single Sign-On service.
• C. The SSL certificates do not match the FQDN address for the server.
• D. The Platform Services Controller is external to this vCenter Server.
• E. The DNS entry for the vCenter Server is incorrect.

Answer: ABC

Explanation: Reference: https://communities.vmware.com/message/2265668

NEW QUESTION 5
An administrator notices that one virtual machine is in an orphaned state.
What are two reasons that a virtual machine can appear as orphaned? (Choose two.)

• A. A Vmware High Availability host failure has occurred.
• B. The virtual machine was unregistered directly on the host.
• C. The ESXi host is disconnected.
• D. The user does not have privilege to access the virtual machine.

Answer: AB

Explanation: Virtual machines can become orphaned if a host failover is unsuccessful, or when the virtual machine is unregistered directly on the host. If this situation occurs, move the orphaned virtual machine to another host in the datacenter that has access to the datastore on which the virtual machine files are stored.
Reference: https://pubs.vmware.com/vsphere-50/index.jsp?topic=%2Fcom.vmware.vsphere.troubleshooting.doc_50%2FGUID-BFD8C9BC-30FB-4A92-AFEC-2FC9FF387920.html

NEW QUESTION 6
Refer to the Exhibit.

An administrator manages a High Availability (HA)/Distributed Resource Scheduler (DRS)- enabled cluster and has configured the affinity rule shown in the Exhibit.
Which two statements best describe the configuration shown in the exhibit? (Choose two.)

• A. HA will not failover Marketing to ESXi hosts that are not in the Host Group.
• B. HA will failover Marketing to ESXi hosts that are not in the Host group.
• C. DRS will attempt to keep Marketing on the ESXi host 10.21.38.106.
• D. DRS will not attempt to keep Marketing on the ESXi host 10.21.28.106.

Answer: BD

Explanation: Based on the scenario, HA will failover marketing to ESXi hosts that not in the host group and the DRS will not keep Marketing on ESXi Host 10.21.28.106 because it is a primary group member.

NEW QUESTION 7
Which three traffic types can be configured for dedicated Vmkernel adapters? (Choose three.)

• A. Discovery traffic
• B. vMotion traffic
• C. vSphere Replication NFC traffic
• D. Provisioning traffic
• E. vSphere Custom traffic

Answer: BCD

Explanation: Topic 3, Configure and Administer Advanced vSphere Storage

NEW QUESTION 8
An administrator wants to configure a High Availability cluster to allow virtual machines a 10 minute window to shut down in the event of a Host Isolation incident.
What two configuration settings would satisfy this requirement? (Choose two.)

• A. Set the advanced option das.isolationshutdowntimeout = 10.
• B. Set the advanced option das.isolationshutdowntimeout = 600.
• C. Configure Host Isolation Response to Shut Down and Restart VMs.
• D. Configure Host Isolation Response to Power Off and Restart VMs.

Answer: BC

Explanation: Reference: http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2033250

NEW QUESTION 9
An administrator has been instructed to secure existing virtual machines in vCenter Server.
Which two actions should the administrator take to secure these virtual machines? (Choose two.)

• A. Disable native remote management services
• B. Restrict Remote Console access
• C. Use Independent Non-Persistent virtual disks
• D. Prevent use of Independent Non-Persistent virtual disks

Answer: BD

Explanation: Reference: http://www.vmware.com/files/pdf/techpaper/VMW-TWP-vSPHR-SECRTY-HRDNG-USLET-101-WEB-1.pdf (page 11, see the tables)

NEW QUESTION 10
An administrator is concerned about possible vCPU over-commitment for an ESXi 6.x host.
Which two Performance Counters should be reviewed in the vSphere Web Client Performance Charts to confirm if there is contention on the host? (Choose two.)

• A. Wait
• B. Ready
• C. Core Utilization
• D. Co-Stop

Answer: BD

Explanation: Reference: http://www.gabesvirtualworld.com/how-too-many-vcpus-can-negatively-affect-your-performance/

NEW QUESTION 11
An administrator is configuring resource pools for a vSphere 6.x cluster. The cluster has these characteristics:
• Five ESXi 6.x hosts
• Six cores per host
• 70 virtual machines with 1 vCPU each
The administrator configures three resource pools and places the virtual machines into the pools, as follows:
• Production pool - High Share value with 40 virtual machines
• Infrastructure pool - Medium Share value with 20 virtual machines
• Development pool - Low Share value with 10 virtual machines
Given this configuration, what is the expected performance for each group of virtual machines during contention?

• A. Virtual machines in the Production pool will perform two times as well as those in the Infrastructure pool.
• B. Virtual machines in the Infrastructure pool will perform four times as well as those in the Development pool.
• C. Virtual machines in all resource pools will perform equally.
• D. Virtual machines in the Development pool will perform two times as well as those in the Infrastructure pool.

Answer: C

NEW QUESTION 12
Which two advanced features should be disabled for virtual machines that are only hosted on a vSphere system? (Choose two.)

• A. isolation.tools.unity.push.update.disable
• B. isolation.tools.ghi.launchmenu.change
• C. isolation.tools.bbs.disable
• D. isolation.tools.hgfsServerSet.enable

Answer: AB

Explanation: Because VMware virtual machines run in many VMware products in addition to vSphere, some virtual machine parameters do not apply in a vSphere environment. Although these features do not appear in vSphere user interfaces, disabling them reduces the number of vectors through which a guest operating system could access a host. Use the following
.vmx setting to disable these features:
isolation.tools.unity.push.update.disable = "TRUE" isolation.tools.ghi.l“unch”enu.change = "TRUE" isolation.tools.ghi.a“tolo”on.disable = "TRUE" isolation.tools.hgfsS“rver”et.disable = "TRUE" isolation.tools.memSc“edFa”eSampleStats.disable = "TRUE" isolation.tools.getCr“ds.d”sable = "TRUE"
Reference: https://pubs.vmware.com/vsphere-51/index.jsp?topic=%2Fcom.vmware.vmtools.install.doc%2FGUID-685722FA-9009-439C-9142-18A9E7C592EA.html

NEW QUESTION 13
Deletion of an NFS datastore generates the following error: Sysinfo error on operation returned the following status: Busy
Which step can be performed that will allow the deletion to complete successfully?

• A. Storage vMotion any virtual machines on the datastore to another location.
• B. Remove the datastore from the Storage DRS cluster in which it resides.
• C. Verify the value of the NFS.HeartbeatDelta is not set to 0.
• D. Suspend any running virtual machines and unmount the NFS datstore.

Answer: A

Explanation: Reference:
http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2102598

NEW QUESTION 14
An administrator wants to configure an ESXi 6.x host to use Active Directory (AD) to manage users and groups. The AD domain group ESX Admins is planned for administrative access to the host.
Which two conditions should be considered when planning this configuration? (Choose two.)

• A. If administrative access for ESX Admins is not required, this setting can be altered.
• B. The users in ESX Admins are not restricted by Lockdown Mode.
• C. An ESXi host provisioned with Auto Deploy cannot store AD credentials.
• D. The users in ESX Admins are granted administrative privileges in vCenter Server.

Answer: AC

Explanation: The setting can be altered if administrative access for ESX admins is not required. The second rule is that the ESX admins users should not be restricted by Lockdown mode.

NEW QUESTION 15
An administrator runs the command esxcli storage core device list and sees the following output:
mpx.vmhba1:C0:T0:L0 Display Name: RAID 5 (mpx.vmhba1:C0:T0:L0) Has Settable Display Name: false SizE. 40960 Device Type: Direct-Access Multipath Plugin: NMP Devfs Path: /vmfs/devices/disks/mpx.vmhba1:C0:T0:L0 Status: off Is Local: true
What can be determined by this output?

• A. The device is a being used for vFlash Read Cache.
• B. The device is in a Permanent Device Loss (PDL) state.
• C. The device is a local Solid State Device (SSD).
• D. The device is in an All Paths Down (APD) state.

Answer: B

Explanation: Reference: http://vmwaremine.com/2014/07/07/manage-psa-claimrules-satp-rules-esxcli/#sthash.i6Esax8x.dpbs

NEW QUESTION 16
Refer to the Exhibit.

A vSphere 6.x environment is configured with VMware Virtual Volumes (VVOLs). An administrator accesses the cluster Actions menu, as shown in the Exhibit.
Which option is used to create a VVOL on an existing VVOL container?

• A. Storage
• B. Deploy OVF Template
• C. New vApp
• D. Settings

Answer: A

Explanation: A storage container is the storage that is available physically on your storage array. Now I say physically but this could also be virtually presented storage even on an ESXi host but somewhere somehow it will be back-ended on some physical medium, be it HDD, SSD or hey, maybe even a super fast memory disk. Basically it’s a chunk of physical storage somewhere. Capacity Pools are logical partitions carved out of these to provide a chunk of storage to your VM Admins. Capacity pools may also span multiple storage arrays even across sites. Now you could have a single capacity pool within your storage container or multiple depending on your requirements if you need some sort of logical separation for say separate tenants or separate VM admins needing their own separate chunk of storage but just simply think of it as a chunk of storage presented to your VM admins.
Reference: http://www.wooditwork.com/2012/10/29/vmware-vvolumes-the-game-changing-future-for-storage-is-demoed/

NEW QUESTION 17
An administrator wants to monitor virtual machines on a host and send notifications when memory usage reaches 80%.
What should the administrator create in vCenter Server to accomplish this?

• A. A host alarm that will monitor virtual machine memory usage and set a trigger to email the notification.
• B. A vCenter Server alarm that will monitor virtual machine memory usage and set an action to email the notification.
• C. A host alarm that will monitor virtual machine memory usage and set an action to email the notification.
• D. A vCenter Server alarm that will monitor virtual machine memory usage and set a trigger to email the notification.

Answer: B

Explanation: For notifications, set the vCenter Server alarm to monitor virtual machine memory usage and configure set action to email the notification.

NEW QUESTION 18
An administrator needs to configure a storage solution for a vSphere 6.x implementation with these characteristics:
• Snapshot support
• vMotion Capability
• Clustering across multiple ESXi hosts
• Database application with high transaction count
• vFlash Read Cache
Which solution meets all of the stated requirements?

• A. A vmdk located on a Shared VMFS datastore
• B. A Physical Mode Raw Device Mapped LUN
• C. A Virtual Mode Raw Device Mapped LUN
• D. A Virtual SAN-based vmdk

Answer: C

NEW QUESTION 19
An administrator has configured three vCenter Servers and vRealize Orchestrator within a Platform Services Controller domain, and needs to grant a user privileges that span all environments.
Which statement best describes how the administrator would accomplish this?

• A. Assign a Global Permission to the user.
• B. Assign a vCenter Permission to the user.
• C. Assign vsphere.local membership to the user.
• D. Assign an ESXi Permission to the user.

Answer: A

Explanation: Global permissions are applied to a global root object that spans solutions, for example, both vCenter Server and vCenter Orchestrator. Use global permissions to give a user or group privileges for all objects in all object hierarchies.
Reference: http://pubs.vmware.com/vsphere-60/index.jsp?topic=%2Fcom.vmware.vsphere.security.doc%2FGUID-C7702E31-1623-4189-89CB-E1136AA27972.html

NEW QUESTION 20

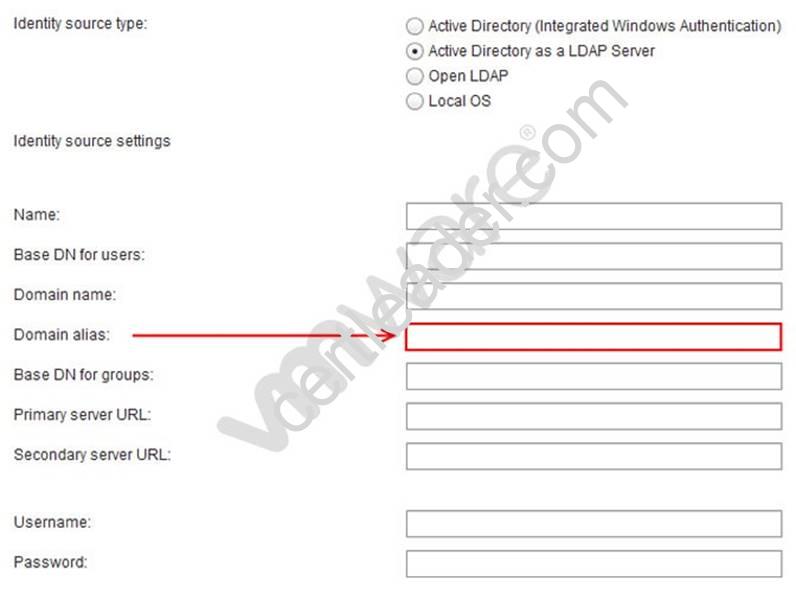

Refer to the Exhibit.

An administrator is adding an Active Directory over LDAP Identity Source for vCenter Single Sign-On, as indicated in the Exhibit.
What is the correct value to configure for the Domain alias?

• A. The domain's NetBIOS name.
• B. The fully qualified domain name.
• C. vsphere.local
• D. A user defined label.

Answer: A

Explanation: The domain alias is usually NetBIOS name, for example, acme.lab.
Reference: https://www.virten.net/2015/02/how-to-add-ad-authentication-in-vcenter-6-0-platform-service-controller/
