NEW QUESTION 1
Which solution enables Cisco devices to be monitored with automated support capabilities?

• A. Cisco Intelligent Monitoring Agent
• B. Cisco Intersight
• C. Connected Service Assurance
• D. Two-Tier Smart Agent

Answer: B

NEW QUESTION 2

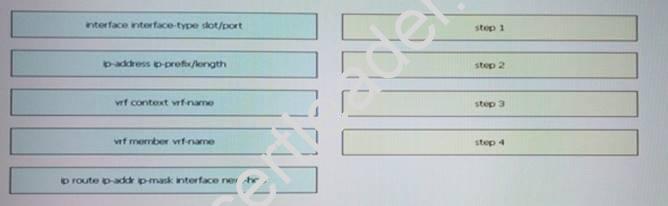

You need to create and configure a VRF for IP forwarding on a Cisco Nexus Series Switch running in NX-OS. Drag and drop the configuration steps from the left into the correct order on the right. Not all options are used.

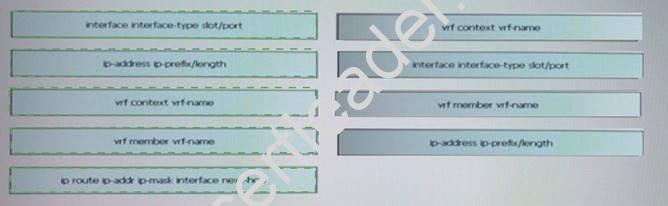

Answer:

Explanation:

NEW QUESTION 3
Which action occurs first when a device that has the POAP feature boots and cannot find the startup configuration?

• A. The device locates a DHCP server
• B. The device enters POAP mode
• C. The device obtains the IP address of a TFTP server
• D. The device installs software image and a configuration file

Answer: B

Explanation: PowerOn Auto Provisioning (POAP) automates the process of upgrading software images and installing configuration files on devices that are being deployed in the network for the first time. When a device with the POAP feature boots and does not find the startup configuration, the device enters POAP mode, locates a DHCP server, and bootstraps itself with its interface IP address, gateway, and DNS server IP addresses. The device also obtains the IP address of a TFTP server or the URL of an HTTP server and downloads a configuration script that enables the switch to download and install the appropriate software image and configuration file

NEW QUESTION 4
You plan to implement virtual switching with service blades in a large environment that will have 12 VSBs. Which model of the Cisco Nexus Cloud Cisco Service Platform should you use?

• A. 1110-X
• B. 1010-X
• C. 1110-S
• D. 1010

Answer: A

NEW QUESTION 5

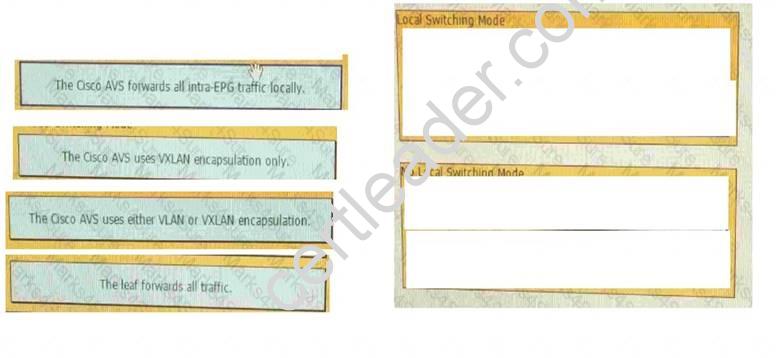

Drag the descriptions on the left to the correct Cisco AVS switching mode on the right.

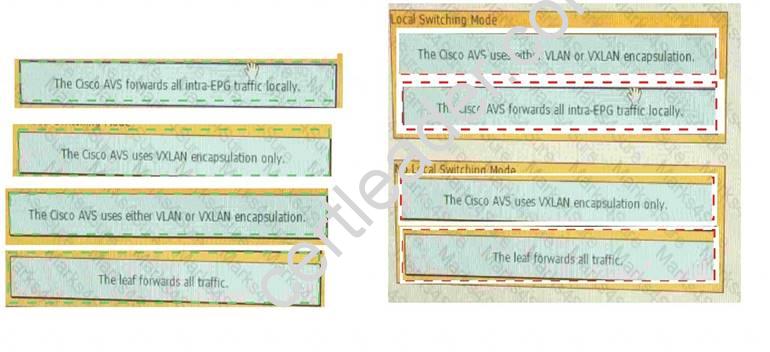

Answer:

Explanation:

NEW QUESTION 6
Which action must you take to implement VXLAN in an environment that runs the Cisco Nexus 1000V Essential edition?

• A. Purchase and install a Cisco Nexus 1000V Advanced edition license
• B. Enable the feature by using the feature segmentation command
• C. Enable the feature by using the feature vxlan-gateway command
• D. Purchase and install a Cisco Nexus 1000V Enterprise edition license

Answer: B

NEW QUESTION 7
You are configuring RBAC on a Cisco UCS system. What happens when you assign multiple locales to a user?

• A. Access is denied to all organizations.
• B. Access is granted to only the last organization that is specified in the locales.
• C. Access is granted to only the first organization that is specified in the locales.
• D. Access is granted to all organizations that are specified in the locales.

Answer: D

NEW QUESTION 8

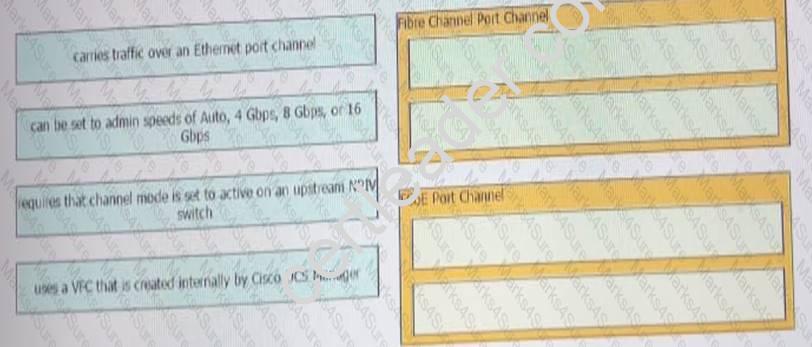

You are configuring a Cisco UCS port channel. Drag and drop the description from the left onto the correct port channel types on the right.

Answer:

Explanation: Fibre Channel Port Channel
Requires that channel mode is set to active on a upstream NPIV switch Can be set to admin speeds of Auto 4 Gbps, 8 Gbpss or 16 GPbs FCoE Port Channel
Carries traffic over an Ethernet Port channel
Uses a VPC that is created internally by Cisco UCS Manager https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Storage-Mgmt/3-

NEW QUESTION 9
You discover that a VLAN is not enabled on a leaf port even though on EPG is provisioned. Which cause of the issue is most likely true?

• A. Cisco Discovery protocol is enabled m the interface policy group
• B. A VLAN pool is not defined under the associated physical domain
• C. The VLAN is not specified in a contract
• D. An interface policy must define the VLAN pool

Answer: B

Explanation: http://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/basic-config/b_ACI_Config_Guide/b_ACI_Config_Guide_chapter_0101.pdf

NEW QUESTION 10
Which two benefits come from using a Cisco Nexus 7000 Series Switch in VDC mode? (Choose two )

• A. par-VDC kernel resource allocation
• B. per-VDC administration
• C. per-VDC load balancing for Cisco Ether Channel
• D. per-VDC forwarding information base
• E. per-VDC fault isolation

Answer: BE

NEW QUESTION 11
Which option must be created to allow one EPG to communicate with another EPG within same tenant?

• A. a filter
• B. a taboo
• C. a subject
• D. a contract

Answer: B

NEW QUESTION 12
Which Cisco APlC health score will be affected if an EPG does not have a Bridge Domain associated with it ?

• A. spine health
• B. leaf health
• C. tenant health
• D. pod health

Answer: C

Explanation: http://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/Operating_ACI
/guide/b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_01010.pdf

NEW QUESTION 13
You have a Cisco Nexus 1000V Series Switch. When must you use the system VLAN?

• A. to use VMware vMotion
• B. to perform an ESXi iSCSI boot
• C. to perform a VM iSCSI boot
• D. to perform an ESXi NFS boot

Answer: A

NEW QUESTION 14
Which type of server is needed to provide POAP with a configuration script?

• A. DHCP
• B. SCP
• C. FTP
• D. TFTP

Answer: D

NEW QUESTION 15
A host connected to a leaf switch sends an ARP request By default, what does the ingress switch do with the ARP requests?

• A. Suppress the ARP
• B. Send the ARP by using unicast.
• C. Send the ARP by using a broadcast
• D. Send the ARP by using multicast

Answer: C

NEW QUESTION 16
Which protocol is used as the link-state routing protocol for a DFA fabric?

• A. VXLAN
• B. EIGRP
• C. Fabric Path IS-IS
• D. OSPF

Answer: C

NEW QUESTION 17
Which feature of a Cisco Nexus 1000V Servers Switch allows you to deploy traffic steering for a virtual infrastructure?

• A. SOT
• B. PVLAN
• C. ACL
• D. vPath

Answer: D
