NEW QUESTION 1
You have a network that has three subnets You migrate the network to a Cisco ACI fabric You want to bridge the three subnets without changing the IP addresses of the endpoints The default gateway for the endpoints does not sit on the ACI fabric. Which action must you take to keep the three subnets in a single Hood domain?

• A. Create multiple bridge domains that have unicast routing disabled within the same EPO Connect the existing subnets to the bridge domains
• B. Create one bridge domain that has unicast routing disabled and connect the existing subnets to the bridge domain
• C. Create one bridge domain that has unicast routing enabled and create corresponding subnets inside the bridge domain Connect the existing network to the bridge domain
• D. Create multiple bridge domains that have unicast routing enabled within the saw EPG Create corresponding subnets inside the bridge domains and connect the existing network to the bridge domains.

Answer: B

NEW QUESTION 2
Why should you configure DHCP relay for Virtual Machine Manager integration?

• A. to create VTEP VMK interfaces on each host for the OpFlex control channel
• B. to provide IP addresses to ESXi hosts
• C. to provide IP addresses to virtual hosts through the VXLAN infrastructure
• D. to ensure that virtual hosts have the same address when they are moved by using VMware vMotion

Answer: B

NEW QUESTION 3
In which configuration ate atomic counters supported?

• A. endpoint-to-external IP address
• B. endpoints in different VRFs
• C. endpoint-to-EPG policy in Layer 2 scenario
• D. endpoinsts in different tenants

Answer: A

NEW QUESTION 4
What must be configured to allow SNMP traffic on ACl switches?

• A. an out-of-band contract
• B. an out-of-band management interface
• C. SNMP relay Policy
• D. an out-of-band bridge domain

Answer: A

NEW QUESTION 5
You have a contract between in-band and out-of-band EPGs. Which two descriptions of this contention are true? (Choose two )

• A. Filters apply m the incoming direction only
• B. Both EPGs must be m one VRF
• C. Management statistics are available
• D. Shared services for CPU-bound traffic are supported
• E. The configuration supports Layer 2

Answer: AB

NEW QUESTION 6
Refer to the exhibit.

Which configuration must you use for VMware load balancing when implementing VMM integration between the Cisco UCS-B Blade Server?

• A. route based on originating port ID
• B. route based on source MAC hash
• C. route based on IP hash
• D. explicit failover order

Answer: A

NEW QUESTION 7
You must apply a contract to all of the EPGs in a tenant. The solution must ensure that the contract is also applied to any new EPGs that are added to the tenant. Which option must you uses?

• A. the QUI
• B. the vzAny managed object
• C. the REST API
• D. a Python script

Answer: B

NEW QUESTION 8
You are performing VMM integration between ACI and VMware with vDS. You place a Cisco UCS Fabric Interconnect between the leaf and the ESXi hosts running on UCSB series Which is a valid configuration if using VMM integration with "On Demand" resolution?

• A. In the interface policy group, disable LLDP, enable Cisco Discovery Protocol, and then select MAC pinning on the Fabric Interconnects
• B. In the interface policy, enable LLD
• C. Cisco Discovery Protocol, and LACP
• D. In the interface pokey group, disable LLDP, disable Cisco Discovery Protocol, and then select active in the LACP pokey
• E. Configure LLD
• F. Cisco Discovery Protocol, and LACP policies under global policies to match the interface policies

Answer: A

NEW QUESTION 9

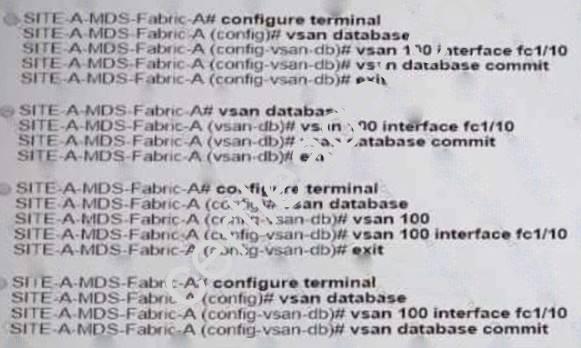

You have a Cisco UCS system. You need to create VSAN 100 on a Cisco MDS 9000 Series switch and to enable switch port fc 1/10 as a member for the VSAN. Which command set should you use?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: C

NEW QUESTION 10
Which statement accurately describes Cisco ACI flooding mode for unknown unicast traffic?

• A. By default unknown unicast traffic floods the bridge domain
• B. By default, all unknown unicast traffic is dropped
• C. A hardware proxy must be used for flooding mode
• D. By default, an unknown unicast traffic is sent to the spine proxy

Answer: D

NEW QUESTION 11
Which two tenants are configured by default in Cisco ACI? (Choose two.)

• A. common
• B. VRF
• C. Cisco
• D. customer
• E. mgmt

Answer: AE

NEW QUESTION 12
You have an external switch that runs STP An interface connected to the switch generates a loop_ inc error Wh.ch feature do you enable on the Cisco ACI fabric to resolve the issue?

• A. LACP
• B. MSTP
• C. BPDU filter
• D. PortFast

Answer: C

NEW QUESTION 13
At the bash prompt, you run the bash$ source environment-setup-x86_64-wrs-linux command. Which purpose of running this command is true?

• A. to set up the source for the plugins added to the shell environment
• B. to move the build application to the target switch
• C. to prepare the environment for the SDK installation
• D. to add SDK-specific paths to the shell environment during environment initialization

Answer: D

NEW QUESTION 14

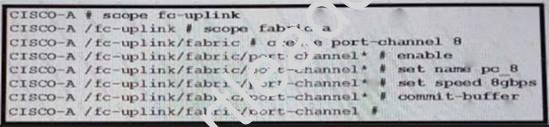

Refer to the exhibit.

Which two actions do you perform on the remote switch before you run the commands? (Choose two )

• A. Configure a minimum of eight links in the port channel
• B. Configure the remote switch to use NPIV mode
• C. Set the port channel mode to on
• D. Configure the remote switch for NPV.
• E. Enable the fport-channel-trunk feature

Answer: AD

NEW QUESTION 15
Which feature allows firewall ACLs to be configure automatically when new endpoint are attached to an
EPG?

• A. ARP network gleaning
• B. network stitching
• C. dynamic endpoint attach
• D. hardware proxy

Answer: C

NEW QUESTION 16
Which Cisco technology addresses management and performance concerns in a data center by unifying physical and virtual switch management?

• A. VSO
• B. SVM
• C. VM-FEX
• D. AVS

Answer: C

NEW QUESTION 17
What is the retention period for remotely attached endpoint?

• A. 3 minutes
• B. 15 minutes
• C. 5 minutes
• D. 10 minutes

Answer: A

Explanation: http://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_A
CI-Fundamentals/b_ACI-Fundamentals_chapter_010010.html
