NEW QUESTION 1

An administrator has a 2node AFF ONTAP cluster named cl1. A Windows 2016 server has 10 FC LUNs mapped from the cluster , and the administrator can multiple paths to each LUN, During a scheduled storage failover, node cl1-02 took over cl1-01, and Windows server lost connectivity to all mapped LUNs but reestablished connectivity after the giveback operation finished.
In the scenario, what would cause the LUN connectivity outage?

• A. Multipathing software is not installed on the host.
• B. Switch zoning does not exist between the host initiator ports and the data LIFs that reside no node cl-01.
• C. NPIV is not enabled on the switches.
• D. Switch zoning does not exist between the host initiator ports and the data LIFs that reside on node cl1-02.

Answer: A

NEW QUESTION 2

You want to access and mount a Linux L.UN using only iSCSl. In the past, the LUN ha;; been accessed using FC. What must you do to accomplish this task?

• A. Change the LUN protocol type to (SCSI.
• B. Create a new iSCSI igrou
• C. and change the LUN mapping from the original to the new igroup.
• D. Create a new iSCSI Igroup and map the LUN to both the new and existing FC igroup.
• E. Add an iSCSI protocol type to the existing igroup so that the LUN can be accessed by both FC and iSCSI hosts.

Answer: B

NEW QUESTION 3

Which two components must be verified for a supported NetApp SAN confutation? (Choose two.)

• A. host memory
• B. host GPU
• C. host multipath
• D. host bus adapter

Answer: CD

NEW QUESTION 4

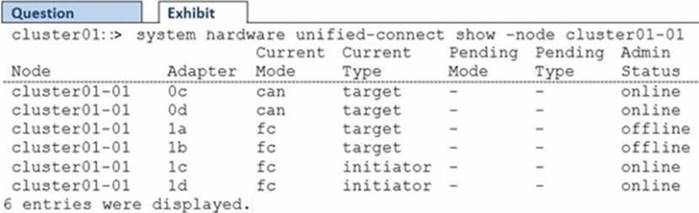

Referring to the exhibit, what happens when you change the type for port 1a from target to initiator?

• A. The port type for 1a changes to initiator, and you must reboot the controller for the changes to takeeffect.
• B. You receive an error message that you must take ports 1a and 1b offline before you can change the type.
• C. You receive an error message that you must take the port 1a offline before you can change the type.
• D. The port type for 1a and 1b changes to initiator, and you must reboot the controller for the changes to take effect.

Answer: A

NEW QUESTION 5

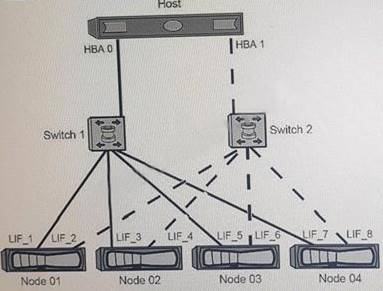

Exhibit.

A customer is testing a dual-fabric FC SAN configuration as shown in the exhibit. The zones are implemented on the switches shown below.

IF all the nodes are in the SLM reporting nodes list, how many paths per LUN should the customer expect when simulating a node failure by powering off Node 04?

• A. 4 paths
• B. 6 paths
• C. 8 paths
• D. 2 paths

Answer: B

NEW QUESTION 6

You want to create an additional SVM from the System Manager GUI to serve data only using block-based protocols. You know the SVM name, the aggregate containing the root volume, and the required protocols.
What other information is required to successfully create this SVM?

• A. name servers
• B. SVM Management LIF network details
• C. search domains
• D. root volume security style

Answer: D

NEW QUESTION 7

Which data collection tool would be used for obtaining detailed information about hosts that are attached to ONTAP storage?

• A. Upgrade Advisor
• B. OneCollect
• C. Brocade Network Advisor
• D. Conflg Advisor

Answer: B

NEW QUESTION 8

Which two components should be installed to support VMware VMFS6 datastores in an environment with only Ethernet switches? (Choose two)

• A. V_StorageAttach license
• B. Host Utilities
• C. NetApp Virtual Storage Console
• D. iSCSI licenses

Answer: CD

Explanation:
Installing VSC is the best practice recommended by Netapp when you use VMware and this is an environment with only Ethernet switch, so ISCSI licenses are needed to present LUNs to the Virtual
environment.
You can find more information on this link:
https://docs.netapp.com/us-en/netapp-solutions/pdfs/sidebar/VMware_vSphere_with_ONTAP_Best_Practices.p

NEW QUESTION 9

Which statement is correct regarding virtual machine alignment on VMware ESX?

• A. RDM LUNs do NOT suffer from alignment problems because they are accessed directly by VMs.
• B. A VMFS LUN with a LUN type of VMware, will always have properly aligned VMs.
• C. Alignment issues can occur on any protocol including FCP, iSCSI, FCoE, and NFS
• D. msinfo32 or mbrscan can be run for the ESX service console to check for proper alignment of VMs.

Answer: C

NEW QUESTION 10

Which two are supported in ONTAP 9.5? (Choose two.)

• A. an NVMe LIF and an FC LIF in the same SVM
• B. an NVMe LIF associated with an FC Direct Connect port
• C. a NVMe LIF and an FC LIF associated with the same port
• D. multiple NVMe LIFs in the same SVM

Answer: CD

NEW QUESTION 11

Exhibit.

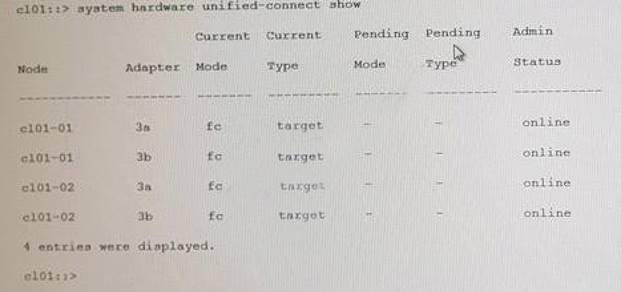

You want to configure a UTA2 port as an FCoE target. Referring to the exhibit, which action must be performed?

• A. Configure the port mode as CNA.
• B. Configure the port mode as Ethernet.
• C. Configure the port type as initiator.
• D. Configure the port mode as FC.

Answer: A

NEW QUESTION 12

You need to move a LUN non-disruptively from an AFF A200 HA pair to an AFF A700 HA pair within the same 4-node cluster using the steps shown below.
* 1. Scan the host OS to discover all paths to the LUN.
* 2. Execute the lun move command to move the LUN to the AFF A/00 HA pair.
* 3. Remove the AFF A200 HA pair from the reporting-nodes list.
* 4. Add the AFF A700 HA pair to the reporting-nodes list. What is the correct sequence in performing, these steps?

• A. 1, 2, 3. 4
• B. 4. 1, 2, 3
• C. 4, 3. 2. 1
• D. 3, 2, 1,4

Answer: B

NEW QUESTION 13

A customer’s NetApp infrastructure is reaching end-of-life (EOL), and they want to inventory their NetApp cluster. The customer wants to make sure that the proposed technical refresh satisfies their growing data demands.
Which two tools would you use to help with this recommendation? (Choose two.)

• A. Upgrade Advisor
• B. OneCollect
• C. Config Advisor
• D. Active IQ

Answer: AC

NEW QUESTION 14

At which storage object level is deduplication enabled?

• A. Aggregate
• B. Volume
• C. Qtree
• D. LUN

Answer: B

NEW QUESTION 15

You are planning to implement a 32 Gb FC SAN on a 2-node AFF A700 ONTAP 9.5 cluster. You need to create 112 FC LIFs across the HA pair with a limit of 20 FC LIFs per physical HBA port.
In this scenario, how many 2-port 32 Gb HBA cards do you need per storage controller?

• A. 2
• B. 1
• C. 4
• D. 3

Answer: A

NEW QUESTION 16

What does the space allocation argument in a lun create command do?

• A. It thick provisions the LUN.
• B. It only disables space reclamation (or the LUN.
• C. It thin provisions the LUN,
• D. It enables or disables space reclamation for the LUN

Answer: D

NEW QUESTION 17

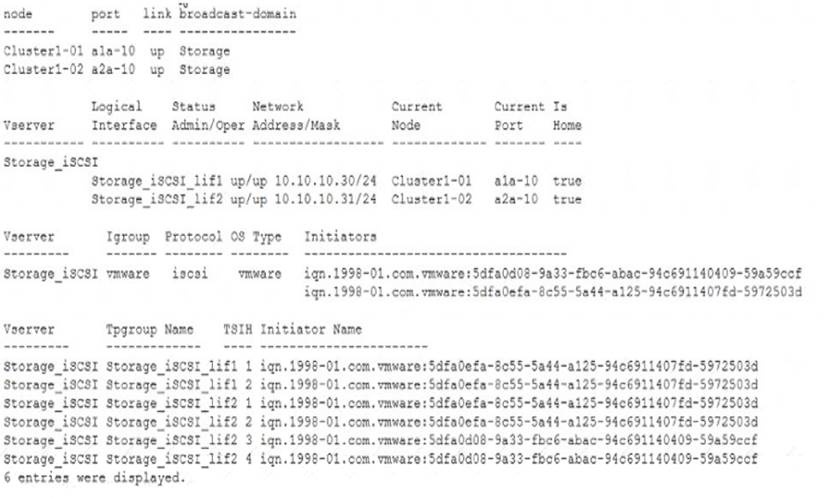

Referring to the exhibit, which two actions would you perform to ensure that each host has valid multipathing? (choose two)

• A. Verify that the VLANs are properly configured on the switches
• B. Verify that the VLANs are properly configured on the ONTAP cluster
• C. Verify that ALUA is enabled on the switches
• D. Verify that ISCSI service is started on the ONTAP cluster

Answer: AB

Explanation:
Iscsi is already started, we can not run those commands successfully if the protocol is not started ALUA is enabled on hosts, It is not enabled on switches
VLANs are configured on the Netapp and switches, they need to be properly configured on both sides to work correctly
You can find more information on this link:
https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-nmg%2FGUID-52AE6E9C-13B6

NEW QUESTION 18

Which topology allows for guaranteed maximum network performance for iSCSI?

• A. isolated VLAN network
• B. MetroWAN network
• C. direct connect
• D. WAN network

Answer: C

NEW QUESTION 19

An administrator has an AFF A200 cluster at their primary site that is used for FC connectivity to servers. For disaster recovery purposes they want to start replicating their data to another AFF A3Q0 cluster In a secondary location. The AFF A300 is In a site that has no FC or FCoE capable switches, and is currently only used for CIFS data. A cluster peering relationship already exists between the two clusters.
Which three additional actions are needed for the data to be ready for access from hosts at the secondary site? (Choose three.)

• A. Create zones with the appropriate initiators and targets for the secondary site.
• B. Enable the iSCSI service on the SVM at the secondary site.
• C. Replicate the data from the primary site to the secondary site with SnapMirror.
• D. Create new iSCSI igroups for LUN mapping.
• E. Enable the iSCSI service on the SVM at the primary site.

Answer: BCD
