NEW QUESTION 1


You have an existing 2-node AFF A300 cluster with premium bundle licensing applied. You need to have consistently low front end latency, and have determined that NVMe satisfies this requirement.
Referring to the exhibit, which two actions would accomplish this task? (Choose two.)

• A. Add a UTA2 adapter to each of the two AFF A300 nodes.
• B. Add a 32 GB FC HBA to each of the two AFF A300 nodes.
• C. Apply the license for FCP.
• D. Apply the license for NVMe.

Answer: B

NEW QUESTION 2

An administrator has a new AFF A220 system with two DS224C disk shelves and wants to validate if the shelf cabling is correct.
Which resource would be used to accomplish this task?

• A. Config Advisor
• B. OnCommand Unified Manager (OCUM)
• C. OneCollect
• D. Interoperability Matrix Tool (IMT)

Answer: A

NEW QUESTION 3

A customer has an existing legacy ISCSI storage environment that is connected to upstream network switches with various Windows hosts. The customer wants to purchase a new Netapp array to migrate
their data. In this scenario which two tools would help to validate the prerequisites for this Netapp configuration? (choose two)

• A. Interoperability Matrix Tool (IMT)
• B. Active IQ OneCollect
• C. Hardware Universe (HWU)
• D. Active IQ Config Advisor

Answer: AB

Explanation:
ActiveIQ OneCollect is a tool from NetApp that will create an inventory of your environment that will include hosts, switches and storage and validate it against the IMT (Interoperability Matrix Tool).

NEW QUESTION 4

You want to use ANA on SUSE Enterprise Linux. Which two components need to be verified in this scenario? (choose two)

• A. Verify the version of ONTAP
• B. Verify the version of SUSE Enterprise Linux
• C. Verify that ALUA must be enabled
• D. Verify that the ANA driver is installed

Answer: AB

Explanation:
ANA Supportability
NVMe/FC is supported on ONTAP 9.6 or later for the following versions of SLES: SLES15 SP1
SLES15 SP1 host can run both NVMe/FC, & FCP traffic through the same fibre channel initiator adapter ports.
You can find more information on this link:
https://docs.netapp.com/us-en/ontap-sanhost/nvme_sles15_sp1.html#supportability

NEW QUESTION 5

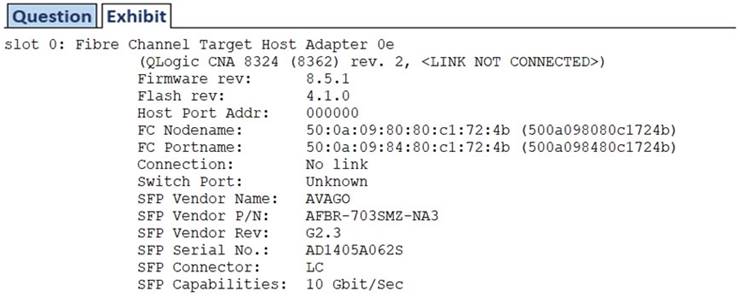

You connected your FAS8200 to a Brocade SAN switch. As shown in the exhibit, port 0e is not available. In this scenario, which statement is correct?

• A. The incorrect SFP+ module is installed.
• B. The switch zoning is using the FC nodename.
• C. The incorrect firmware revision is installed.
• D. The switch port is configured for mode E_Port.

Answer: D

NEW QUESTION 6

How do you configure the iSCSI-SendTargets datastore when the datastore is provisioned from NetApp storage?

• A. You must configure jumbo frames when SendTargets-based iSCSI is used.
• B. Use static discovery to add the target IQN.
• C. Use dynamic discovery to add the target IQN.
• D. You must configure a single protocol on the SVM when SendTargets-based iSCSI is used.

Answer: C

Explanation:

Reference: https://www.vmware.com/pdf/vsphere4/r40_u1/vsp_40_u1_iscsi_san_cfg.pdf (37)

NEW QUESTION 7

What is the recommended minimum of data LIFs per node for iSCSI in a dual-fabric configuration with four SVMs?

• A. 8
• B. 12
• C. 16
• D. 4

Answer: A

Explanation:
Reference: https://docs.netapp.com/ontap-9/topic/com.netapp.doc.dot-cm-sanconf/GUID-650DC466-CA3F
FCEEB52E7.html (6th bullet)

NEW QUESTION 8

On your ONTAP 9.5 cluster, you need to set up the onboard key manager with hardware-based security and volume encryption.
Which two licenses are required in this situation? (Choose two.)

• A. FDE
• B. TPM
• C. VE
• D. RSA

Answer: CD

NEW QUESTION 9

You create a 20 GB LUN in a newly created 100 GB FlexVol volume. You then write 5 GB of data to the LUN. You have space reservation disabled on the LUN.
In this scenario, how much space do you have left on the volume?

• A. 95 GB
• B. 80 GB
• C. 75 GB
• D. 85 GB

Answer: A

Explanation:
Reference: https://library.netapp.com/ecmdocs/ECMP1368017/html/GUID-0E0B085C-5A42-43F3-9CCD- 4FD699BA6C89.html

NEW QUESTION 10

When planning out a new FC SAN implementation for a AFF cluster, which two variables should be considered for a highly-available, resilient solution? (Choose two.)

• A. Length of LC/LC optic cables
• B. Multiple disk shelves
• C. Multiple PDUs connected to separate circuits
• D. Data-fabric zones using multiple switches

Answer: CD

NEW QUESTION 11

You create a new iSCSI SVM and secure iSCSI sessions by using both Challenge-Handshake Authentication Protocol (CHAP) and iSCSI Access Control Lists (ACL).
In this scenario, in which two ways are you securing your iSCSI implementation? (Choose two.)

• A. CHAP creates a hash value for the username and shared secret.
• B. iSCSI ACLs are applied to the initiator configuration to provide an IP address of the targets.
• C. CHAP encrypts all iSCSI session I/O.
• D. iSCSI ACLs are applied to the target configuration to provide an IP address of the initiators.

Answer: AD

NEW QUESTION 12

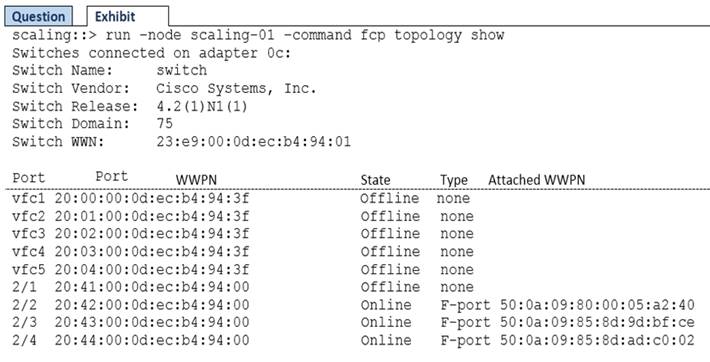

A customer has an AFF A700 connected to a Cisco switch and has verified connectivity but cannot see any LUNs. The customer issued the run -node scaling-01 -command fcp topology show command to verify the connection.
Referring to the exhibit, what needs to be enabled on the Cisco switch?

• A. Trunking needs to be enabled.
• B. VSAN needs to be enabled.
• C. NPIV needs to be enabled.
• D. VFC needs to be enabled.

Answer: D

NEW QUESTION 13

You are asked to separate production FC traffic from test development FC traffic. In this scenario, at a minimum, which two configurations would accomplish this task? (choose two)

• A. VLANs
• B. Shared igroup
• C. SVMs
• D. Cisco VSANs

Answer: CD

Explanation:
SVMs will help us to separate traffic creating production_LIFs and development_LIFs VLANs will not affect anything, because it is asking about FC traffic
Cisco VSans will help us to create separate virtual SANs within the same switch.

NEW QUESTION 14

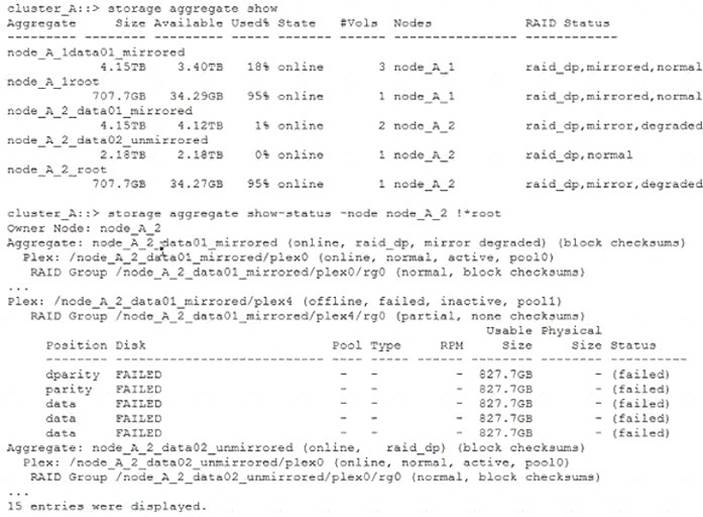

After performing failover testing on a newly deployed MetroCluster configuration, some aggregates remain in a degraded state. Referring to the exhibit, which statement is true?

• A. The MetroCluster Tiebreaker software is misconfigured
• B. The ONTAP Mediator service is misconfigured
• C. A cluster switch is powered off
• D. A disk shelf is powered off

Answer: D

Explanation:
The aggregate with drives on the powered-off shelf should have a degraded RAID status, and drives on the affected plex should have a failed status
You can find more information on this link:
https://docs.netapp.com/us-en/ontap-metrocluster/install-ip/task_test_the_mcc_configuration.html#verifying-ope

NEW QUESTION 15

A customer has a 4-node cluster consisting of a FAS8020 system and an AFF A220 that is running ISCSI workloads across two separate SVMs. The FAS8020 system is reaching end of support, so they add a new AFF A400 system to migrate workloads off the FAS8020 system. The customer wants to migrate data off the FAS8020 aggregate n1_aggr1 on SVM2 to the AFF A400 aggregate n5_aggr1 on SVM1.

• A. Volume move
• B. Volume rehost
• C. Volume reallocation
• D. Aggregate reallocation

Answer: B

Explanation:
Moving a Volume will only work if you are doing it within the same SVM
Volume Reallocation is used when you add new disks to an aggregate and you need to redistribute the data Aggregate Reallocation can be used only when you are moving data from an AFF filer to another AFF filer Rehosting a volume from one SVM to another SVM
Volume rehost enables you to reassign NAS or SAN volumes from one storage virtual machine (SVM, formerly known as Vserver) to another SVM without requiring a SnapMirror copy. The volume rehost procedures depend upon the protocol type and the volume type. Volume rehost is a disruptive operation for data access and volume management.
You can find more information on this link:
https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-vsmg%2FGUID-84308166-6872

NEW QUESTION 16

You are installing an AFF A250 system with ONTAP 9.8 software. Your customer asks you about the recommended LIF configuration for the ISCSI protocol. In this scenario, which two statements are correct
(choose two)

• A. Each node in an ISCSI configuration must be connected to a minimum of two ethernet switches
• B. All LIFs from the SVM are connected to a single Ethernet switch
• C. Each SVM in an ISCSI configuration must have a minimum of two LIFs per node
• D. Each SVM in an ISCSI configuration must have a minimum of one LIF per node

Answer: AC

Explanation:
It is recommended that all SVMs in ISCSI configurations have a minimum of two LIF's per node in separate Ethernet networks for redundancy and MPIO across multiple paths.
You can find more information on this link:
https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-sanconf%2FGUID-650DC466-CA

NEW QUESTION 17

What are two considerations when creating a physical reference drawing for adding an ASA AFF A700 system to your existing FC SAN environment? (Choose two)

• A. available cooling
• B. Hardware Compatibility
• C. available rack space
• D. switch connectivity

Answer: CD

Explanation:
A physical reference drawing should be used to know the rack space and the distance between that space and the equipment to which it will be connected ... Being an ASA, it must be connected to a SAN
switch

NEW QUESTION 18

Click the Exhibit button.

The LUN that is shown in the exhibit is mounted by a Windows 2016 server. In this scenario, which two statements are correct? (Choose two.)

• A. The LUN has misaligned I/O.
• B. The LUN has aligned I/O.
• C. The LUN’s space is reserved.
• D. The LUN’s space is not reserved.

Answer: BD

NEW QUESTION 19

An administrator has migrated an ISCSI LUN with Foreign LUN Import (FLI) tool. The migrated LUN is presented on the new system, but it is not visible to the host. In this scenario which additional action
must be completed to make the LUN visible?

• A. Bind the igroup to a port set
• B. Install ANA software on the host
• C. Stop the FCP service
• D. Map the LUN to an ISCSI igroup

Answer: D

Explanation:
Installing ANA is related with NVMe protocol Binding an igroup to a port set will only limit our paths
Stopping the FCP service will not affect at anything, because this is an ISCSI LUN
When you migrate ISCSI using FLI, you need to map the LUNs to an igroup where the destination arrays is added, after the LUN has been imported, you can create a new iSCSI igroup and add the hosts to
the igroup
You can find more information on this link: https://www.netapp.com/pdf.html?item=/media/17060-tr4380pdf.pdf (page 71)
