NEW QUESTION 1
Which Cisco Unified Communications Manager tool can you use to troubleshoot issues with international calling?

• A. Cisco Prime
• B. Cisco Deployment Tool
• C. RTMT
• D. Dialed Number Analyzer

Answer: C

NEW QUESTION 2
When identifying Cisco TelePresence Endpoint traffic characteristics, which three statements are true? (Choose three.)

• A. Latency, jitter, and loss are measured in a round-trip fashion.
• B. Latency, jitter, and loss are measured unidirectionally.
• C. Latency and loss are measured at a packet level, based on RTP header sequence numbers and time stamps.
• D. Latency and jitter are measured at a packet level, based on RTP header sequence numbers and time stamps.
• E. Jitter is measured at a video frame level, by measuring the arrival time of the video frame versus the expected arrival time.
• F. Jitter is measured at a packet level, by measuring the arrival time of the packet versus the expected arrival time.

Answer: BCE

NEW QUESTION 3
You are troubleshooting an ILS connectivity issue. All clusters are set to “Use TLS Certificates”. Which certificates must be exchanged between Cisco Unified Communications Manager clusters?

• A. Tomcat certificates between all nodes in all clusters.
• B. TLS certificates between publisher nodes in all clusters.
• C. Call Manager certificates between publisher nodes in all clusters.
• D. Tomcat certificates between publisher nodes in all clusters.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_0_1/ccmfeat/ CUCM_BK_F3AC1C0F_00_cucm-features

NEW QUESTION 4
Two phones in the same cluster and at the same site have a Call currently connected. The site local H.323 PSTN gateway loses connection with Cisco Unified Communications Manager. Which two results do you expect? (Choose two.)

• A. SRST is active, and all the phones enter SRST mode.
• B. No incoming and outgoing calls are possible.
• C. Cisco Unified SRST is able to receive incoming calls.
• D. The current call is not disconnected.
• E. The phones display "CM Fallback Service Operating."

Answer: BD

NEW QUESTION 5
After you deploy a new Cisco Collaboration solution, users report echoes and choppy voice quality. Which two actions correct the problem? (Choose two.)

• A. Upgrade the Cisco IOS version anDFlash memory on the Cisco IOS router.
• B. Deploy additional hardware resources
• C. Deploy an echo canceller.
• D. Upgrade Cisco Unified Communications Manager.
• E. Enable QoS on the network.

Answer: CE

NEW QUESTION 6
You are experiencing bad video quality in calls, and you suspect packet loss in the network. Both the network switch and the collaboration endpoint network interfaces are set to autonegotiation, but the reported port speed and duplex settings do not match. Which action should you take?

• A. Set the collaboration endpoint to use a manual speed and duplex setting of 100 Mbps anDFull duplex, and keep the switch port setting as "auto."
• B. Configure the switch port to use a manual speed and duplex setting of 100 Mbps and half duplex, and keep the collaboration endpoint setting as "auto."
• C. Keep both the switch port and collaboration endpoint settings as "auto," because this configuration is not responsible for the mismatched settings that were reported.
• D. Set both the collaboration endpoint and the switch port to use manual speed and duplex settings of 100 Mbps anDFull duplex.

Answer: D

NEW QUESTION 7
When the command utils dbreplication status is executed on the Cisco Unified Communications Manager CLI, which step should be taken next to check the database replication status?

• A. View the activelog file.
• B. Run the same command on all nodes of the cluster.
• C. Restart the Cisco CallManager service.
• D. The command utils dbreplication runtimestate must be run on the publisher.
• E. The command utils dbreplication runtimestate must be run on the subscriber.

Answer: A

NEW QUESTION 8
When a remote endpoint dials in to join a Conference that is configured on a Cisco TelePresence Server bridge, the endpoint receives only audio. Other users can successfully join the call with Voice and Video. What is causing this issue?

• A. The endpoint does not have the multisite option installed.
• B. The endpoint does not have the partition of the bridge in its CSS.
• C. The bridge is out of all licenses.
• D. The endpoint is assigned a region without enough configured bandwidth for video.
• E. The bridge is not able to host video calls.

Answer: D

NEW QUESTION 9
Which tool can you use to see SAF advertisements in Cisco Unified Communications Manager?

• A. Cisco Unified Real-Time Monitoring Tool
• B. show eigrp neighbors command
• C. debug eigrp commands
• D. Terminal Monitor

Answer: A

NEW QUESTION 10
Which two statements about software MTP devices are true? (Choose two.)

• A. The RTMT can monitor the number of registered and in-use MTPs.
• B. A single MTP can register with multiple Cisco Unified Communications Managers.
• C. Each server can support up to four instances of the Cisco IP Voice Media Streaming Application.
• D. The Cisco IP Voice Media Streaming Application can reduce the performance of the Cisco Unified Communications Manager if it is installed on the same server.
• E. When you configure and restart the MTP, the changes are applied immediately to active calls.
• F. When you configure and reset the MTP, the changes are applied immediately to active calls.

Answer: AE

NEW QUESTION 11

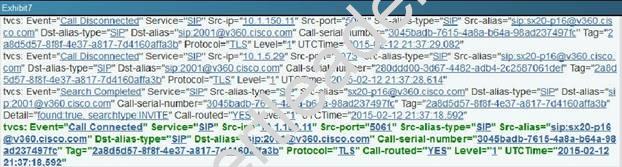

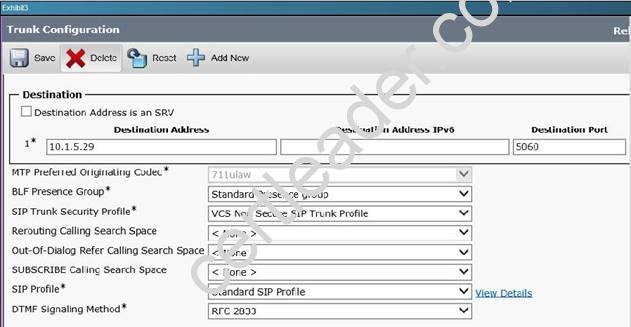

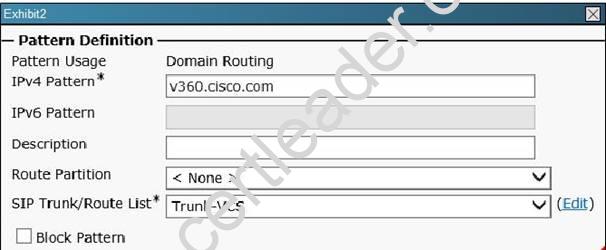

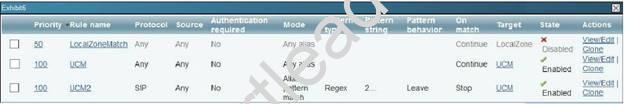

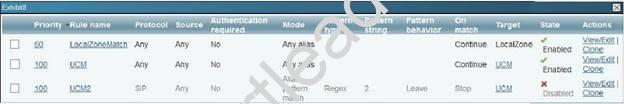

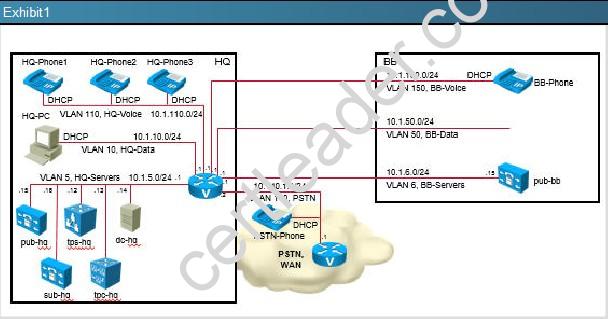

Refer to topology and Exhibits below:








a Call from HQ Phone 1 with the extension of 2001 is dialing a SX20 that is registered to the VCS in BackBone (not shown). Determine if the call fails and if so, what are the two causes? (Choose two.)

• A. The call succeeds
• B. The call fails
• C. There are no issues, so the call succeeds.
• D. The SIP port is incorrect on the Cisco Unified Communications Manager SIP trunk.
• E. The Local Zone Match Rule state is disabled.
• F. Rule name UCM2 is set to stop on Match.

Answer: BF

NEW QUESTION 12
You need to add transcoding support for g711alaw between two different sites. The current configuration is as follows:
dspfarm profile 1 transcode codec g711 ulaw
codec g729ar8 codec g729abr8 codec g729br8 codec g729r8 maximum sessions 4
associate application SCCP
Which two steps do you need to take in order to add support for this codec? (Choose two)

• A. Issue the command no associate application SCCP.
• B. Issue the command shutdown under the dspfarm profile.
• C. Add the command codec g711alaw and issue the no shutdown command.
• D. Disassociate the profile under the CCM group.
• E. Add the command codec g711alaw and issue the command no sccp followed by the command sccp.

Answer: CE

NEW QUESTION 13
Cisco TelePresence system ex90#1 is trying to call EX90 #2. Both endpoints are registered to Cisco Unified Communications Manager. The call connects, but the quality is not good. The video image is breaking up on EX90 #2. The media path from A to B supports only 2 Mb. Which three reasons are possible causes? (choose three.)

• A. The camera on system B has a loose cable.
• B. The line is congested, and QoS is not configured correctly between the sites.
• C. Bandwidth Imitation between IP zones is set too low for video.
• D. Bandwidth Imitation between regions is set too low for video.
• E. The autonegotiation protocol H 296 is tuned off on one of the EX90s.
• F. The system is set to use a higher bandwidth than the media path allows.

Answer: BDE

NEW QUESTION 14
Which configuration can be dynamically set using the Cisco Unified Communications Manager Device Mobility feature?

• A. phone model and protocol
• B. SRST reference and directory number
• C. CSS and local gateway
• D. partition and CSS
• E. media resources and permanent bridges

Answer: C

NEW QUESTION 15
What is the maximum number of characters that you can use in Service Advertisement Framework (SAF) forwarder name?

• A. 10
• B. 20
• C. 30
• D. 40
• E. 50
• F. 60

Answer: E

NEW QUESTION 16
As administrator replaced a faulty IP phone with a new one by replacing the hardware anDEditing the phone MAC address in the device configuration in Cisco Unified Communications Manager.
When the administrator tries to the save the configuration, the old MAC address still appears under the device configuration. What is the most likely cause of this issue?

• A. The administrator does not have full access privileges in Cisco Unified Communications Manager.
• B. The administrator must edit the new phone MAC address under the Phone Enterprise settings page.
• C. The Cisco Unified Communications Manager needs to be enableDFor autoregistration.
• D. The subscriber the phone is registered to may have database replication issues.
• E. The MAC address for the new IP phone must be configured in the publisher instead of the subscriber.

Answer: D

NEW QUESTION 17

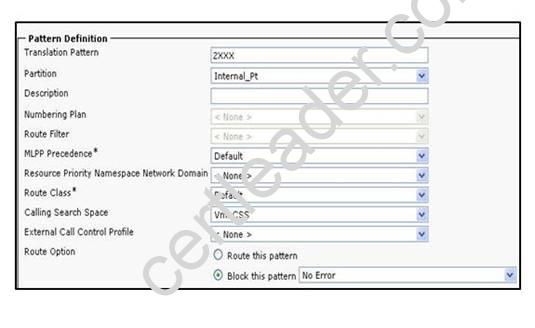

Refer to the exhibit.

All phones are placed in the Internal_Pt partition. The CSS for all phones contains the partition Internal_Pt, and Vml.CSS contains the voicemail hunt pilot. When a Call is placeDFrom extension 2001 to 2002, which statement is true?

• A. Extension 2002 will ring.
• B. The call will be blocked.
• C. The call will be answered by voicemail.
• D. Extension 2002 will ring, and if the call is not answered, the call will match the translation pattern and then be blocked.
• E. Extension 2002 will ring, and if the call is not answered, the call will match the translation pattern and then be forwarded to voicemail.

Answer: A

NEW QUESTION 18

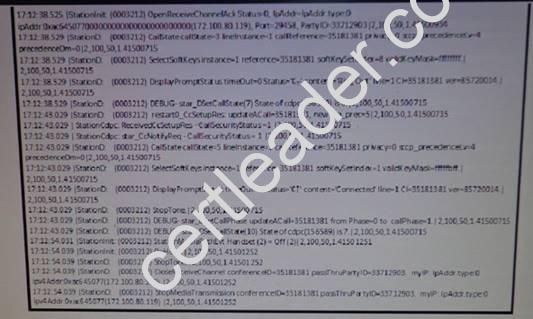

What does this trace indicate? Refer to the exhibit.

• A. a disconnected call
• B. a Completed call setup
• C. a failed call setup
• D. an interrupted call setup

Answer: B

NEW QUESTION 19
URI dialing is enabled between two clusters with the default options. The engineer that set up the URI dialing verified that all was working properly. However, a user from one of the clusters cannot dial using URI to a user in the same cluster. What do you do to resolve this issue?

• A. Verify the password that is used by the authentication under Intercluster Lookup Service configuration.
• B. Find out if the URI address of the called user has ACapital letter in the URI string.
• C. Verify that Intercluster Lookup Service is set up correctly.
• D. Verify USN Data Synchronization Status.

Answer: B

NEW QUESTION 20
Cisco TelePresence Systems that are calling from a Cisco Unified Communications Manager cluster to an

• A. H.323 registered device on a Cisco Expressway Control do not wor
• B. However, calls from the H.323 Expressway registered devices to the same Cisco Unified Communications Manager registered systems do work.What are two possible reasons? (Choose two.)
• C. The SIP trunk has not enabled bidirectional mode.
• D. The call from Cisco Unified Communications manager to the Cisco Expressway Control does not match any search rule.
• E. Calls from Cisco Unified Communications Manager add “.5060” or “.5061” after the SIP address, unlike the Cisco Expressway Control.
• F. The Cisco Expressway Control is registered in the wrong partition.
• G. Both systems do not support TLS encryption

Answer: AC
