NEW QUESTION 1

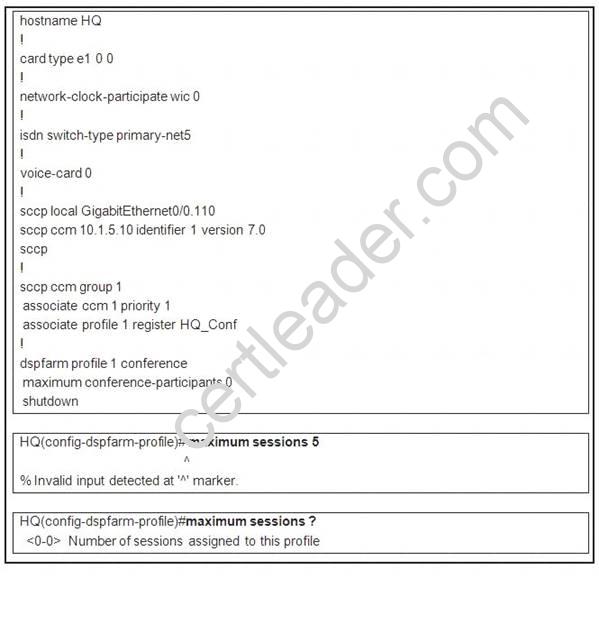

Refer to the exhibit.

When the user tried to configure the command maximum sessions 5 under the dspfarm profile 1, the error shown in the exhibit was reported. Which course of action will resolve this issue?

• A. The maximum conference-participants value must be configured >0.
• B. Ensure that the conference bridge is not registered in Cisco Unified Communications Manager.
• C. The command dsp services dspfarm must be configured under the voice-card configuration.
• D. Configure the dspfarm all command under the voice card.

Answer: C

NEW QUESTION 2
Endpoints are configureDFor both H.323 and SIP using the same URI and Cisco VCS settings, but the endpoints register only as H.323 endpoints. What is causing this issue?

• A. A firewall is blocking all traffic from the endpoints to the Cisco VCS.
• B. The Cisco VCS has no SIP domains configured.
• C. The Cisco VCS is blocking the endpoints because of duplicate IDEntries.
• D. The endpoints do not have the SIP option key installed.
• E. SIP does not work, because SIP is useDFor Cisco Unified Communications Manager registration only.

Answer: B

NEW QUESTION 3
A Cisco TelePresence SX80 Dial is registered on Cisco Unified Communications Manager is calling a registered H.323 endpoint that is registered to a Cisco VCS Control within the same campus. The call is placed using 6 Mb, however only a 1 MBCall is set up. Where can you find two possible causes for this issue? (Choose two)

• A. The Cisco TelePiesence SX80. which needs an option key to call over 2 M
• B. which also enables multisite calls
• C. in the Region settings in Cisco Unified Communications Manager
• D. bandwidth settings in the SIP trunk profile
• E. legacy telepresence systems that are registered to the Cisco VCS Control and can only do 1 Mb towards a Cisco Unified Communications Manager system
• F. a link and pipe configuration on the VCS to Osco Unified Communications Manager subzone
• G. in the subzone settings of the registered H 323 endpoint

Answer: C

NEW QUESTION 4
Which two Cisco Unified Communications Manager operations will test reverse DNS lookup? (Choose two.)

• A. Installation
• B. Reboot
• C. Upgrade
• D. Switch version
• E. Changing IP address or hostname

Answer: AE

NEW QUESTION 5
During ABusiness-to-business video call through the Cisco Expressway solution, the internal endpoint can call out to the remote endpoint on the Internet, but it does not receive audio or video. The remote endpoint receives both audio and video. What is causing the issue?

• A. The Cisco Expressway does not have a Rich Media Session license.
• B. The firewall is blocking SIP signaling.
• C. The Cisco Unified Communications Manager is not configureDFor business-to-business calling.
• D. The firewall is blocking inbound RTP ports.
• E. The Advanced Networking option is not installed on the Expressway Edge.

Answer: D

NEW QUESTION 6
You configured a Cisco ISR G2 as a SIP gateway, but the gateway does not show that it is registered with Cisco Unified Communications Manager. What is causing this issue?

• A. Cisco Unified Communications Manager does not support SIP gateways.
• B. The gateway does not have the UC license installed.
• C. The gateway does not have Cisco Unified Border Element session licensing.
• D. Cisco Unified Communications Manager does not show a SIP gateway as registered if it is not properly configured.
• E. Cisco Unified Communications Manager never shows a SIP gateway as registereDEven when it is properly configured.
• F. The Cisco ISR G2 cannot be a SIP gateway.

Answer: E

NEW QUESTION 7
As a Voice Administrator, you have configured the Service Advertisement Call Control Discovery (CCD) feature. When you encounter CCD issues, which command would you use on the IOS interface to check all the learned routes on the IOS device?

• A. show eigrp service-family ipv4 topology
• B. show voice safdndb all
• C. show ccm-manager
• D. show eigrp service-family ipv4 interfaces
• E. show voice saf client
• F. show voice saf dial-peer outbound

Answer: B

NEW QUESTION 8
Refer to Exhibit:

After reviewing the trace in the exhibit, what was the Directory number of the called party?

• A. 2001
• B. 5010
• C. 1905
• D. 2003

Answer: D

NEW QUESTION 9
Refer to the exhibit.

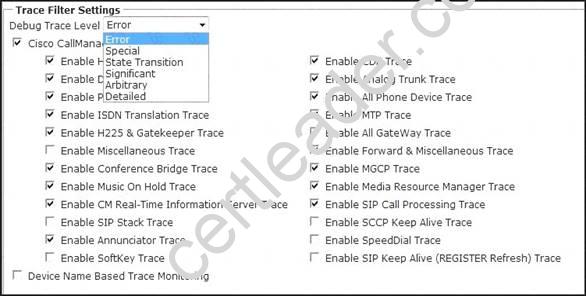

Which Cisco Unified Communications Manager trace file level should be selected when enabling traces to send to Cisco TAC for analysis?

• A. State Transition
• B. Arbitrary
• C. Significant
• D. Error
• E. Detailed
• F. Special

Answer: E

NEW QUESTION 10

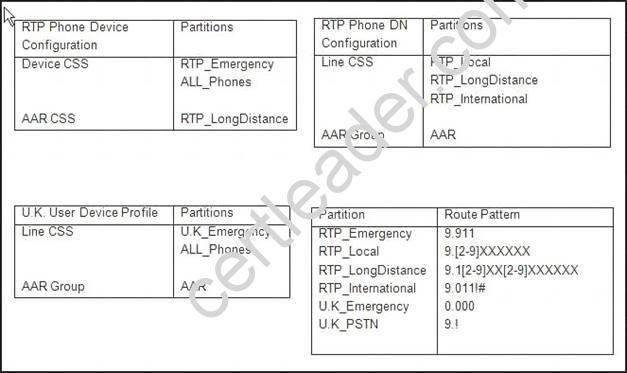

Refer to the exhibit.

Assume ACentralized Cisco Unified Communications Manager topology with the headquarters at RTP and remote located at the U.K. All route patterns are assigned a route list that contains a route group pointing to the local gateway. RTP route patterns use the RTP gateway, and U.K. route patterns use the U.K. gateway.
When a U.K. user logs into an RTP phone using the Cisco Extension Mobility feature and places an emergency call to 0000, which statement about the emergency call is true?

• A. The call will match the U.K_Emergency route pattern partition and will egress at the RTP gateway.
• B. The call will match the U.K_Emergency route pattern partition and will egress at the U.
• C. gateway.
• D. The call will match the RTP_Emergency route pattern partition and will egress at the RTP gateway.
• E. The call will match the RTP_Emergency route pattern partition and will egress at the U.
• F. gateway.
• G. The call will fail.

Answer: B

NEW QUESTION 11

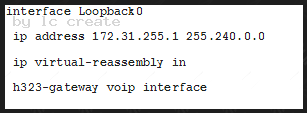

Which set is likely to resolve an issue with one-way audio on an H.323 gateway?
A)

B)

C)

D)

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: B

NEW QUESTION 12
Users in your enterprise can establish PSTN calls, but users notice that when they attempt to perform a transfer the call fails. Which two actions must you take to troubleshoot the problem? (Choose two)

• A. Restart Cisco Unified Communications Manager services.
• B. Verify that media resources are assigned to the transcoder.
• C. Verify that MTP resources are registered with Cisco Unified Communications Manager
• D. Restart the Cisco Serviceability tool
• E. Use RTMT Performance monitoring to verify that an MTP device is available to support supplementary services.

Answer: CE

NEW QUESTION 13
System A at Company 1 is calling System B at Company 2. The call completes, but only audio and video are present on System A from System B. What are three possible causes? (Choose three.)

• A. System ACannot call System B because it is at a different company.
• B. There is a firewall in the path that is blocking audio and video traffic from Company 1 to Company 2.
• C. The firewall at Company 1 is blocking outgoing traffic.
• D. An access list is blocking video and audio somewhere in the video and audio path between System A and System B.
• E. System A has turned off the camera and the microphone.

Answer: BDE

NEW QUESTION 14

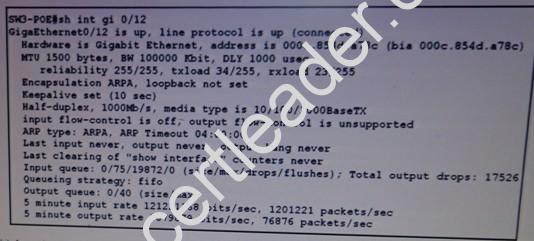

An engineer configured a Cisco TelePresence server with two Cisco acquired Codian devices. Users are reporting that the image looks frozen and the audio contains static and is garbled on one of the devices. What is the root cause of the issue?
Refer to the exhibit.

• A. There is a mismatch in the port configuration.
• B. The input flow control is off.
• C. The QoS that is configured on the port is set to FIFO
• D. There are packet drops in the ingress queues

Answer: D

NEW QUESTION 15
An engineer is configuring an IOS MTP on a Cisco 2911 Integrated Services Router and Cisco Unified Communications Manager (CUCM).
dspfarm profile 20 mtp codec g711ulaw
maximum sessions software 10 associate application SCCP shutdown
The MTP will not register with CUCM. Based on the configuration, what is the cause of the problem?

• A. The MTP type is not compatible with CUCM.
• B. The dspfarm profile is in a down state.
• C. The MTP type is incorrect.
• D. The MTP is not enabled on CUCM.

Answer: B

NEW QUESTION 16

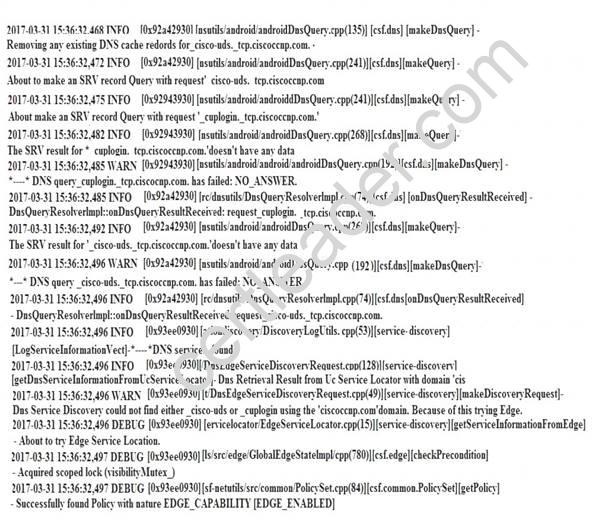

Refer to the exhibit. a Cisco Jabber user moveDFrom the office. Which description of the issue with the endpoint registration is true?

• A. The Android device does not have access to the Internet.
• B. The ISP is preventing Jabber from performing SRV lookups.
• C. The Jabber user is within the enterprise.
• D. The IOS device does not have a valid IP address.

Answer: A

NEW QUESTION 17
What is a Common reason that an IP Phone cannot get its configuration from Cisco Unified Communications Manager after it obtains the correct IP address information?

• A. The DHCP scope is exhausted.
• B. The DHCP server is not reachable.
• C. The DHCP scope is on the wrong subnet.
• D. The DHCP scope has the incorrect Option 150 or 66 defined.

Answer: D

NEW QUESTION 18

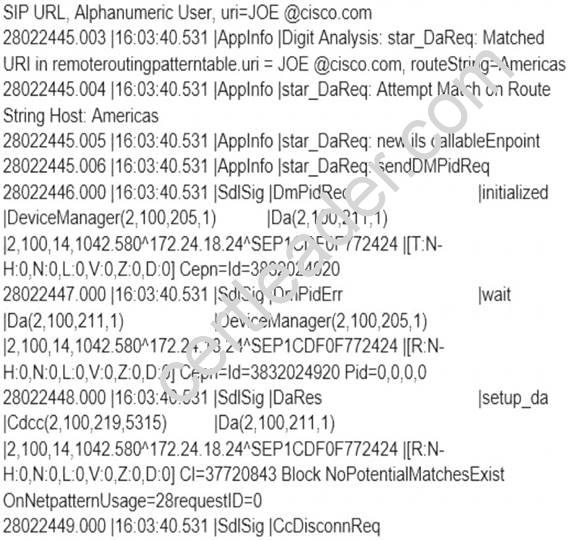

Refer to the exhibit.

A network administrator in Cisco recently configured ILS in the network. The administrator attempted a Call to Joe’s SIP URI (JOE@cisco.com), but the call failed. The administrator collected Cisco CallManager traces using Cisco Unified Communications Manager RTMT.
What should the administrator do to solve this issue?

• A. Create a route pattern for “americas” to route out the SIP trunk that is configureDFor the remote ILS cluster.
• B. Joe’s phone is currently using the SIP protoco
• C. Change the protocol to SCCP.
• D. Use the utils dbreplication reset all command to synchronize databases between ILS clusters.
• E. Check the “MTP Required” check box on the ILS trunk.

Answer: A

NEW QUESTION 19
In a Cisco Unified Communications Manager call trace, which string indicates an intrasite call?

• A. OutsideDialtone = [1]
• B. cmDeviceType=[AccessDevice]
• C. OutsideDialtone= [0]
• D. OutsideDialtone-[2]

Answer: A

NEW QUESTION 20

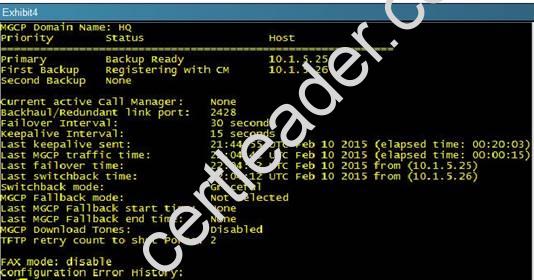

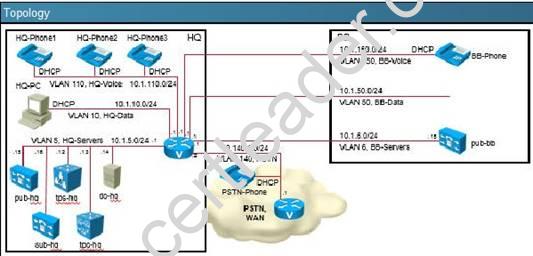

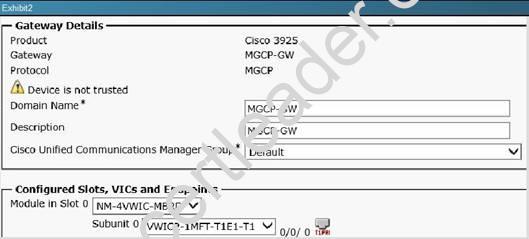

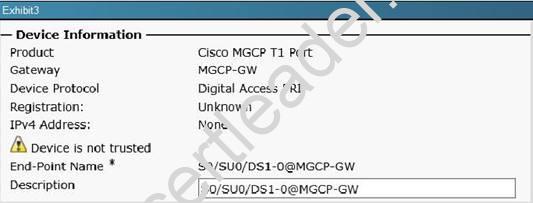

Refer to topology and Exhibits below:




After making AChange to a manually configured MGCP gateway, what step should you take to ensure that the gateway accepts the changes and be operational?

• A. Issue the commands no MGCP, then MGCP.
• B. Issue the commands no SCCP, then SCCP.
• C. Issue the commands Shut, then no shut.
• D. Issue the commands no CCM, then CCM.

Answer: A
