NEW QUESTION 1
What data modeling language is commonly used by NETCONF?

• A. YANG
• B. XML
• C. REST
• D. HTML

Answer: A

NEW QUESTION 2
Which feature is required for Dynamic ARP Inspection?

• A. DIA
• B. First-hop-security
• C. DHCP
• D. ARP

Answer: C

NEW QUESTION 3
Which two guidelines apply to private VLAN configuration when you are running FabricPath? (Choose two)

• A. FabricPath ports can be put into a private VLAN
• B. On the F-Series modules, user-configured static MAC addresses are programmed on all forwarding engines that have ports in that VLAN
• C. All VLANs in a private VLAN must be in the same VLAN mode; either CE or FabricPath
• D. The system does support hierarchical static MAC addresses
• E. The F Series module support multiple SPAN destination ports or virtual SPAN.

Answer: BC

NEW QUESTION 4
Which two statements about FabricPath are true? (Choose two.)

• A. Traffic can only be forwarded from the root switch in First-Hop Redundancy Protocols.
• B. FabricPath interfaces carry only FabricPath-encapsulated traffic.
• C. FabricPath does not require an Enhanced Layer 2 Package license.
• D. STP does run inside a FabricPath network.
• E. The F-Series modules do not support multiple SPAN destination ports of virtual SPAN.

Answer: BE

NEW QUESTION 5
DRAG DROP
Refer to the exhibit.

Drag and drop the objects on the left to their correct descriptions on the right

Answer:

Explanation: A goes to C B goes to A C goes to B
Layer 4 to Layer 7 service policies contain the following:
* Services-Contains metadata (or all the functions provided by a device such as SSL offloading and load-balancing. This MO contains the connector names, encapsulation type, such as VLAN and VXLAN, and any interface labels.
* Device Script-Represents a device script handler that contains meta information about the related attributes of the script handler including its name, package name, and version.
* Function Profile Group Container-Objects that contain the functions available to the service device type. Function
profiles contain all the configurable parameters supported by the device organized into folders.

NEW QUESTION 6
Which two statements about VLAN trunking Protocol are true? (Choose two.)

• A. On Cisco Nexus switches, VLAN TrunkingProtocol is enabled by default.
• B. VLAN Trunking Protocol is only supported on Layer 2 trunk interfaces
• C. Layer 2 trunk interfaces, Layer 2 port channels, and virtual port channels support VLAN Trunking Protocol functionality.
• D. VLAN Trunking Protocol is a Layer 2 messaging protocol that maintains VLAN consistency bymanaging the addition, deletion, and renaming of VLANs withing a VLAN Trunking Protocol domain.
• E. VLAN Trunking Protocol is a Layer 2 messaging protocol that maintains the interface VLAN configuringwithin a VLAN Trunking Protocol domain.

Answer: CD

NEW QUESTION 7
While doing service insertion with vASA with route peering, which two parts must be configured?
(Choose two.)

• A. The path for interfaces must be specified when the L4-L7 device is created.
• B. The route peering profile must be specified when the L4-L7 Service Graph template is created.
• C. The VM name must be specified when the L4-L7 device is created.
• D. The chassis must be specified when the L4-L7 device is created.

Answer: AB

NEW QUESTION 8
Where are domains placed when they are initially registered with Cisco UCS Central?

• A. Registered domains.
• B. Ungrouped domains.
• C. Discovered domains
• D. Acknowledged domains.

Answer: B

NEW QUESTION 9
Which two statements about the configuration of APIC in the ACL Fabric are true?

• A. Cluster controllers added to the APIC be running the same version ot firmware
• B. When performing planned changes to the cluster, at least one controller in the cluster must be healthy
• C. Commissioning an APIC can be done via the APIC IU, but decommissioning an APIC must be done using CLI
• D. An APIC cluster is comprised of multiple controllers that provide monitoring, diagnostic, and confiquration capability
• E. APIC cluster size is set during the initial setup stri
• F. And after it configured it requiresa nondisruptive re-initialization of the APIC cluster to change

Answer: AD

NEW QUESTION 10
Which technology, implemented on aggregation-edge nodes at the aggregation layer, provides per-
tenant isolation at Layer 3, with separate dedicated per-tenant routing and forwarding tables on the inside interfaces of firewall contexts?

• A. VDC
• B. VRF-lite
• C. VXLAN
• D. VLAN

Answer: B

Explanation:
https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Data_Center/VMDC/2-2/design_guide/vmdcDesign22/VMDC_2-2_DG_2.html

NEW QUESTION 11
Which three statements are considered best practice when directly connecting converged network
adapters to the fabric? (Choose three)

• A. Cisco Unified Fabric links must be configured as access ports and FCoE VLAN must not be configured as a native VLAN
• B. If MSTP is enabled, a separate MST instance must be used for FCoEVLANs
• C. Cisco UF links must be configured as spanning-tree edge ports
• D. A shared VLAN can be used to carry traffic for each virtual fabric in the SAN (for example, VLAN 1002 for VSAN 1, VSAN 2, and so on)
• E. Separate FCoE VLANs must be used for FCoE in SAN-A and SAN-B
• F. A blade switch must connect to multiple converged access switched in a topology.

Answer: BCE

NEW QUESTION 12
Which three connection modes are valid when using Cisco RISE? (Choose three)

• A. LB connect mode
• B. Round-robin connect mode
• C. vPC connect mode
• D. direct connect mode
• E. indirect connect mode
• F. PC connect mode

Answer: CDE

Explanation: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/nx-os/riseNetscaler/install_and_cfg/guide/b-rise-netscaler/Configuring-Rise.html

NEW QUESTION 13
Which three components are involved in the Cisco vPath solution? (Choose three)

• A. leaf
• B. VSM
• C. Service grap
• D. VEM
• E. APIC
• F. virtual service node

Answer: BDF

NEW QUESTION 14
DRAG DROP
Drag and drop components of policy drive Layer 4 - Layer 7 services in an ACI environment from left onto the correct definitions on the right.

Answer:

Explanation:

NEW QUESTION 15
DRAG DROP
Drag and drop the best five fundamentals that have proven to enable real world loT successes in innovative companies from the left to the right (in no particular order). Not all options are used

Answer:

Explanation: Shift to Service Use the cloud Plan to Scale Automate
Follow Industry best practices

NEW QUESTION 16
Which three distinct categories are within the cloud computing stack? (Choose three)

• A. SaaS
• B. laaS
• C. NaaS
• D. PaaS
• E. LaaS
• F. DaaS

Answer: ABD

NEW QUESTION 17
Refer to the exhibit.

Which two types of encapsulations can used in each switching mode. When utilizing the Cisco
Application Virtual Switch in ACL fabric? (Chooes two)

• A. No local switching : VXLAN
• B. No local switching :vlan or vxlan
• C. Local switching : VXLAN
• D. Local switching : VLAN
• E. Local switching: VLAN OR VXLAN

Answer: AE

NEW QUESTION 18

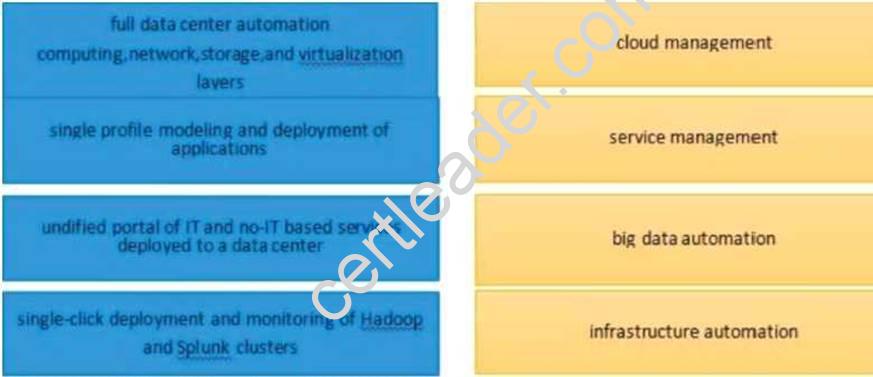

DRAG DROP
Drag and drop the enlisted four offers from the left onto the correct Cisco ONE Enterprise Cloud Suite on the right.

Answer:

Explanation:

NEW QUESTION 19
Which option is required by atomic counters to be leveraged in troubleshooting endpoint connectivity?

• A. Endpoints must be in different endpoint groups
• B. Endpoints must connect to different leaf switches
• C. Endpoints must connect to the same leaf switch
• D. Endpoints must be in different VRFs
• E. Endpoints must be in different bridge domains

Answer: B
