NEW QUESTION 1
Which IEEE standard defines wireless access in vehicular environments?

• A. 802.11k
• B. 802.11ac
• C. 802.11af
• D. 802.11p

Answer: D

NEW QUESTION 2

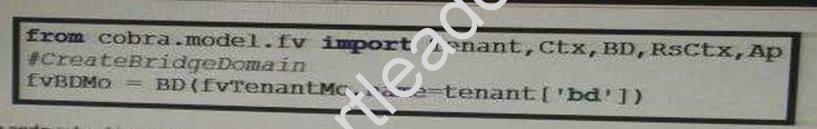

Refer to the exhibit.

This cobra code extract is expected to create a BD object. Assume that fvTenantMo has been populated with the correct tenant object and all module prerequisites have been met. Which statement is true?

• A. The BD name is bd.
• B. The BD name is name.
• C. The code does not work because you also must import module fvTenantMo.
• D. The BD name is kept in the dictionary tenant.

Answer: D

NEW QUESTION 3
A user wants to allow VLANs 1-3967 on a pure Layer 2 FabricPath spine with the least amount of configuration required. Which configuration is correct?

• A. Vlan3967 mode fabric pathInterface eth(fabricpath core interface) switchport mode fabricpath
• B. Vlan 1mode fabricpath fabncpath mode transit
• C. Vlan 1-3967mode fabricpathInterface eth(fabricpath core interface) switchport mode fabncpath
• D. Vlan 1-3967Interface eth( fabricpath core interface) switchport mode trunkswitchport trunk allowed vlan all

Answer: C

NEW QUESTION 4
Refer to the exhibit.

Which two characteristics can you tell about the device connected on e1/1 from the output from the Cisco UCS CLI? (Choose two)

• A. The device supports Ethernet only
• B. This device supports FCoE
• C. The device is a B-Senries server
• D. The device is a C-Series server
• E. This device supports PoE

Answer: BD

NEW QUESTION 5
Which statement about hard pinning is true?

• A. When the VLAN validation fails, a VIF down fault is raised
• B. When the VLAN validation fails, a VLAN Mismatch fault with a severity of Warning appears
• C. If no uplink Ethernet port or port channel is configured with all VLANs on the vNIC, Cisco UCS Manager drops the traffic for all the vNIC
• D. If no uplink Ethernet port or port channel is configured with all VLANs on thevNIC, Cisco UCS Manager brings the link down

Answer: B

NEW QUESTION 6
Refer to the exhibit.

Assume that hostname apic2 is the second APIC (id=2) running in the APIC cluster in the ACI fabric
and the token variable is the correct APIC-cookie. The objective is to retrieve a list of tenants in XML form. Which statement is correct?

• A. The REST call works, but we must use the POST method.
• B. This call is invalid, and we must use the Cobra API to retrieve a list of tenants.
• C. The REST call fails because HTTPS implies its secure protocol and is incompatible with the “— insecure” option.
• D. The command is successfully executed and the relevant list of tenants is returned.

Answer: D

NEW QUESTION 7
Which application is used to manage a Cisco vPath deployment?

• A. UCS Director
• B. Virtual Supervisor Module
• C. Application Policy Infrastucture Controller
• D. Prime Network Services Controller

Answer: D

Explanation: https://blogs.cisco.com/datacenter/application-centric-infrastructure-aci-application-networkprofiles-for-security-and-network-services

NEW QUESTION 8
Which IETF standard is the most efficient messaging protocol used in anloT network?

• A. SNMP
• B. HTTP
• C. CoAP
• D. MQTT

Answer: C

NEW QUESTION 9
In a Cisco ACI environment, which option best describes “contracts"?

• A. to determine endpoint group membership status
• B. named groups of related endpoints
• C. a set of interaction rules between endpoint groups
• D. a Layer 3 forwarding domain

Answer: C

NEW QUESTION 10

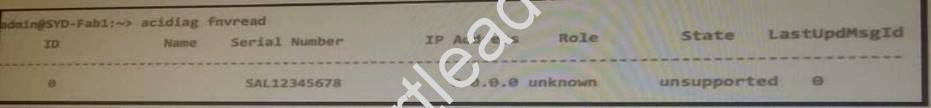

Refer to the exhibit.

An admin wants to bring online a new leaf node into their ACI fabric. Before registering the leaf node, the admin checks the current status arid sees this output.
Which option is the reason for the admin to see this output?

• A. The wrong catalog firmware is running on the APIC.
• B. This output is expected until the admin registers the leaf node and assigns it a role.
• C. The leaf node is yet to be physical connected to the fabric.
• D. The DHCP server running on the APIC has failed and thus the leaf node has not been able to obtain an IP address.
• E. This output is expected until the admin registers the leaf node with an ID and name.

Answer: E

NEW QUESTION 11
In an ACI fabric, which three types of interface are supported on border leaf switches to connect to
an external router? (Choose three)

• A. sub interface with 802 1Q tagging
• B. 1GbE Interface
• C. any interfaces that supports VXLAN encapsulation
• D. Layer 3 interface
• E. 10GbE interface
• F. switch virtual interface

Answer: ADF

Explanation: Using More than two Border leaf Switches
Border leaf switches support three types of interfaces to connect to an external router:
• Layer 3 (routed) interface
• Sub interface with IEEE 802.1Q tagging
• Switched Virtual Interface (SVI)

NEW QUESTION 12
Which three commands must be run to enable support of adapter-fexon an interface on a Cisco
Nexus Switch? (Choose three)

• A. switchport mode vntag
• B. feature-set adaper-fex
• C. feature-set virtualization
• D. feature fex
• E. feature adapter-fex
• F. switchport mode adapterfex

Answer: ACE

NEW QUESTION 13
Refer to the exhibit.

Which two options can be determined by the Cisco UCS environment? (Choose two)

• A. Three FCoE attached servers are on the FI
• B. Seven FCoE attached servers are on the FI
• C. The Cisco UCS is in end-host mode
• D. The Cisco UCS is in FC switch mode
• E. Five FCoE attached servers are on the FI

Answer: AD

Explanation: Note: The above answer is correct, some portals may confuse and mention 5 servers, but if you see ‘Node Name‘field, it has 3 unique node names with 5 vNICs associated between them.

NEW QUESTION 14
Which two parameters must be identical per interface while configuring virtual port channels?
(Choose two)

• A. network access control
• B. Bridge Assurance setting
• C. maximum transmission unit
• D. Protocol Independent Multicast
• E. IP Source Guard

Answer: BC

NEW QUESTION 15
Which sequence of QoS actions is taken on egress traffic on the Cisco Nexus 7000 Series Switches?

• A. queuing and scheduling, classification, marking, policing, mutation
• B. marking, policing, mutation, classification, queuing and scheduling
• C. classification, marking, policing, queuing and scheduling, mutation
• D. classification, marking, policing, mutation, queuing and scheduling

Answer: D

NEW QUESTION 16

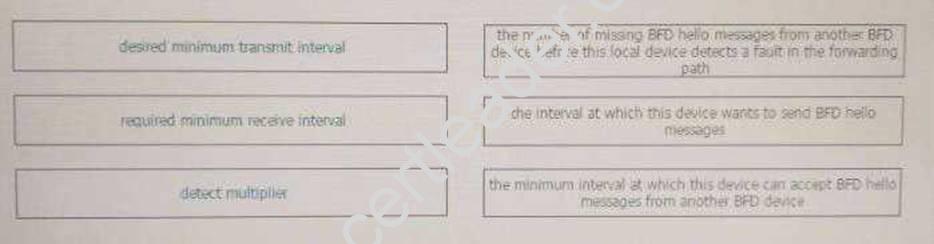

DRAG DROP
Drag and drop the term about BFD session parameters from the left onto the correct definition on the right?

Answer:

Explanation:

NEW QUESTION 17
Which three descriptions of the advantages of using a Layer 4 – Layer 7 service graph in the ACI Fabric are true? (Choose three)

• A. It provides a template that can be reused multiple times
• B. Only virtual Layer 4 – Layer 7 devices are required
• C. It makes manual VLAN assignments
• D. It automatically connects vNICs
• E. No contracts are required between consumer and provider EPGs
• F. It updates ACLs and pools automatically with endpoint discovery

Answer: ADF

Explanation: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/ACI_Best_Practices/b_ACI_Best_Practices/b_ACI_Best_Practices_chapter_0110.pdf

NEW QUESTION 18
Refer to the exhibit.

After you upgrade Cisco UCS firmware, some of your blades have these error messages. Which description of the problem is true?

• A. Storage provisioning is not configured
• B. Some components are deprecated
• C. vNIC template must be converted to updating
• D. Service profile requires a connectivity policy

Answer: D

NEW QUESTION 19

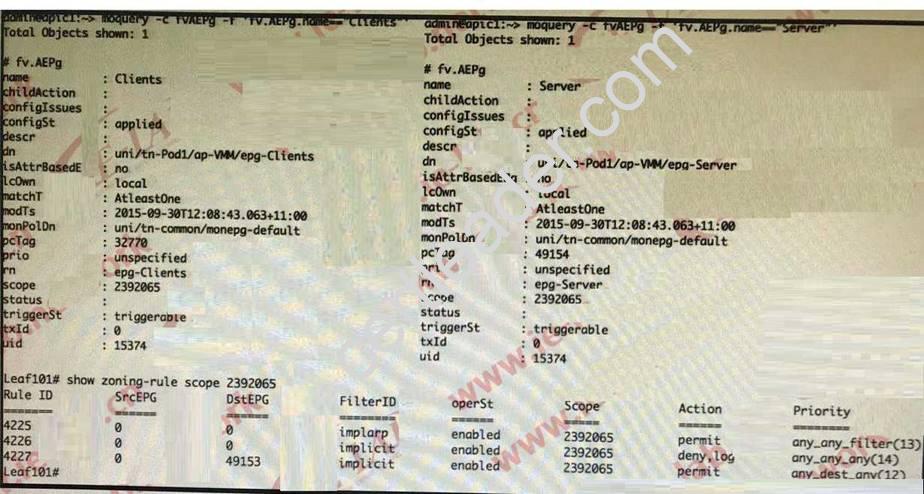

Refer to the exhibit.

A virtual machine in the EPG "Clients" is unable to communicate via ICMP with a virtual machine in the EPG "Server". Which option is the most likely cause of this issues?

• A. The EPG "Server" is providing the relevant contract but the EPG "Clients" is not consuming the contract
• B. Not enough detail is provided in the output to determine the exact cause
• C. There is no issue because the configured rules permit ICMP traffic
• D. No contract is configured between the two EPGs

Answer: D
