NEW QUESTION 1
Which two components are the responsibility of the customers in a Platform as a Service offering? (Choose two)

• A. APIs
• B. infrastructure connectivity
• C. applications
• D. hardware
• E. data

Answer: CE

NEW QUESTION 2
Refer to the exhibit.

Which feature is shown in this configuration?

• A. policy-based routing
• B. Optimized Edge Routing
• C. quality of service
• D. performance routing

Answer: A

NEW QUESTION 3
Which option is a data modeling language used to model configuration and state data of network elements?

• A. NETCONF
• B. SNMPv4
• C. YANG
• D. RESTCONF

Answer: C

NEW QUESTION 4
Which three options are SDN Southbound protocols? (Choose three)

• A. API
• B. OVSDB
• C. OpenFlow
• D. Puppet
• E. PCEP
• F. VXLAN

Answer: BCE

NEW QUESTION 5
Refer to the exhibit.

Using GET method with this XML code, which two pieces of information about Application Policy Infrastructure Controllers shows the output? ( Choose two)

• A. ports of the leaves where the APICs are connected
• B. hard disks status for each APIC in the cluster
• C. APIC version installed on each node
• D. serial number of each APIC in the cluster
• E. admin status of each APIC in the cluster
• F. number of network interfaces of each APIC

Answer: DE

NEW QUESTION 6
How many revisions of log files is kept by Cisco Cloud Center?

• A. 25
• B. 5
• C. 20
• D. 10

Answer: D

NEW QUESTION 7
Which two characteristics of an loT network are true? (Choose two.)

• A. loT networks are 100% reliable.
• B. loT networks must be designed for low-powered devices.
• C. The transmission rate in anloT network is consistent.
• D. loT networks are bandwidth constrained.
• E. loT networks use IS-IS for routing.

Answer: BD

NEW QUESTION 8
The local service profiles in Cisco UCS Manager refer to global ID pools, but the IDs are not allocated.Which two tasks must be completed when checking Cisco UCS Central and/or Cisco UCS Manager? (Choose two)

• A. Verify that the registered Cisco UCS domain is not in a lost visibility or suspended state
• B. Make sure that the local pools contain enough IDs
• C. Make sure that the global pools contain enough IDs
• D. Ensure that global pools with the same name exist with available IDs
• E. Ensure that local pools with the same name exist with available IDs

Answer: AC

NEW QUESTION 9
While you attempt to register Cisco UCS Manager domains with Cisco UCS Central, you find that it is failing. Which three options are possible causes for the failure between the Cisco UCS Manager domainand Cisco UCS Central? (Choose three.)

• A. incorrect default policy configured in Cisco UCS Central
• B. incorrect shared secret
• C. data and time mismatch
• D. using the IP address of the Cisco UCS Manager domain instead of the FQDN
• E. version mismatch
• F. TCP packet loss

Answer: BCF

NEW QUESTION 10

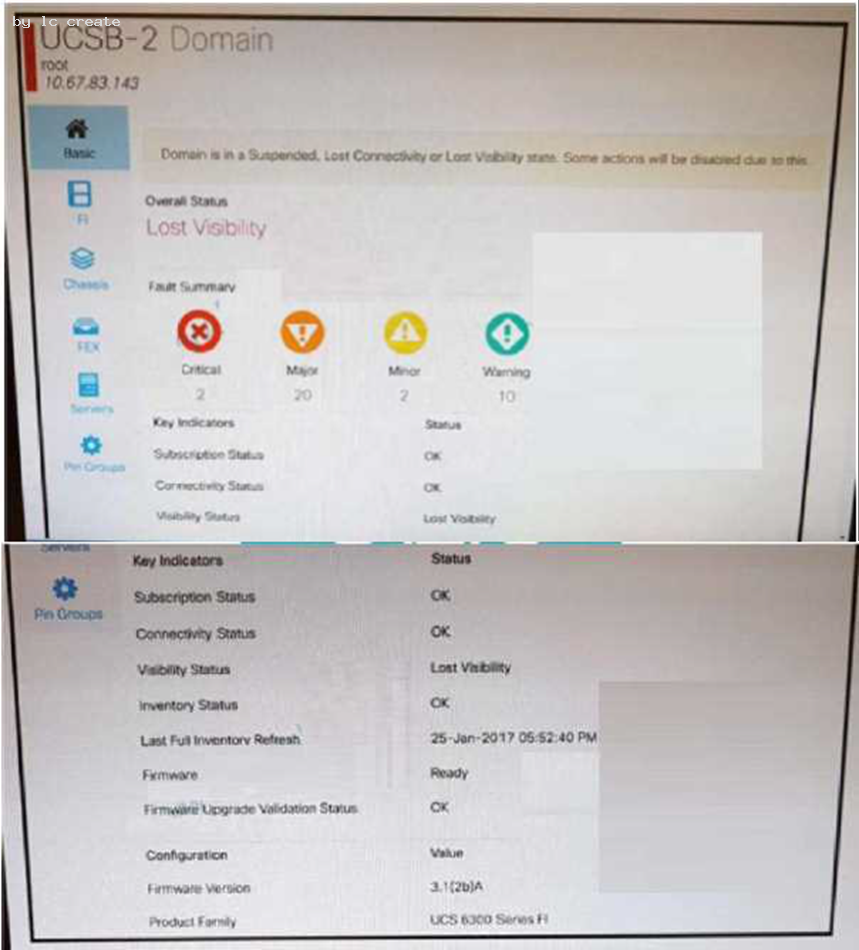

Refer to the exhibit.

Which potential cause of this issue is true?

• A. Cisco UCS Central has run out of licenses and the grace-period time has expired
• B. A firewall is blocking communication between the Cisco UCS Fabric Interconnect and Cisco UCS Central
• C. There is no issue .The admin of Cisco UCS Central has removed the Cisco UCS Domain from the inventory and after the clean-up takes place, this domain will no longer be present
• D. There is no issue Performing a manual full inventory refresh allows Cisco UCS Central and Cisco UCS Manager to become in-sync again

Answer: B

Explanation: https://www.cisco.com/c/en/us/support/docs/servers-unified-computing/unified-computing-system/200901-Troubleshooting-UCSM-Registration-Issues.pdf

NEW QUESTION 11

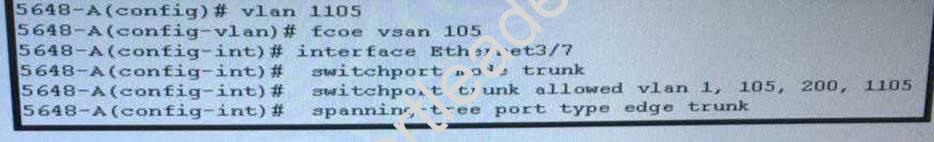

Refer to the exhibit.

On which VLAN does VLAN Discovery occur?

• A. VLAN 200
• B. VLAN 1105
• C. VLAN 105
• D. VLAN 1

Answer: D

NEW QUESTION 12
Refer to the exhibit.

An administrator configures a service profile with these settings. The profile shows this error during
association. Which action must the administrator take to resolve fault?

• A. Create valid WWPN pools for the vHBA.
• B. Change entorcevHBA Name to NO.
• C. Configure an initiator group for the service profile.
• D. Change Boot Mode from Legacy to UEFI.
• E. Make LUN ID 0 for both targets.

Answer: B

NEW QUESTION 13
Which two service appliances are supported with the Cisco Nexus 7000 RISE technology? (Choose two)

• A. Cisco ldentity Services Engine
• B. External Cisco Prime NAM
• C. Cisco Adaptive Security Appliance
• D. Citrix NetScaler ADC
• E. Cisco Wide Area Application Service appliance

Answer: BD

Explanation: https://www.cisco.com/c/en/us/solutions/data-center-virtualization/remote-integratedservices-engine/index.html#~tab-rise

NEW QUESTION 14
Which three main functions are provided by OTV to achieve failure isolation? (Choose three.)

• A. unknown Unicast traffic suppression
• B. use of multiple OTV overlays
• C. optimal outbound routing
• D. Spanning Tree isolation
• E. ARP optimization
• F. Unicast policy control

Answer: ADE

NEW QUESTION 15

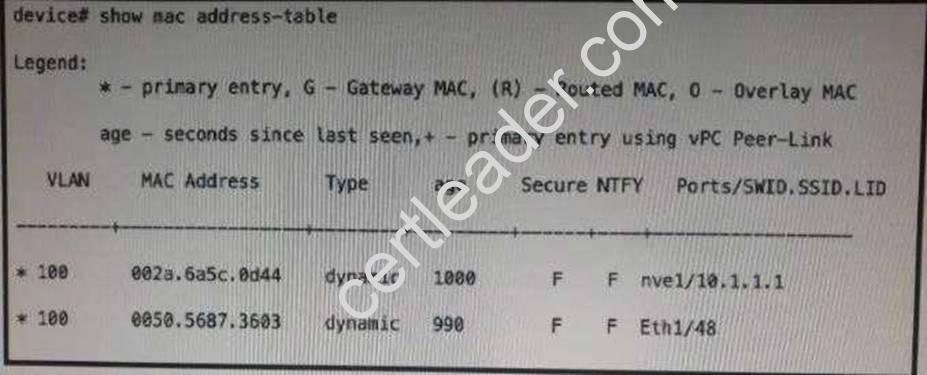

Refer to the exhibit.

Using which method is the host with MAC address (002 a.6a5c.0d44) learned?

• A. remote router running NVE
• B. remote FabricPath node
• C. remote VTEP
• D. local SVI
• E. local physical port

Answer: C

NEW QUESTION 16
Which four types of tables does Cisco vPathmaintain?Which are crucial for its operations toclassify
and redirect traffic flows to enforce service policies?

• A. service table
• B. forwarding table
• C. flow table
• D. adjacency table
• E. group table
• F. path table
• G. service node table
• H. MAC table

Answer: ACFG

NEW QUESTION 17
Which option is the default FC-MAP?

• A. 0f:fc:00
• B. 0e:fc:00
• C. 0e:fe:00
• D. 0f:fe:00

Answer: B

NEW QUESTION 18
Refer to the exhibit.

This output is observed when troubleshooting a blade that is unable to boot from SAN.Which action must the cisco UCS administrator take to resolve this issue?

• A. Check the zoning configuration on the fibre Channel switch
• B. Check the vHBA VSAN configuration in service profile
• C. Check the fatric interconnect storage upink ports
• D. Check the iscsi initiator group pool
• E. Check the LUN masking configuration on the storage array

Answer: A

NEW QUESTION 19
Which option is a valid overlay interface configuration and configures the OTV edge device as a
secondary OTV adjacency server?

• A. interface Overlay 1otv join-interface e 101/1/48 otv adjacency-server secondaryotv use-adjacency-server primary 10.1.1 1 otv extend-vlan 5-10
• B. interface Overlay 1 otv join-interface e1/2otv adjacency-server unicast-onlyotv use-adjacency-server 10 111 unicast-onlyotv extend-vlan 5-10
• C. interface Overlay 1otv join-interface e101/1/48otv adjacency-server unicast-onlyotv use-adjacency-server 10 1.1 1 unicastonlyotv extend-vlan 5-10
• D. interface Overlay 1 otv join-interface e1/2otv use-adjacency-sen/er 10.1 1 1 10.1.1 2otv extend-vlan 5-10

Answer: B
