NEW QUESTION 1
End user is on a cisco telepresence session with remote participant and can control the camera at the remote endpoint. Which feature is underlying?

• A. FECC
• B. DTMF
• C. FEC
• D. PIP

Answer: A

NEW QUESTION 2
An engineer is syncing Cisco Unity Connection with LDAP. Which three things should the engineer consider during this process? (Choose three.)

• A. PINs and passwords are replicated from the LDAP database to Cisco Unity Connection database.
• B. LDAP authentication must be configured and enabled.
• C. There is no limit to the amount of LDAP filters that can be created.
• D. SSL certificates from LDAP must be uploaded to Cisco Unity Connection.
• E. LDAP synchronization must be configured and enabled.
• F. Cisco Unity Connection supports integrations with OpenLDAP.

Answer: CEF

NEW QUESTION 3
Which two options are configured on the directory number configuration page within Cisco Unified Communications Manager Administrator? (Choose two.)

• A. partition
• B. MAC address
• C. auto answer
• D. softkey template
• E. common device configuration
• F. max calls

Answer: AF

NEW QUESTION 4
An engineer must ensure that user data is maintained in lightweight directory access protocol and copied to Cisco Unity Connection, but Cisco Unity Connection-specific data is locally maintained in the Cisco Unity Connection database. Which user creation option accomplishes this task?

• A. bulk administration
• B. import from CUCM via AXL
• C. import from LDAP
• D. manual creation

Answer: A

Explanation: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/11x/administration/guide/b_cucsag/b_cucsag

NEW QUESTION 5
Which command allows the telephony service of a Cisco Unified Communications Manager Express router to be associated to loopback address 192.168.143.44?

• A. !telephony-servicemax-ephones 4max-dn 8ip source-address 192.168.143.44!
• B. !telephony-servicemax-ephones 4max-dn 8ip bind src-addr 192.168.143.44!
• C. !telephony-servicemax-ephones 4max-dn 8source-address ipv4:192.168.143.44!
• D. !telephony-servicemax-ephones 4max-dn 8ip address 192.168.143.44!

Answer: A

NEW QUESTION 6
Two IP phones configured in the same office have a phone call in progress when the Call Manager they are registered to fails. Which result is true?

• A. The call remains active, and the Cisco IP Phones enable SIP proxy mode for RTP
• B. The call is immediately disconnected
• C. The call remains active but features such as MOH and Transfer are unavailable for the rest of the call
• D. The call disconnects after the RTP/RTCP keepalive between the IP phones and Call Manager fails.

Answer: A

NEW QUESTION 7
Which three methods can an engineer use to create users in Cisco Unity Connection? (Choose three.)

• A. Local
• B. Cisco Unified Presence Server
• C. Cisco Unified Communications Manager
• D. LDAP
• E. TMS
• F. Outlook

Answer: ACD

NEW QUESTION 8
A company has a 5-digit dial plan. A junior engineer inquires about the directory number external masks. Why are external masks used?

• A. to block calling number identification
• B. to enable called number identification
• C. to convert the calling directory number to the PSTN routable calling directory number
• D. to associate a directory number with a SIP endpoint

Answer: C

NEW QUESTION 9
ACisco Unified Communications administrator wants to implement Cisco IM and Presence for the company. If it is installed in IM-only user mode, which three services are supported for users? (Choose three.)

• A. video calls support
• B. third-party XMPP client support
• C. presence support
• D. Microsoft Lync support
• E. Microsoft Office Communicator support
• F. instant messaging support

Answer: BCF

NEW QUESTION 10
What is the limit of Cisco Unified Communications Manager for IP phones located in one standard cluster?

• A. 30000
• B. 35000
• C. 40000
• D. 45000

Answer: C

NEW QUESTION 11
Which of the following is not a source for Cisco Unified Reporting?

• A. Cisco Unified CM database
• B. Cisco Unified Presence database
• C. Cisco Unified CM RTMT counters
• D. Cisco Unified CM CDR/CAR

Answer: B

NEW QUESTION 12
An engineer must import many users at the same time into Cisco Unity Connection. Which method must be used?

• A. manual creation
• B. CAPF profiles
• C. COBRAS
• D. bulk administration

Answer: D

NEW QUESTION 13
Which Cisco Unified Communications Manager system report shows high and low call volume patterns?

• A. CAR report
• B. QoS by Gateway
• C. QoS by call types
• D. Traffic summary
• E. Traffic summary by extension

Answer: D

NEW QUESTION 14
Which profile must be added to the end user profile when enabling an end user for Cisco Unified Presence?

• A. Device profile
• B. UC service profile
• C. Extension mobility profile
• D. SIP profile

Answer: B

NEW QUESTION 15
All 50 employees in a company have Cisco IP phones. One employee notices high latency (more than 250 ms one way) on the IP network. How might this latency impact the employees when they try to make an outgoing phone call?

• A. The voice quality cuts in and out
• B. The call fails with a busy signal
• C. The voice quality sounds like it is under water
• D. The conversation has delays and interruptions

Answer: D

NEW QUESTION 16
A network engineer wants to delete unassigned phone extensions from the Cisco Unified Communications Manager system. Where is this task accomplished?

• A. route plan report
• B. directory numbers
• C. route plan details
• D. enterprise parameters

Answer: A

NEW QUESTION 17
Which three tools are used to create phone user accounts in Cisco Unified Communications Manager Express? (Choose three.)

• A. Cisco Configuration Professional
• B. CPE
• C. CLI
• D. GUI
• E. TUI
• F. Cisco Security Device Manager

Answer: ACD

NEW QUESTION 18

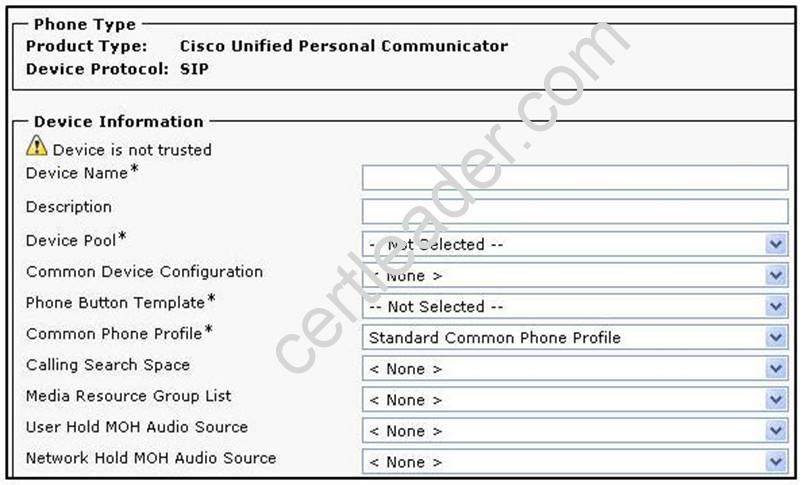

Refer to the exhibit.


The exhibit shows a partial screen shot for a Cisco Unified Personal Communicator device. When should this device be configured?

• A. when configuring the Service Advertisement Framework feature for Call Control Discovery
• B. when Cisco Unified Personal Communicator is used in desk-phone mode
• C. when Cisco Unified Personal Communicator version 7.0 is used in soft-phone mode
• D. when Cisco Unified Personal Communicator version 8.0 is used in soft-phone mode
• E. when Cisco Unified Personal Communicator version 8.0 is used in desk-phone mode

Answer: C
